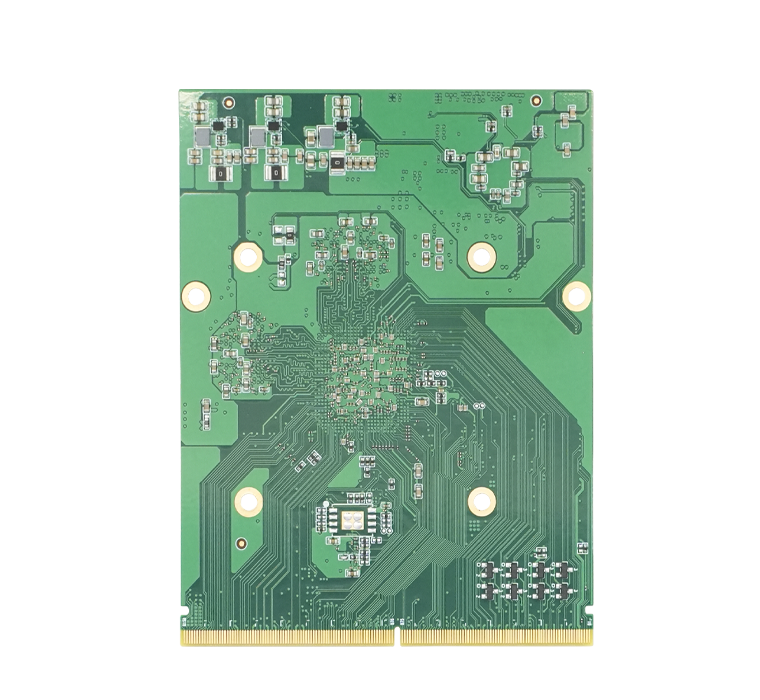

Drag and drop the mouse to view the image 360 °
- Onboard Rockchip RK3588 processor (8 Cores 64 bit, 8nm technology)
- Onboard 8GB LPDDR4X RAM,
- support 2 SATA, onboard 64GB EMMC
- Support 1x HDMI 2.0, 1 x HDMI2.1, 1 x DP1.4 interface; An HMDI2.0 input port
- Support 2GMAC network ports (one is optional for LAN)
- MXM slot, support expanding MXM AI acceleration card
- Operating temperature: -20℃~55℃,
- Size 82*105mm
Model | MXM-R1 |
Processing Unit | RK3588 |
ARM Architecture | 4 x Cortex-A76 2.4GHz + 4 x Cortex-A55 1.8GHz |
ARM Core | 8 Cores 64 bit, 8nm technology |
NPU Core | 6Tops neural network processing performance, support INT4/INT8/INT16 hybrid operation |
GPU Core | ARM Mali-G610 MP4, Quad Core GPU, support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1 |
Bus Type | MXM3 .1 / up to PCI Express 4.0 x4 |
RAM | 8G 64bit LPDDR4 |
Memory Clock | 2133MHz |
Storage Size | EMMC 64GB |
Speed Model | 400MB/s at HS400 mode, dual channel |
Display | Display output：HDMI 2.1、HDMI 2.0、DP 1.4 Display input：HDMI 2.0 |
Board Power | Board 4V±5% input |
Board Dimensions | MXM Graphics Module Version 3.1 Type B (105x82mm) |
Video Encoder | 8K@30fps H.265/H.264 encoding |
Video Decoder | 8K@60fps H.265/H.264/VP9/AV1 decoding |
JPEG Encoder | 1080P@280fps |
JPEG Decoder | 1080P@280fps |
Operation System | Support Android 12/debian 5.4/unbutu 20.04, etc |
Operating Temperature | -20℃~55℃ |
Storage Temperature | -40℃~85℃ |
Operating Humidity | Operation environment: 5%~85% humidity, (0℃~45℃) non condensing |
Storage Humidity | Storage environment: 5%~95% humidity, (-40℃~85℃) non condensing |

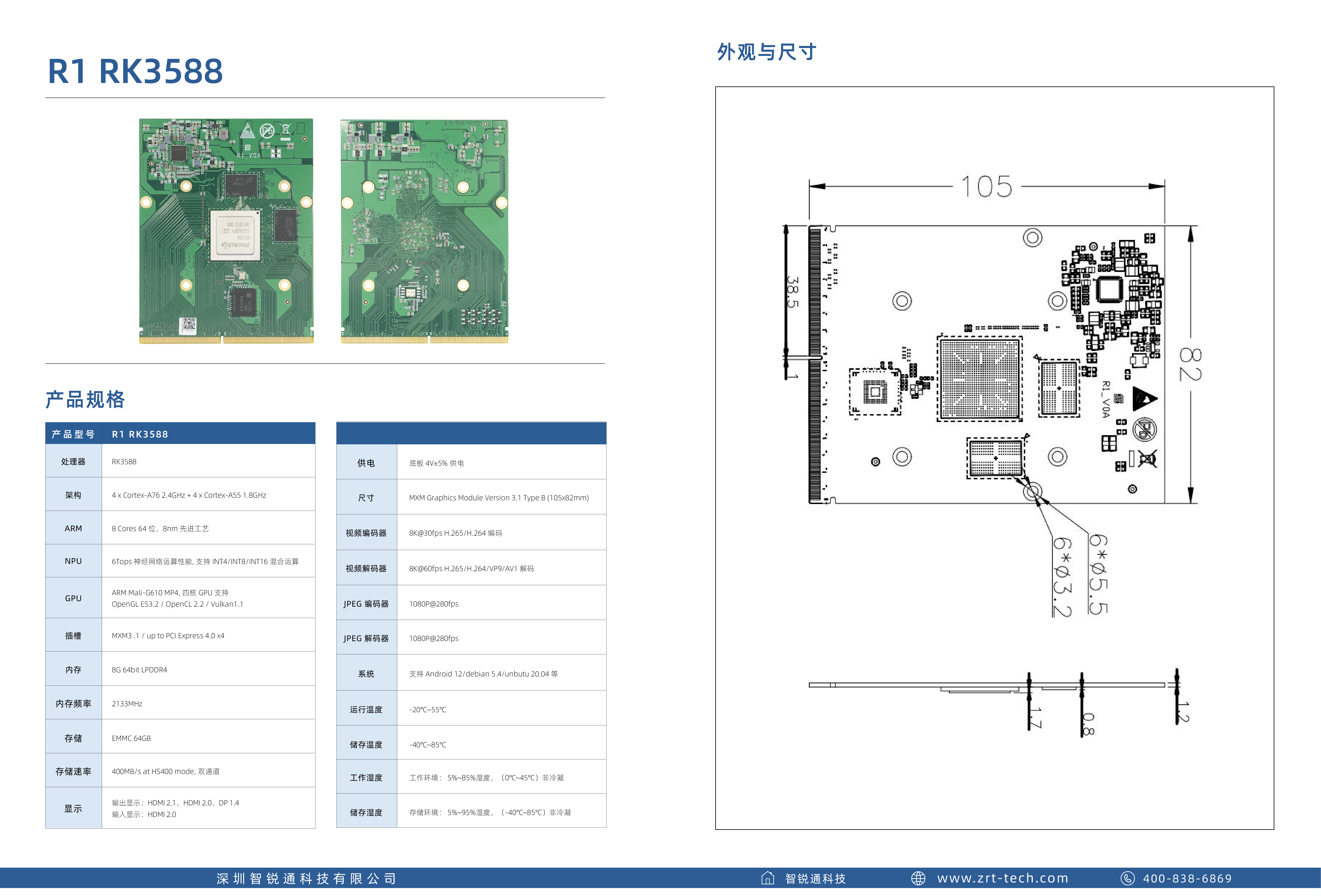

Download the datasheet:
MXM-R1 - RK3588 Specification.pdf
