Home > Product > ATX motherboard

Drag and drop the mouse to view the image 360 °

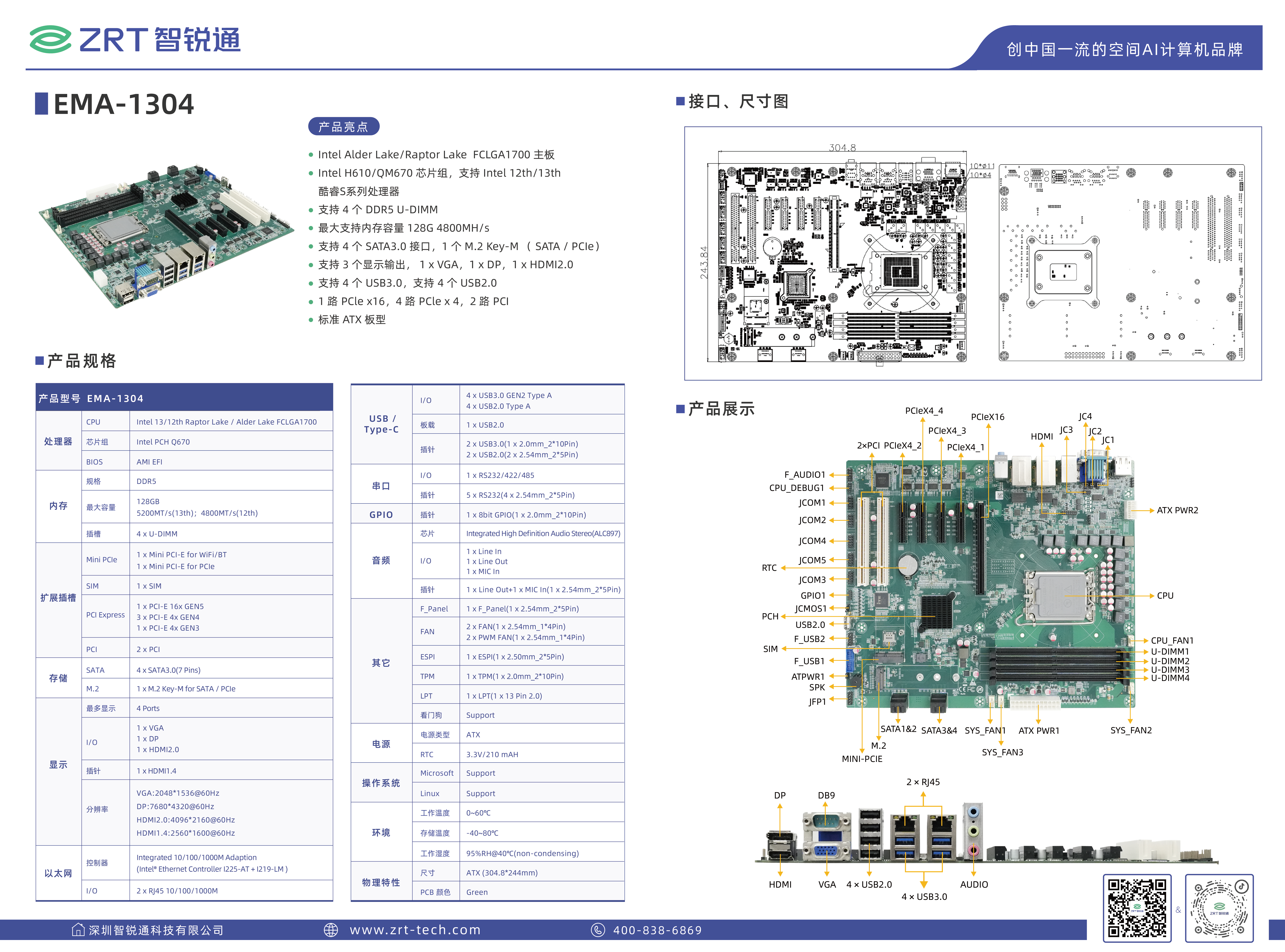

Standard ATX motherboard , Intel H610/QM670 chipset
Intel Alder Lake/Raptor Lake FCLGA1700 motherboard processor | EMA-1304

Intel Raptor Lake platform mainboard

Support Intel 12th/13th core processor, standard i3-13100

Supports four DDR5 U-DIMMs

Maximum memory capacity 128GB 4800MH/S

Support 4 SATA3.0 interfaces, 1 M.2Key-M(SATA/PCle)

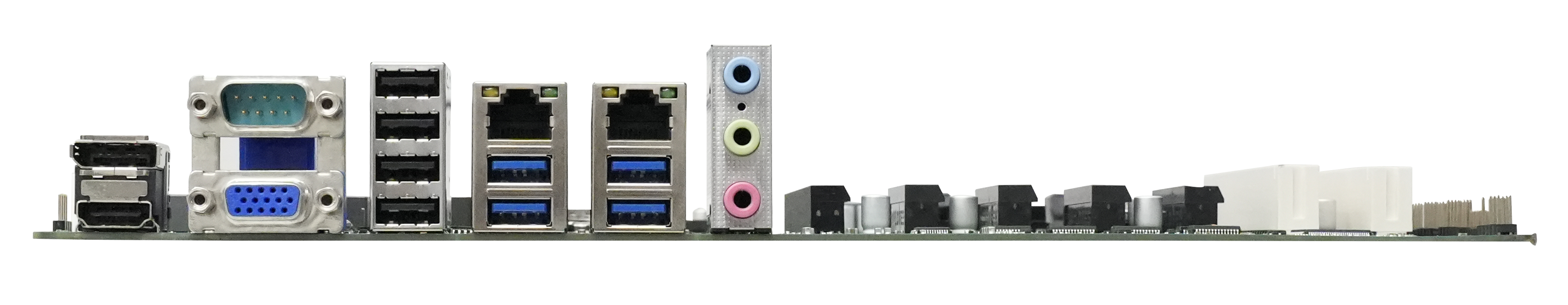

Support 3 display outputs, 1xVGA, 1xDP, 1xHDMI2.0

Supports 4 USB3.0 and 4 USB2.0

1 way PCle x16, 4 way PClex4, 2 way PCI

Standard ATX plate type
