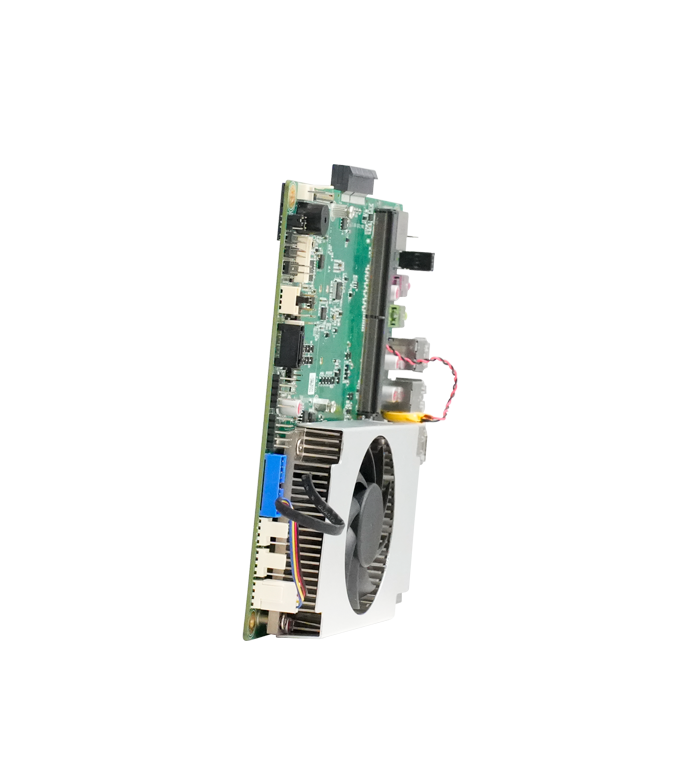

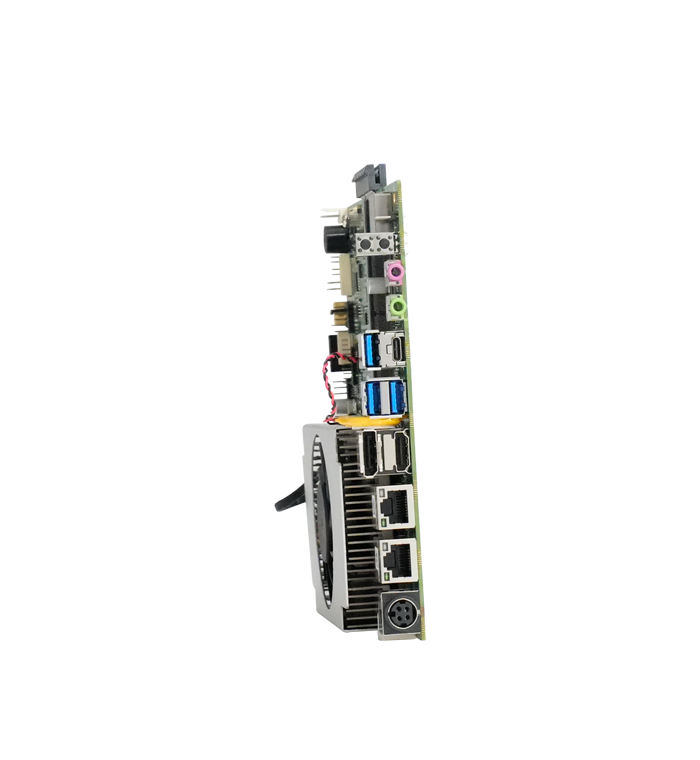

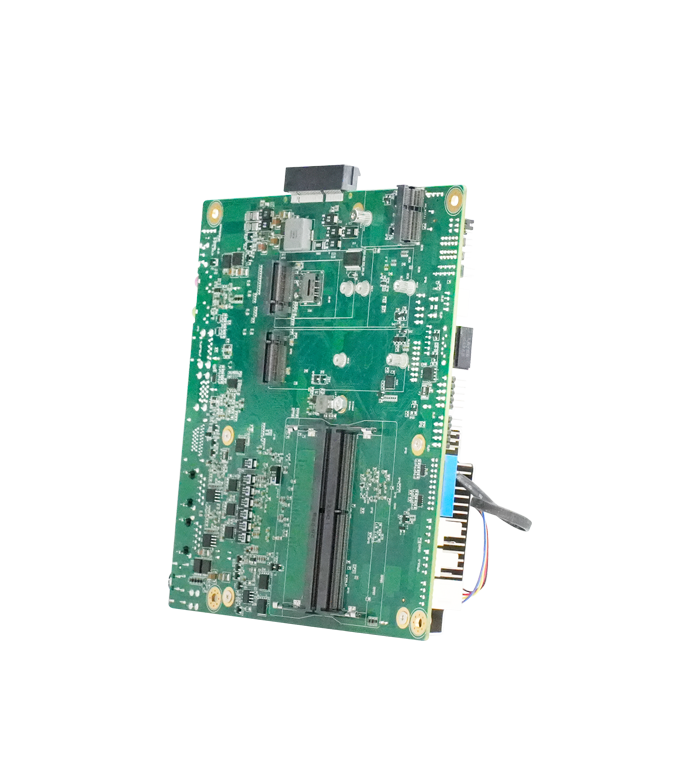

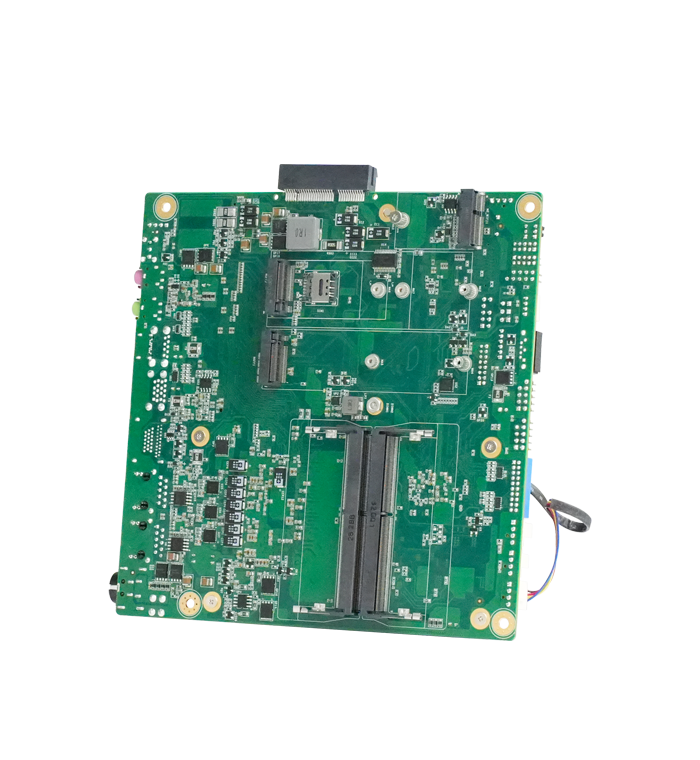

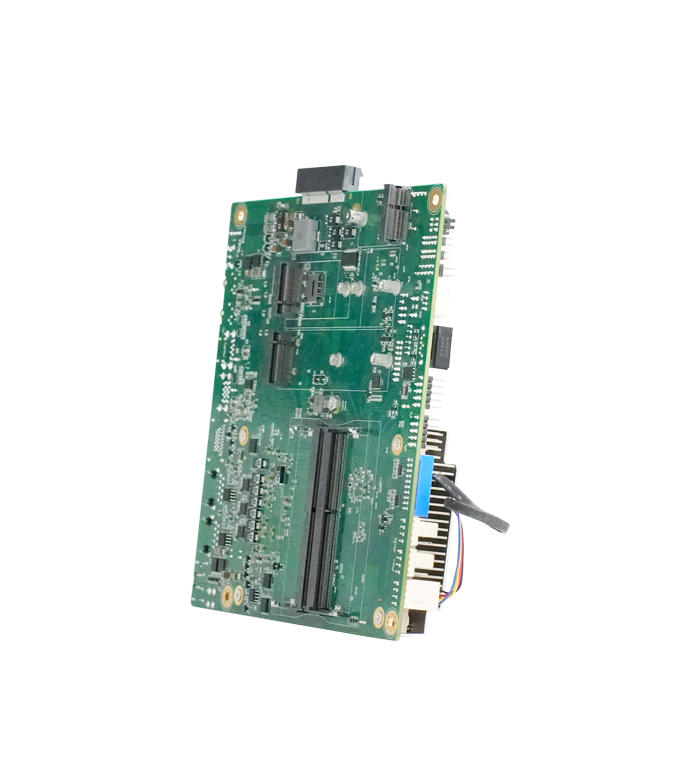

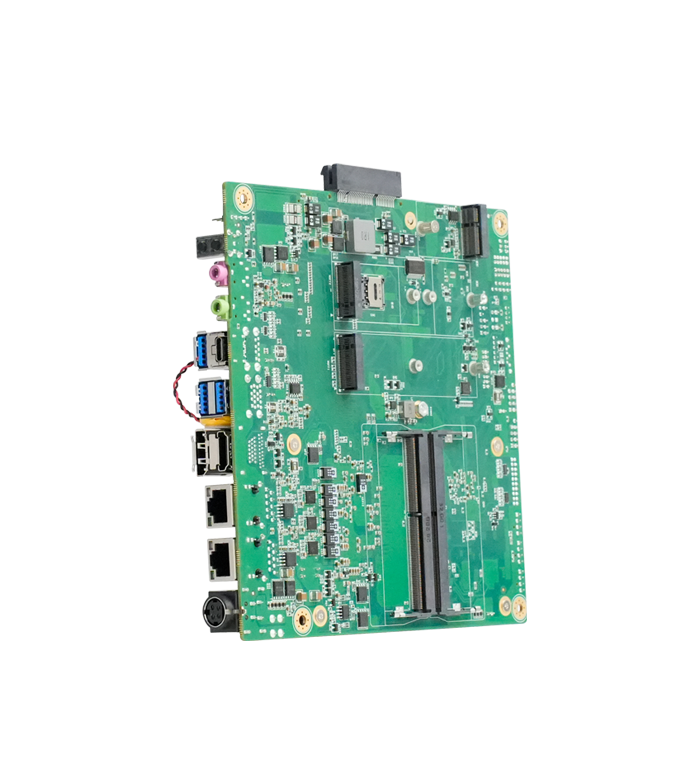

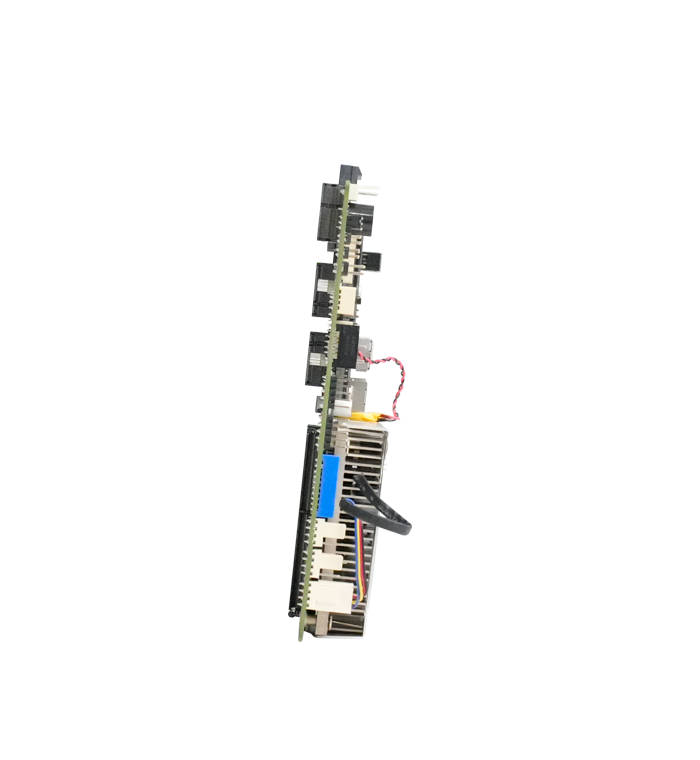

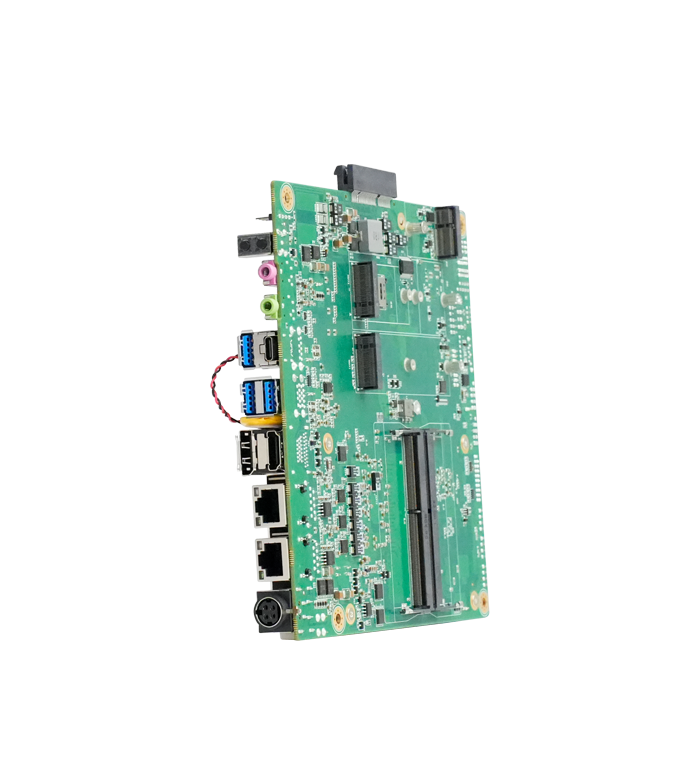

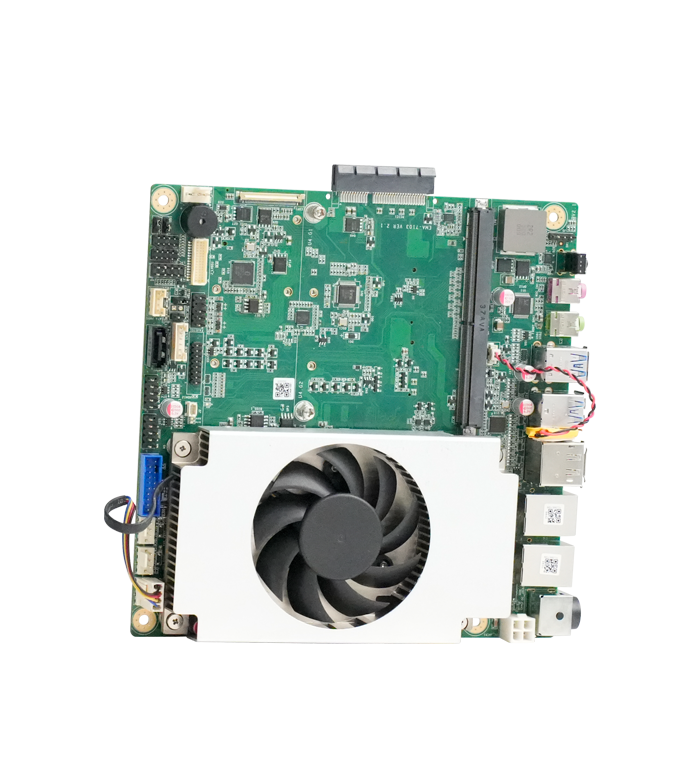

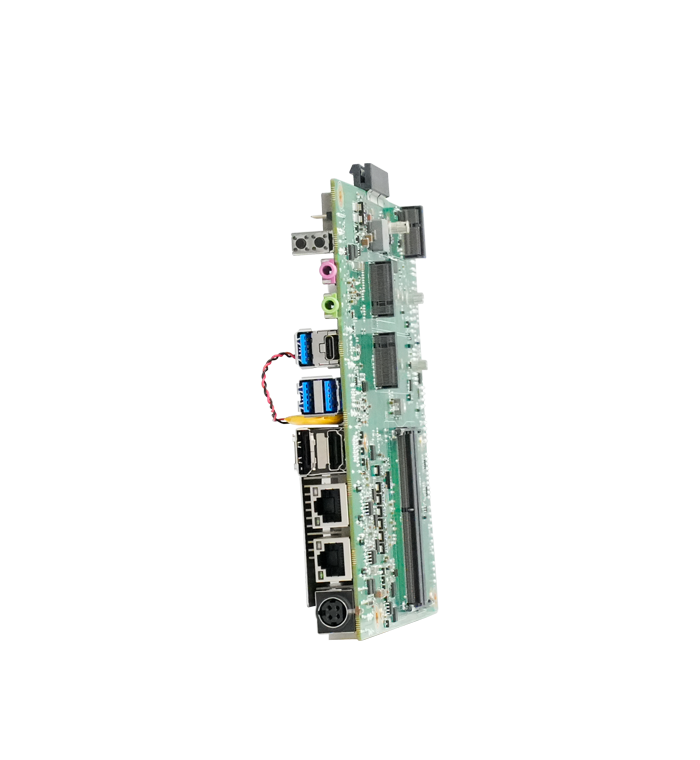

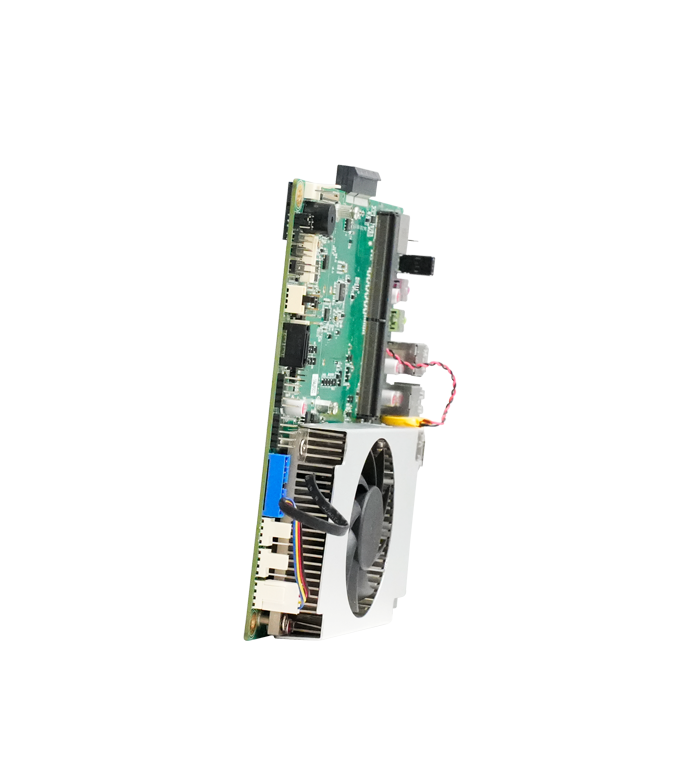

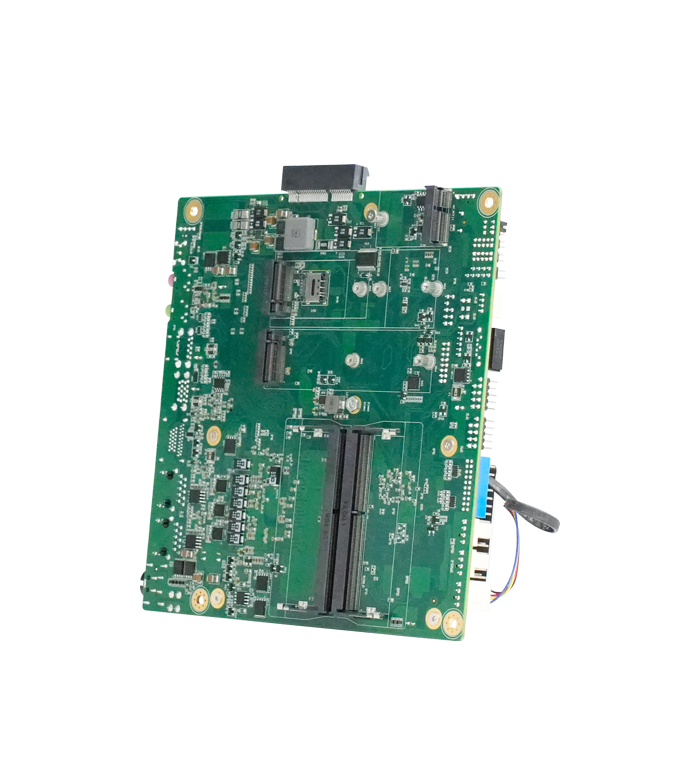

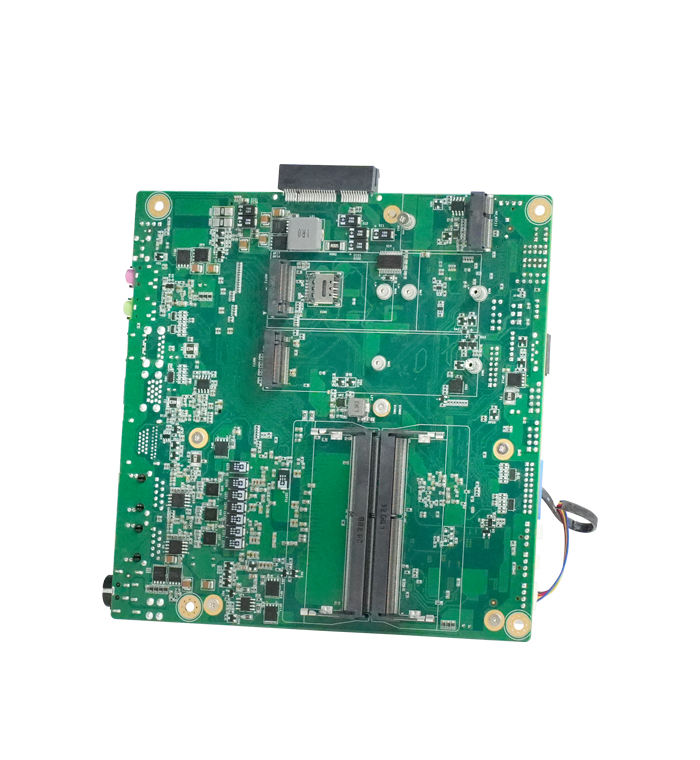

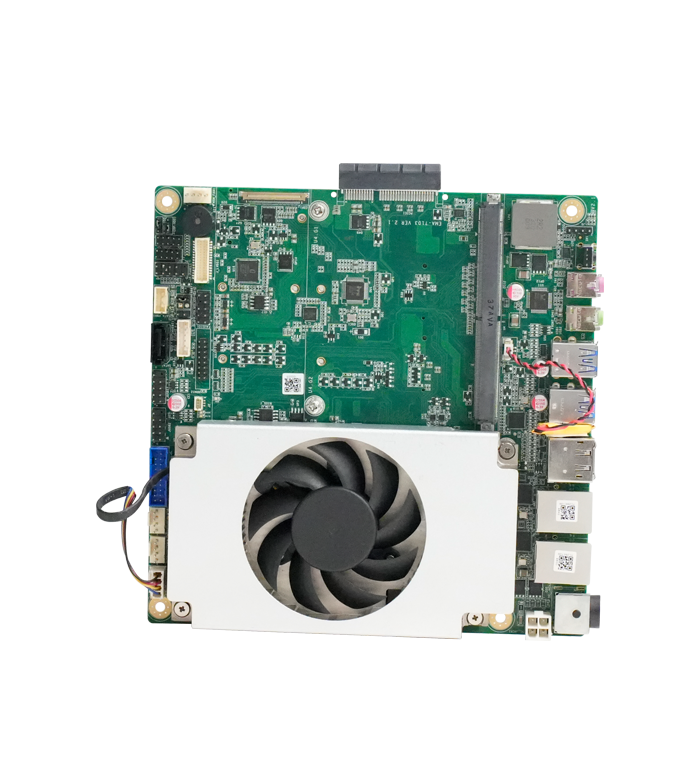

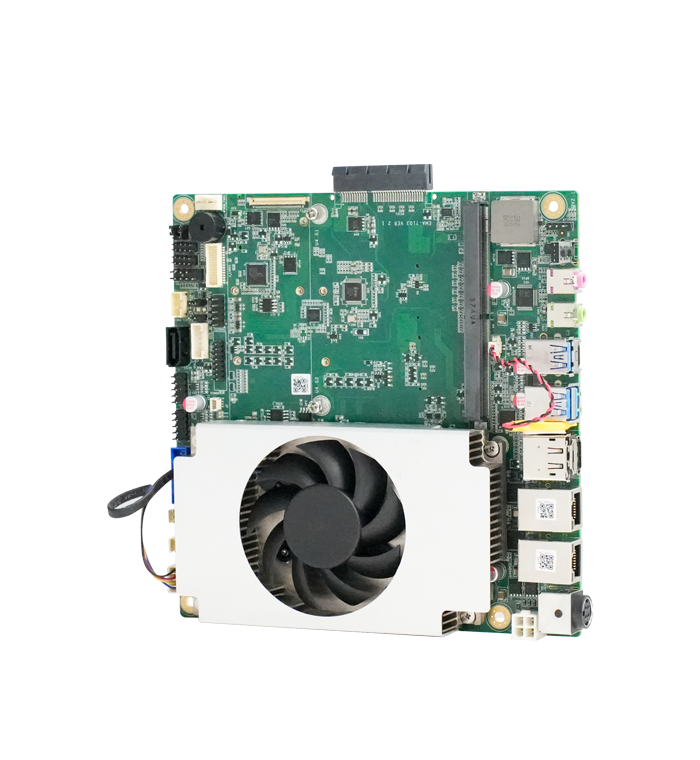

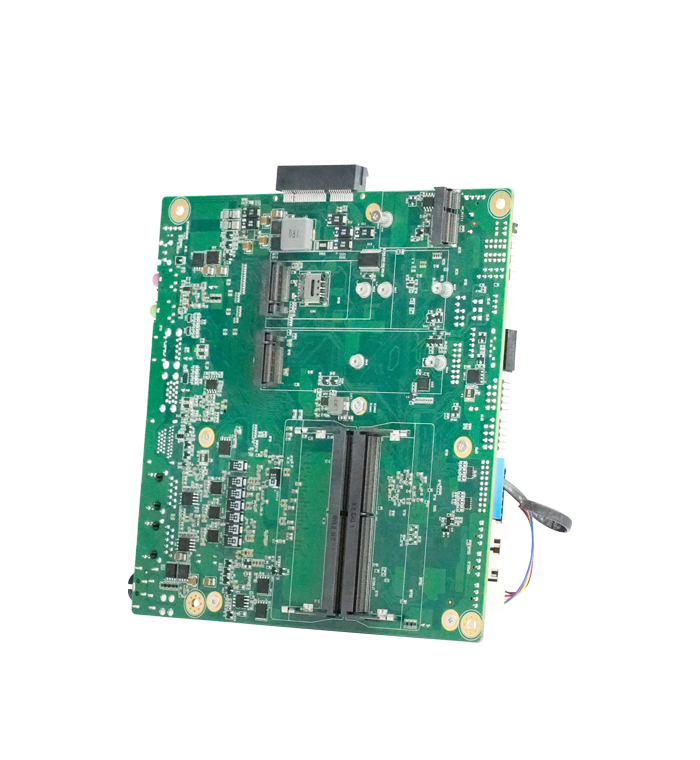

Drag and drop the mouse to view the image 360 °

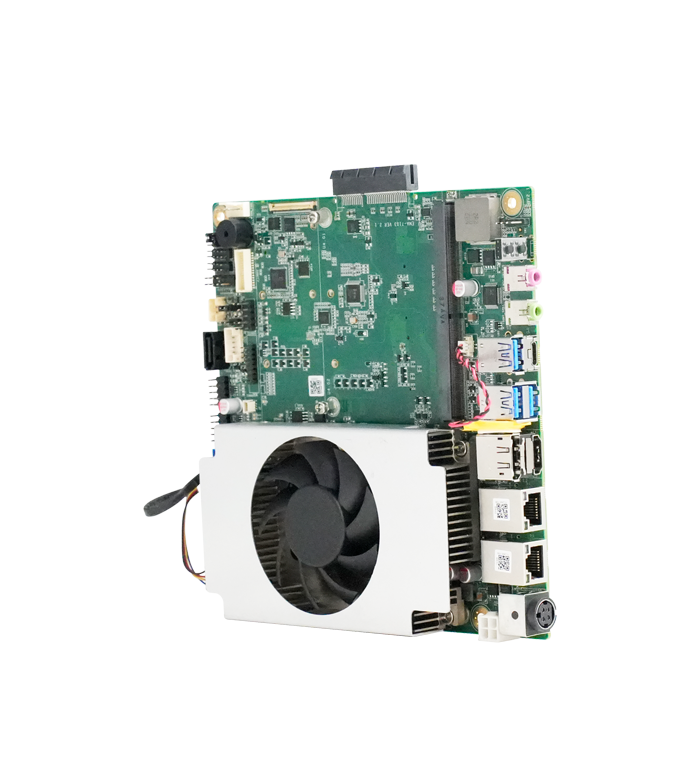

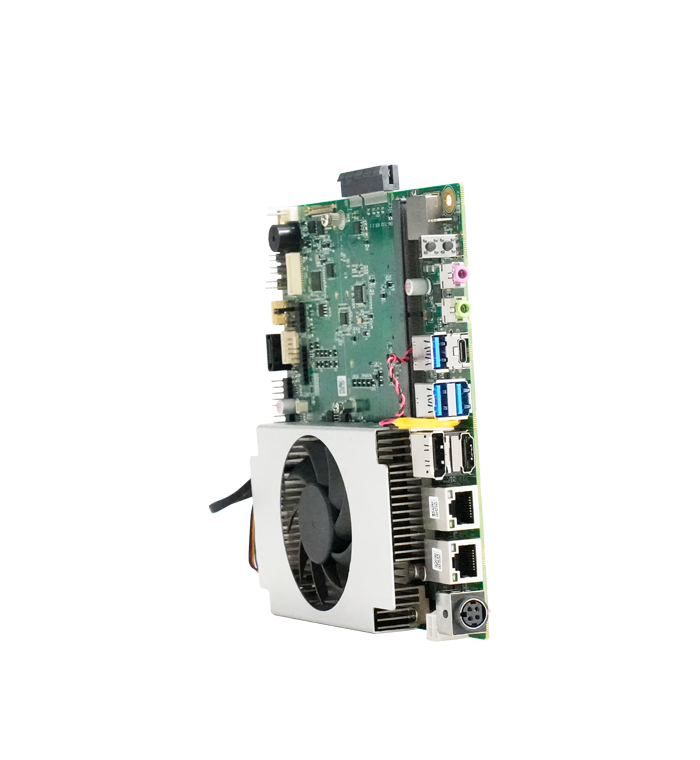

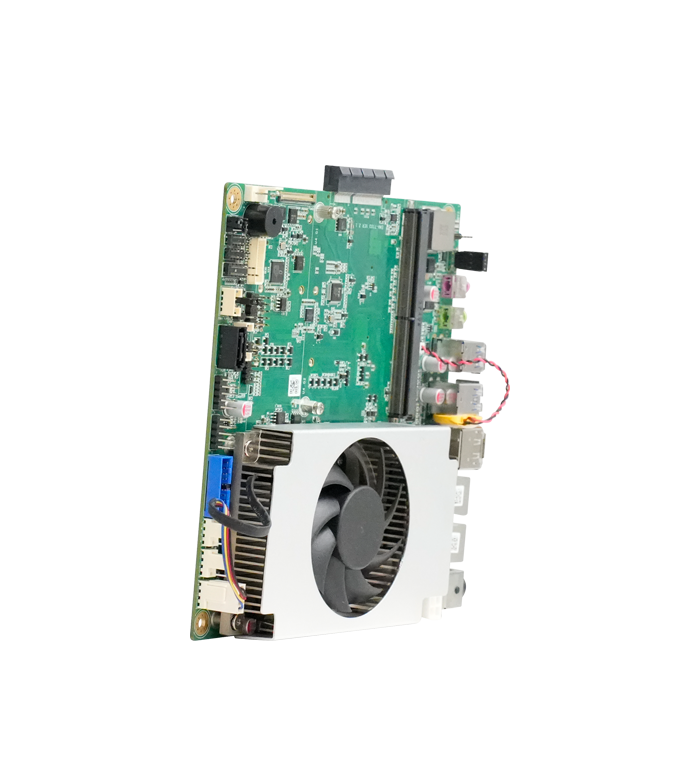

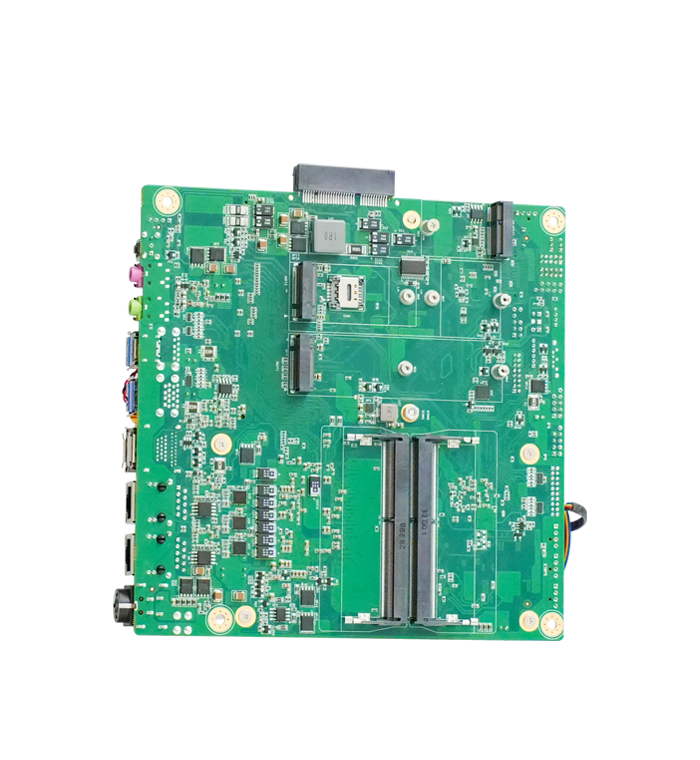

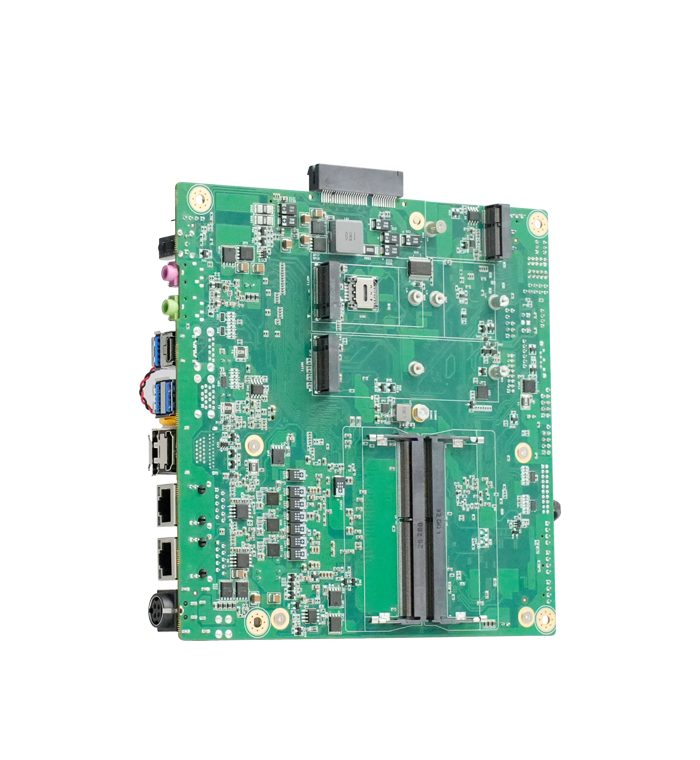

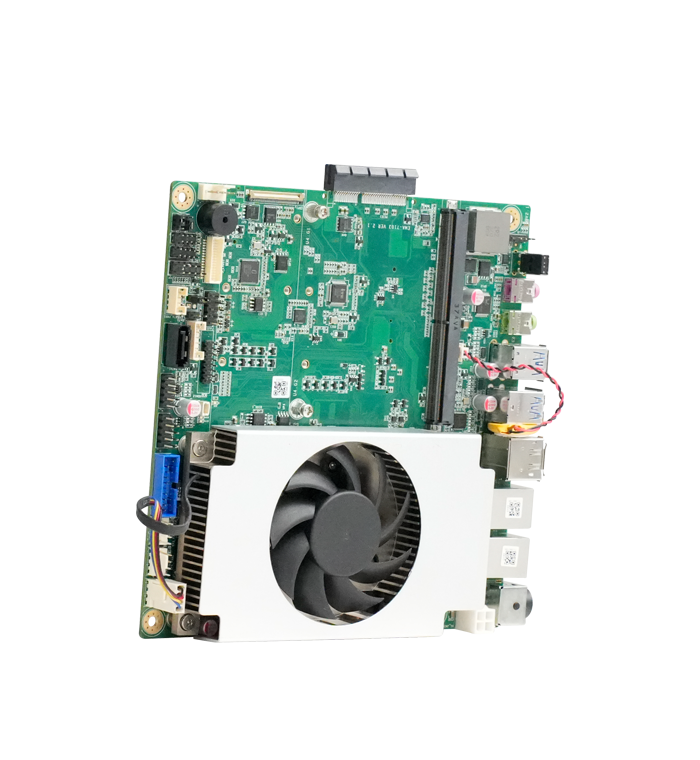

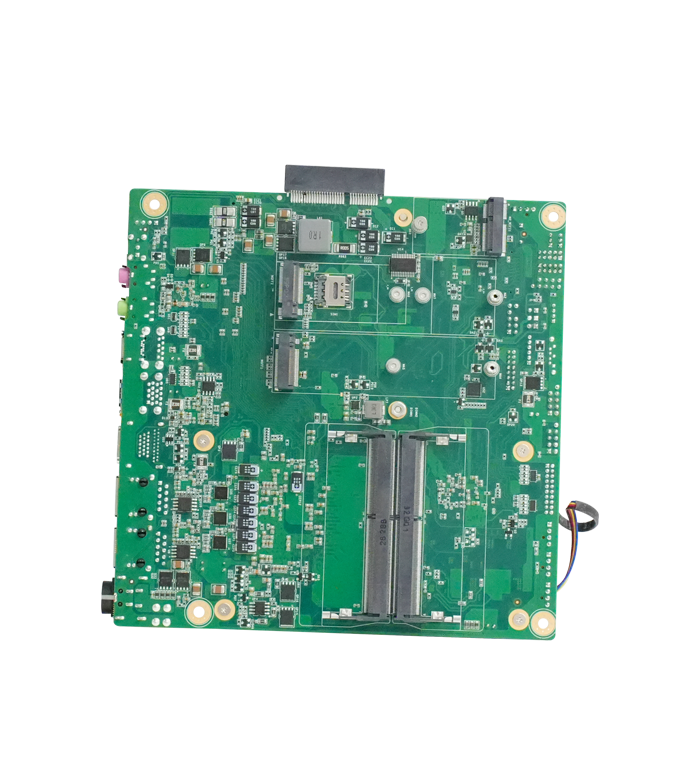

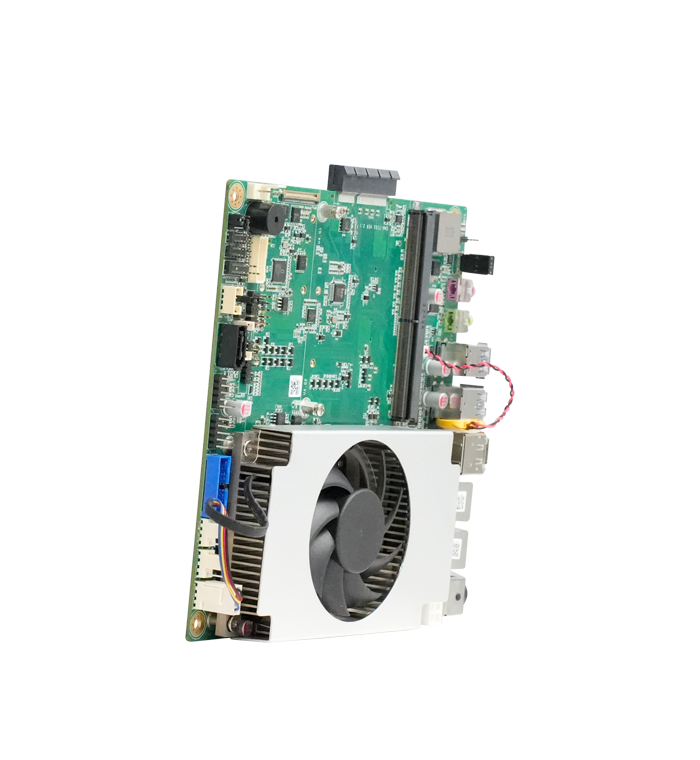

Industrial mini ITX motherboard based on Intel Tiger Lake-H series 11th Gen. CPU EMA-7103
EMA-7103 Tiger Lake-H+MXM

Features

• Support 11th Gen. Intel Tiger Lake-H series processors,

• Support DP+HDMI independent display,

• Onboard 1 x eDP, 1 x HDMI, 1 x LVDS pin,

• Dual-channel DDR4 memory up to 64GB,

• Supports dual M.2 SSDs

• Support 4G/5G IoT module

• Support MXM graphics card,

• With one-key reset and one-key off screen functions,

• Standard 7-inch motherboard, 170*170mm

Contact us

Model

EMA-7103

产品类型

Form Factor

产品类型

Form Factor

7“miniITX  motherboard



处理器

Processor


CPU

Intel Tiger Lake-H i5/i7/i9   FCBGA1787

处理器

CPU

I5-11500H

I7-11850H

I9-11950H

内核数

Core Number

6

8

8

基本主频

Base   Frequency

2.4/2.9GHz

2.1/2.5GHz

2.1/2.6GHz

最高主频

Max. Speed

4.60GHz

4.90GHz

5.00GHz

二级缓存

L2 Cache

12MB

24MB

24MB

功耗

TDP (W)

35/45W

35/45W

35/45W

芯片组

Chipset

Intel PCH QM580

BIOS

128Mb SPI FLASH



内存

Memory

规格

Technology

DDR4 3200MHz

最大容量

Max.   Capacity

64G

插槽

Socket

2 x SO-DIMM



扩展插槽

Expansion   Slot



M.2

1 x M.2 Key-M(2242 / 2280) for PCIe/SATA

1 x M.2 Key-B(3042 / 3052) for SATA &4G/5G

1 x M.2 Key-E(2230) for Wifi

SIM

1 x SIM

PCI-Express

1 x PCIe 4x

存储

Storage

SATA

1 x SATA3.0(7 Pins)

串口

COM

插针

Header Pin

1 x RS232 (1 x 2.0mm_2*5Pin)



显示

Graphics

最多显示

Multiple   Display

5 Ports

I/O

1 x HDMI (From GPU DP_A DP to HDMI)

1 x DP (From GPU DP_B)

插针

Header Pin

1 x eDP (From CPU)

1 x HDMI or DP (From GPU DP_C)

1 x LVDS (From GPU DP_D DP to LVDS)



分辨率

Resolution

HDMI2.0:4096*2160@60Hz

DP:7680*4096@60Hz

eDP:4096*2304@60Hz

LVDS: 1920*1080@60Hz



USB / Type-C

I/O

3 x USB3.0

1 x Type C (Support USB2.0/USB3.0)

插针

Header Pin

2 x USB3.0(1 x 2.0mm_2*10Pin)

2 x USB2.0(1 x 2.54mm_2*5Pin)



以太网

Ethernet

控制器 Controller

Integrated 10/100/1000M/2.5GB Adaption

(Intel® Ethernet Controller I225-AT)

I/O

2 x RJ45



音频

Audio

芯片

Chipset

Integrated High Definition   Audio Stereo (ALC897)

I/O

1 x Line Out

1 x MIC In

插针

Header Pin

1 x Line Out 1 x MIC In



其它

Others

按钮

Button

1 x RV Button

1 x Reset Button

F_Panel

1 x F_Panel(1 x   2.54mm_2*5Pin)

LPC

1 x LPC

电源

Power Requirements

电源类型

Power Type

1 x DC In(4P In)

1 x ATX 2x2 4Pin

电源电压Input   Voltage

18~26V



环境

Environment

工作温度

Operating   Temperature

0~50

存储温度

Storage   Temperature

-20~70

工作湿度

Operating   Humidity

10~95%(non-condensing)



物理特性

Physical

尺寸

Dimensions

mITX (170*170mm)

PCB 颜色

Color

Green





操作系统

OS

Microsoft

Windows 10 LTSC/1809(RS5)



Linux

Red Hat 8.4

Ubuntu 20.04

Yocto 4.0xLTS



Datasheet EMA-7103.pdf
