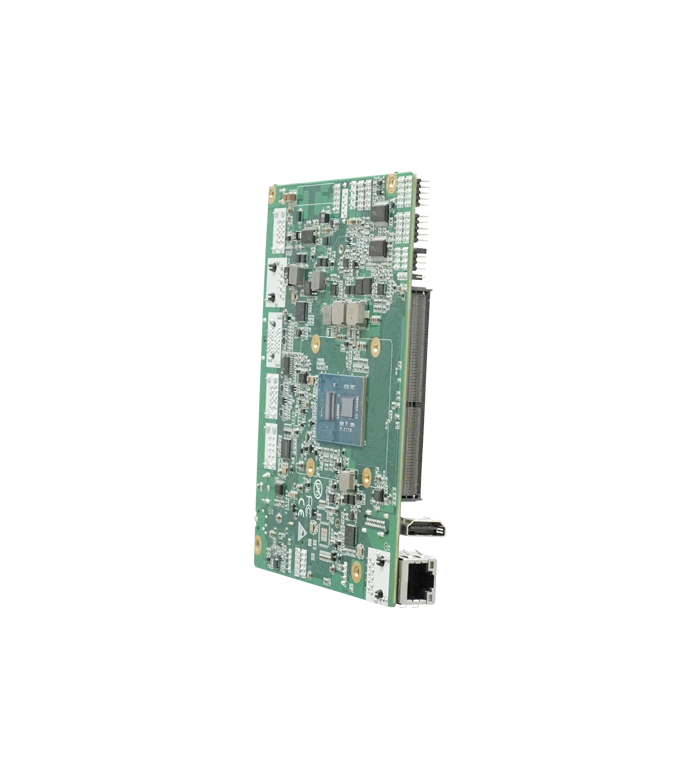

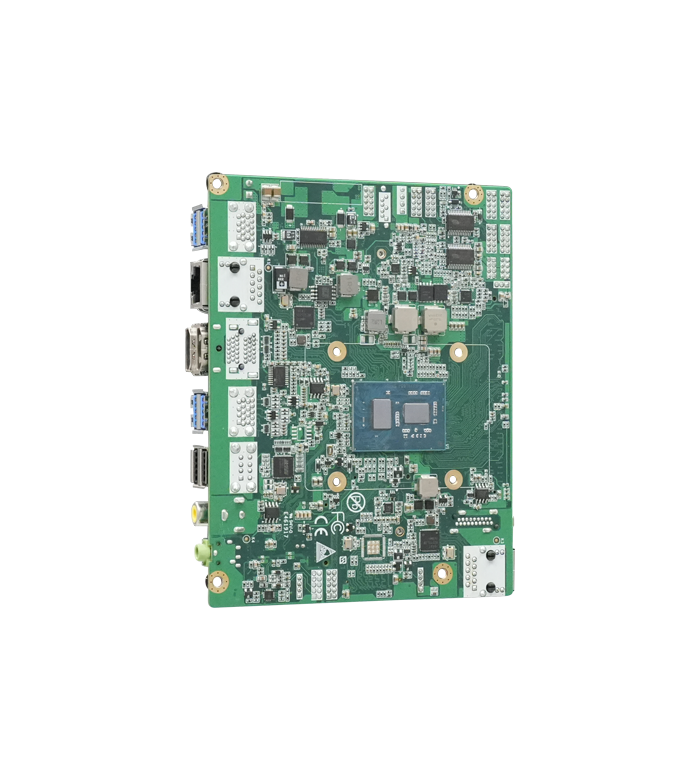

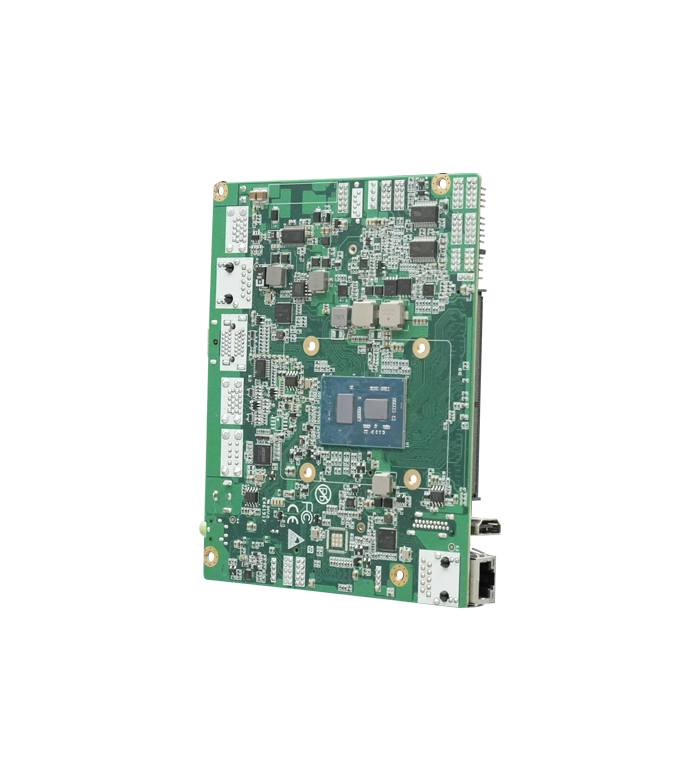

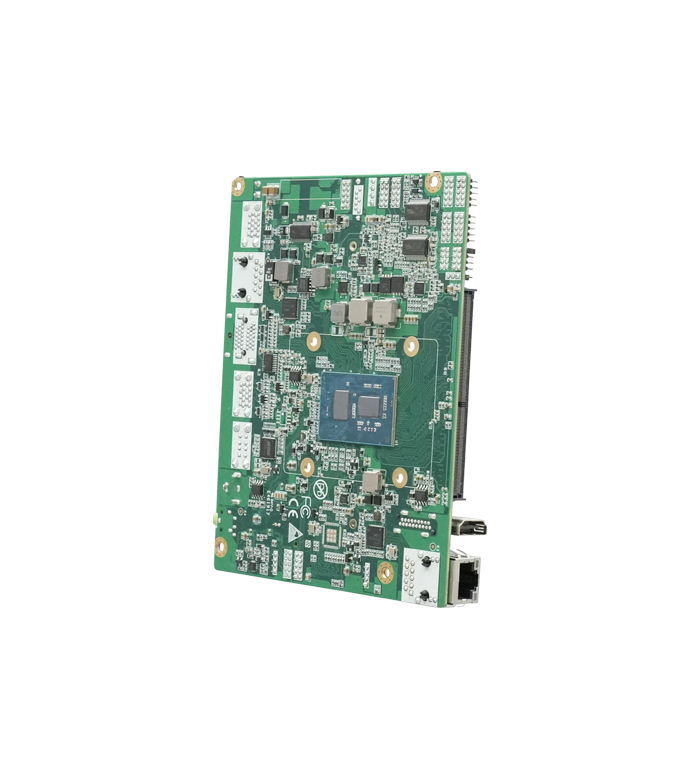

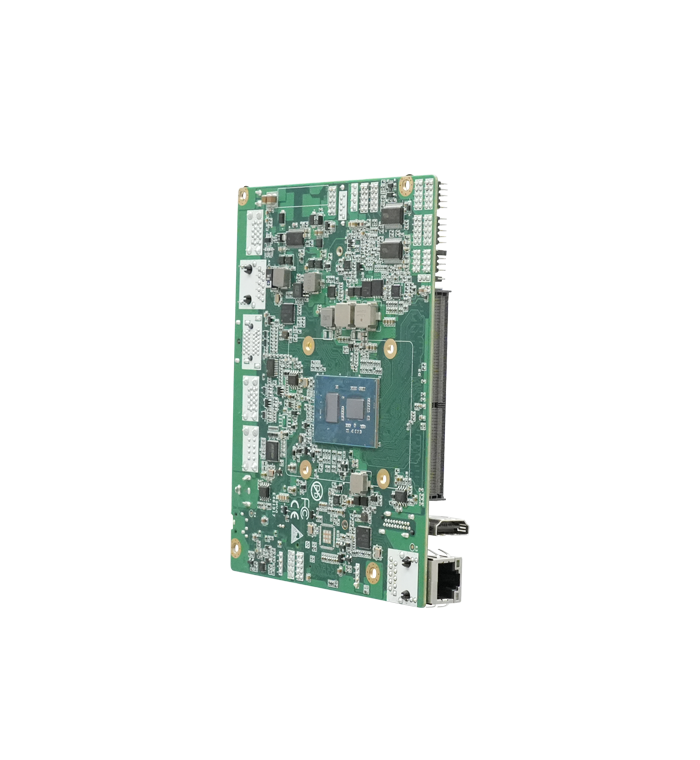

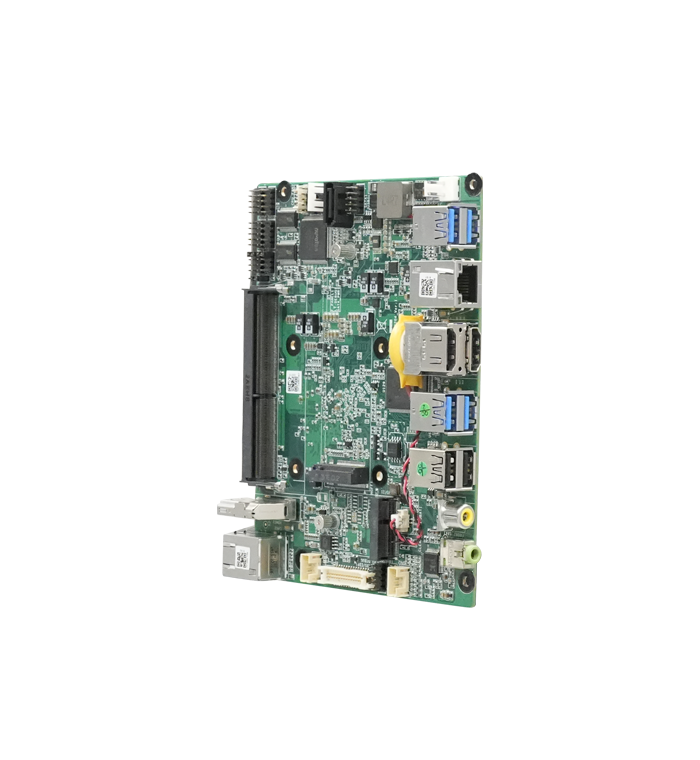

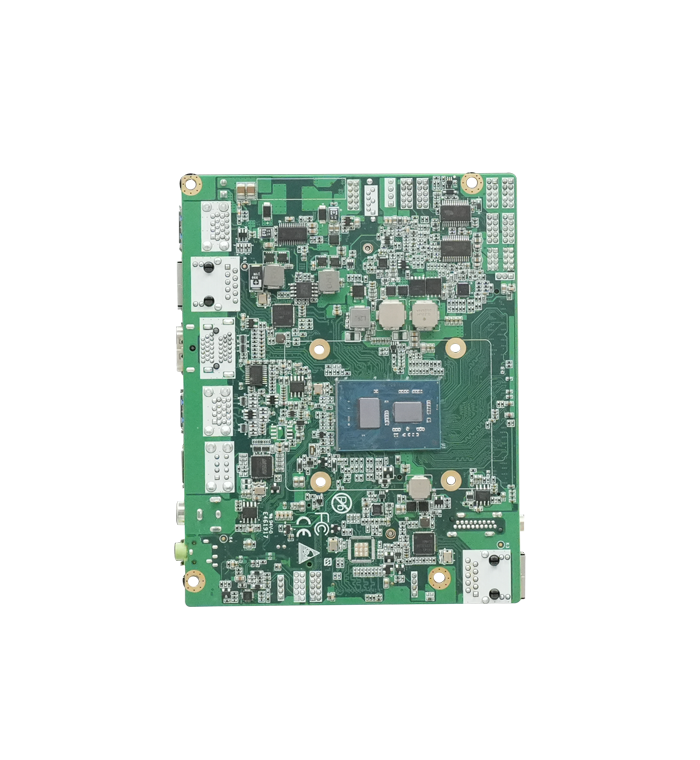

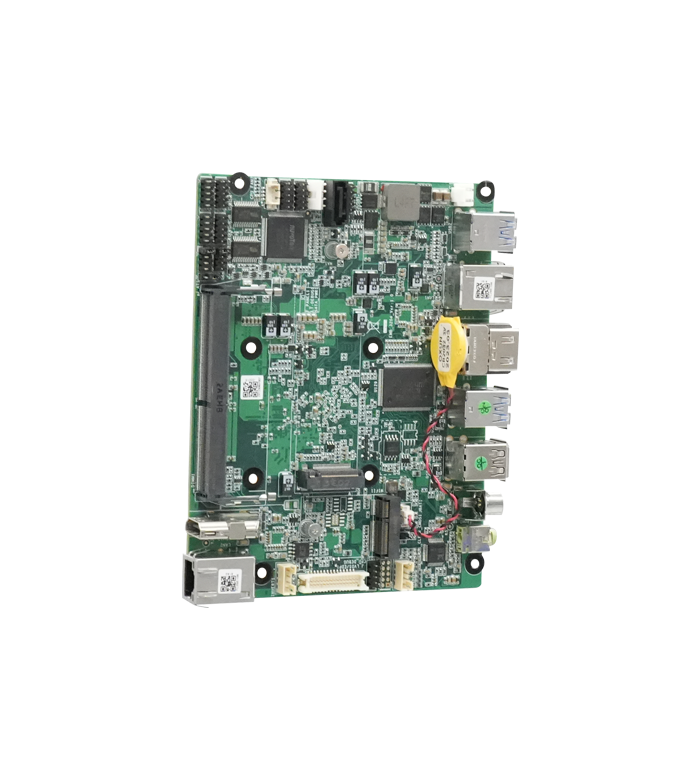

Drag and drop the mouse to view the image 360 °

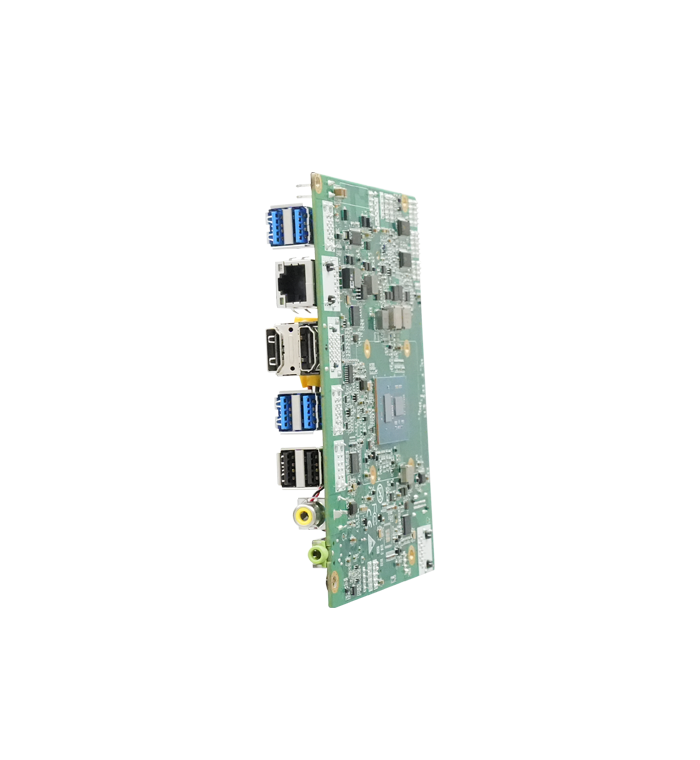

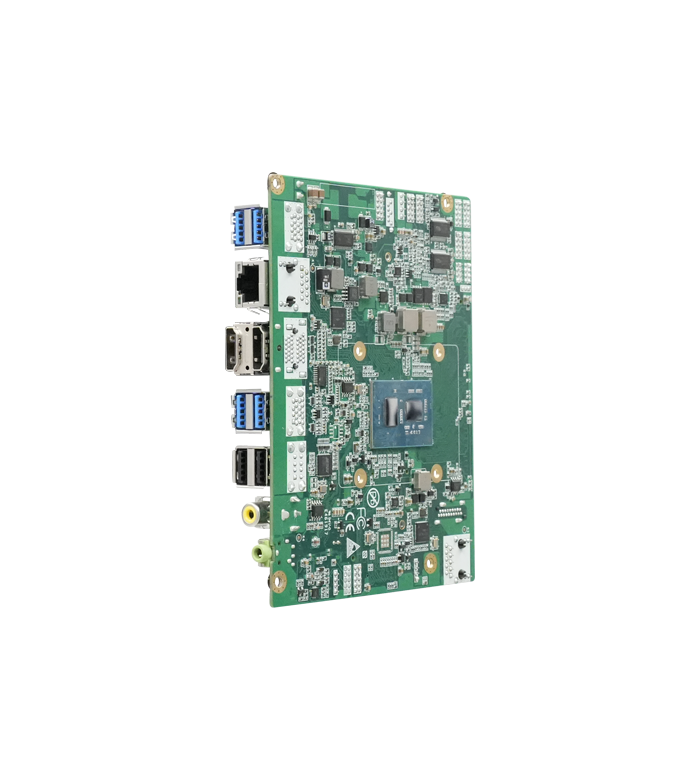

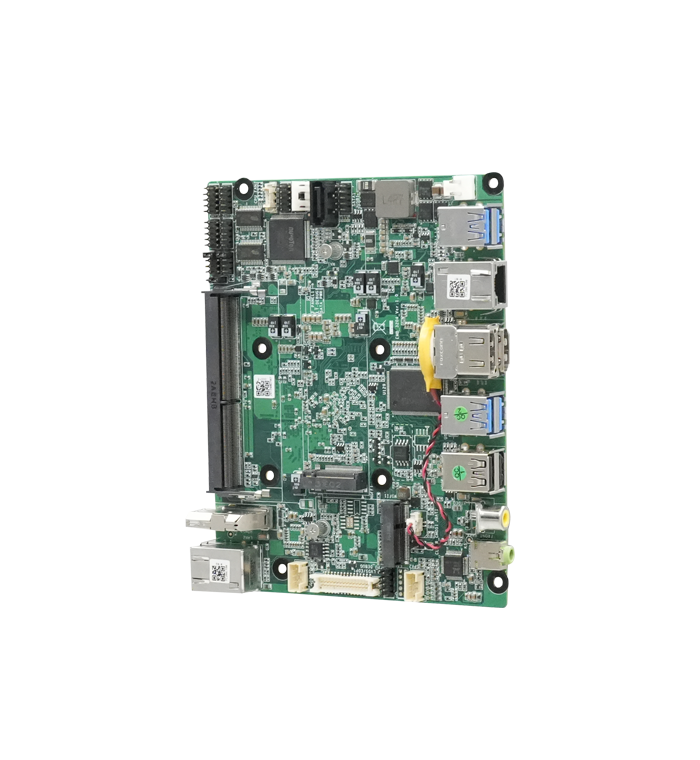

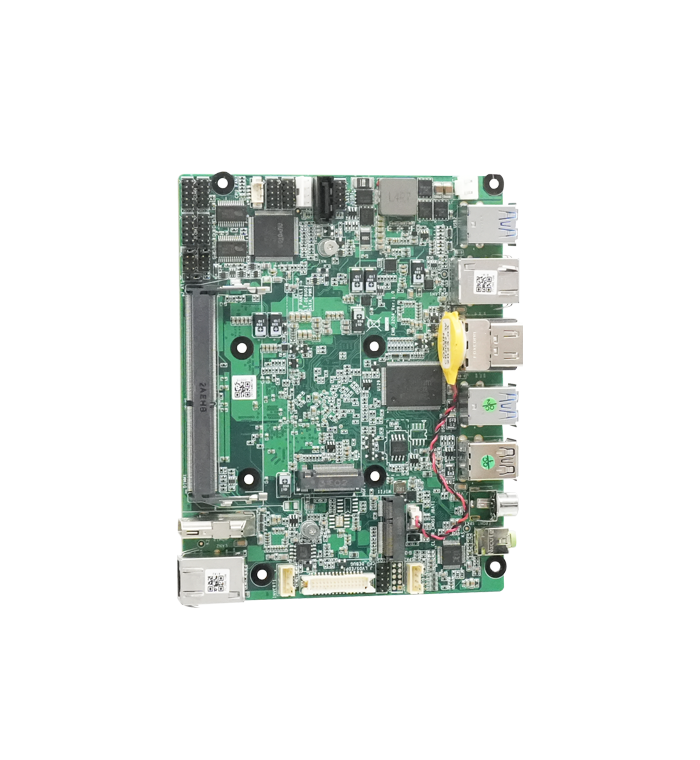

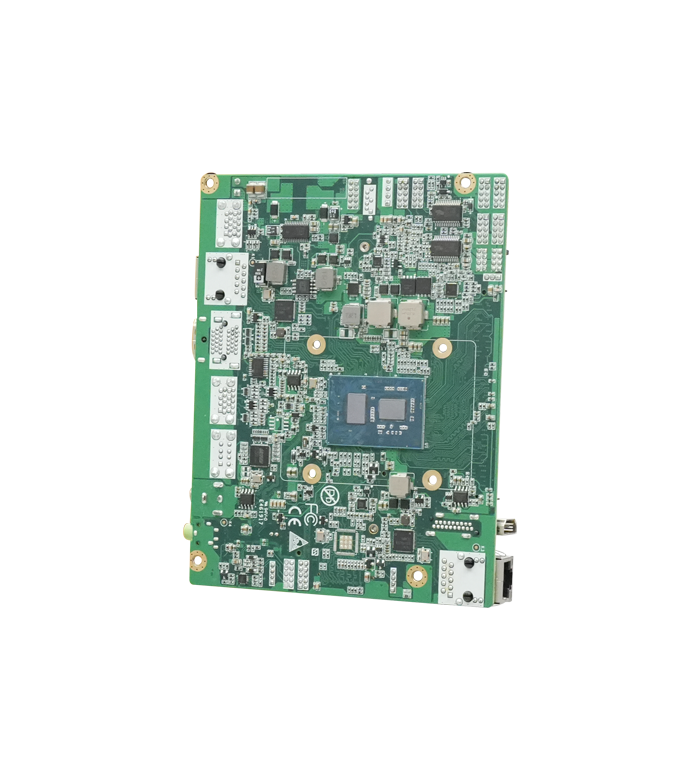

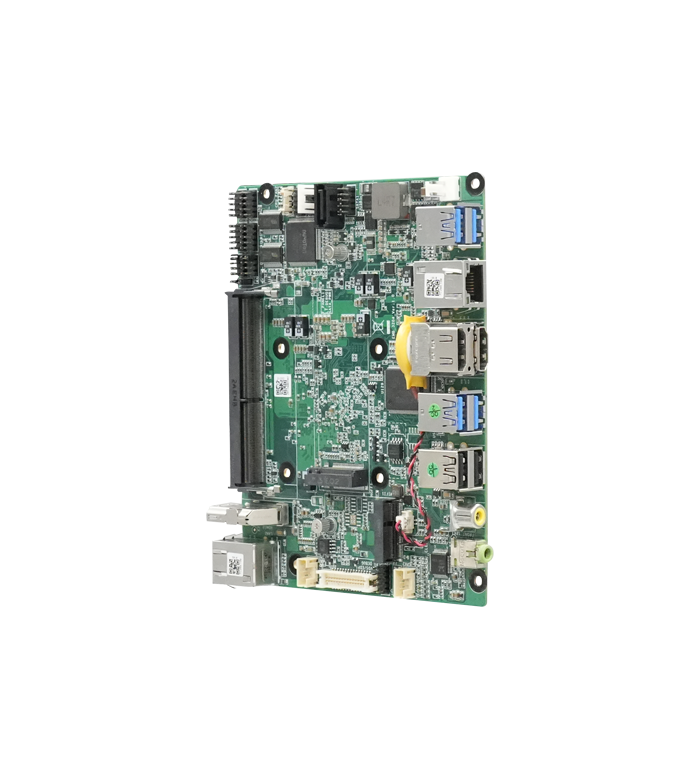

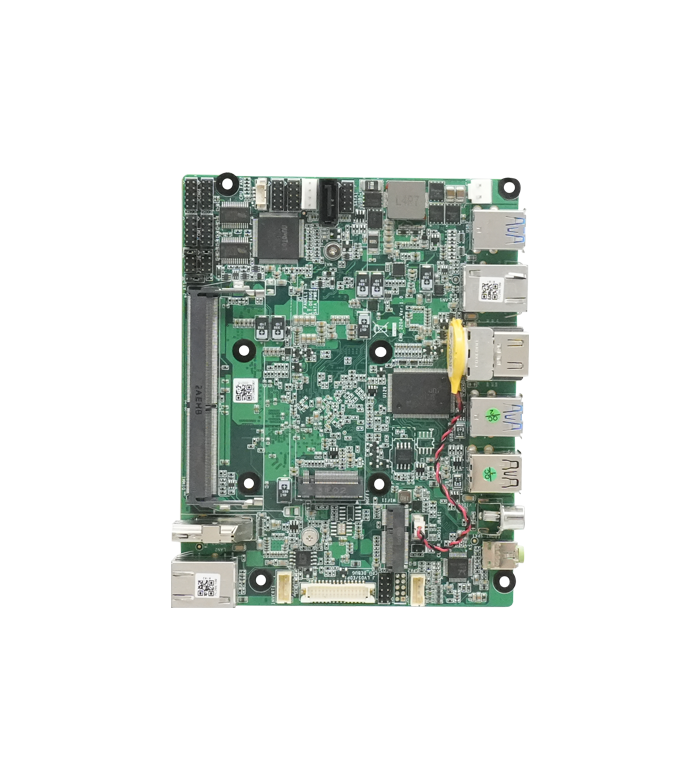

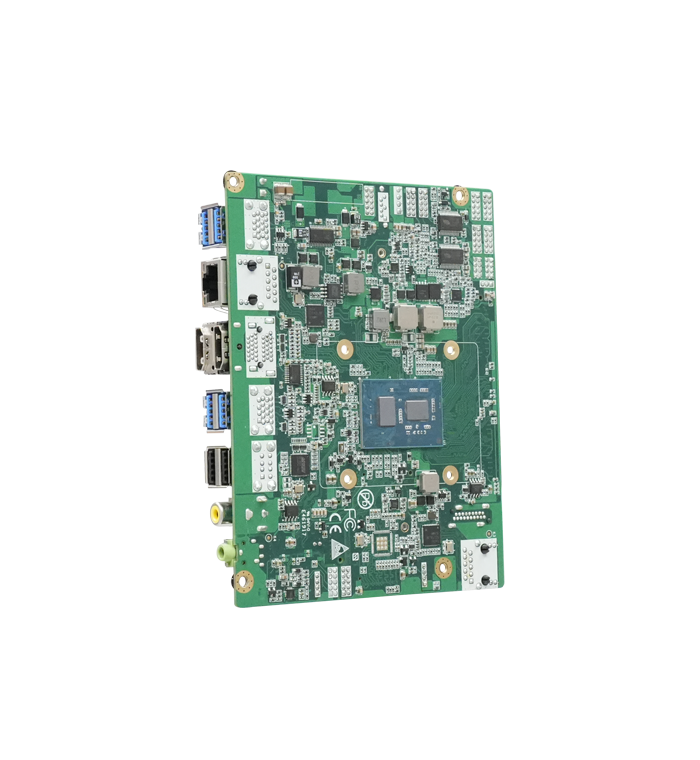

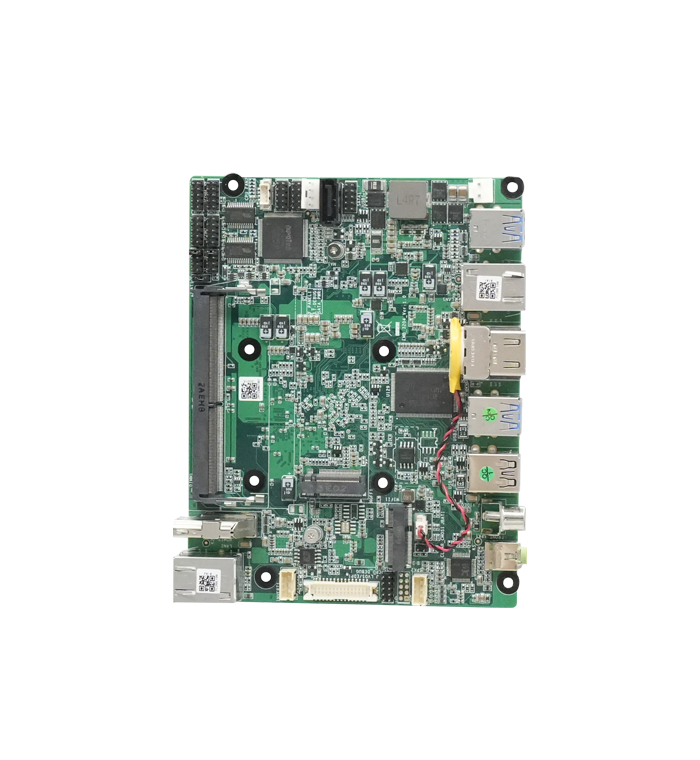

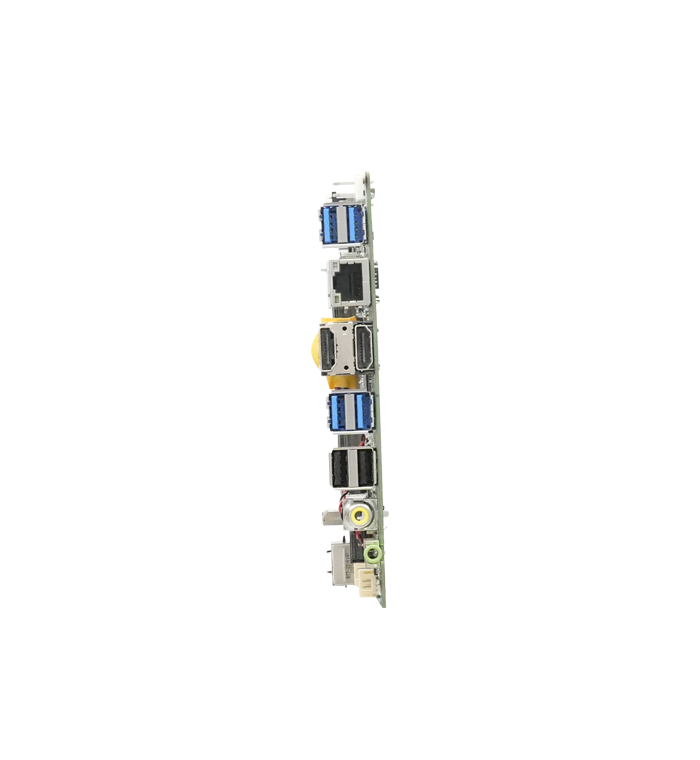

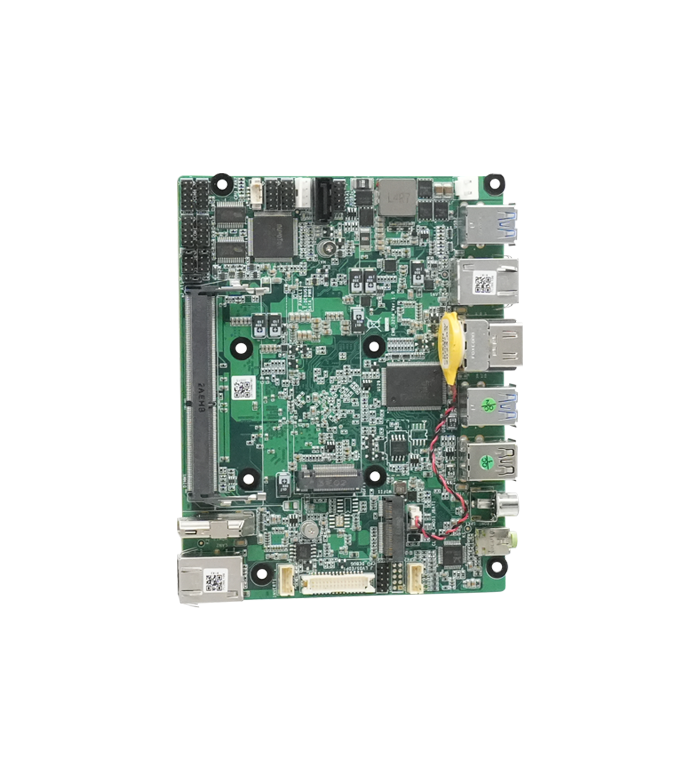

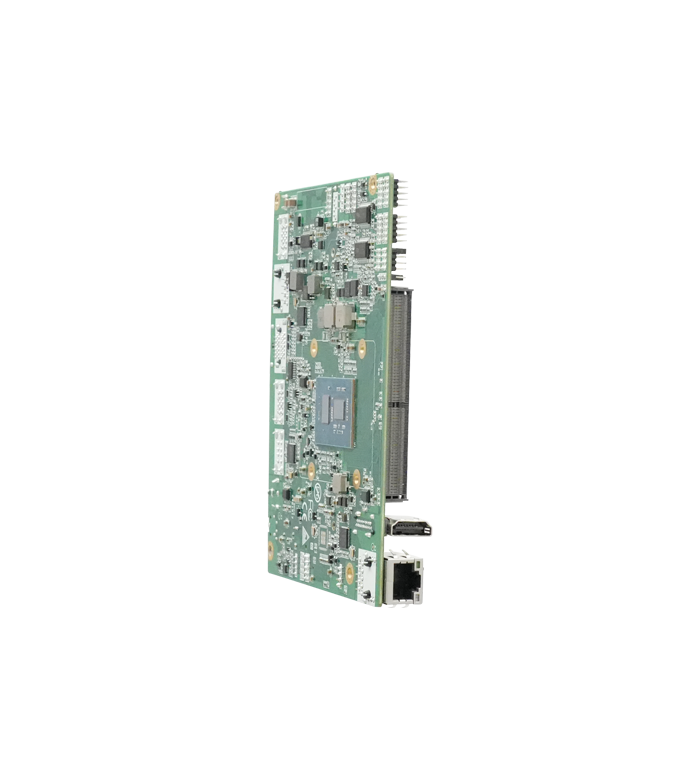

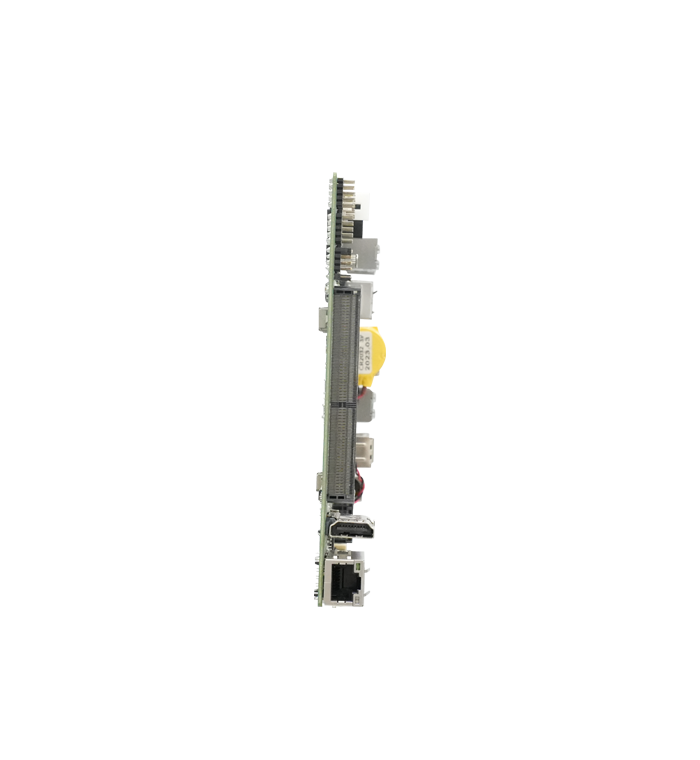

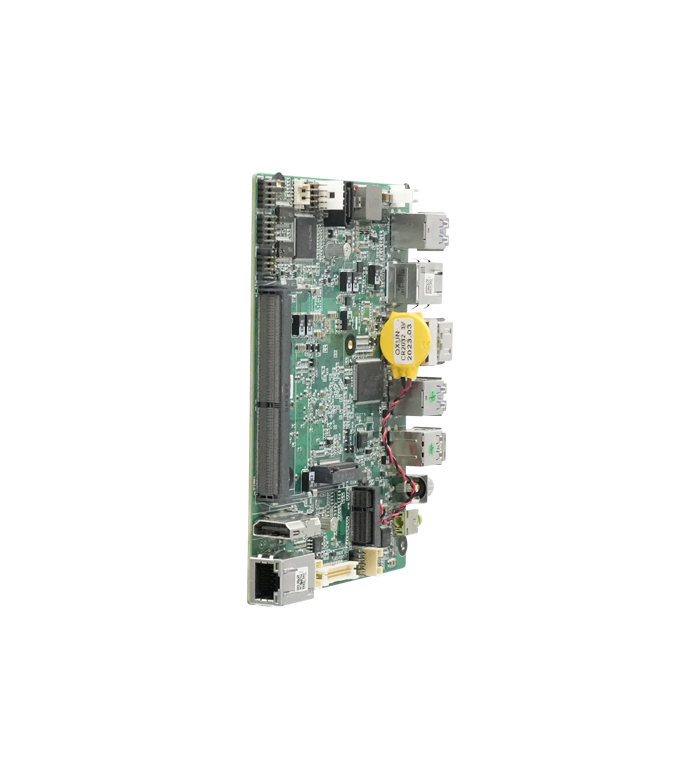

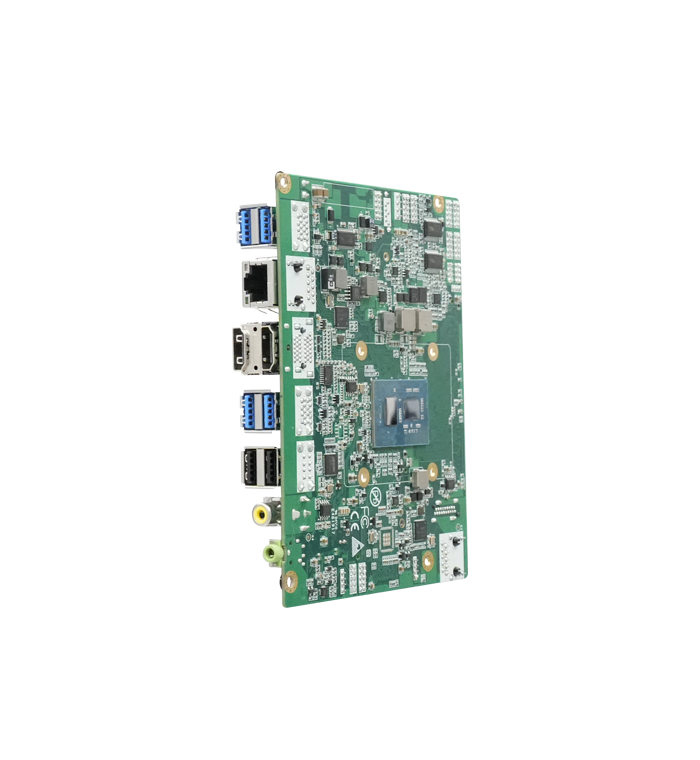

X86 platform, industrial grade, 3.5-inch motherboard

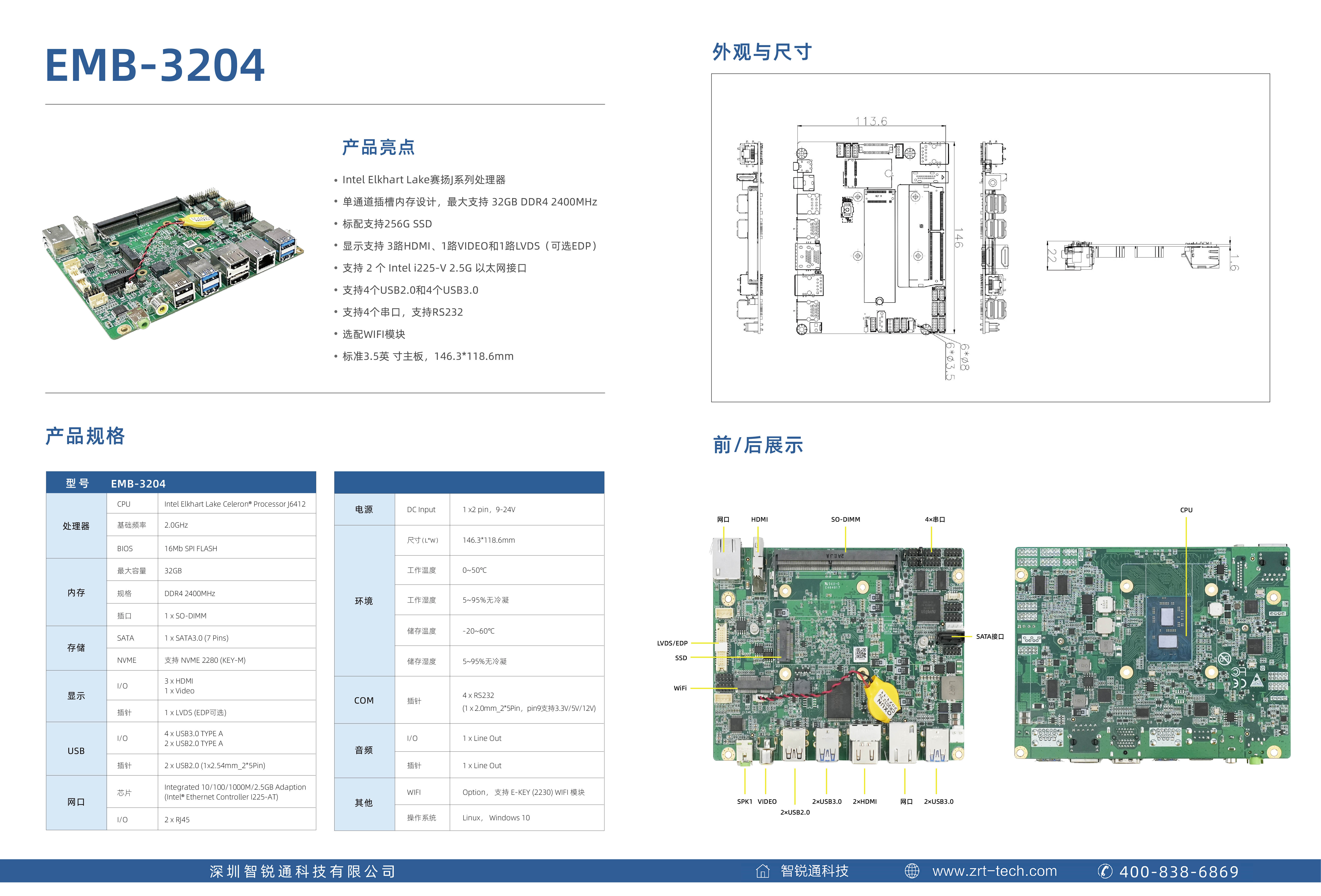

Intel Elkhart Lake Celeron J Series processors | EMB-3204

Intel Elkhart Lake Celeron J Series processors

Single-channel slot memory design, maximum support 32GB DDR4 2400MHz

Standard support 256G SSD

Display support for 3 HDMI, 1 VIDEO and 1 LVDS (optional EDP)

Support two Intel i225-V 2.5G Ethernet interfaces

Support 4 USB2.0 and 4 USB3.0

 Support 4 serial ports, support RS232

Optional WIFI module

Standard 3.5-inch motherboard, 146.3*118.6mm
