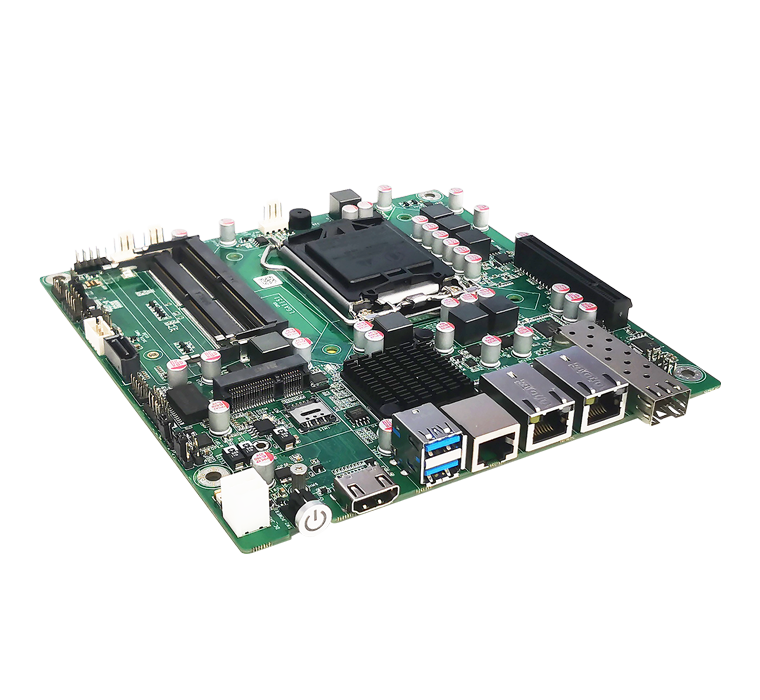

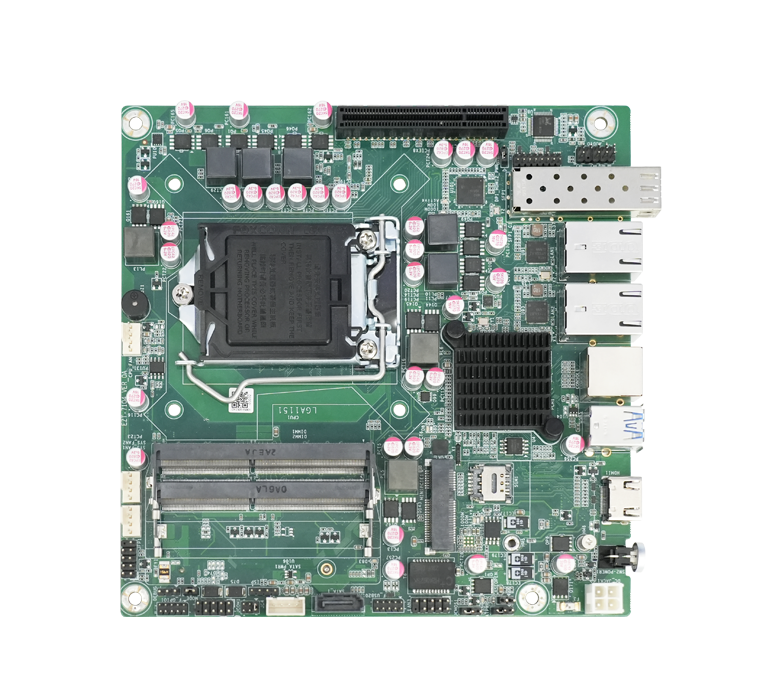

X86 platform, industrial grade, standard 7-inch motherboard
Intel Core Skylake i5-6500T processor | EZT-7104

Intel Core Skylake i5-6500T processor

Dual channel slot, supporting DDR4 2133/2400MHz

Standard support 128G SSD

Support H110 chipset

Integrated graphics card, HDMI and DP support

Support 3 Gigabit Ethernet

Supports one SFP optical port

Support 2 USB2.0 and 2 USB3.0

Support two serial ports

On-board HSC32EU security chip

Support 1 PCIe X8 slot, support 1 Mini-PCIe slot, support WiFi/BT module expansion

Standard 7-inch motherboard, 170*170mm
