Home > Product > microATX motherboard

Drag and drop the mouse to view the image 360 °

X86平台、工业级、多扩展、双串口、mATX主板

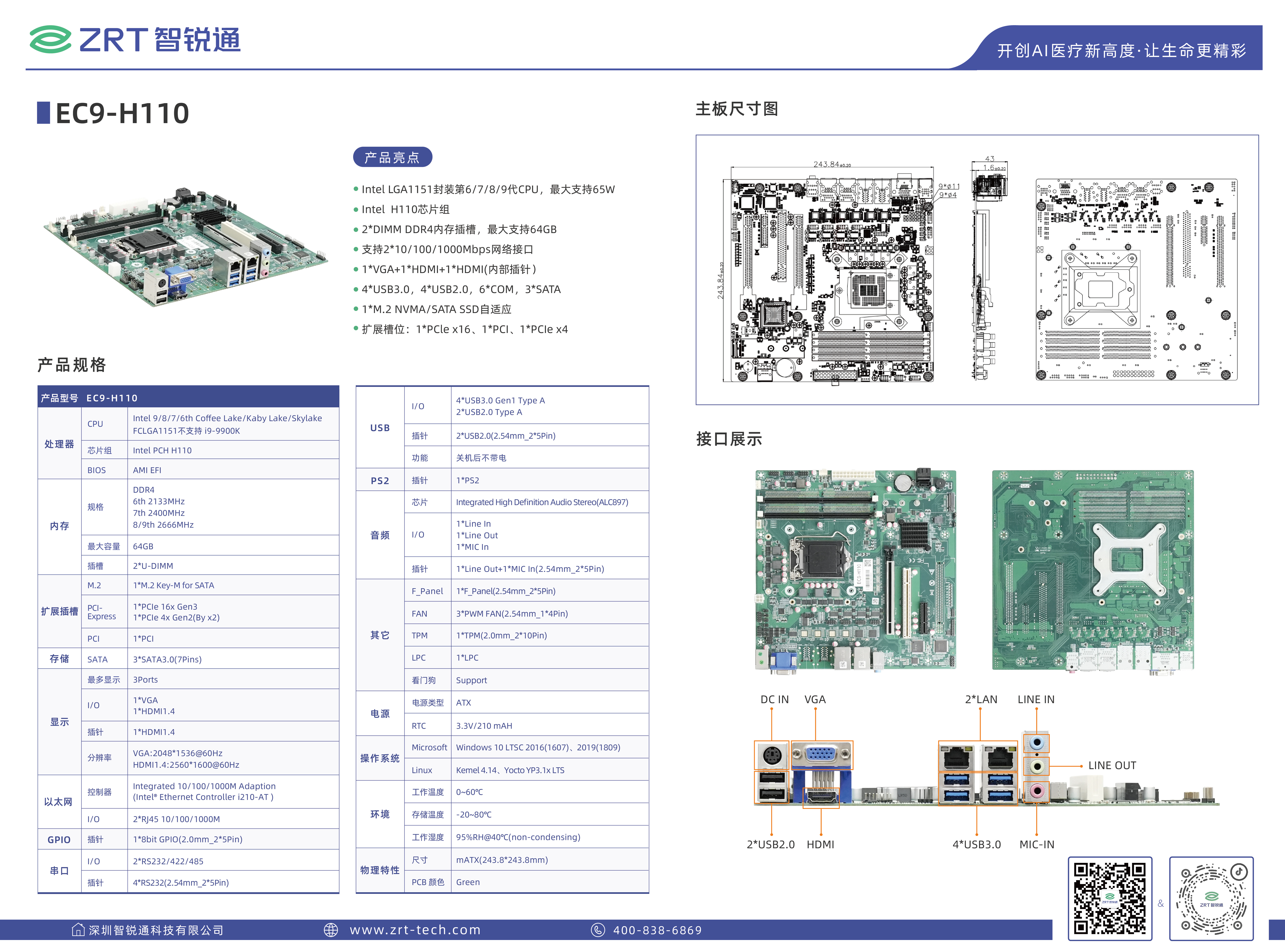

Intel 9/8/7/6th Coffee Lakey/Kaby Lake/Skylake CPU | EC9-H110

•The IntelLGA1151 package features 6th, 7th, 8th and 9th generation cpus, with a maximum support of 65W

•Intel H110 chipset

•2*DIMM DDR4 memory slots, supporting up to 64GB

•Supports 2*10/100/1000Mbps network interfaces

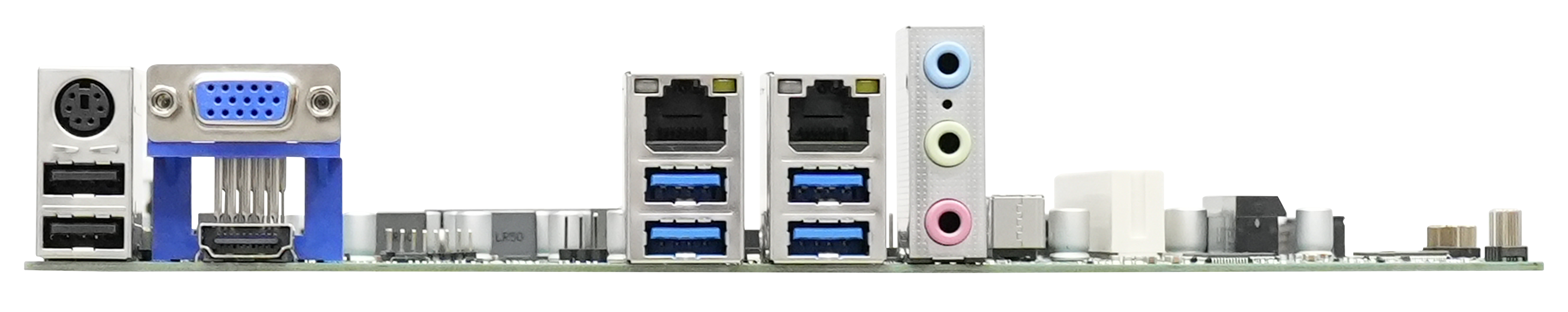

•1*VGA+1*HDMI+1*HDMI(with internal pins)

•4*USB3.0, 4*USB2.0, 6*COM, 3*SATA

• 1*M.2 NVMA/SATA SSD adaptive

• Extended 棤 bits :1*PCle x16, 1*PC1, 1*PCle x4
