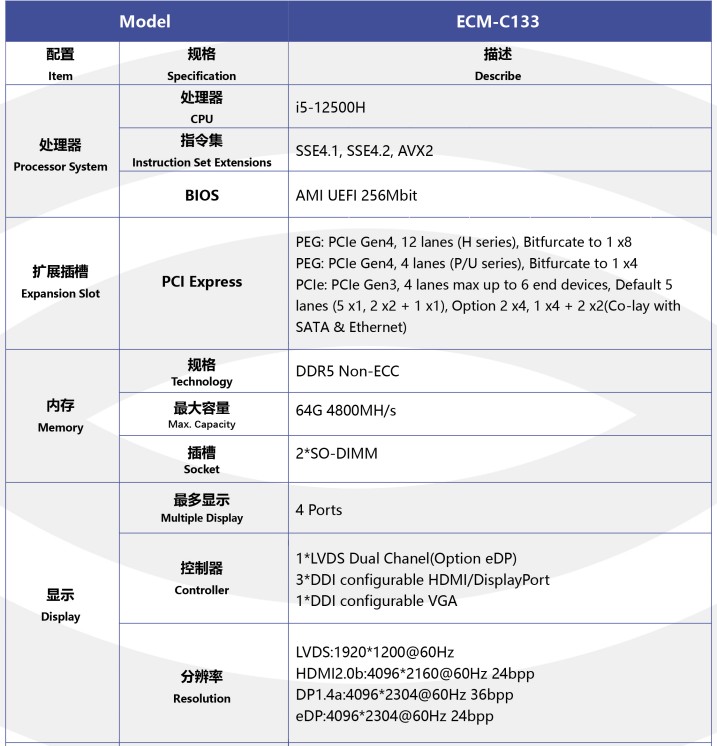

lType6 COM-E Core board
l Supports Intel Alder Lake P series processors
l Supports two DDR5 SO-DIMMs
l Maximum memory capacity 64 GB 4800MH/S
l Two SATA3.0 signals are supported as standard
Supports 4 display outputs, 3xDD1 can be configured as HDMI/DP1xDD1 can be configured as VGA
Supports 4 USB3.2 and 8 USB2.0
The l1 PClex4 and 6-way PClex1 can be configured as x4 or x2
l Size :95*95*2.0mm
