Home > Product > ATX motherboard

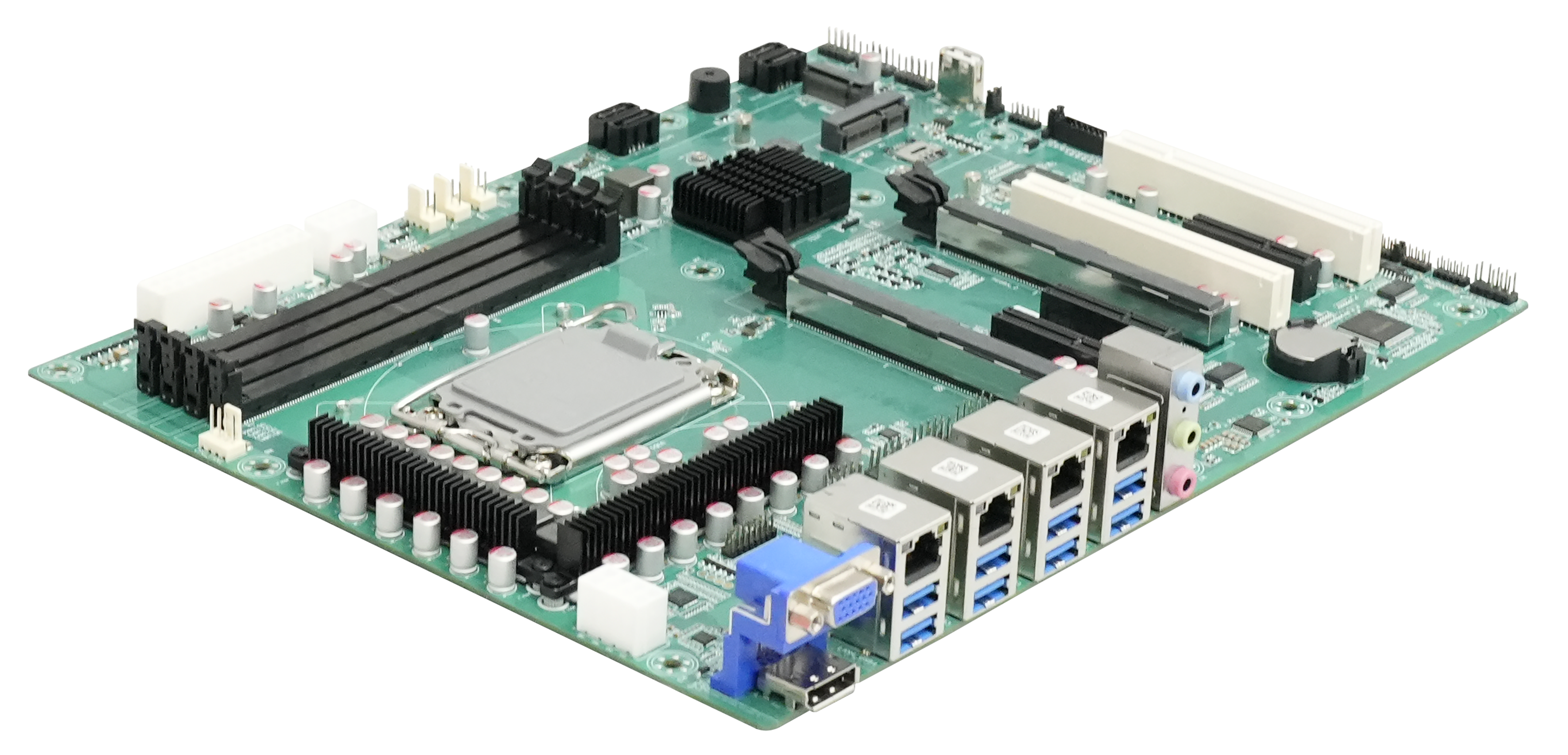

Drag and drop the mouse to view the image 360 °

EC0-Q670
Intel 14/13/12th Bartlett Lake-S/Raptor Lake Refresh-S/Raptor Lake-S/Alder Lake-S i9/i7/i5/i3 | EC0-Q670

Product features

• Supports ntel 14/13/12th Bartlett Lake-s /Raptor Lake Refresh-S/Raptor Lake-s /Alder Lake-s i9/i7/i5/i3 processors

• Supports 2 DDR5 chips, with a maximum supported memory capacity of 128G

• Supports 4 SATA3.0 interfaces and 1 M.2 key-M (SATA/PCle)

• Supports 3 display outputs: 1xVGA, 1xDP, and 1xHDMI1.4

• Supports 8 USB3.2 Gen1 Type A ports and 1 USB2.0 Type A port

• 2 pcie x16 channels, 1 pcie X8 channel, 2 pcie X4 channels

• Standard ATX board type
