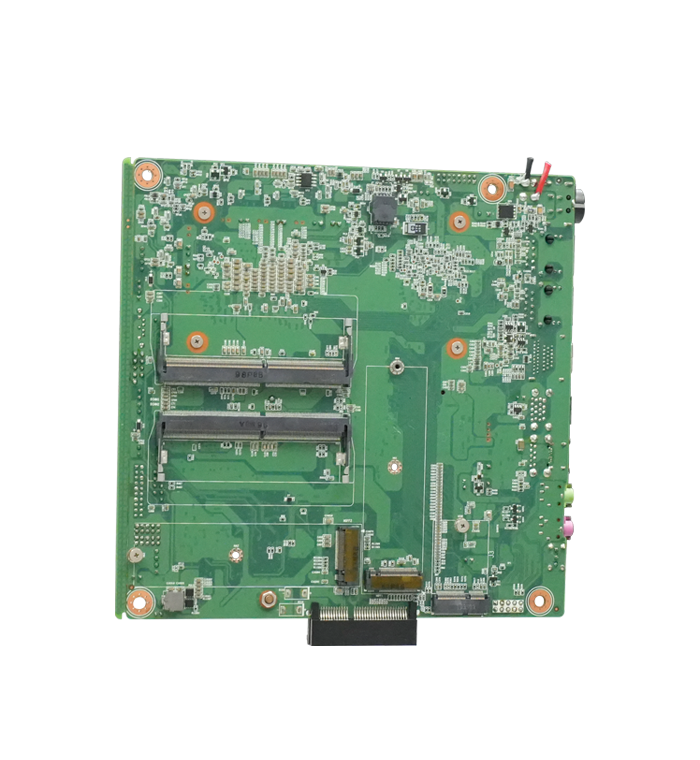

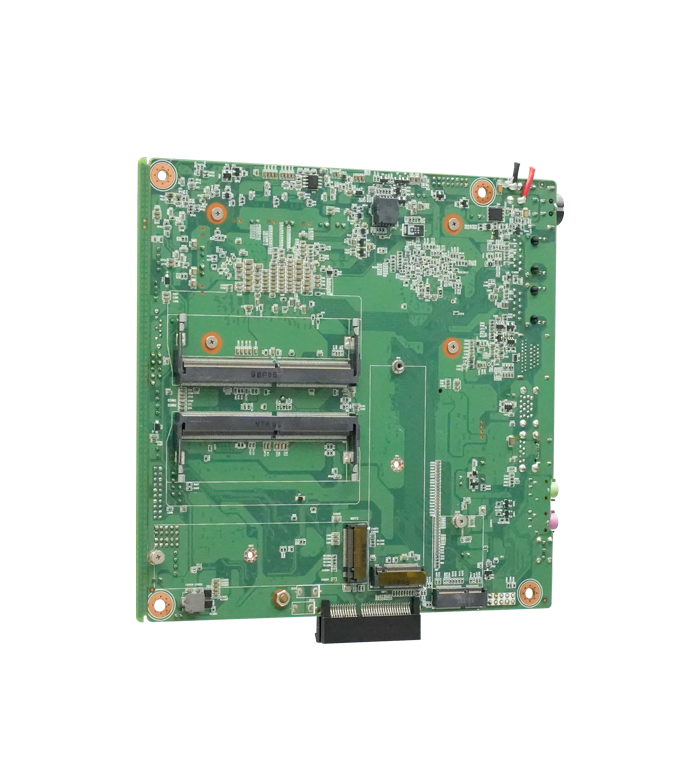

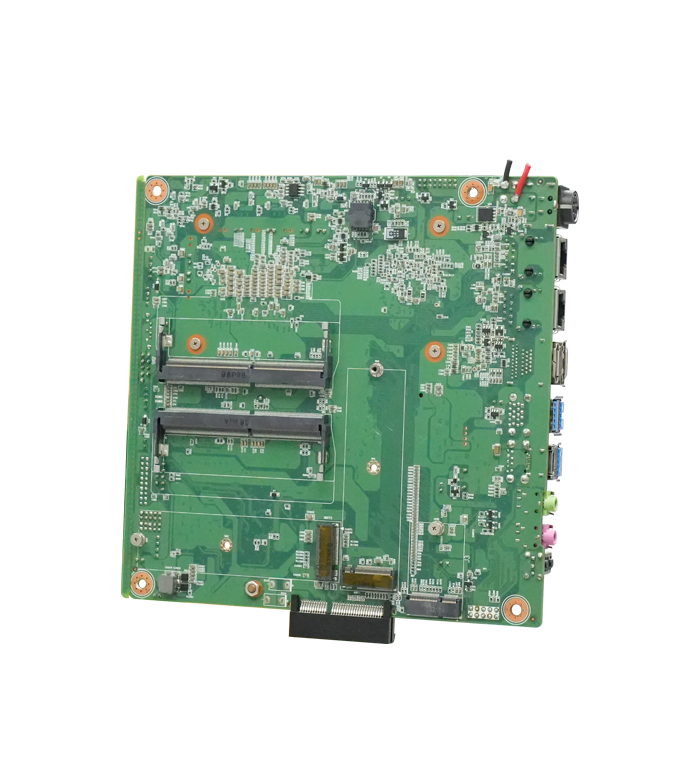

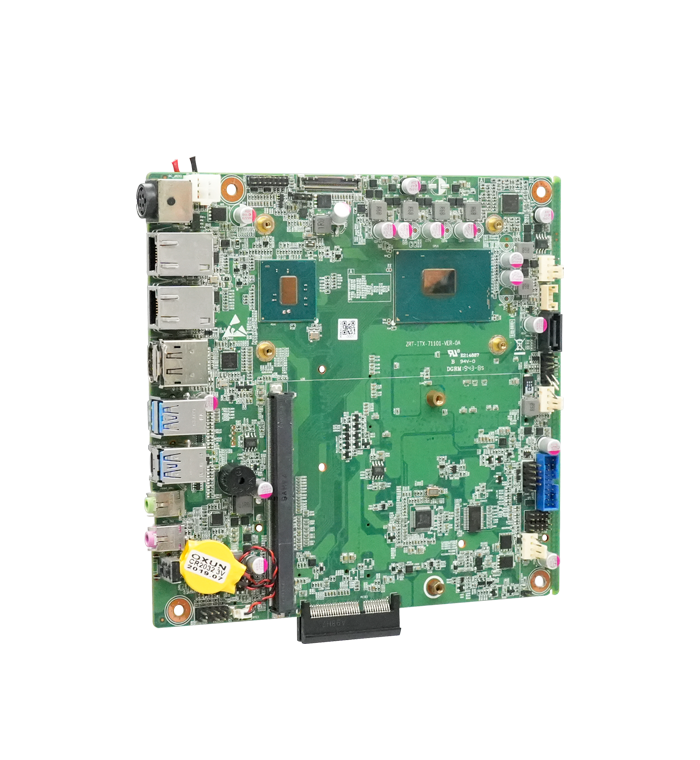

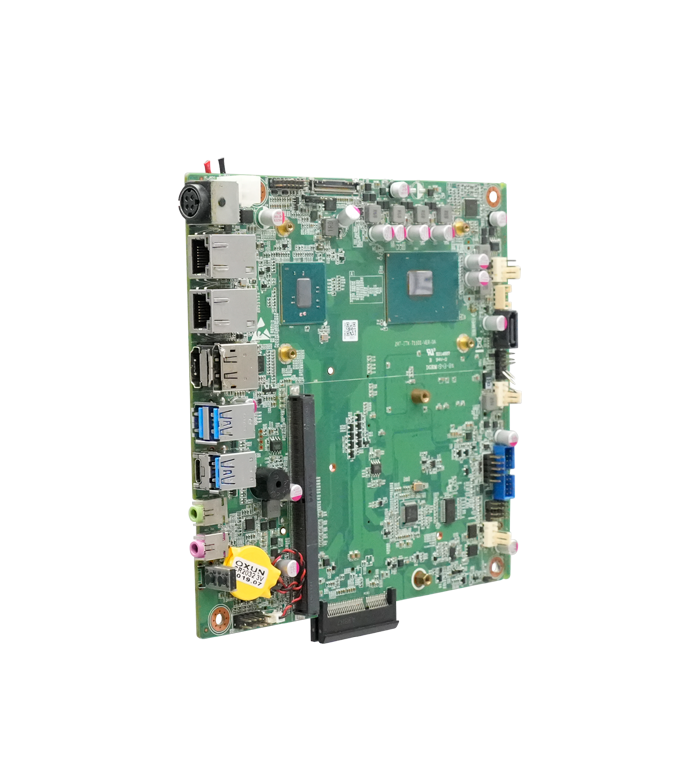

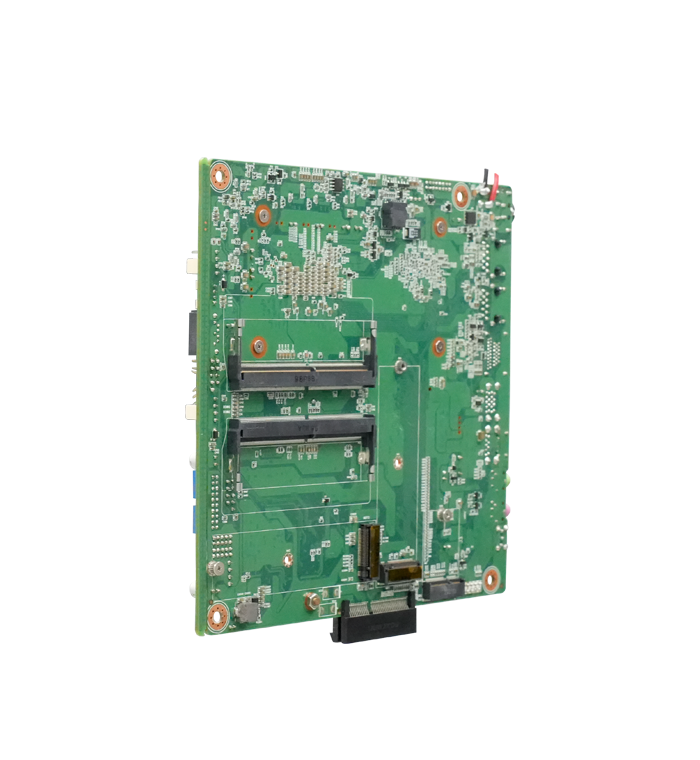

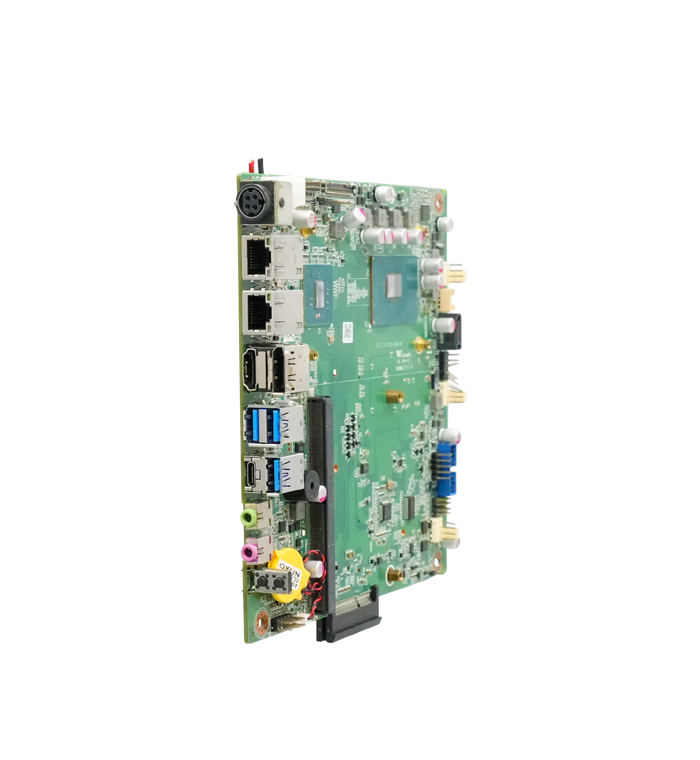

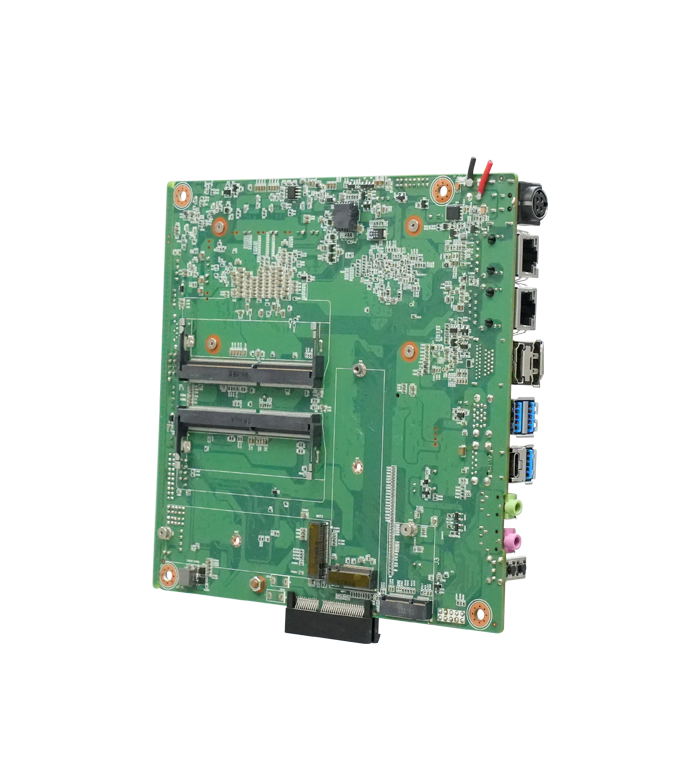

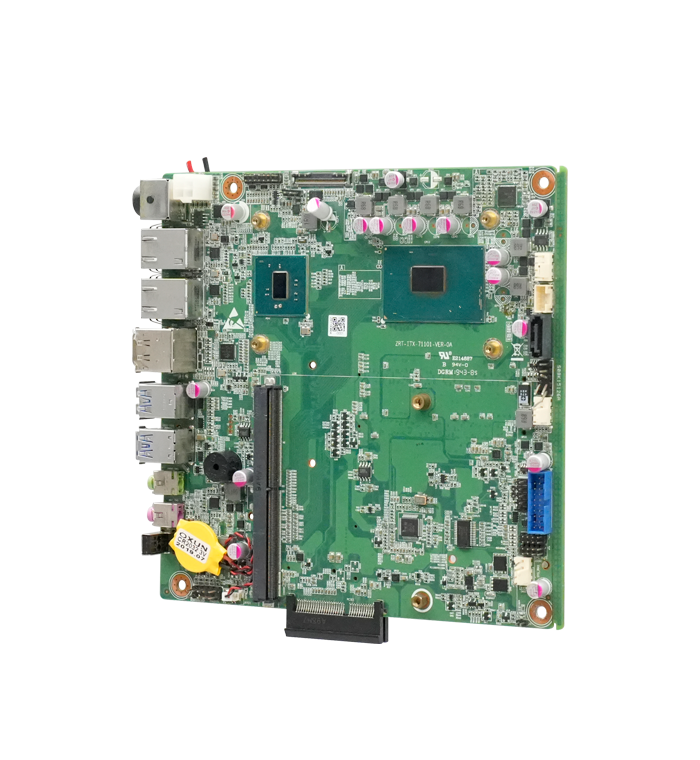

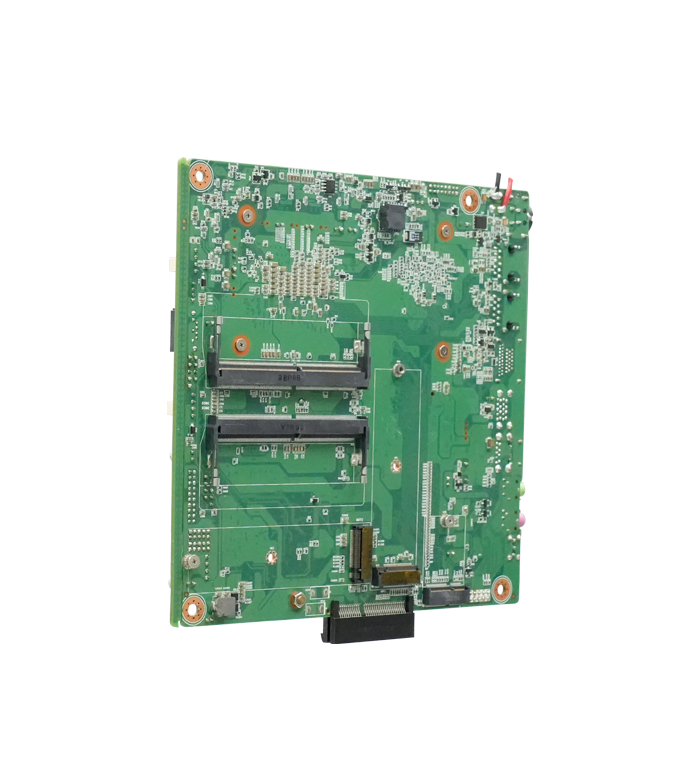

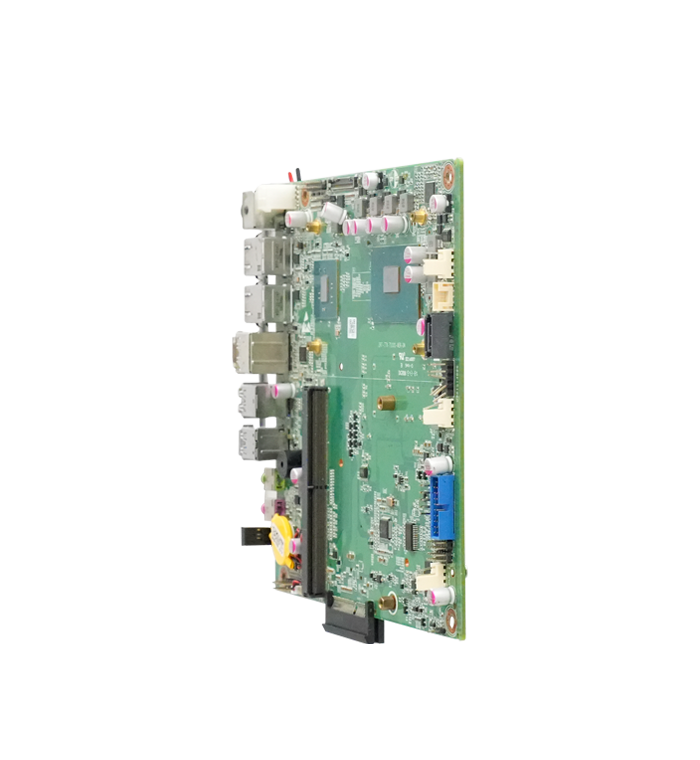

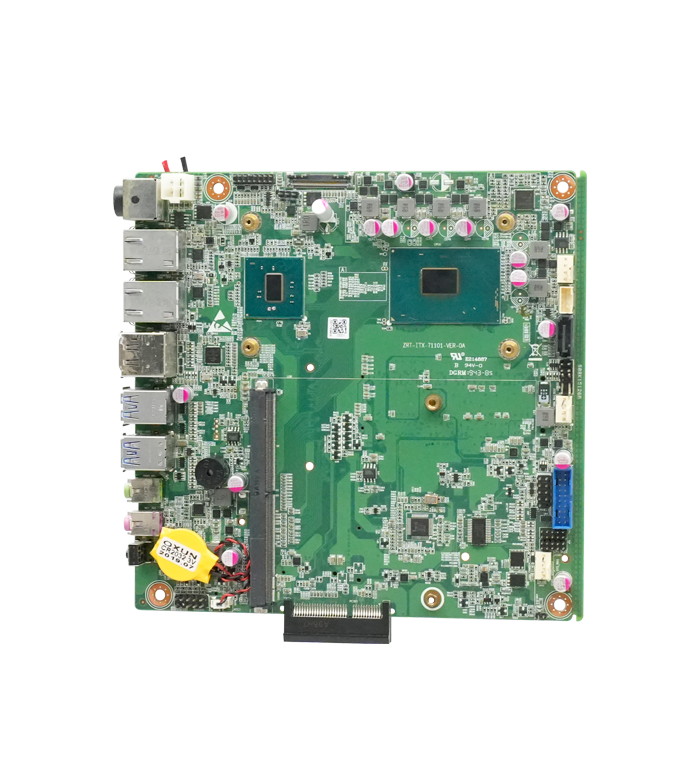

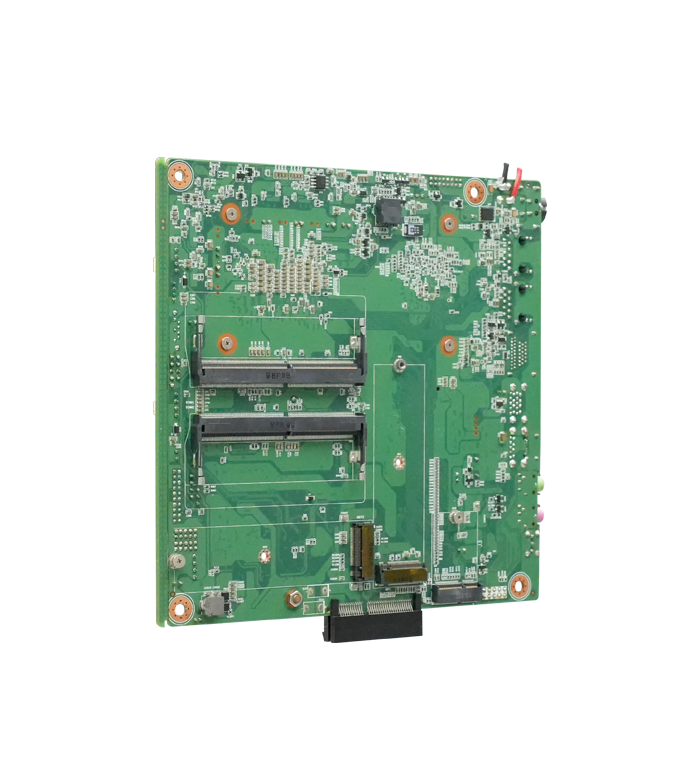

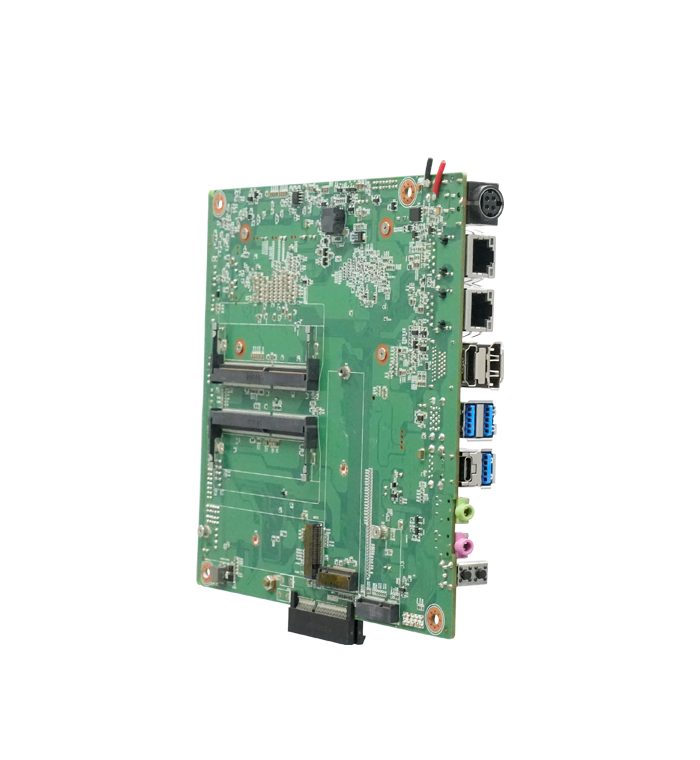

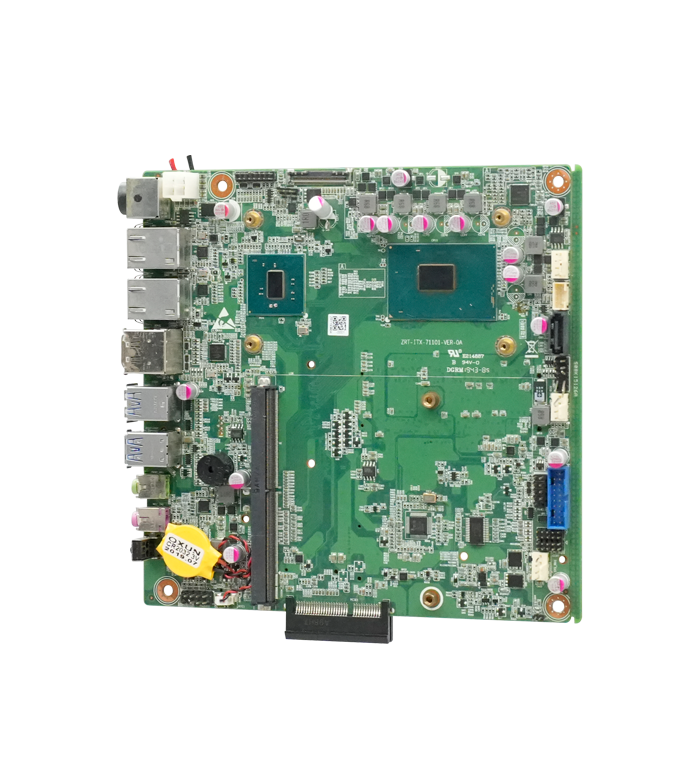

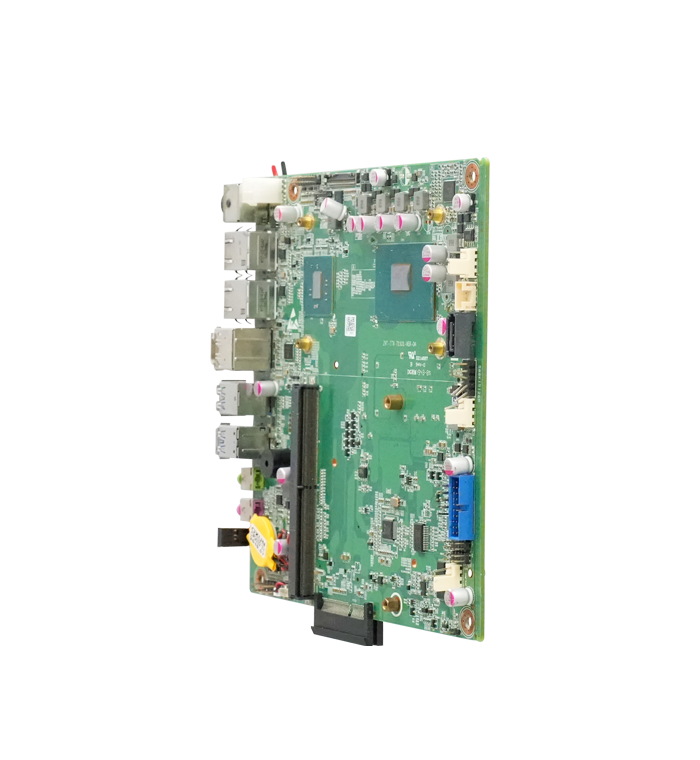

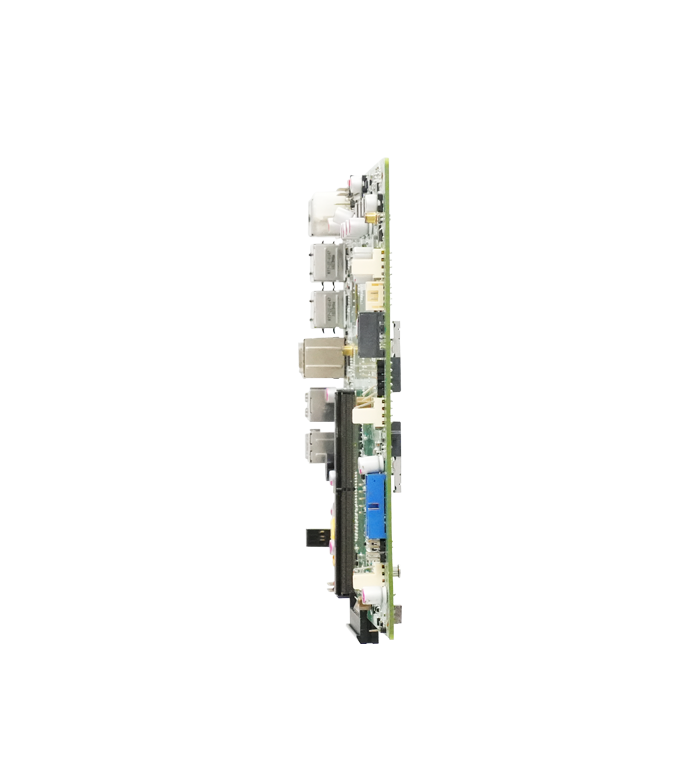

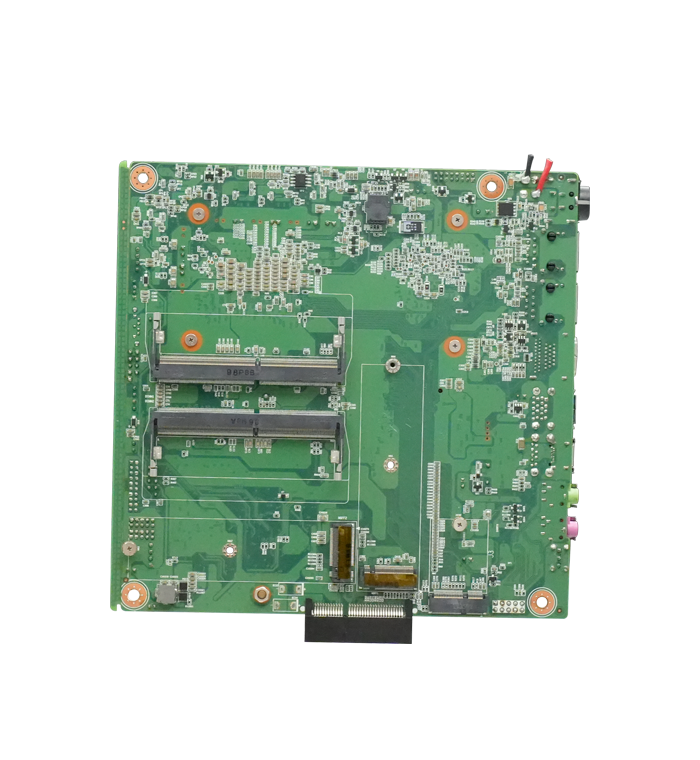

Standard 7-inch motherboard, 170*170mm, supports free replacement of MXM independent graphics card ITX-71101
ITX-71101 Skylake-HQ + MXM

Features

• Low-power Intel Skylake/Kaby Lake-HQ series processors

• Support DP+HDMI+HDMI (integrated display pin) triple display output

• Dual-channel DDR4 memory design, maximum support 32GB

• With EDP output port (integrated display)

• With one-key restore function

• With one-key off-screen

• PCIE*4 slot with side expansion

Contact us
Form FactorForm Factor7" motherboard
Processor SystemCPUi5-6300HQ/i7-6700HQ/i5-7300HQ/i7-7700HQ
Core Number4
Max. Speed3.2GHz/3.5GHz/3.5GHz/3.8GHz
L3 Cache6 MB
TDP (W)45 W
ChipsetQM170
BIOSAMI EFI BIOS  64M
Expansion SlotPCIe x1 (Gen3)/
PCIe x4 (Gen3)1
PCIe x16 (Gen3)/
MemoryTechnologyDDR4
Max. Capacity64G
Socket2*SO-DIMM
GraphicsControllerIntel® HD Graphics 530
HDMI1 pin, integrated display output
eDP1, integrated display output
LVDS/
Display PortDP+HDMI
EthernetControllerRealtek RTL8111H
ConnectorRJ45
SATAMax Data Transfer RateSATA  6Gb/s
Q'ty1
Rear I/ODisplay Port1XDP
HDMI1XHDMI
Ethernet2XRJ45
USB3XUSB3.0
Audio1* Line OUT
1* Mic(using ALC662 chip)
Seria1xTYP-C(USB function)
Internal ConnectorUSB 3.02xUSB3.0 Pin
USB 2.02xUSB2.0 Pin
SATA 3.0/
Extended Display Port
(eDP)/LVDS
1xEDP interface
M.2 (M key)

1*M.2 supports 2280 SATA SSD

1*M.2 supports 2280 PCIe/SATA SSD

M.2 (E key)1*M.2 supports 2280 PCIe/SATA SSD
GPIOMXM3.1
Power RequirementsPower Type DC
Power input Voltage12V-19V DC,
Power Consumption/
EnvironmentOperating Temperature0-50℃
Storage Temperature-40°C - 70°C
PhysicaDimensions170mmX170mm
OSMicrosoftSupport Win7\Win10
LinuxLinux
