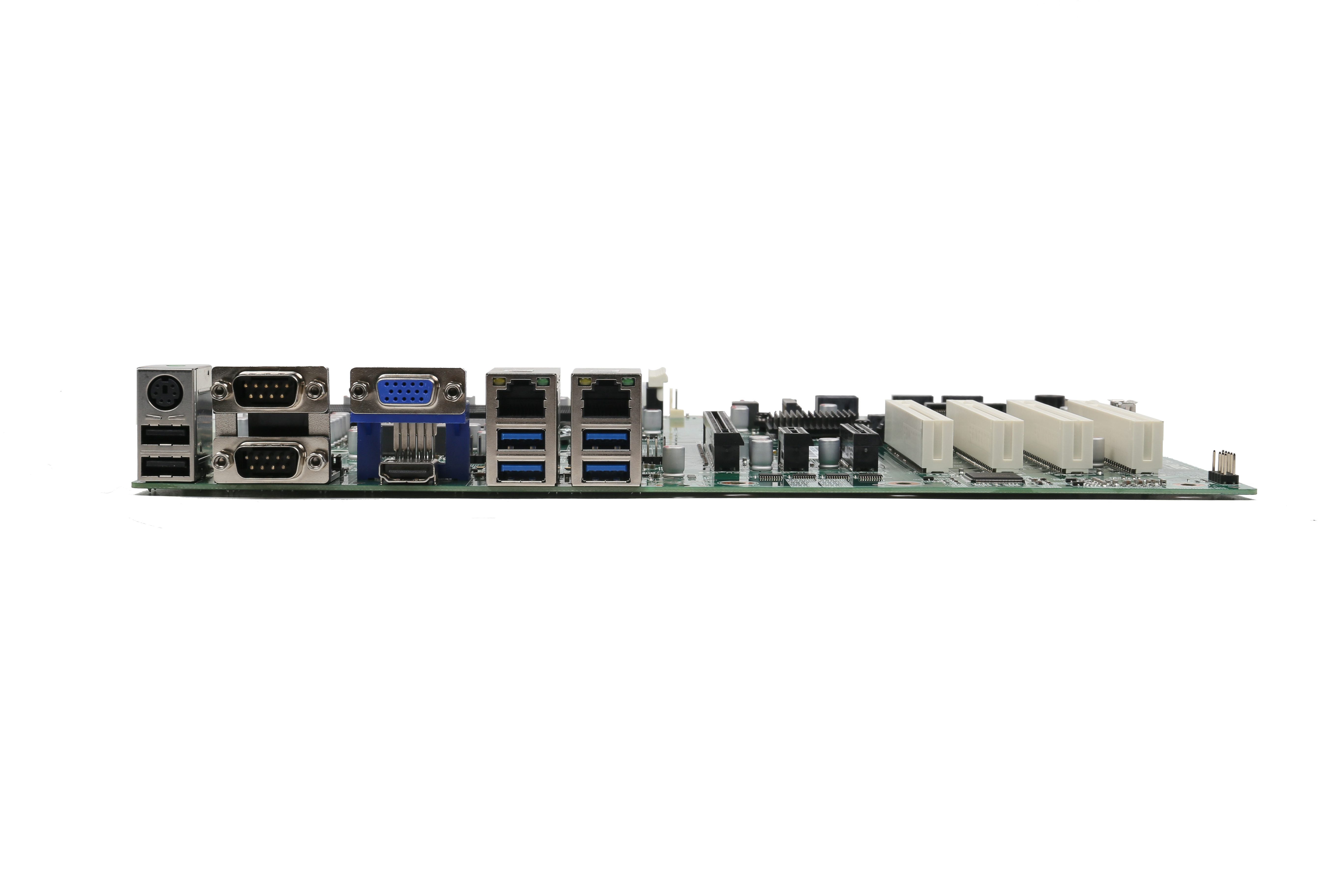

Drag and drop the mouse to view the image 360 °
Features
• Based on Intel Sky Lake/Kaby Lake/Coffee Lake Bridge platform
• Support Q170 chipset and 6/7/8th Gen Intel Core I3/I5/I7 processor
• Dual-channel DDR4 memory design, maximum support 128GB
• Support HDMI/VGA dual display output
• Working temperature support -10~70°C
• Standard ATX form factor
| Form Factor | Form Factor | ATX motherboard |
| Processor System | CPU | Intel Sky Lake/Kaby Lake/Coffee Lake Bridge LGA1151 |
| Core Number | ||
| Max. Speed | ||
| L3 Cache | ||
| TDP (W) | ||
| Chipset | Intel PCH Q170 | |
| BIOS | AMI 64MBit SPI | |
| Expansion Slot | PCIe x1 (Gen3) | 1 |
| PCIe x4 (Gen3) | 1 | |
| PCIe x16 (Gen3) | 1 | |
| Memory | Technology | DDR4 |
| Max. Capacity | 128GB | |
| Socket | 4 x U-DIMM | |
| Graphics | Controller | Intel HD Graphics |
| HDMI | ||
| eDP | ||
| LVDS | ||
| Display Port | 1 x VGA 1 x HDMI | |
| Ethernet | Controller | Intel® Ethernet Controller I211-AT |
| Connector | ||
| SATA | Max Data Transfer Rate | |
| Q'ty | 4 x SATA3.0(7 Pins) | |
| Rear I/O | Display Port | 1 x VGA 1 x HDMI |
| HDMI | 1 | |
| Ethernet | 2 x RJ45 10/100/1000M | |
| USB | 4 x USB3.0 2 x USB2.0 | |
| Audio | 1 x Line In 1 x Line Out 1 x MIC In | |
| Seria | ||
| Internal Connector | USB 3.0 | 2 x USB3.0 (1 x 2.0mm_2*10Pin) |
| USB 2.0 | 4 x USB2.0 (2 x 2.54mm_2*5Pin) | |
| SATA 3.0 | 4 x SATA3.0(7 Pins) | |
| Extended Display Port (eDP)/LVDS | ||
| M.2 (M key) | ||
| M.2 (E key) | ||
| GPIO | ||
| Power Requirements | Power Type | ATX |
| Power input Voltage | ||
| Power Consumption | ||
| Environment | Operating Temperature | -10°C - 70°C |
| Storage Temperature | -40°C - 85°C | |
| Physica | Dimensions | ATX (304.8*244*1.6 mm) |
| OS | Microsoft | Windows 7 / 10 |
| Linux | Linux |

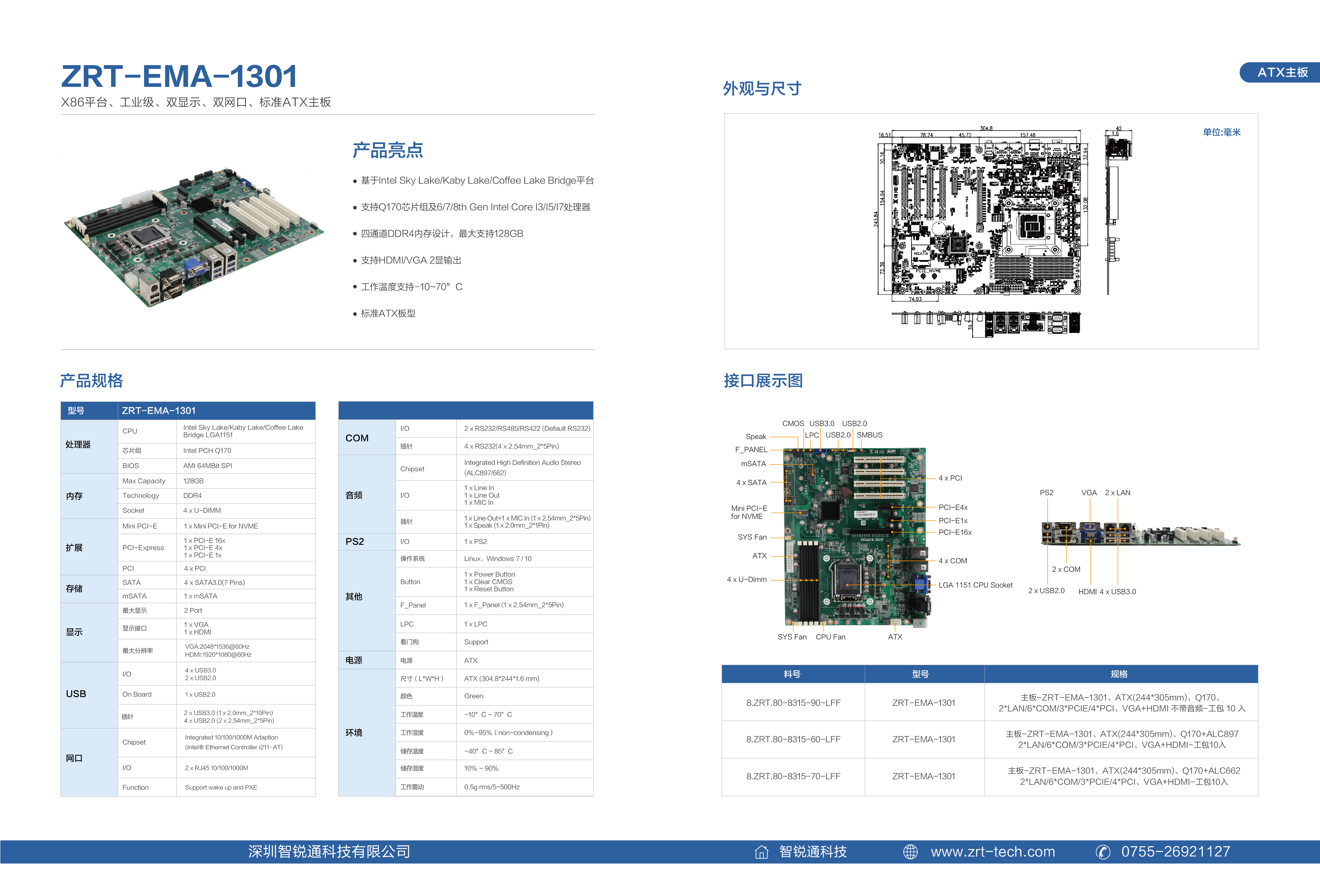

Download the datasheet:
ATX Motherboard - ZRT Technology.pdf
