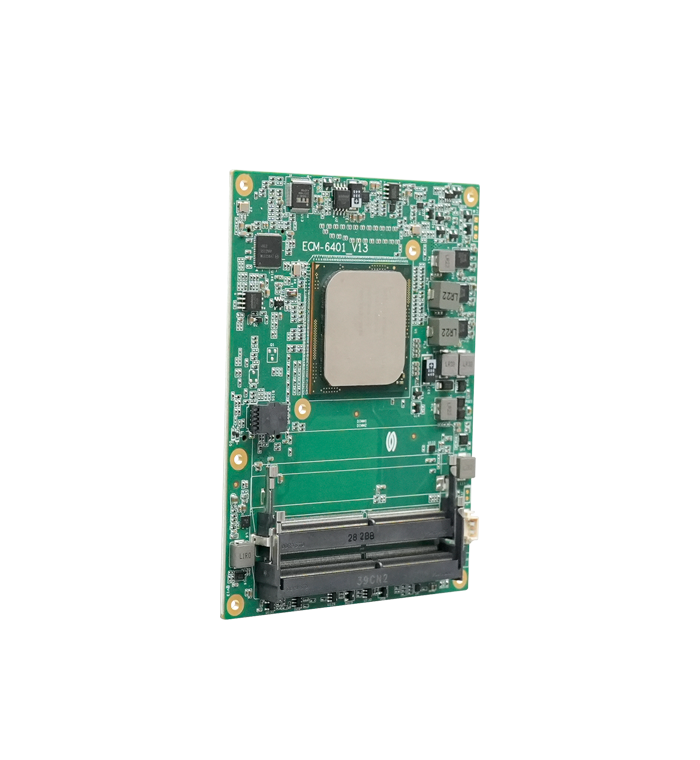

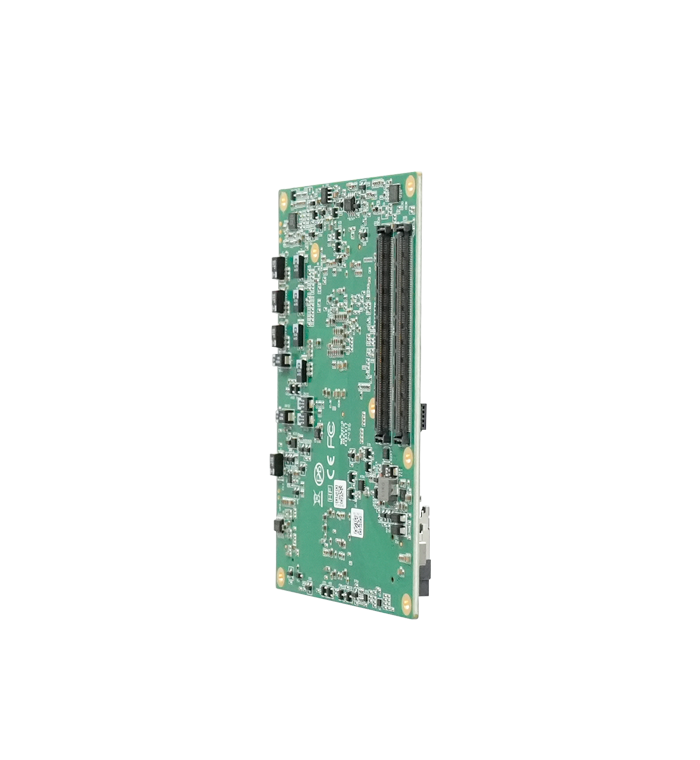

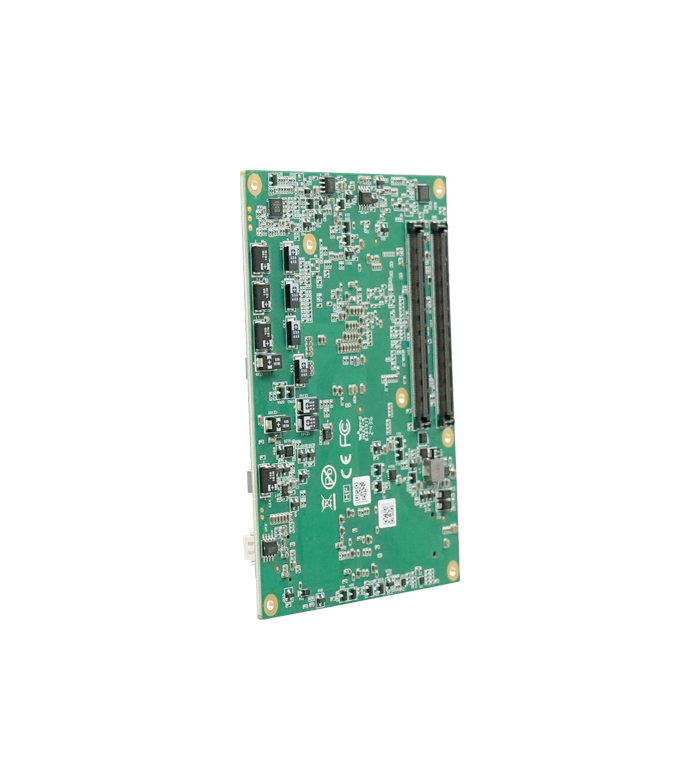

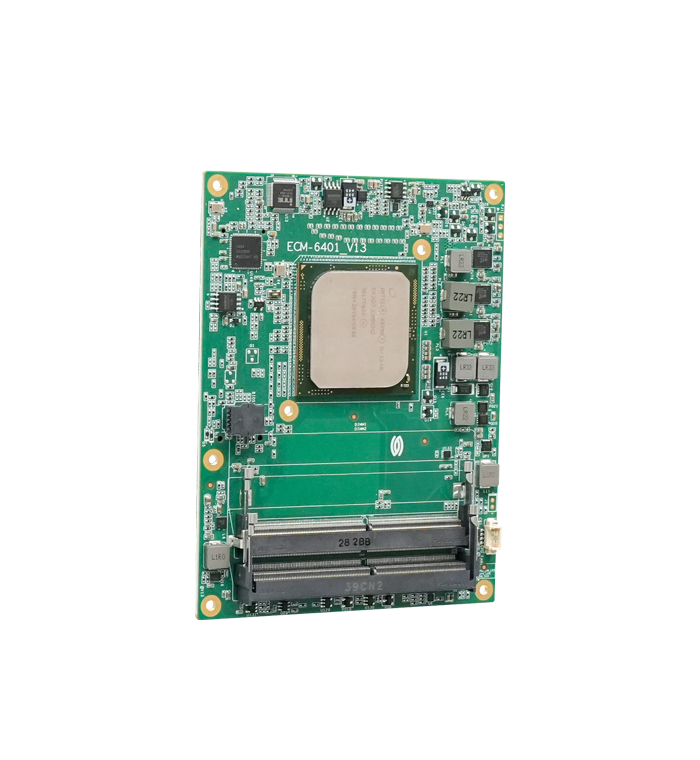

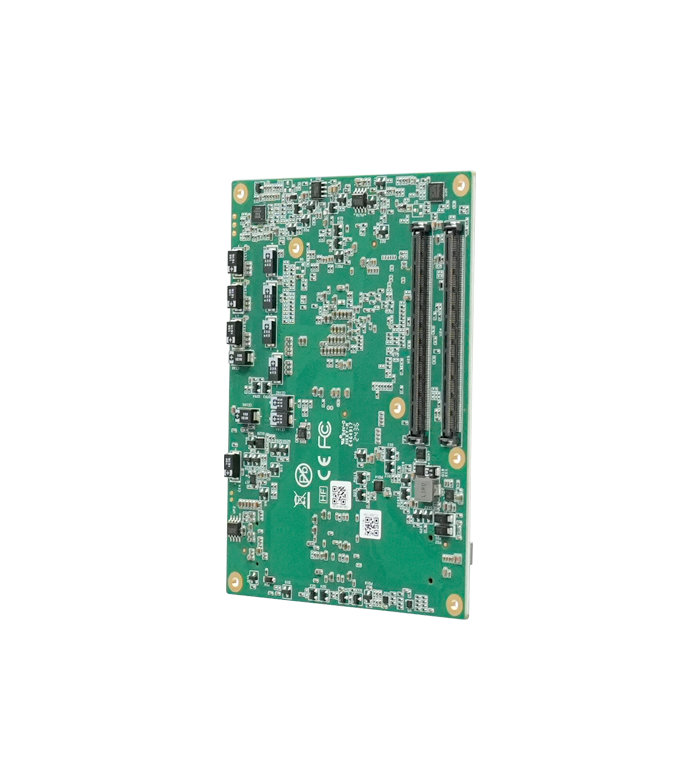

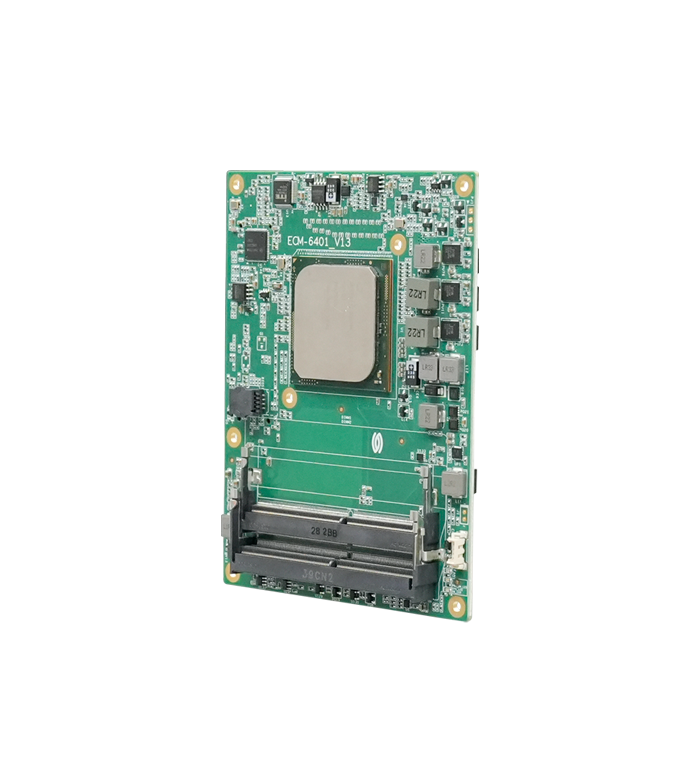

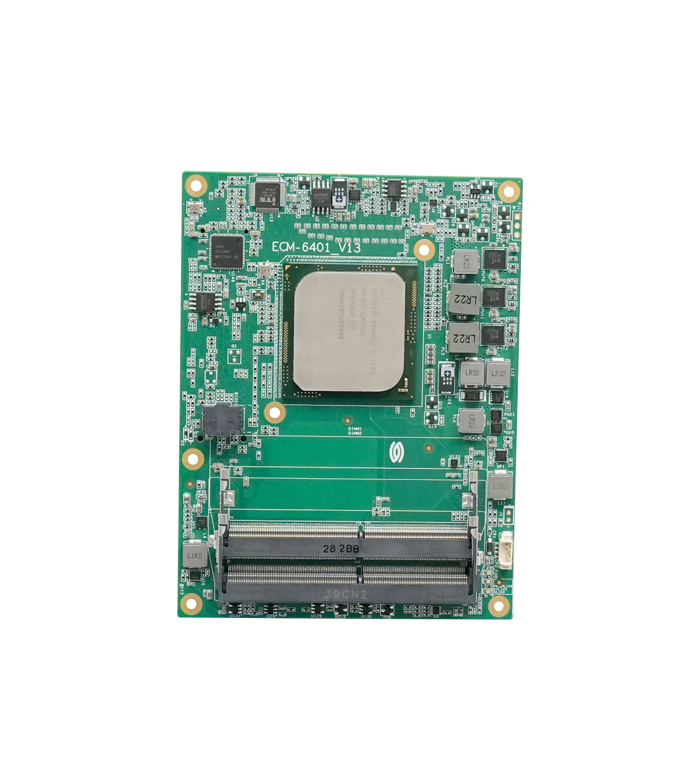

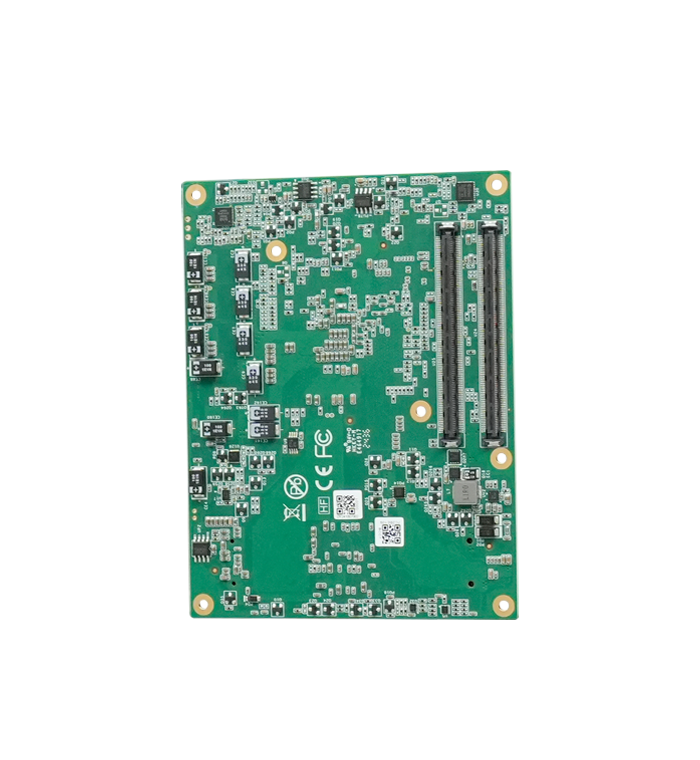

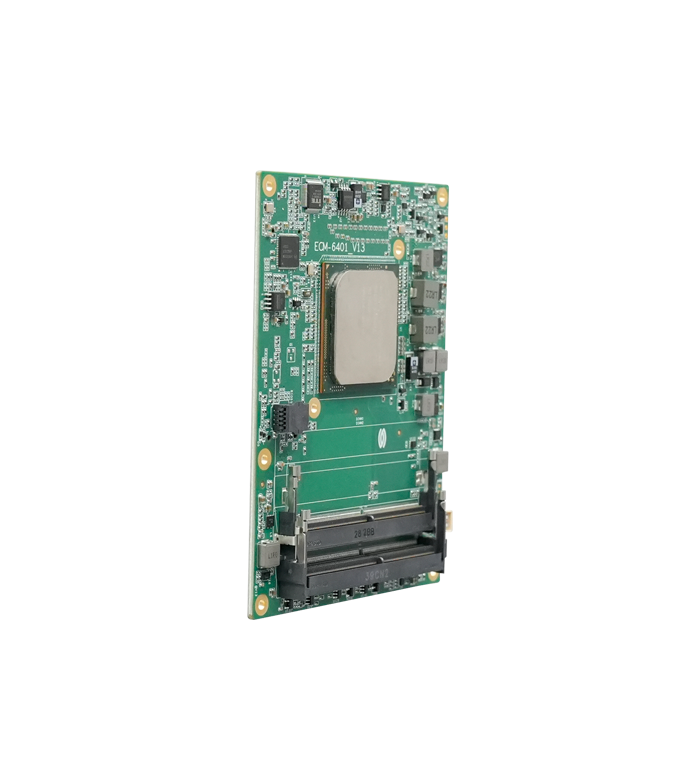

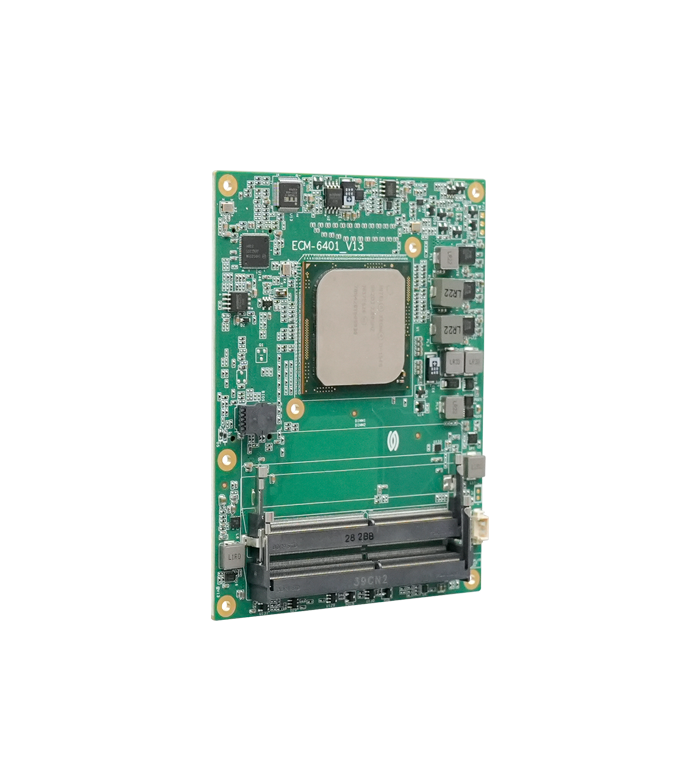

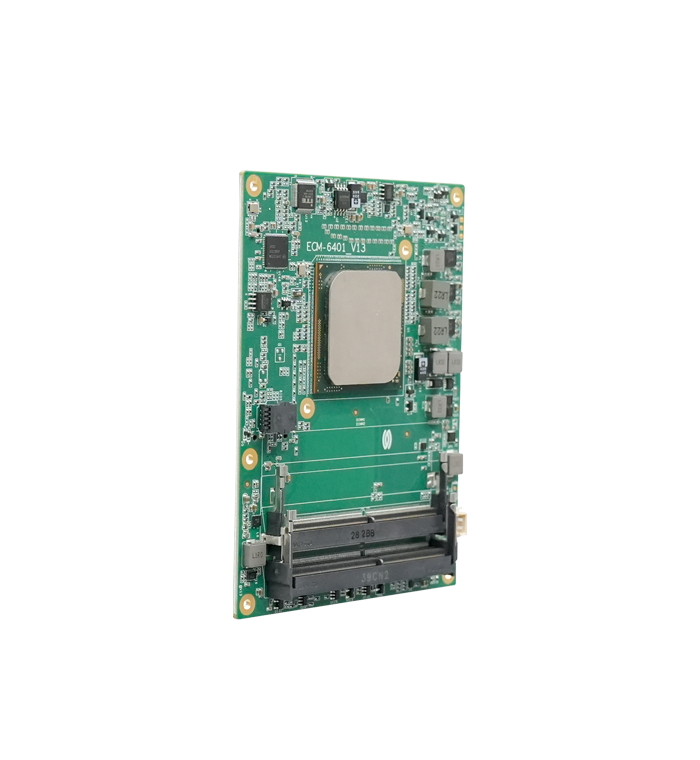

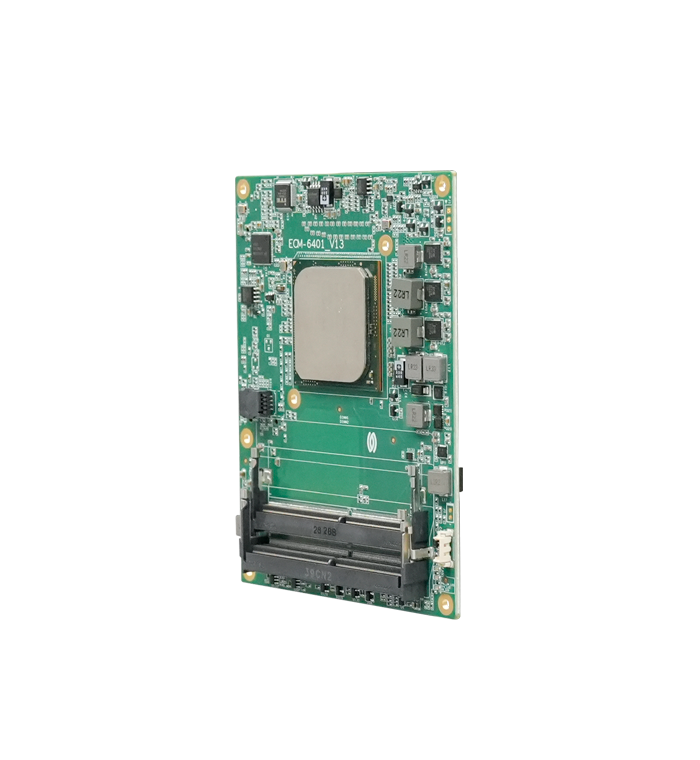

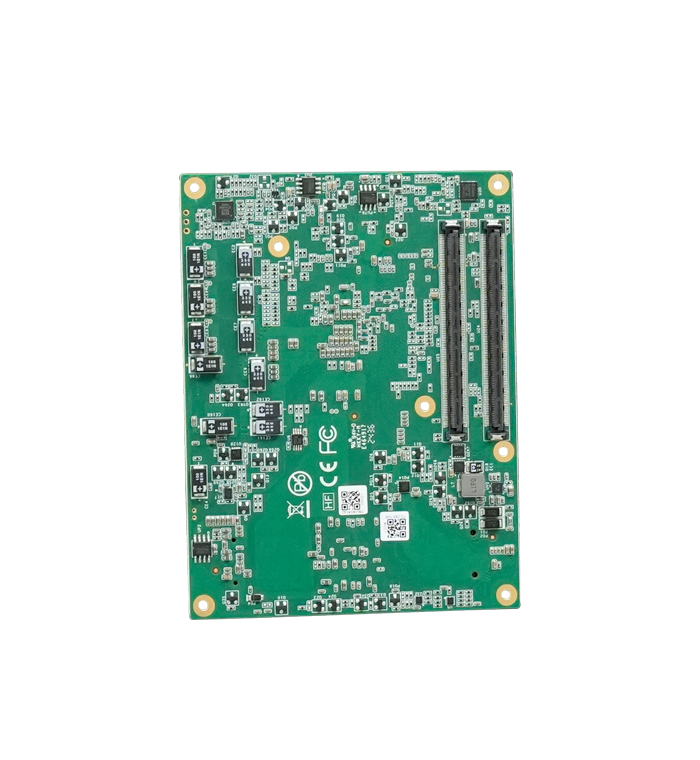

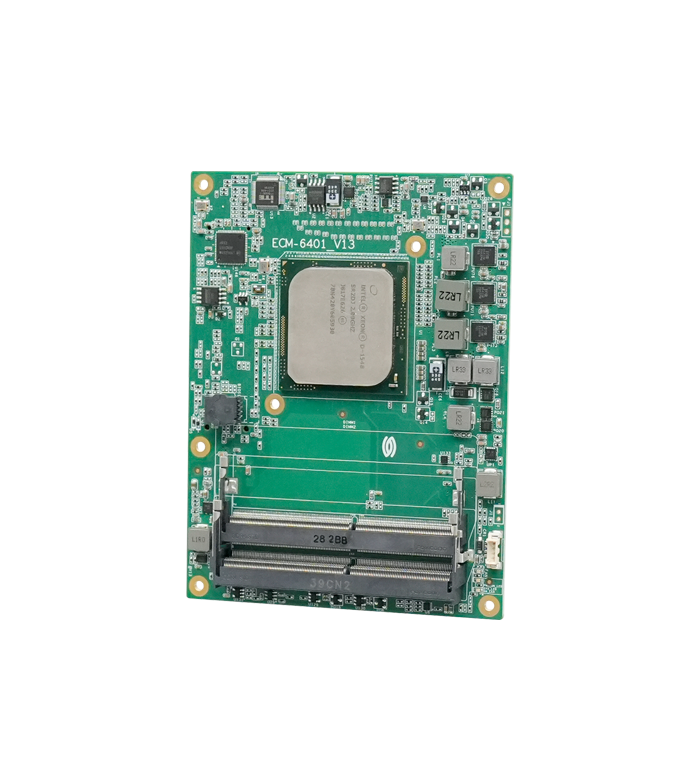

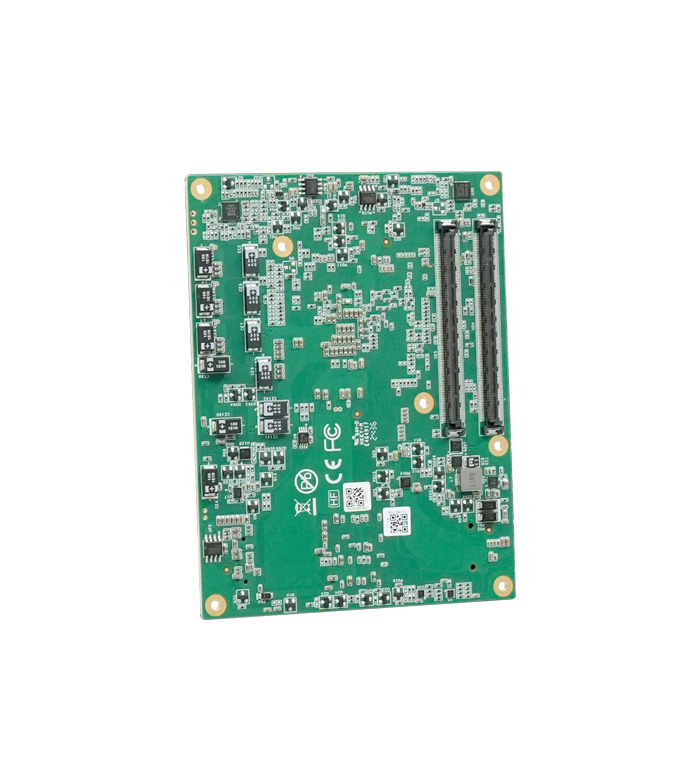

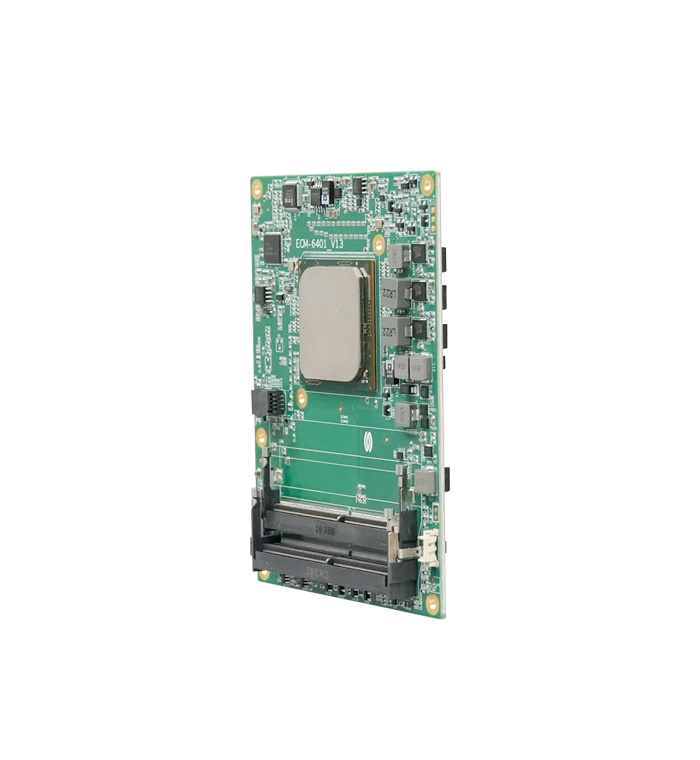

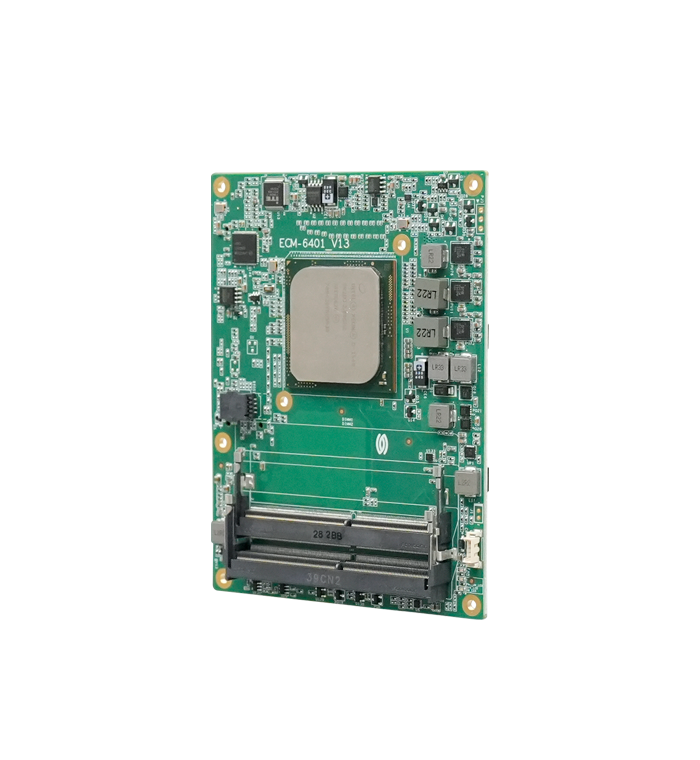

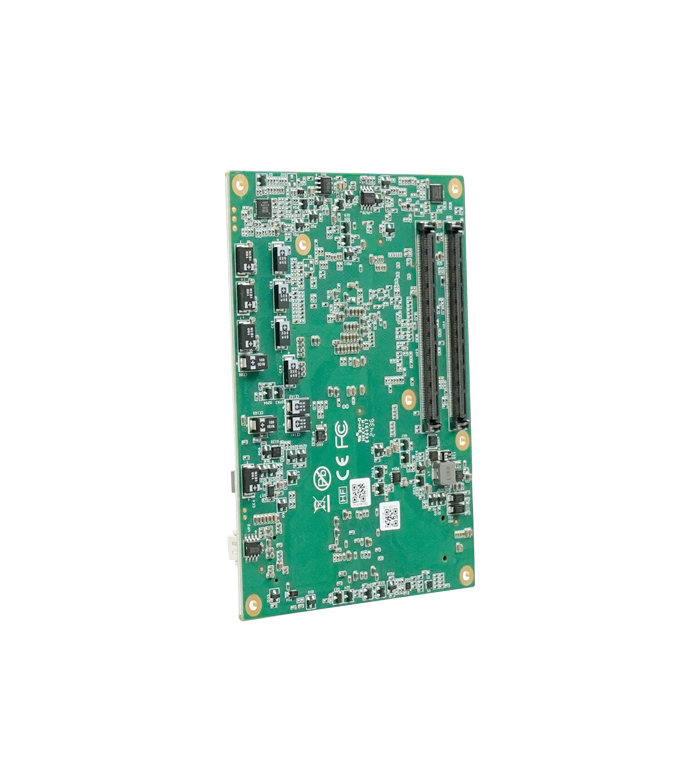

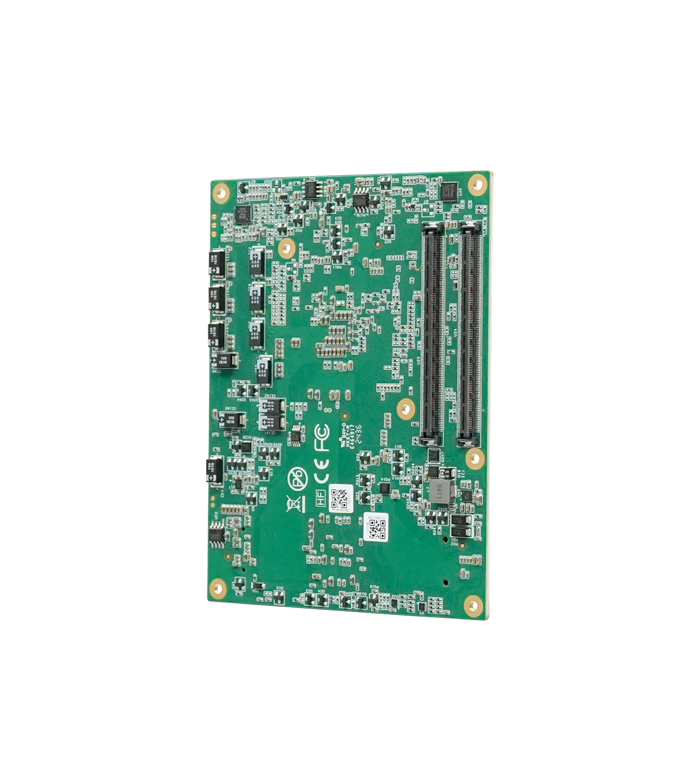

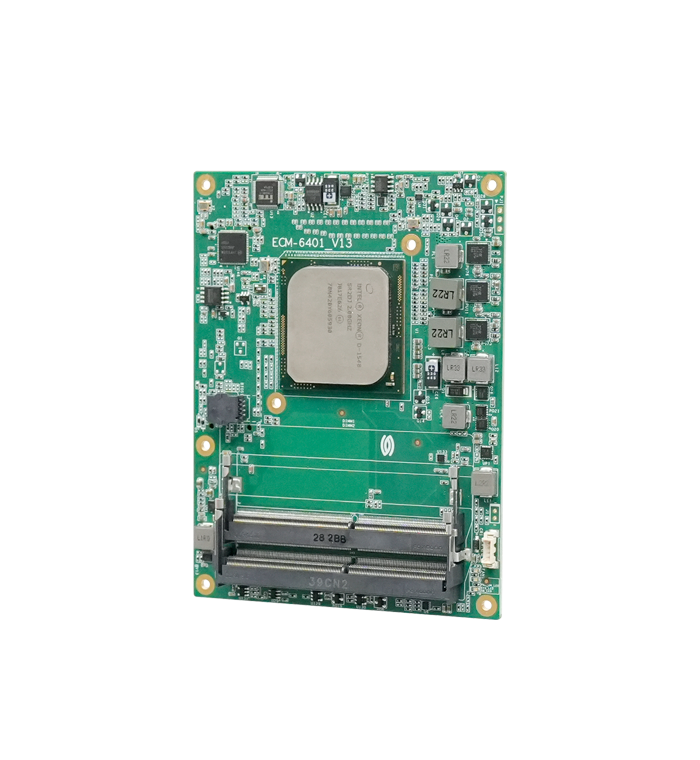

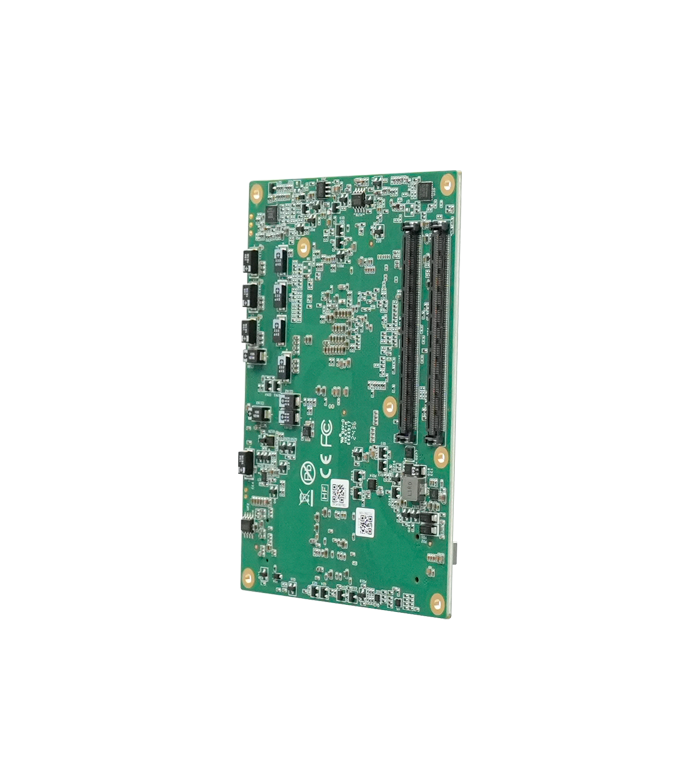

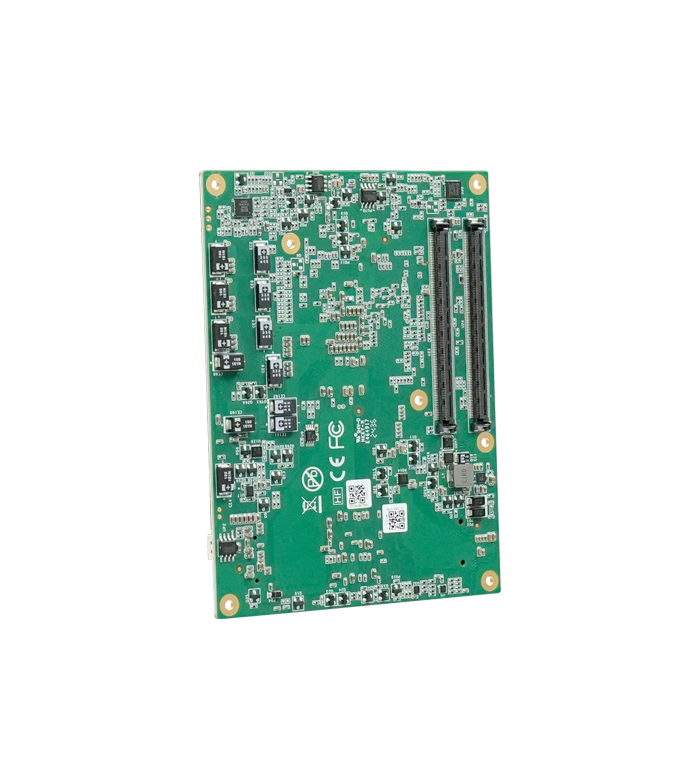

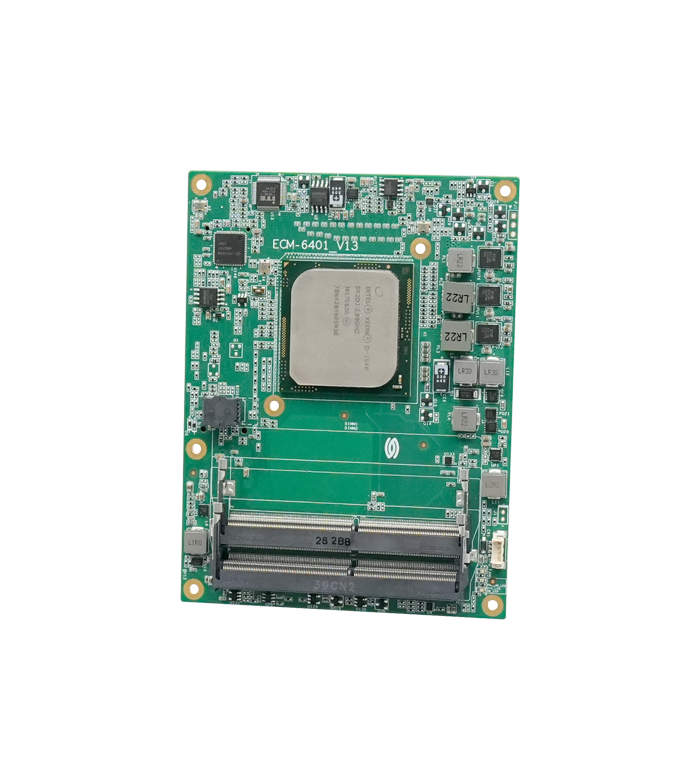

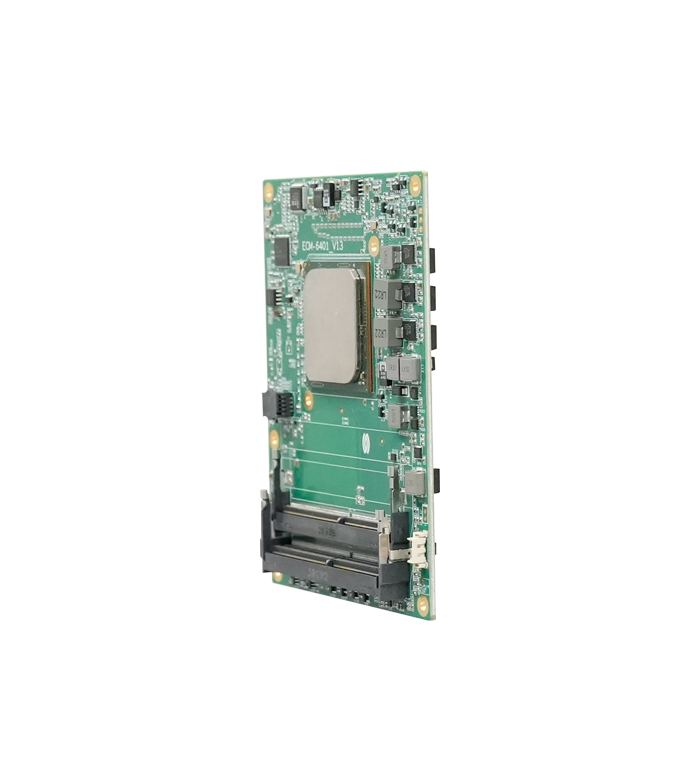

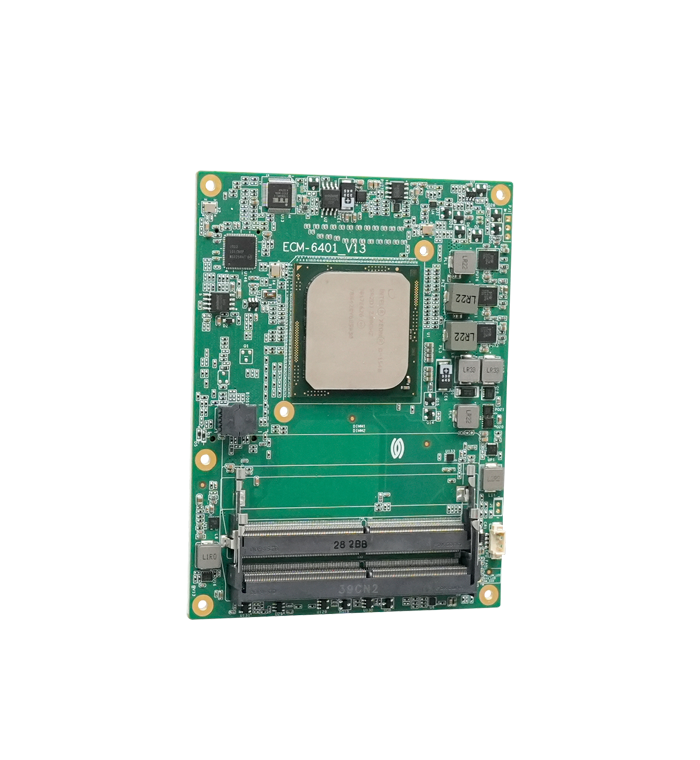

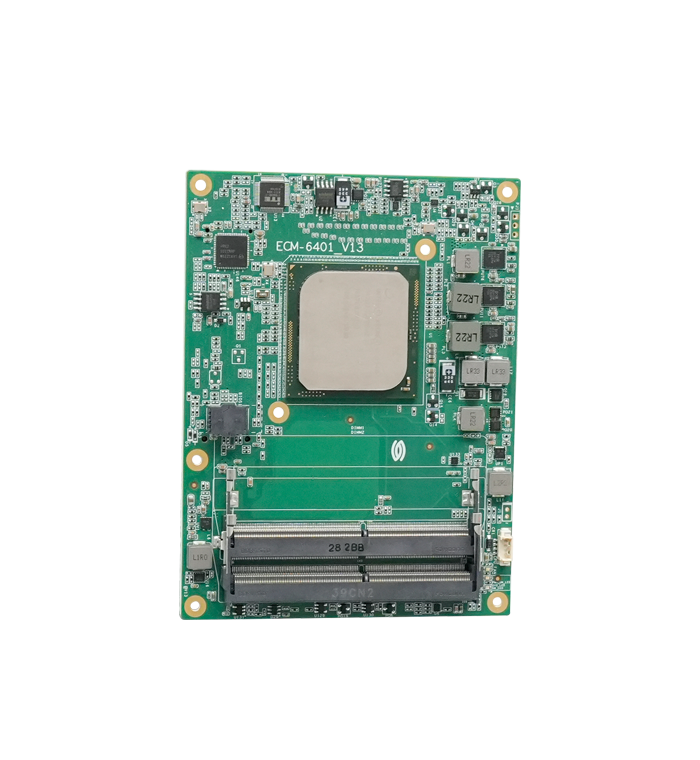

ECM-6401 Type 7 COMe Core Module
-- Onboard Intel Xeon D series CPU (D1508, D1548 optional)
-- Supports two DDR4 SO-DIMM, maximum memory 64 GB /3200Mhz
-- SUpports 2 x SATA3.0
-- Supports 2 x 10G Base-KR ports, 4 x USB 3.0, 4 x USB2.0
-- Supports 1 PCIe x16, 1 PCIe x8, and 7 PCIe x1 channels
-- Compact Type7 form factor, size 125*95*2.0mm
Model | ECM-6401 | ||
Form Factor | Form Factor | COMe Type7 Core Board | |
Processor System | CPU | D1508 | D1548 |
Core Number | 2 | 8 | |
Max. Speed | 2.2GHz | 2.0GHz | |
L2 Cache | 3M | 12M | |
TDP (W) | 25W | 45W | |
Expansion Slot | PCI Express | PCIe x16 *1，PCIe x8 *1，PCIe x1 *7 | |
Memory | Technology | DDR4 SO-DIMM | |
Max. Capacity | 64G | ||
Socket | 2 | ||
Ethernet | Controller | Intel I225LM/IT (up to 2.5GbE) or Intel I210 AT | |
integrated | |||
Connector type | Through COM-E | ||
Internal Connector | USB 3.0 | 4 x USB 3.0 | |
USB 2.0 | 4 x USB2.0 | ||
SATS3.0 | 2 x SATA3.0 | ||
GPIO | 8-bit GPIO | ||
Others | 1、1 x LPC 2、1 x SMBUS 3、Smart Fan 2 Ports（ 1 port on COM module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board） 4、SPI 5、COM Port 2 Ports (2-Wire) 6、1 x Power button | ||
7、1 x RESET | |||
Connector | 2 x COM-E 220PIN connector | ||
Power Requirements | Power Type | ATX: VCC,VSB; AT: VCC | |
Power input Voltage | Supply Voltage Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~3.3V | ||
Connector type | Board supply | ||
Environment | Operating Temperature |
0~60℃ | |
Storage Temperature |
-20~85℃ | ||
Operating Humidity |
20~90%(non-condensing) | ||
Physical | Dimensions | 95*125mm | |
Warranty | 2 years | ||
OS | Microsoft | Support | |
Linux | Support | ||
