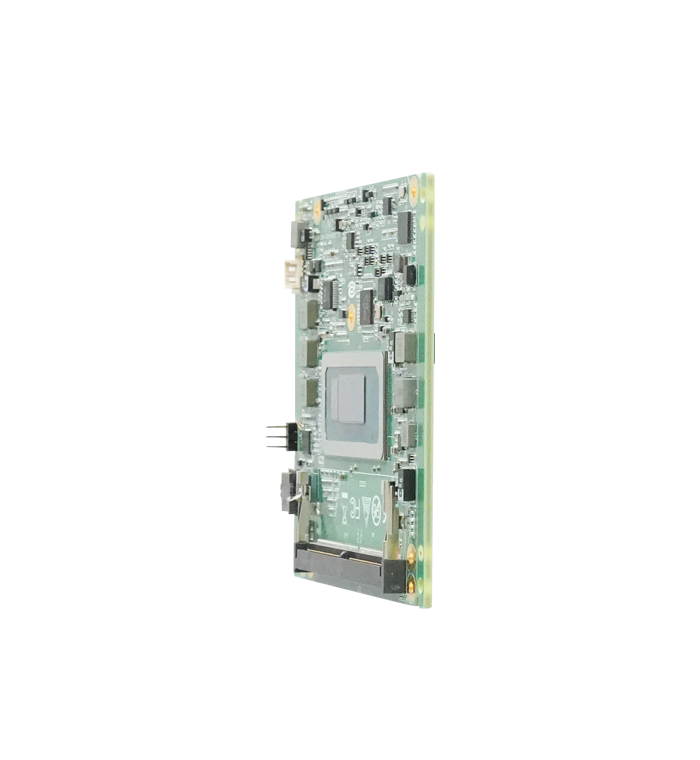

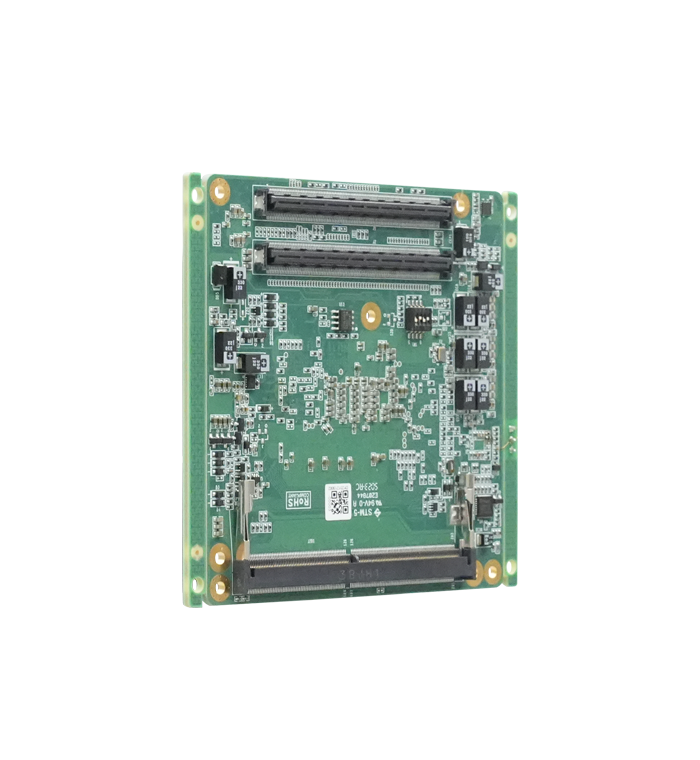

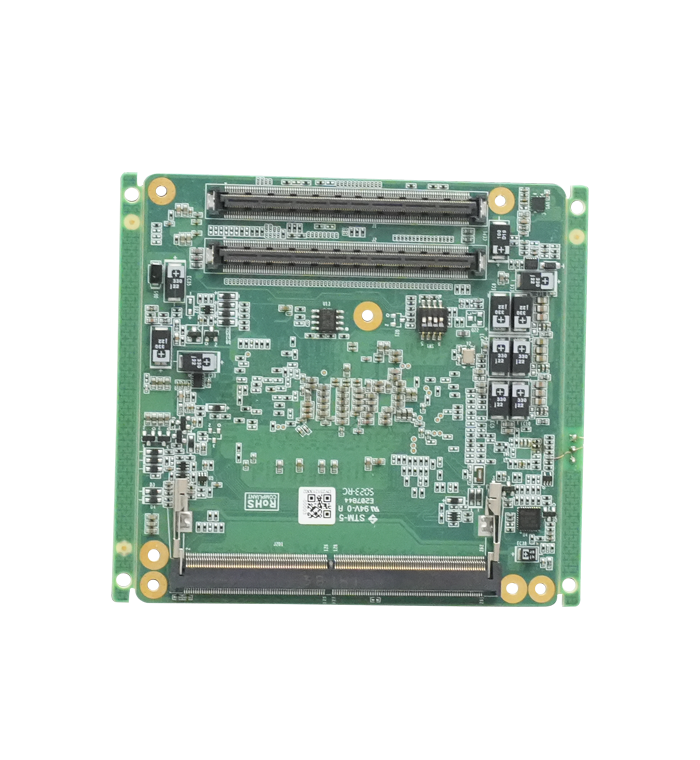

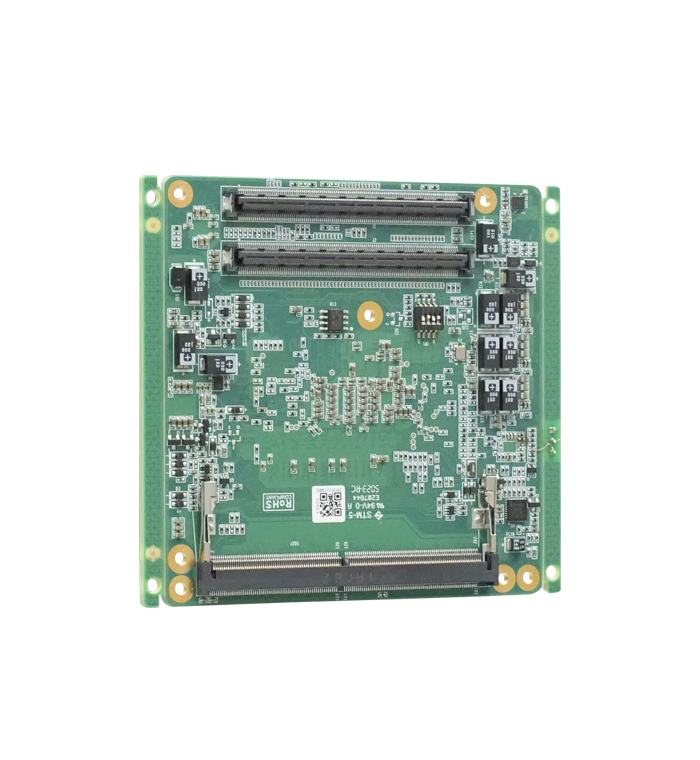

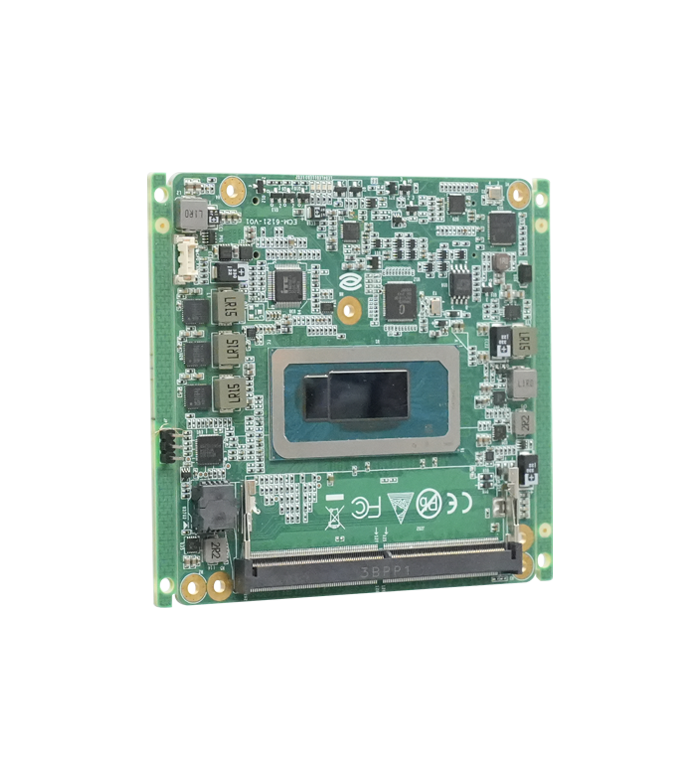

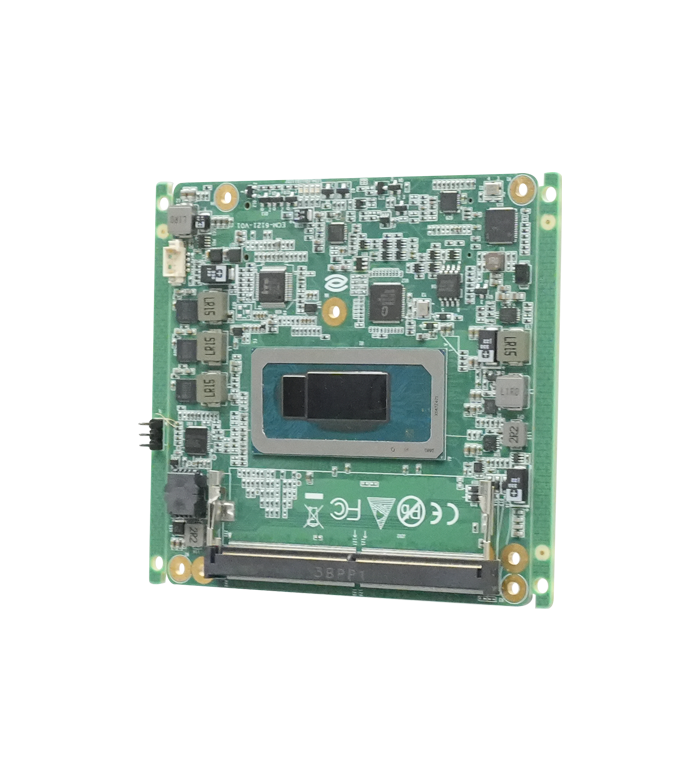

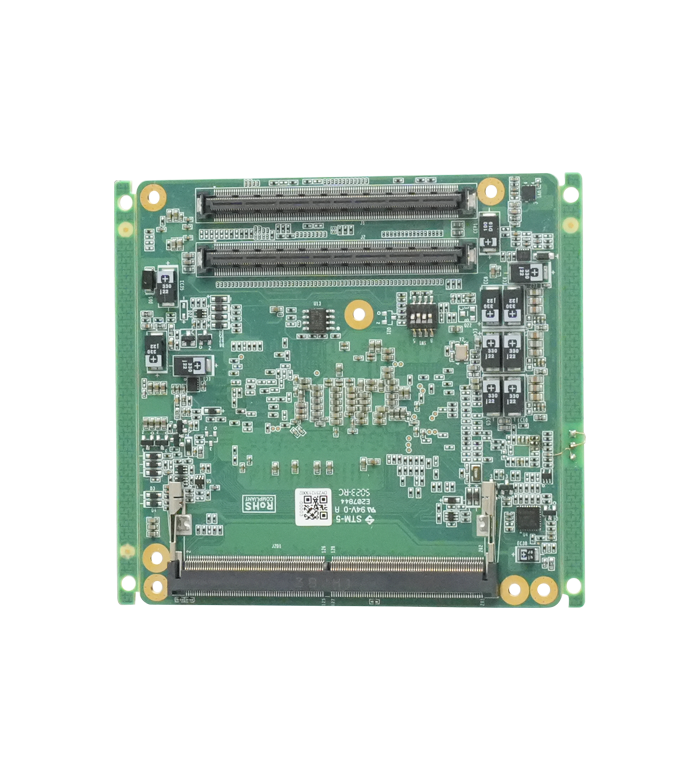

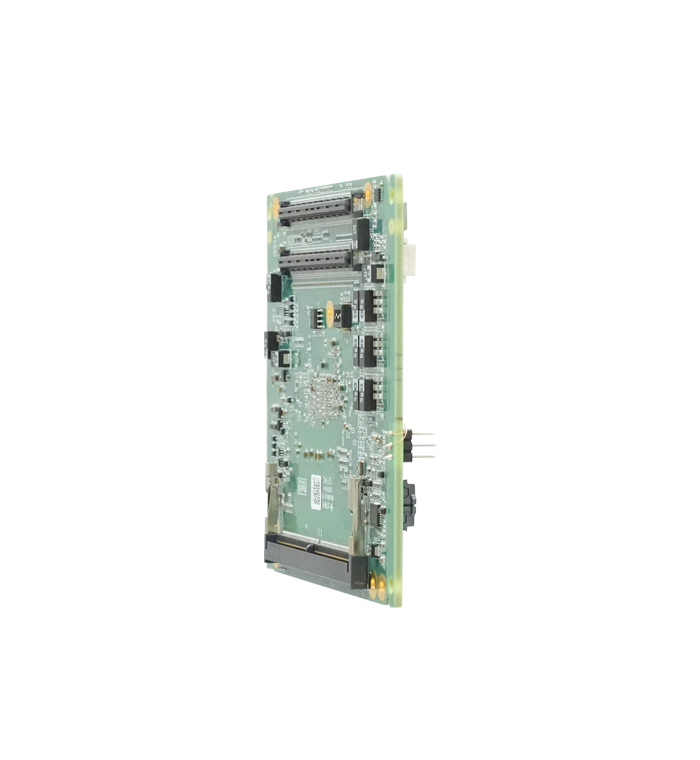

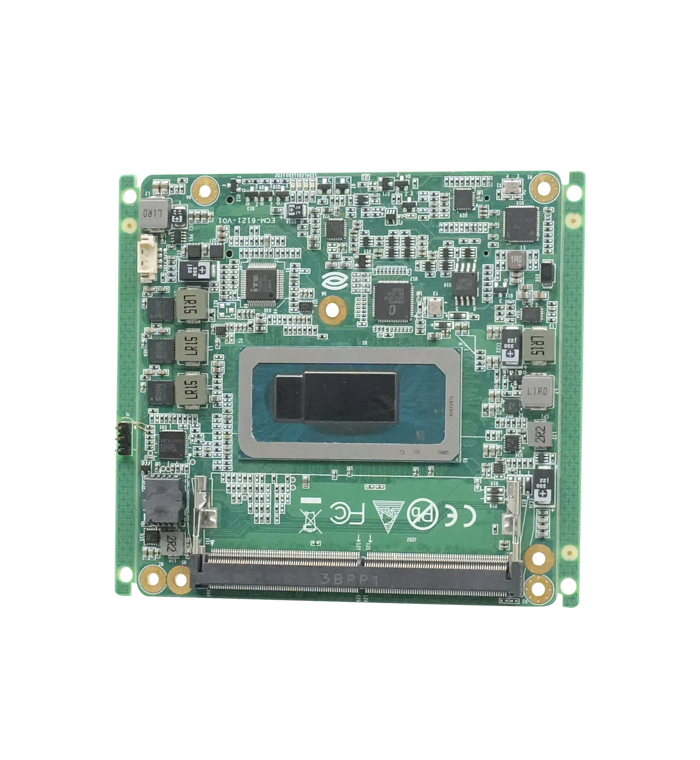

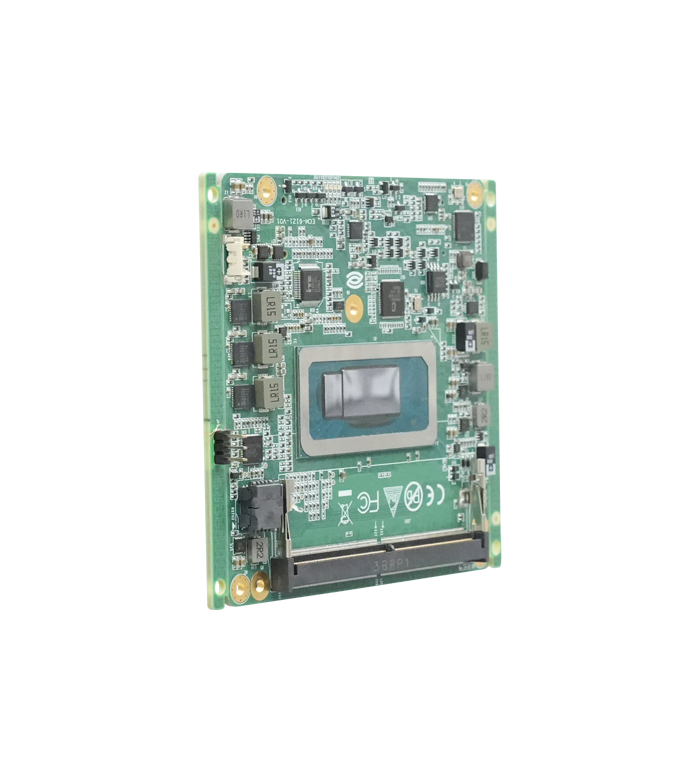

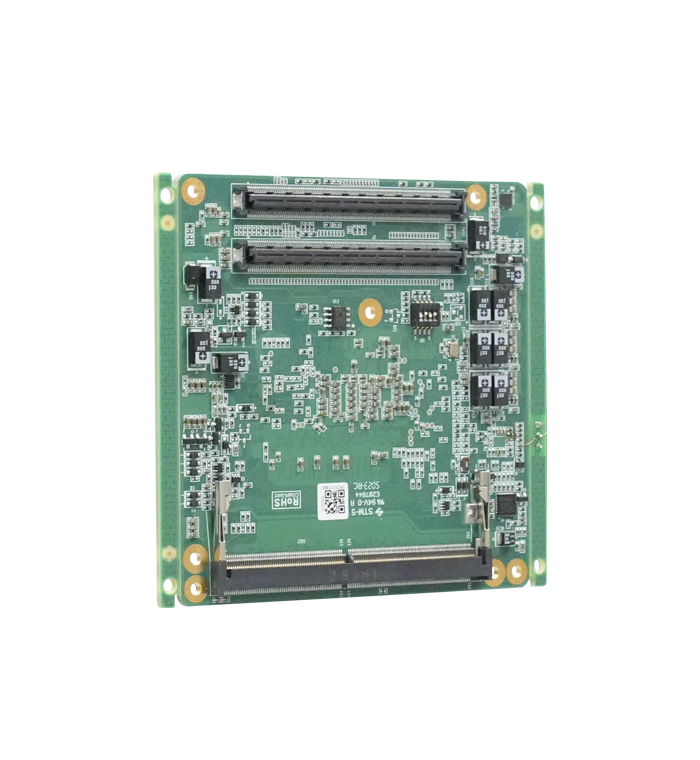

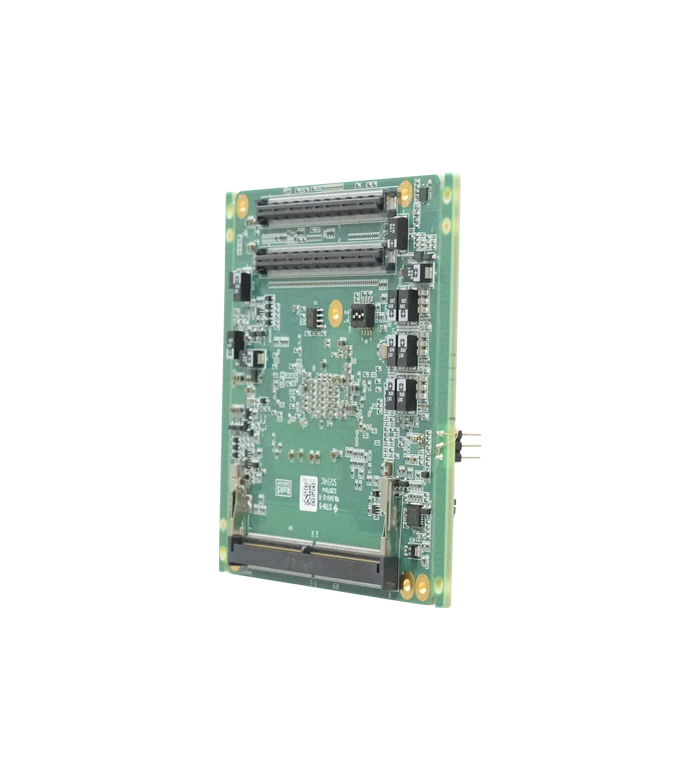

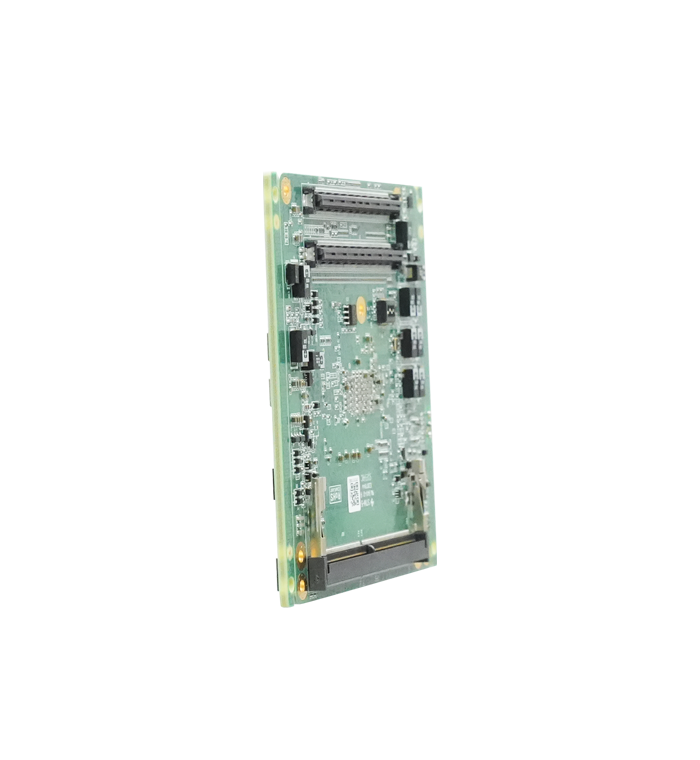

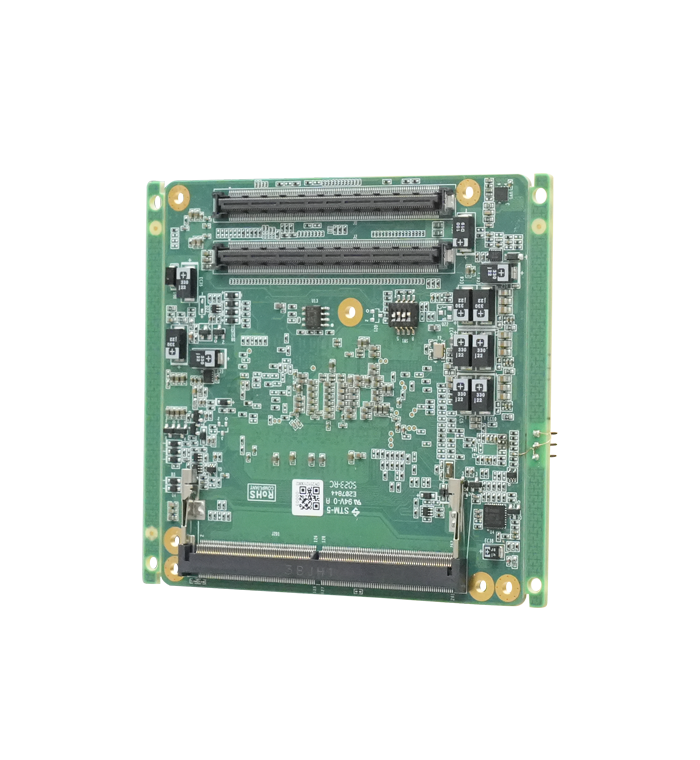

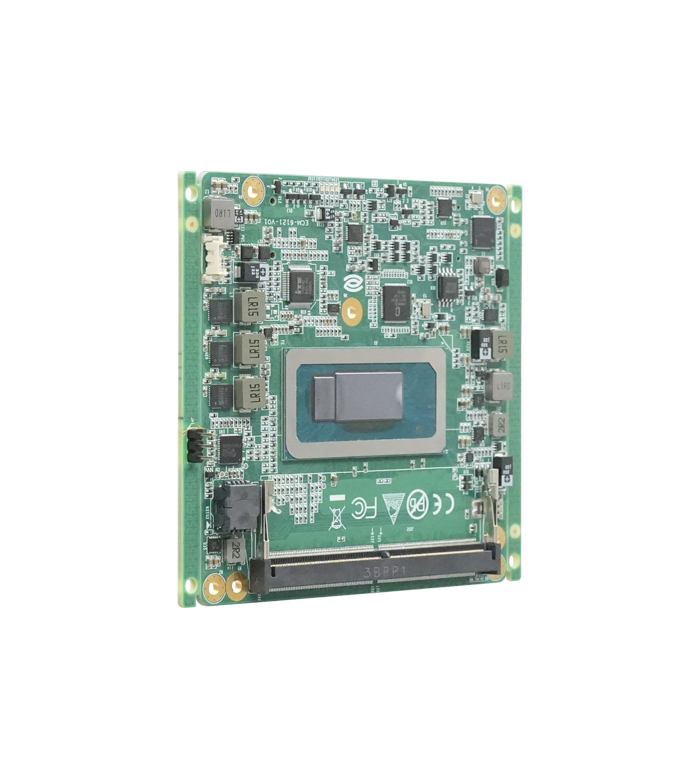

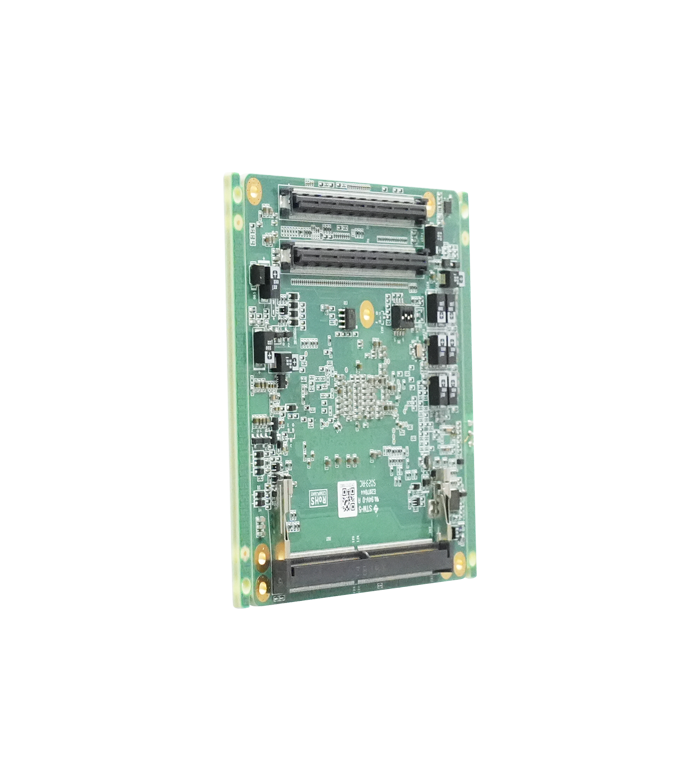

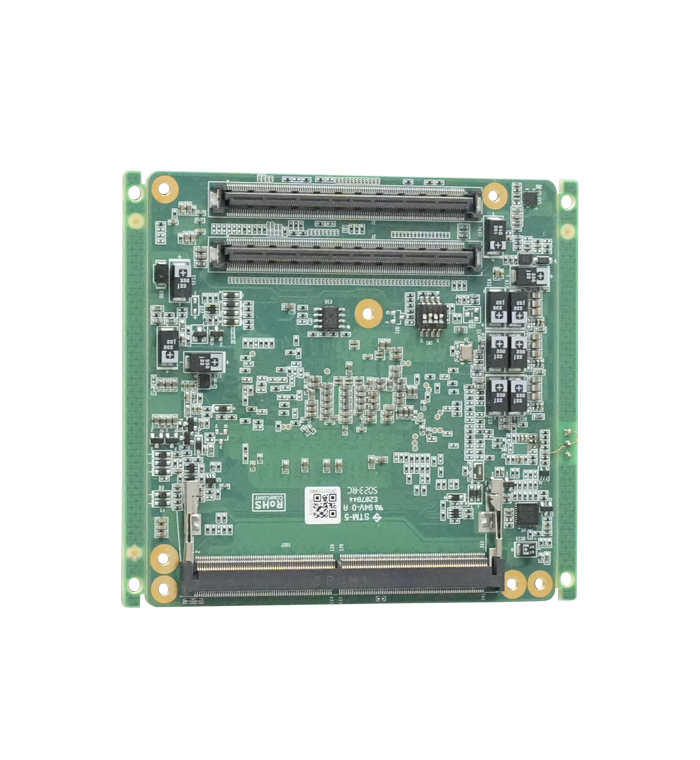

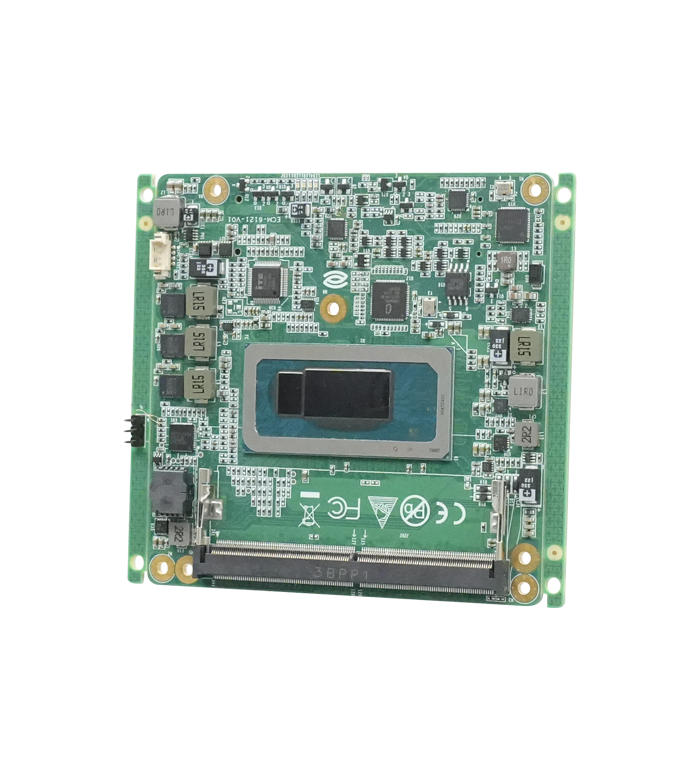

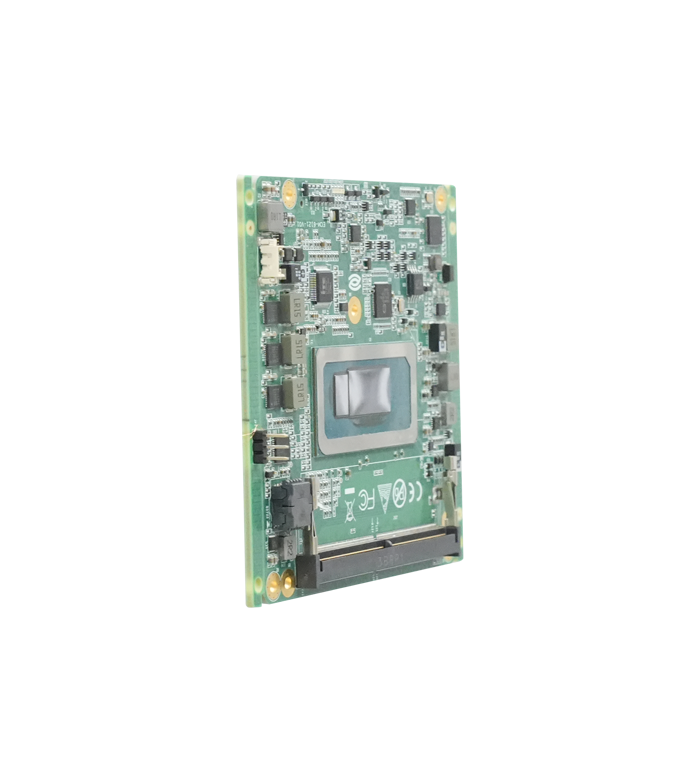

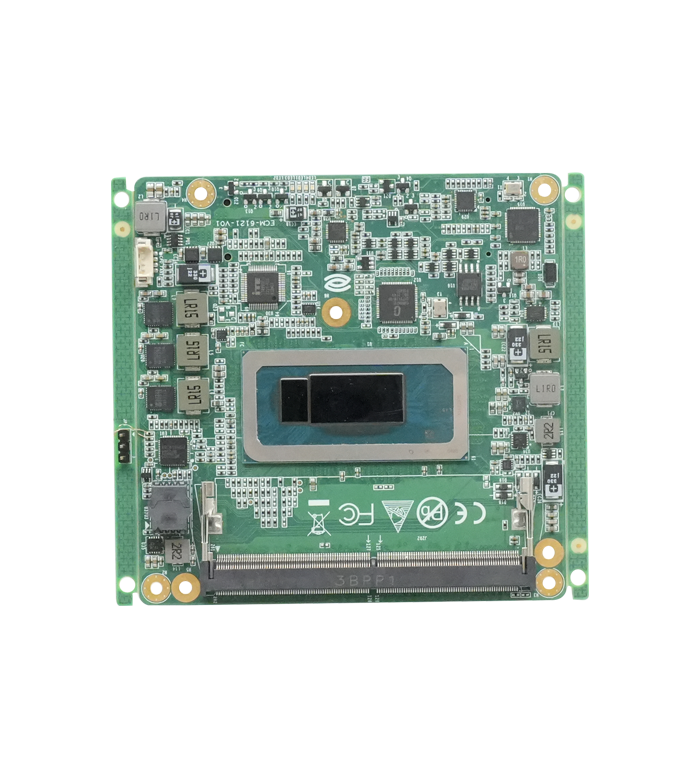

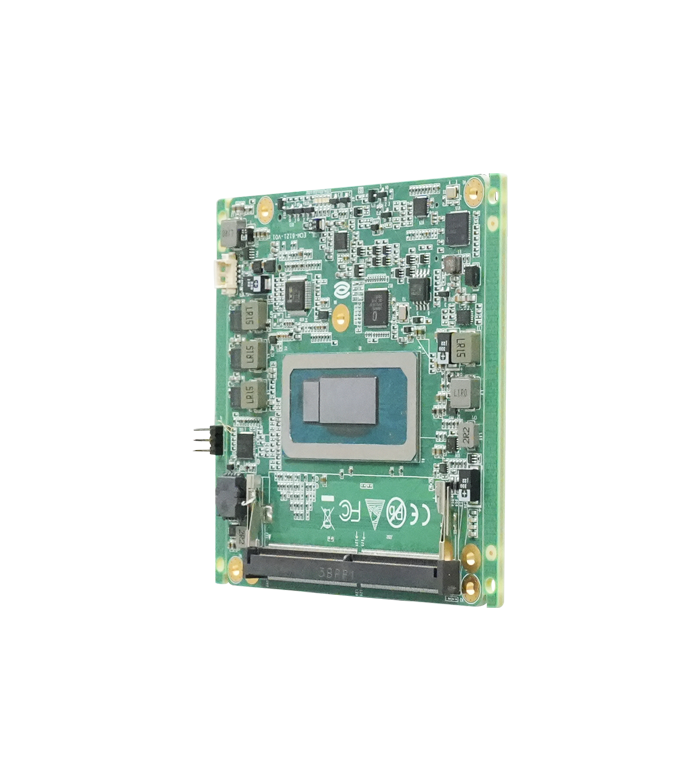

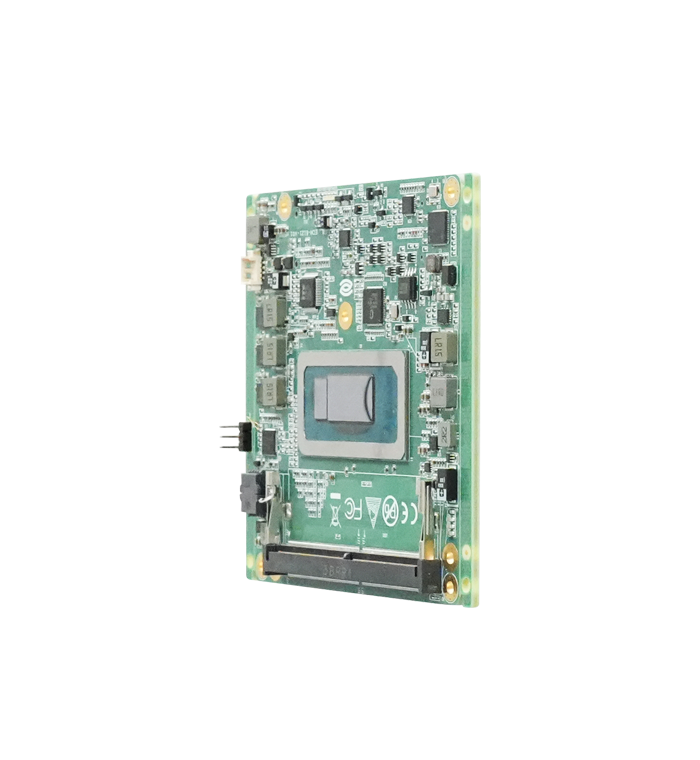

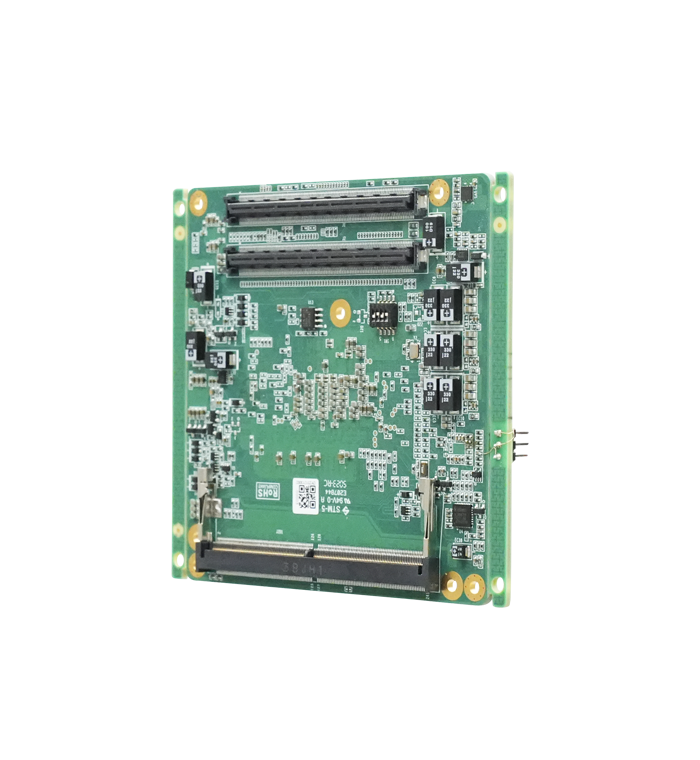

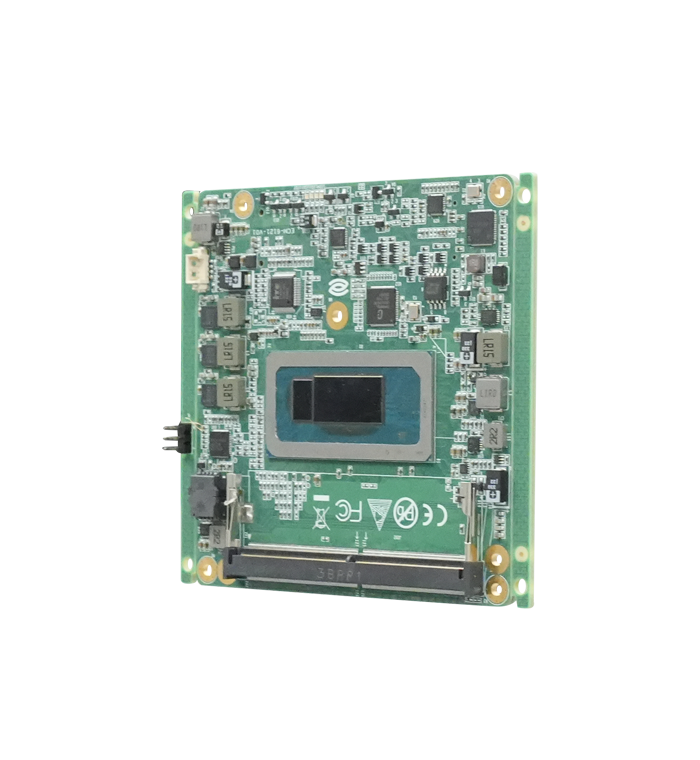

Drag and drop the mouse to view the image 360 °

Type 6 COMe Core Board based on Intel 12th Gen. CPU ECM-6121
intel 第12代处理器

Type 6 COMe Core Board


➢ High-performance Intel Alder Lake-P series Intel 12th Gen. CPU

➢ Dual-channel DDR5 memory, support up to 64GB/4800MT/s

➢ Support 3x DDI, can be configured as HDMI/DVI/DP; 1 eDP/LVDS

➢ 16x PCIe Gen4, 5x PCIe Gen3 channels

➢ Type6 design with a compact size of 95*95*2.0mm

Contact us



Model

ECM-6121

Form Factor

Form Factor

COMe Type6 Core Board



     Processor   System

CPU

7305E

i5-1250PE

i5-1350PE

i7-1360P

i3-1315U

Core Number

5C

12C

12C

12C

6C

Total Threads

5T

16T

16T

16T

8T

Max. Speed

1.0GHz

4.4 GHz

4.6 GHz

5.0 GHz

4.5GHz

L2 Cache

8M

12M

12M

18M

10M

TDP (W)

15W

28W

28W

28W

15W

BIOS

AMI UEFI 256 Mbit



       Expansion Slot



PCI Express

PEG: PCIe Gen4, 12 lanes (H   series), Bitfurcate to 1 x8 PEG: PCIe Gen4, 4 lanes (P/U series), Bitfurcate   to 1 x4

PCIe: PCIe Gen3, 8 lanes max   up to 6 end devices, Default 5 lanes (5 x1, 2 x2 + 1 x1), Option 2 x4, 1 x4 +   2 x2 (Co-lay with SATA &

Ethernet)



      Memory

Type

DDR5 Non-ECC

Max. Capacity

64G 4800MH/s

Socket

2 x SO-DIMM



      Display

Multiple Display

4 Ports

Controller

LVDS Dual Chanel(Option eDP)

3 x DDI configurable   HDMI/DisplayPort



Resolution

LVDS:1920*1200@60Hz   HDMI2.0b:4096*2160@60Hz 24bpp DP1.4a:4096*2304@60Hz 36bpp

eDP:4096*2304@60Hz 24bpp



Ethernet

Controller

Intel®I225-AT

Speed

10M/100M/1000M/2.5Gbps



Internal Connector

    SATA

2 x SATA3.0(6Gbps)

    USB 3.2

4 x USB 3.2(10Gbps)

    USB 2.0

8 x USB2.0(480Mbps)

    COM

2 x COM

    GPIO

8-bits GPIO

    Watch Dog

65536 Level, 0~65535 sec



    Others

1、1 x LPC

2、1 x SMBUS

3、1 x SPI

4、Smart Fan 2   Ports

5、1 x I2C

    Connector

2 x COM-E 220Pin Connector



Power Requirements

Power Type

ATX: VCC,VSB AT: VCC

    Power input   Voltage

Vin:   8.5V~20V(±5%) VSB: 5±5%

RTC Battery: 2.0V~3.3V

    Connector type

Power provided by Base board



Environment


    Operating Temperature

0~60℃

    Storage Temperature

0~60℃

    Operating Humidity

40℃@95% Relative Humidity, Non-condensing

    Storage Humidity

60℃@95% Relative Humidity, Non-condensing



Physical

    Dimensions

95*95mm

    PCB Color

Green



OS

    Microsoft

Support

    Linux

Support


 Download Datasheet:


ECM-6121 Catalogue.pdf
