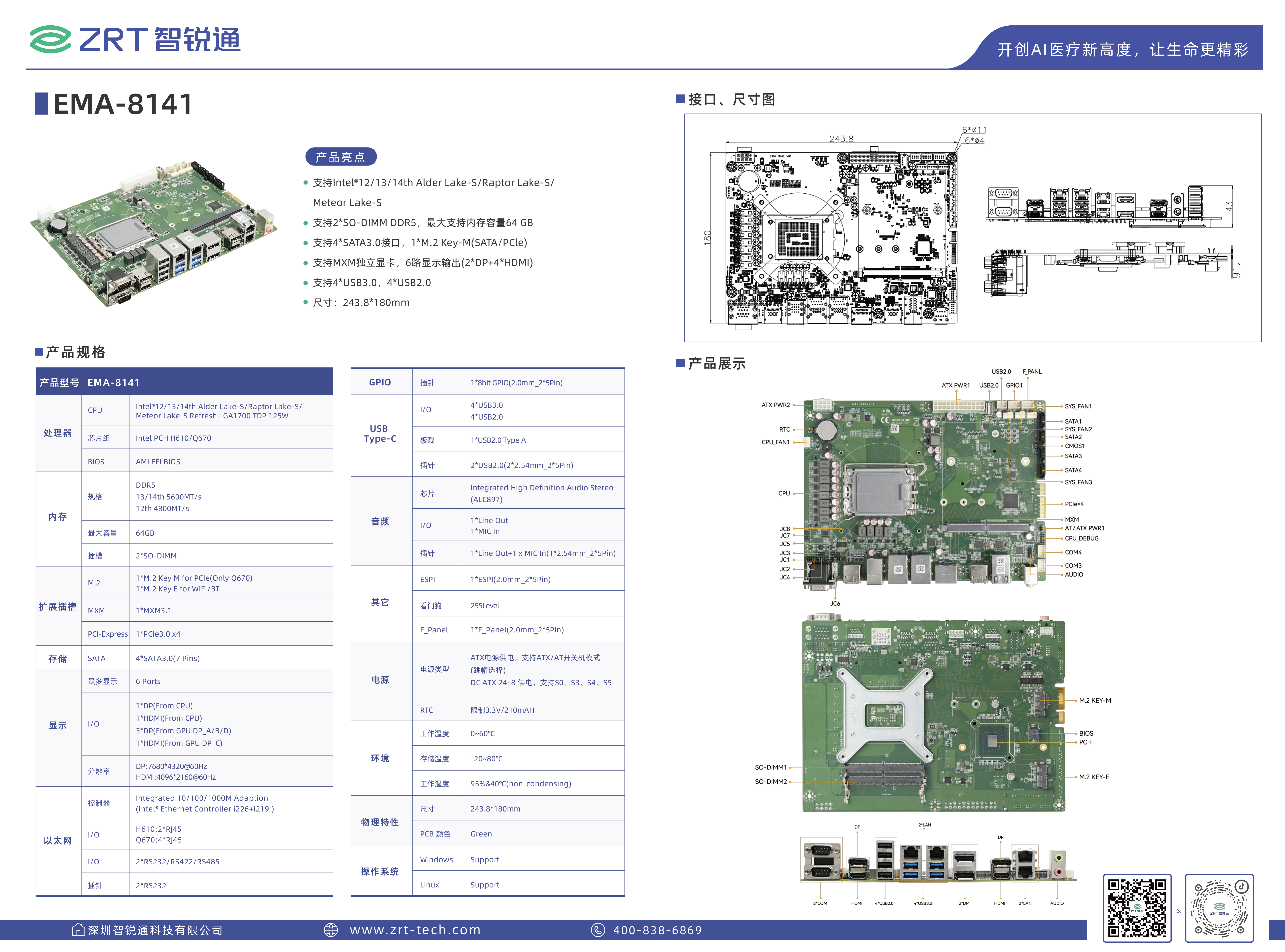

The newly launched Alder Laker-S/Raptor Lake-S based motherboard EMA-8141
is originally designed for a mobile DR equipment.
It can also be applied to multiple applications such as
machine vision, edge AI and industrial automation.
Here are main features:
ntel 12/13/14th Alder Lake-S/Raptor Lake-S/Meteor Lake-S LGA1700 PCH H610/Q670
Max 6G DDR5
1*PCIe 4x
4*SATA3.0
1*MXM slot for expanding GPU module
1*M.2 Key M for PCIe(Only Q670)
1*M.2 Key E for WIFI/BT

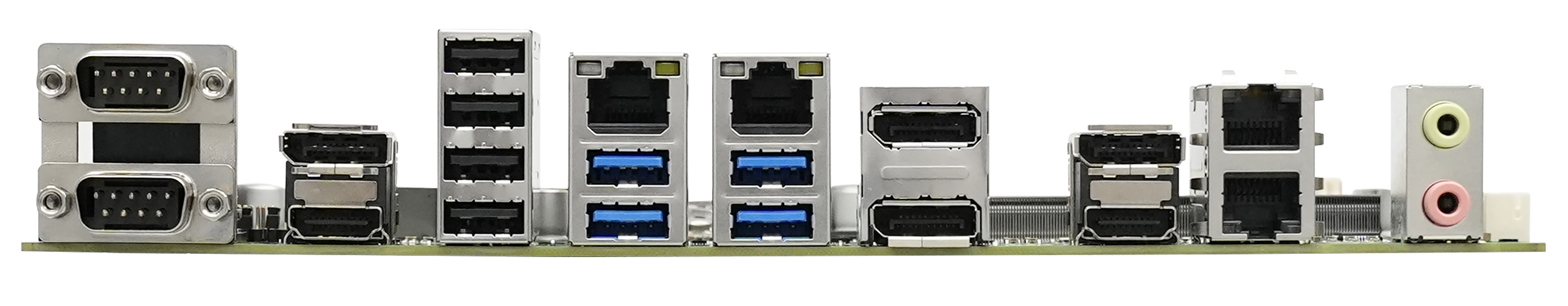

4*DP+2*HDMI
4*USB3.0+7*USB2.0
2*RJ45(H610)4*RJ45(Q670)
2*RS232/422/485+2*RS232
243.8*180mm
