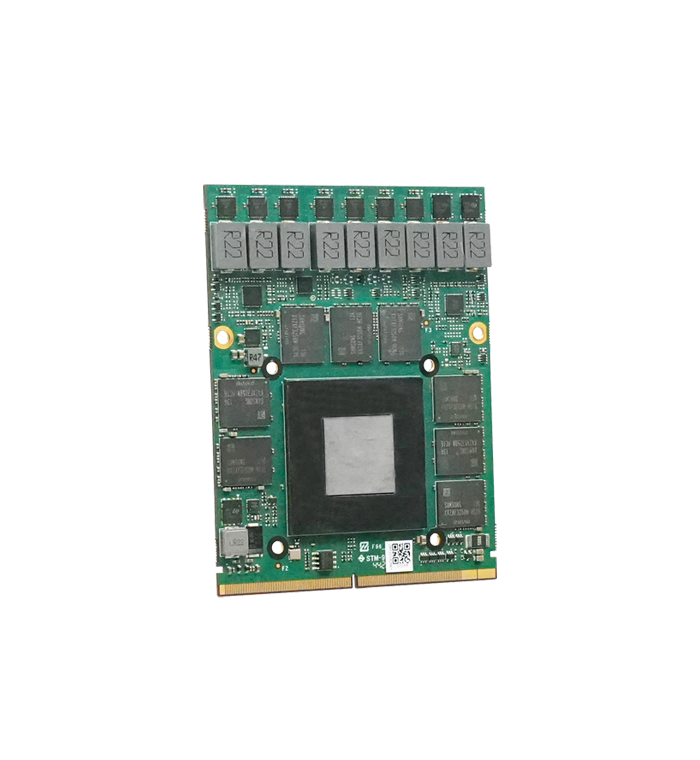

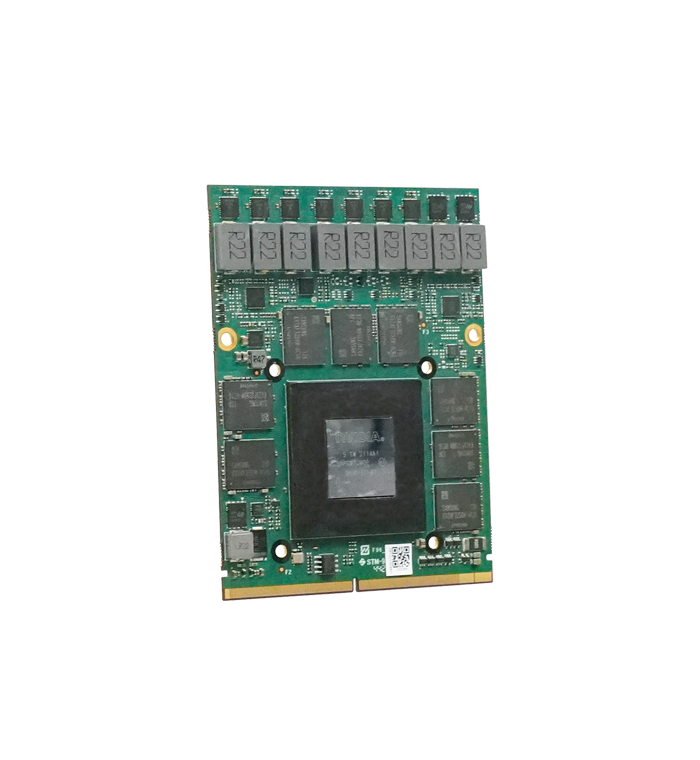

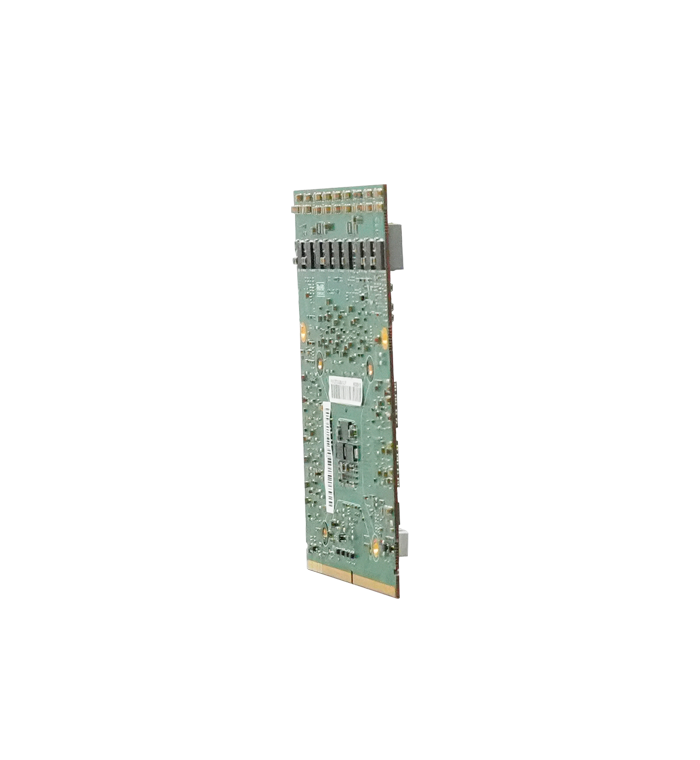

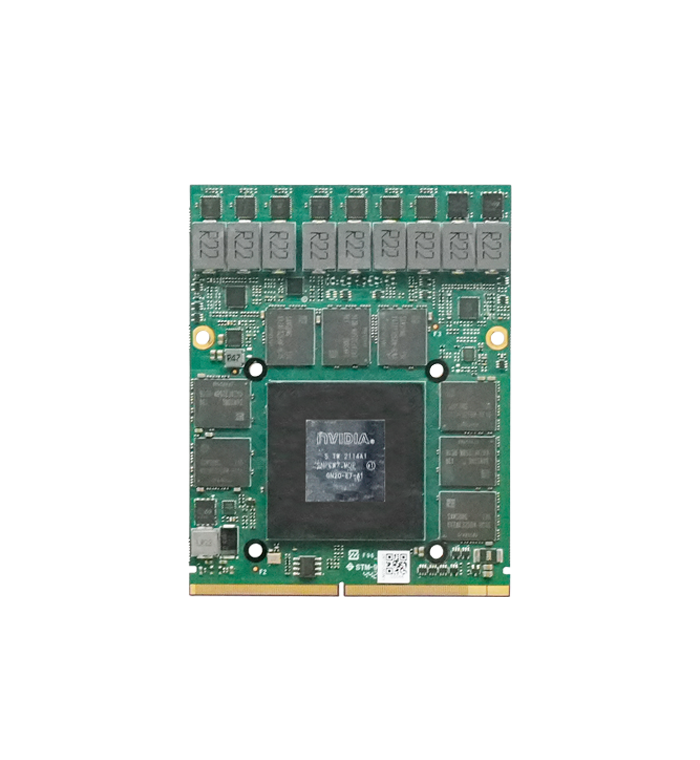

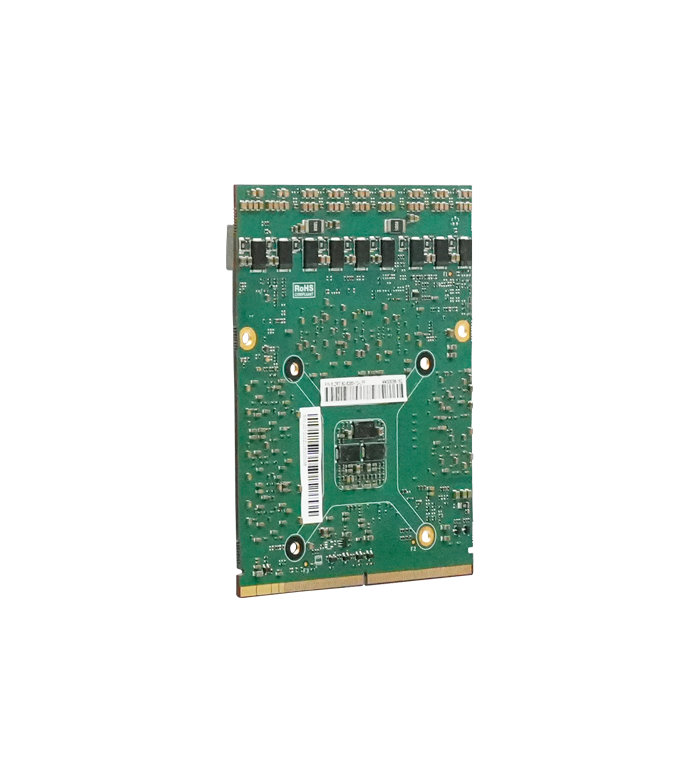

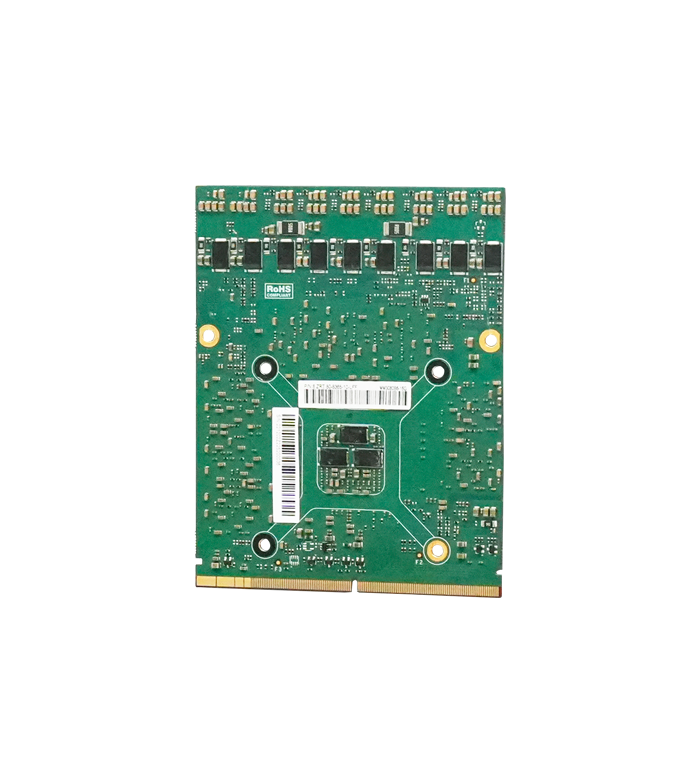

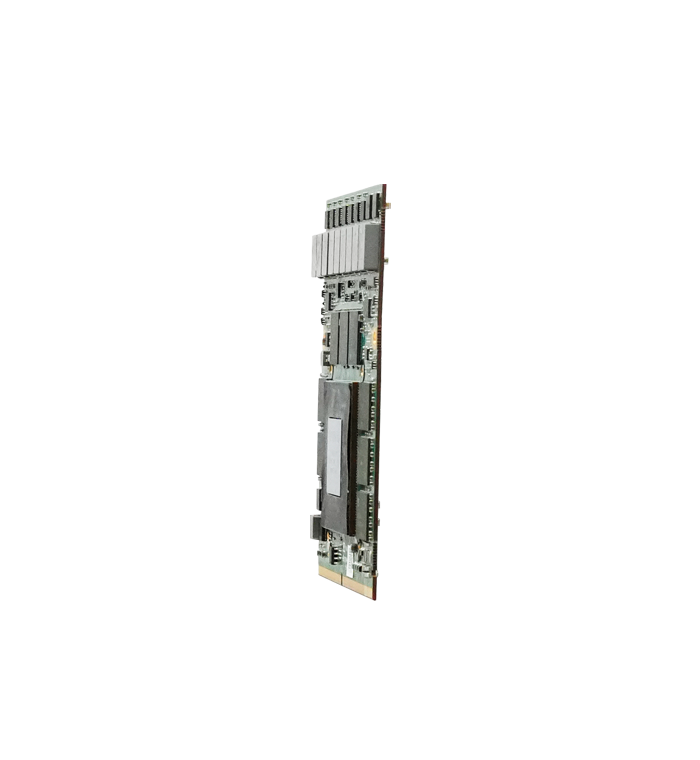

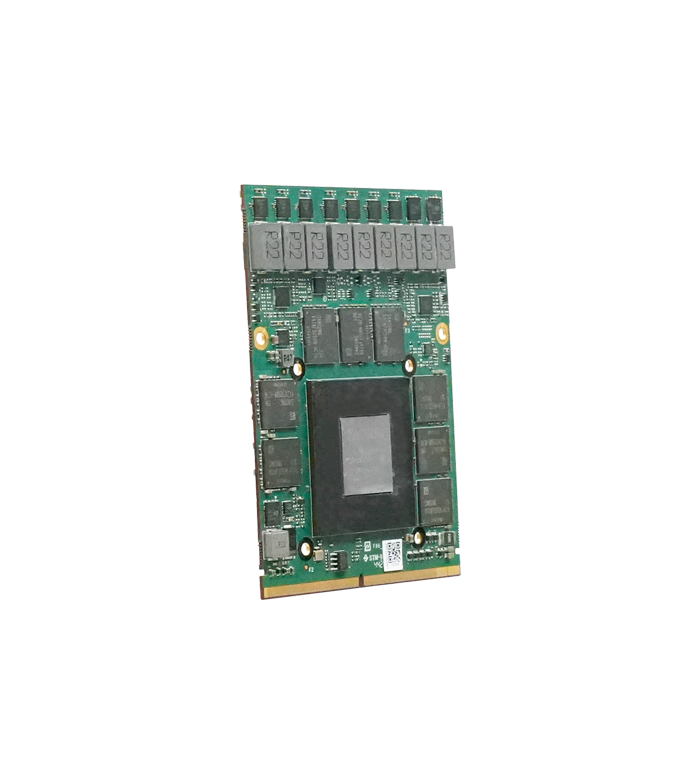

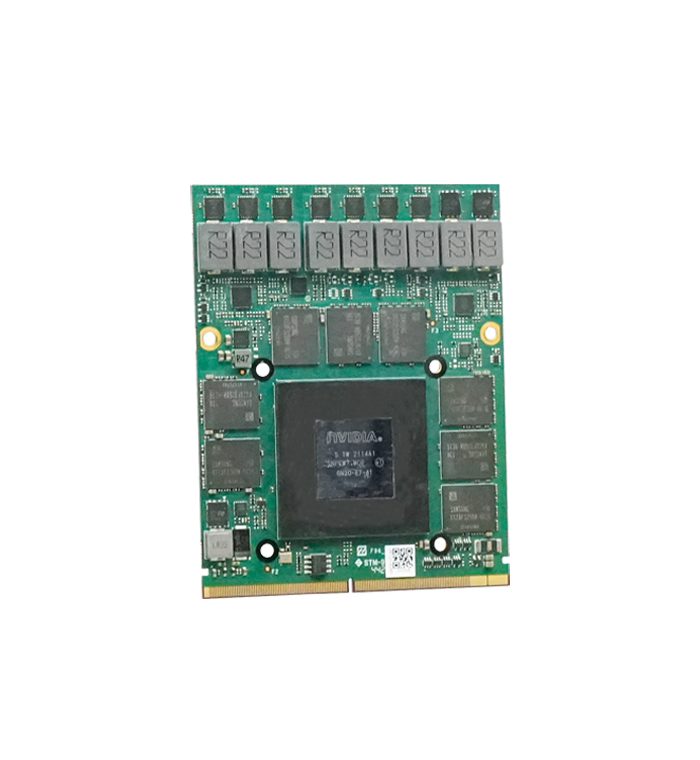

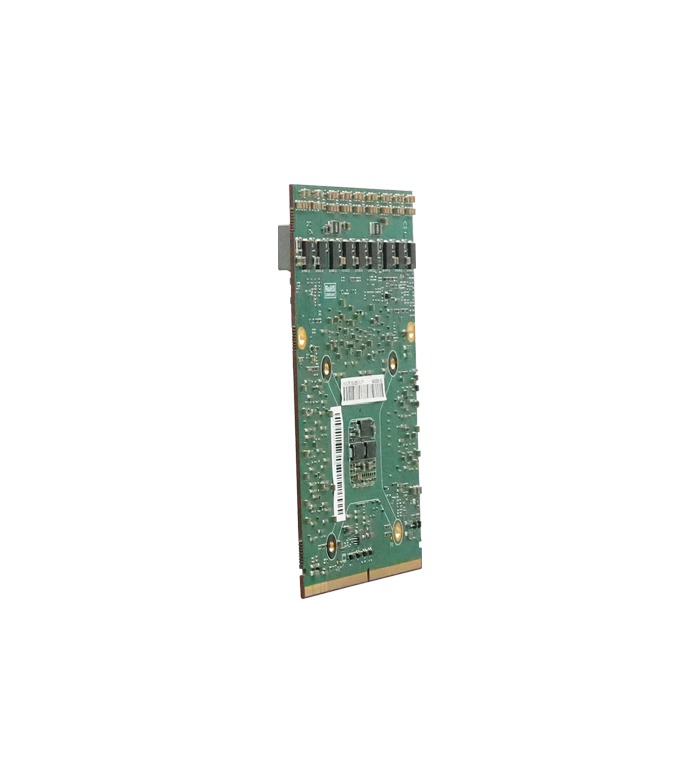

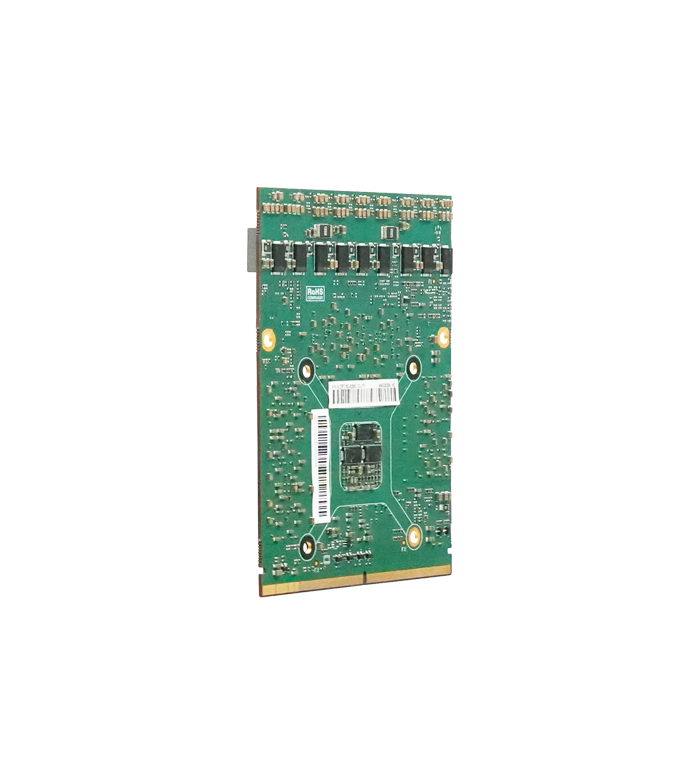

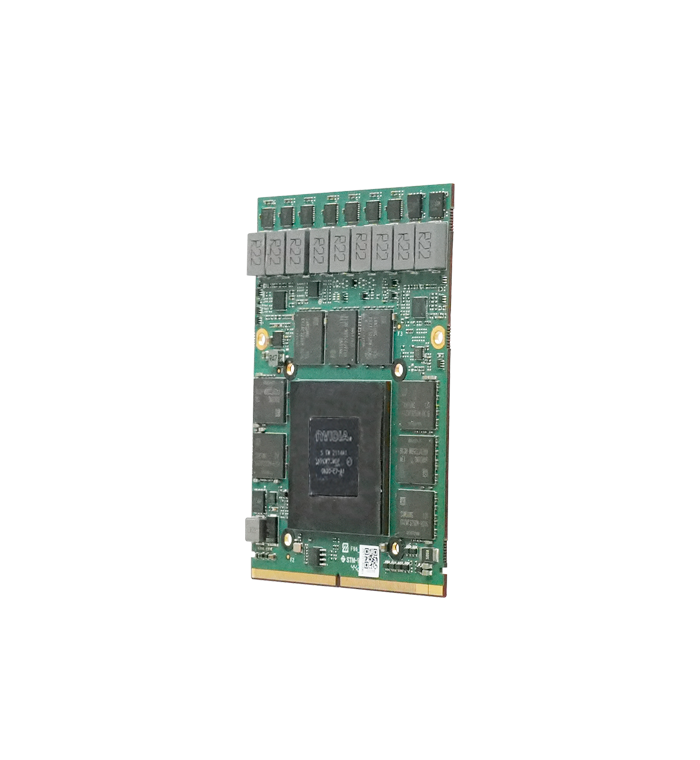

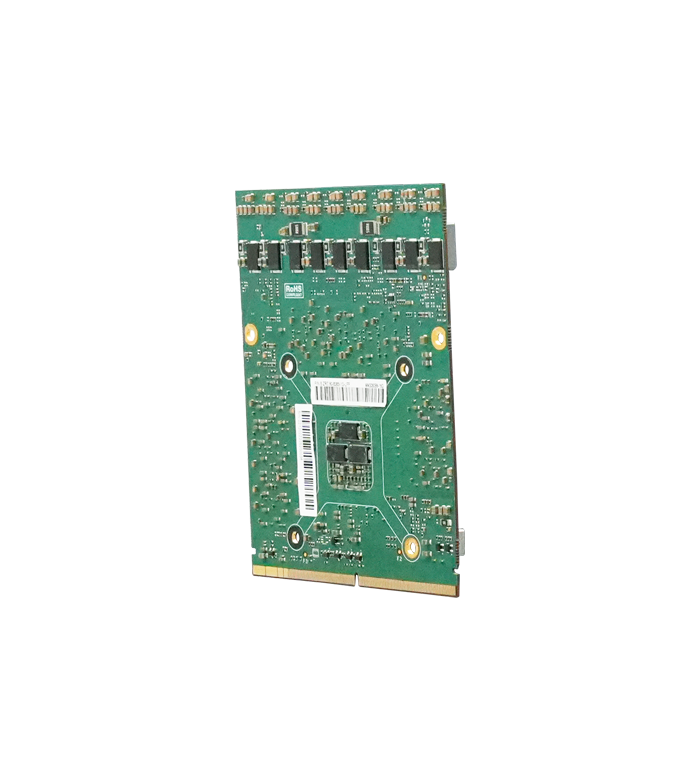

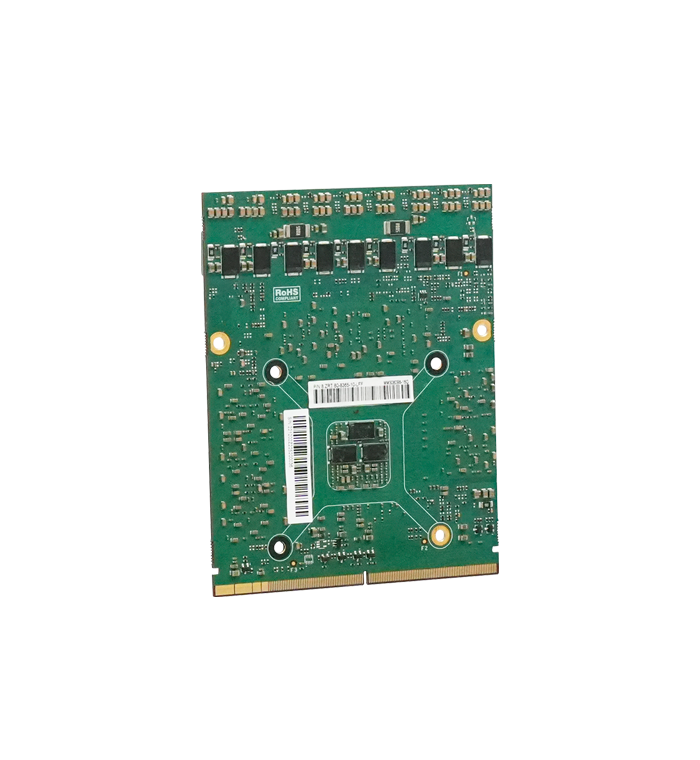

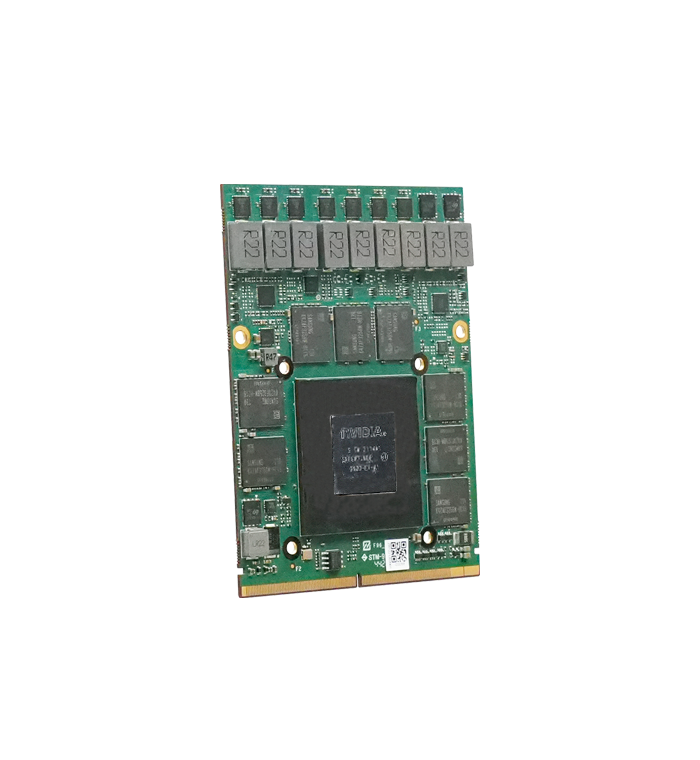

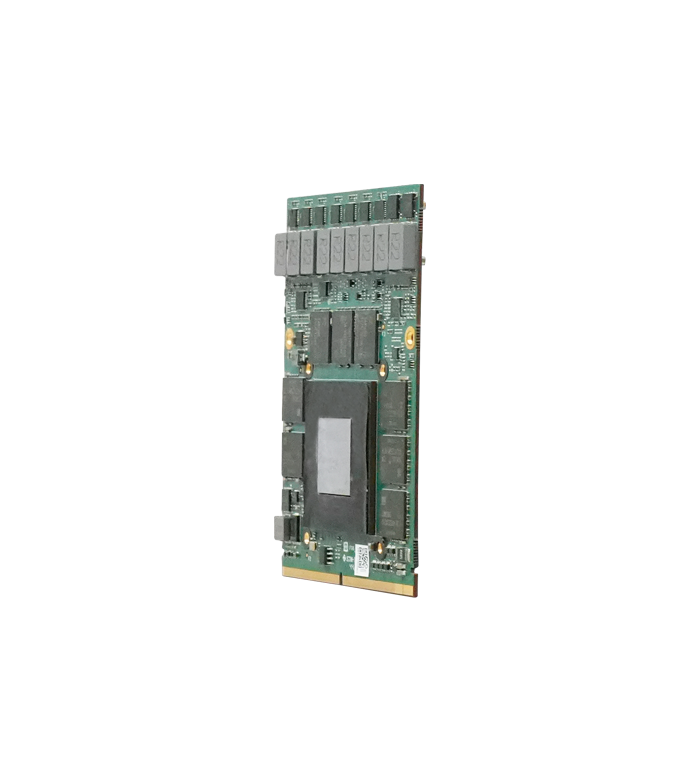

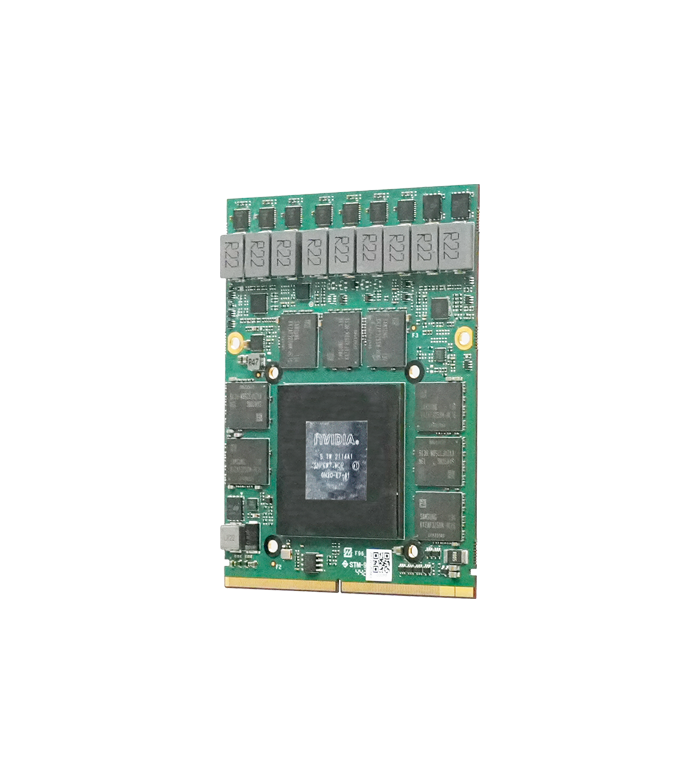

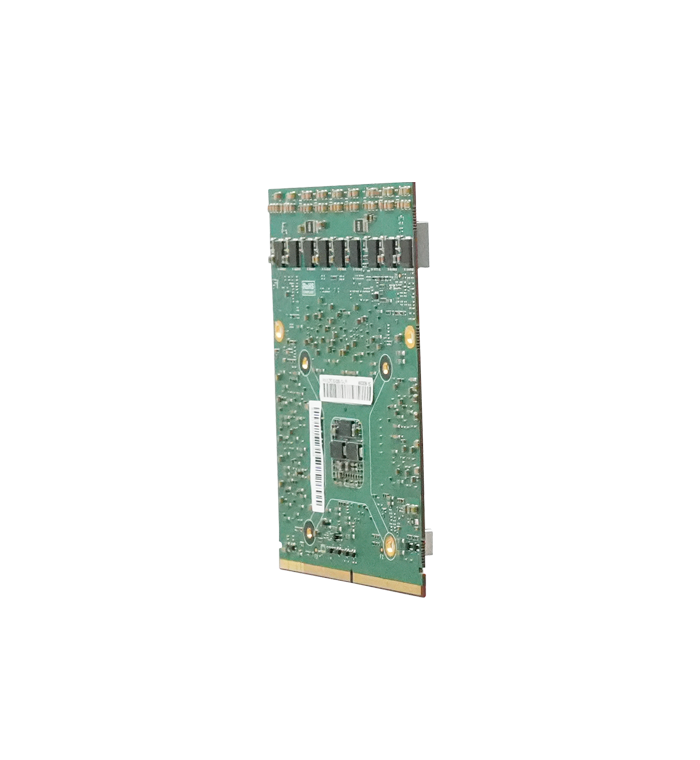

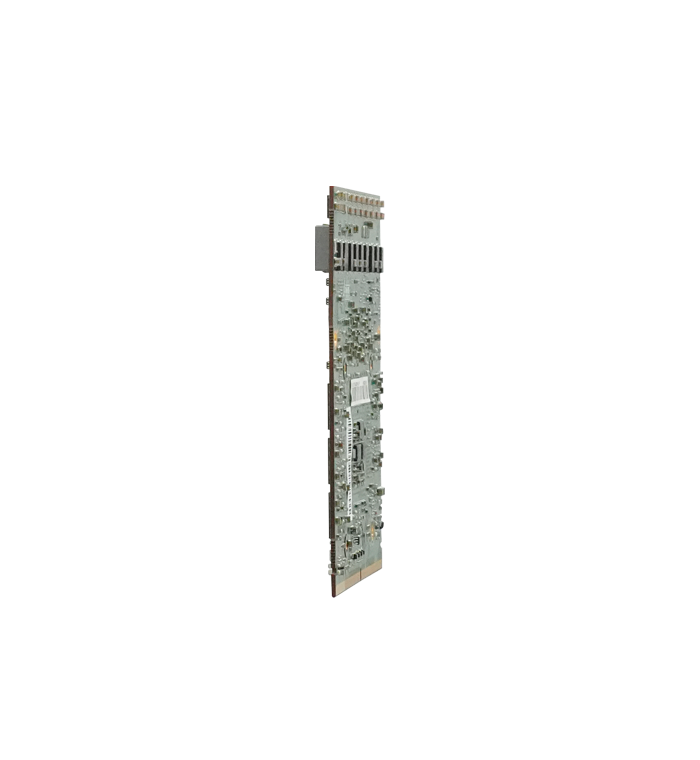

Drag and drop the mouse to view the image 360 °

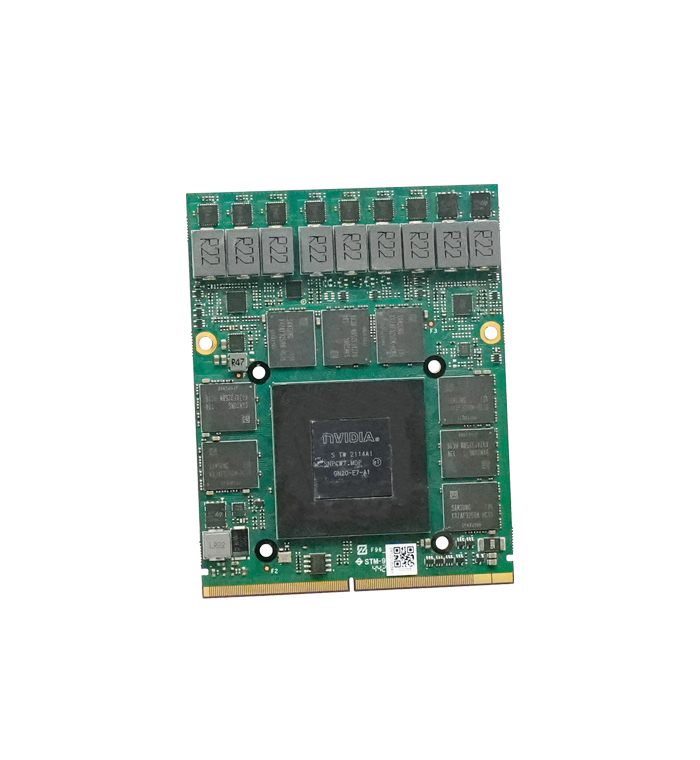

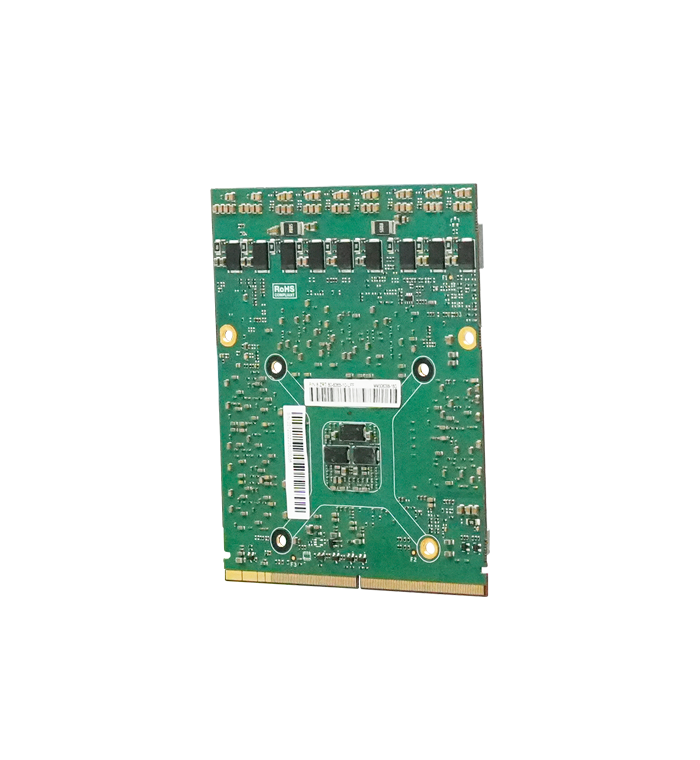

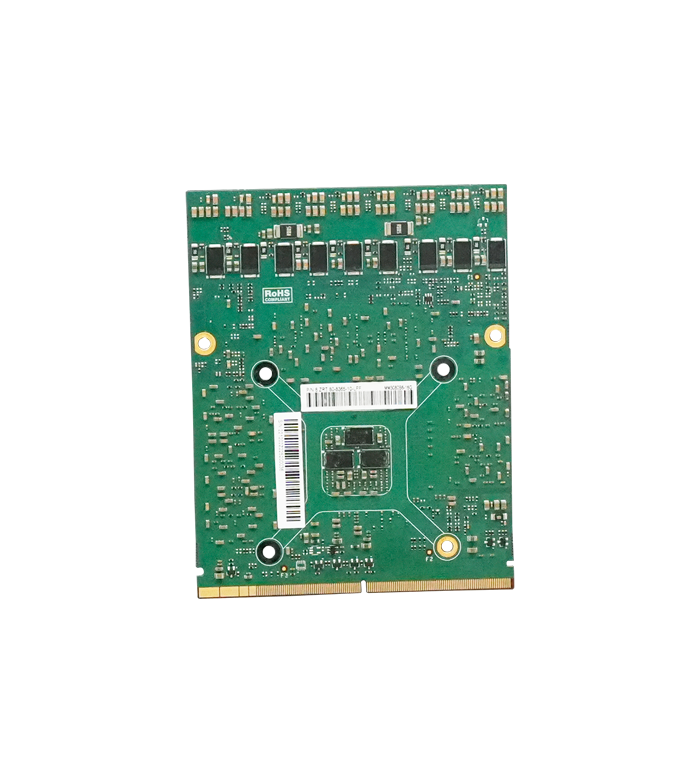

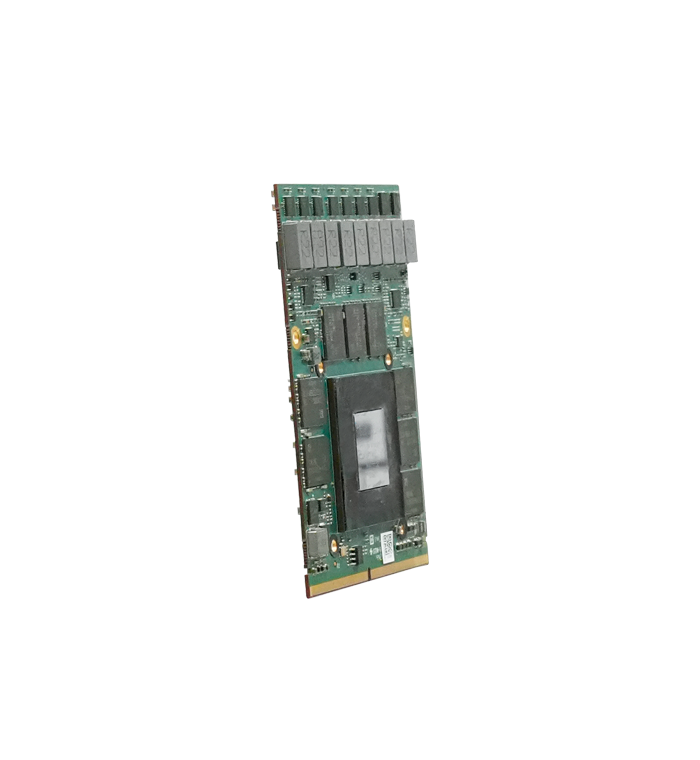

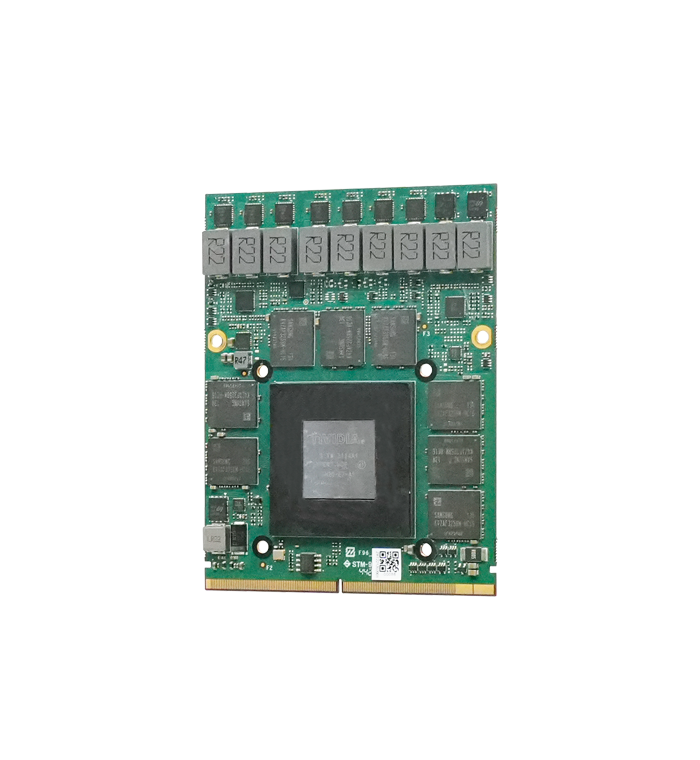

RTX3080m 16G GDDR6 Type B MXM3.1
RTX3080m-16G

NVIDIA GeForce RTX3080 Mobility display chip

16GB GDDR6 video memory

4DP Display interface

Type B Size

MXM3.1 slot

Contact us

GPU Architecture

NVIDIA Ampere

Graphics Processing Unit

NVIDIA GeForce RTX3080 Mobility

Bus Type

MXM3 .0 / up to PCI Express 4.0 x16

Graphics Clock

1110MHz / 1545MHz (Boost)

Memory Size

16G 256bit GDDR6

Memory Clock

1750MHz (14.0 Gbps)

Memory Bandwidth

448.0GB/s



Display Features


DP_A: Display Port1.4++

DP_B: Display Port1.4++

DP_C: HDMHDMI2.1

DP_D: Display Port1.4++

Max Resolution

DP:7680x4320@120Hz

HDMI: 7680x4320@60Hz

Number of Output Channel

4

Board Power

135W (Option 110W)

Board Dimensions

MXM Graphics Module Version 3.1 Type B (105x82mm)

Operation System

Windows 11/10 64bitLinux

VIN Range

DC 12~19V, 3.3V & 5V;   +/-5%

Operating Temperature

0~45°C

Storage Temperature

-20~75°C

Operating Humidity

0~95% (non-condensing)

Storage Humidity

10~90%



Render Config


Shader Processing Units

6144

Tensor Core

192

RT Core

48

TMUs

192

ROPs

96

SM Count

48

L1 Cache

128KB (per SM)

L2 Cache

4MB


Theoretical Peformance


Pixel Rate

148.3GPixel/s

Texture Rate

296.6GTexel/s

Single Precision FLOPS(AIDA64)

17525GFLOPS

Double Precision FLOPS(AIDA64)

329,9GFLOPS



Graphics Features


DirectX

12 Ultimate (12_2)

OpenGL

4.6

OpenCL

3.0

Vulkan

1.3

Shader Model

6.7

CUDA

8.6

Video Playback

H.265, VC1, MPEG2 1080P



Surround(Landscape)

Surround(Portrait)

2x1(3840x1080@60Hz)

1x2(1920x2160@60Hz)

3x1(5760x1080@60Hz)

1x3(1920x3240@60Hz)

4x1(7680x1080@60Hz)

2x2(3840x2160@60Hz)

2x1(2160x1920@60Hz)

1x2(1080x3840@60Hz)

3x1(3240x1920@60Hz)

1x3(1080x5760@60Hz)

1x4(1080x7680@60Hz)

2x2(2160x3840@60Hz)

*Total resolution based on every display resolution is 1920*1080@60Hz.

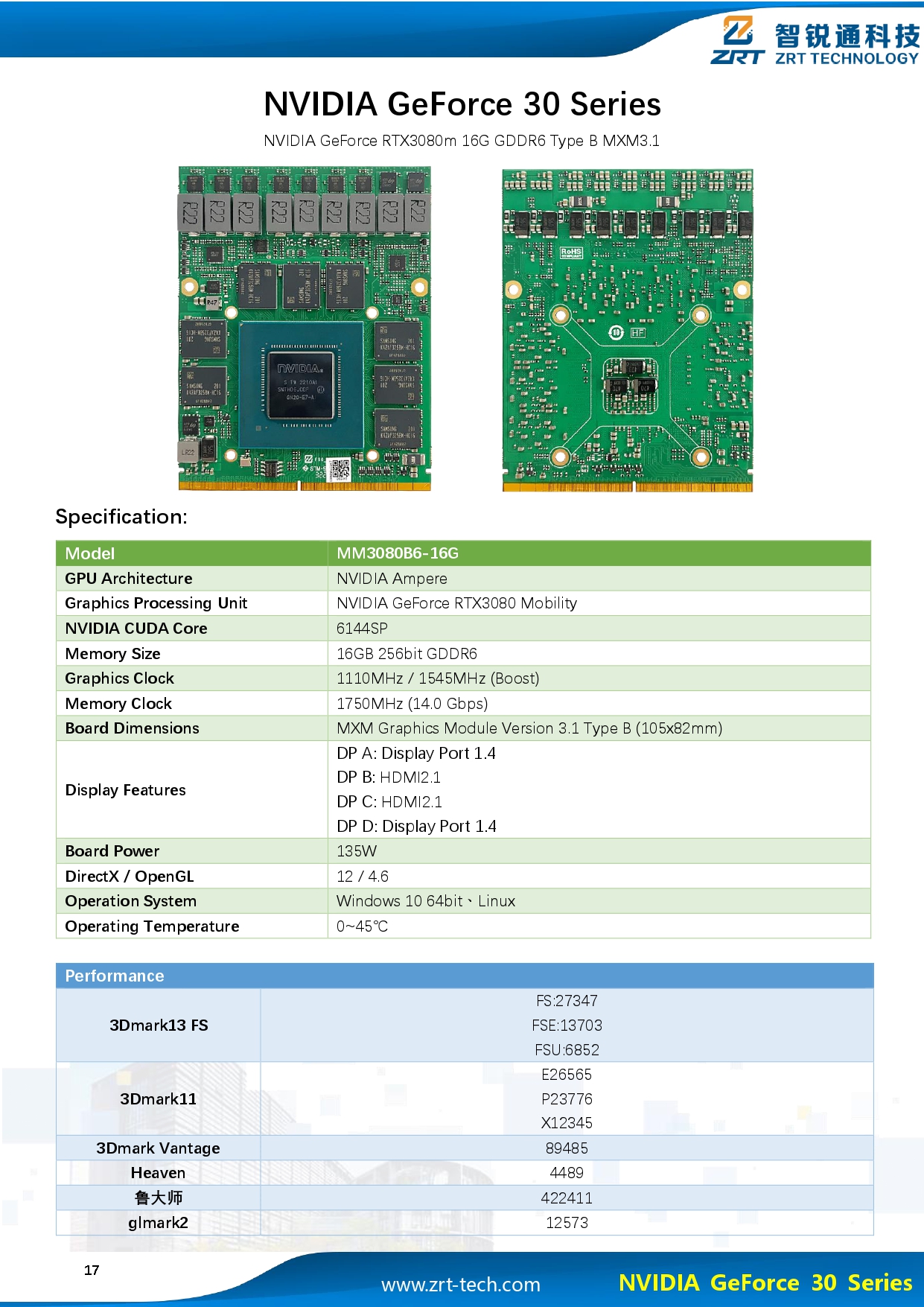

Datasheet MM3080B6.pdf
