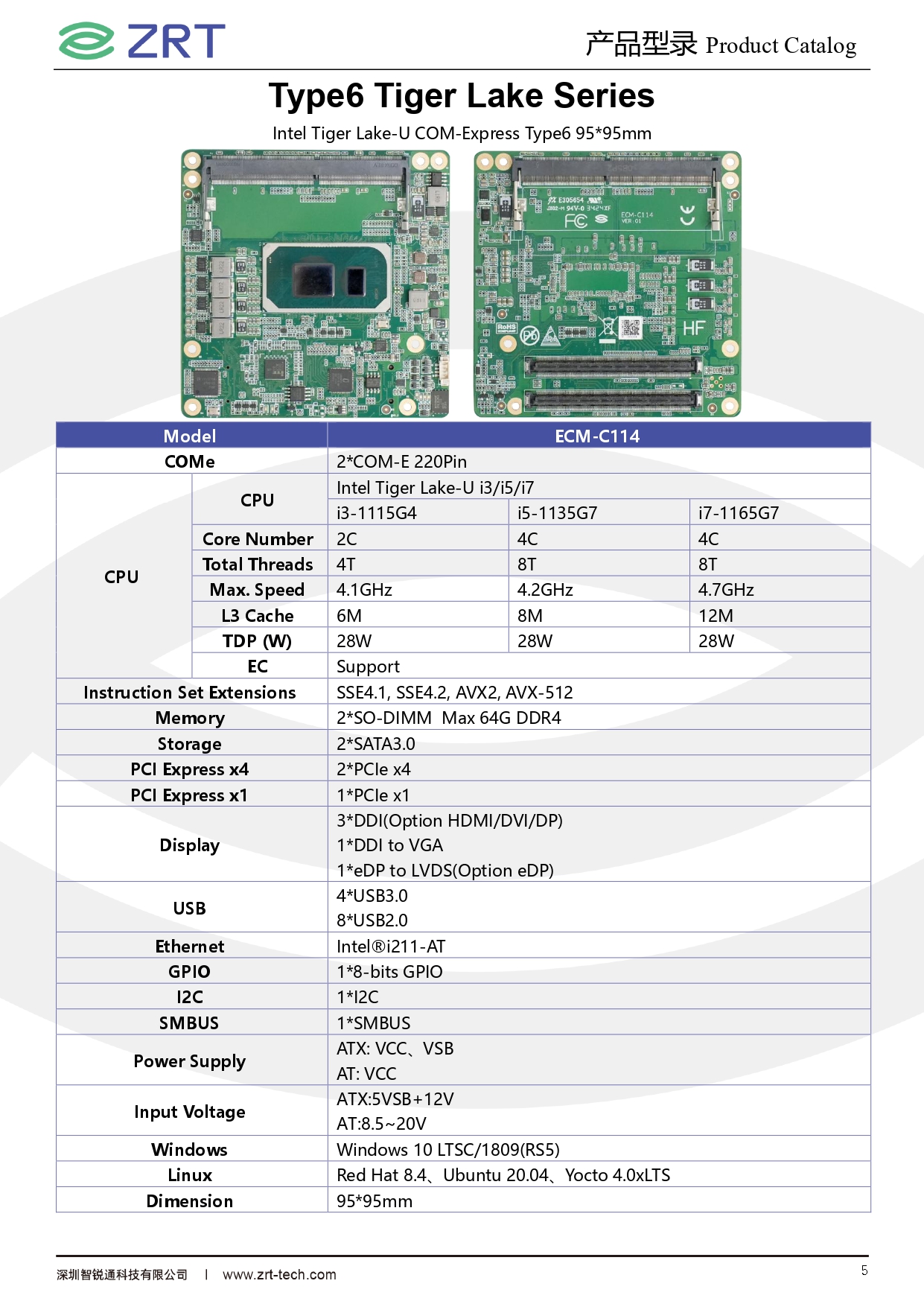

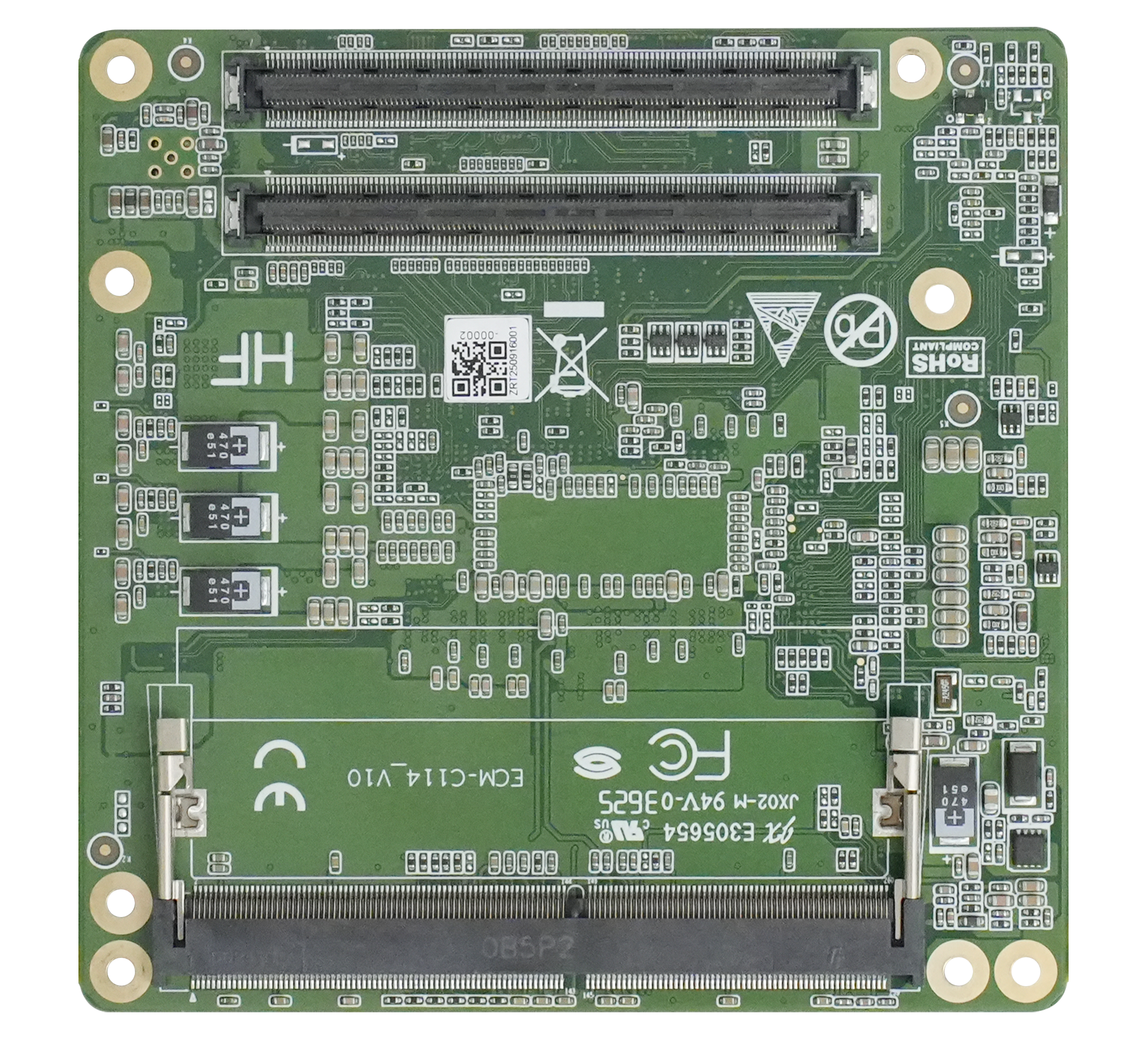

Type6 core board ECM-C114
Intel 11th Core Series processor: ECM-C114

Intel Tiger Lake-U COM-Express core board

Supports Intel 11th Core series processors

Supports 2 DDR4 SO-DIMM

The maximum supported memory capacity is 64G at 3200MH/S

The board supports Intel®i211-AT network cards

Supports 5-display output, with a maximum resolution of 4096*2304

Supports 4 USB3.0 ports and 8 USB2.0 ports

Dimensions :95*95*2.0mm
