Drag and drop the mouse to view the image 360 °
Intel 11th. Gen. Raptor Lake-H platform CPU, supports Core i5/i7/i9 CPU, up to 64GB DDR4 RAM
Support high performance MXM GPU module (Nvidia RTX3060/3080/4090m/Quadro P1000/RTX5000) for AI accelerating and processing.
Support dual hard disk expansion, M.2 NVME system disk and 2.5-inch hard disk
Support wifi/Bluetooth/4G/5G IoT module
Support RFID/500M pixel camera/QR scanner (optional)

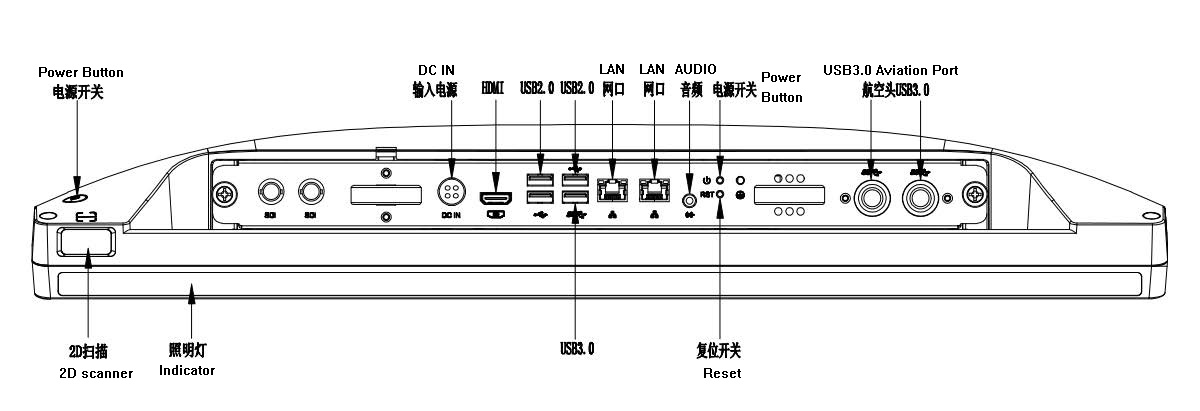

Equipped with two USB 3.0 aviation connectors.
Certified to GB9706 and IEC60601 medical standards.

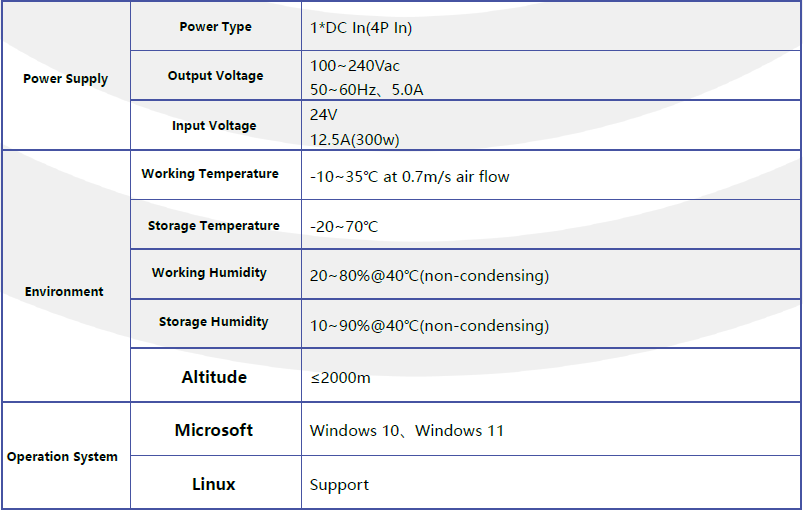

16~26V wide voltage input for stable operation in fluctuating power environments.
Modular pull-out design, easy for assembly and upgrades.
GPU+CPU dual independent cooling systems, copper pite + turbo fan to achieve efficient cooling performance, supporting 45W (CPU) + 120W (GPU) consumption.

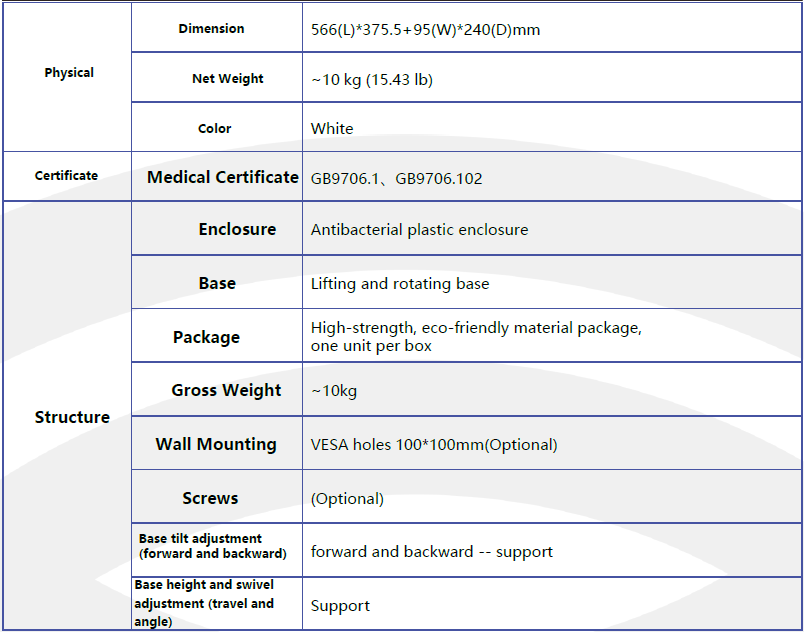

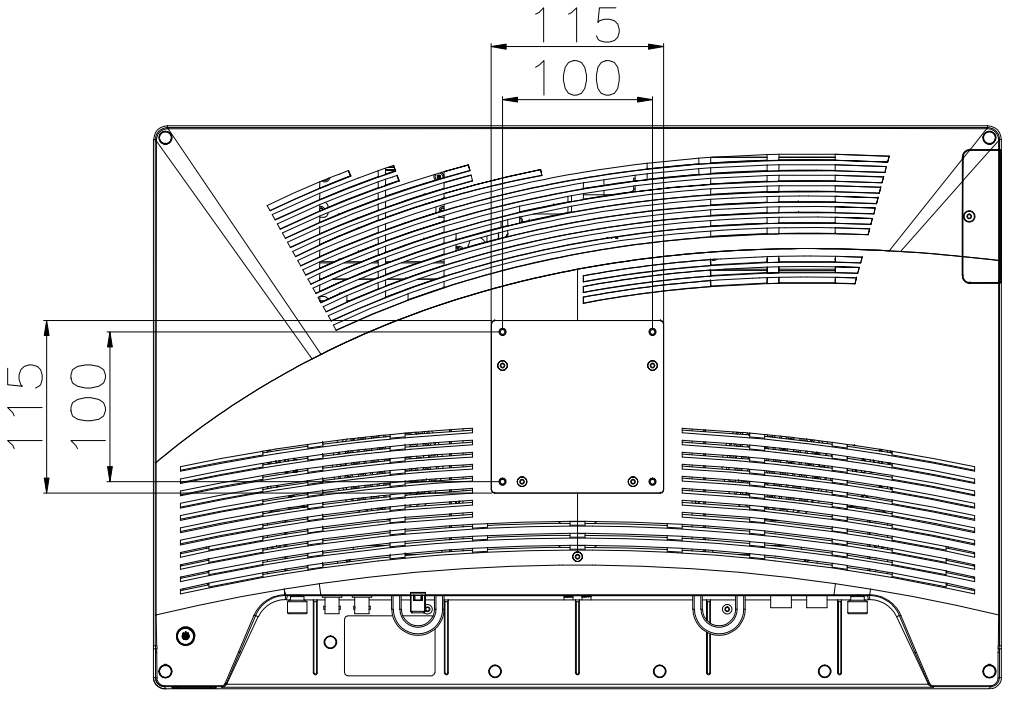

Flexible mounting ways: VESA mount, desktop, adjustable arm mount
From medical display point of view:

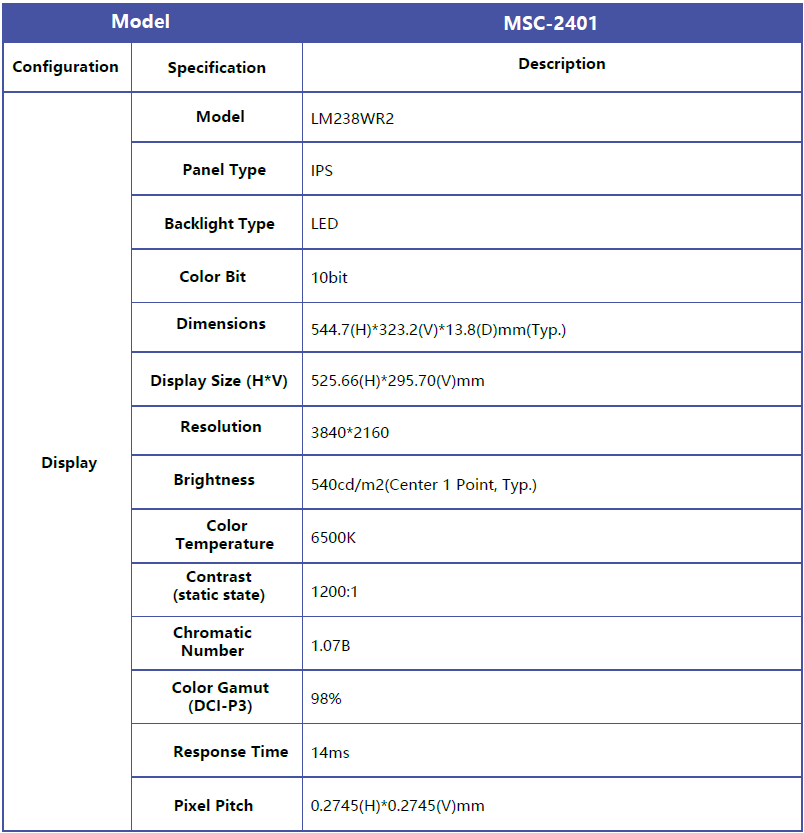

23.8-inch full HD 3840*2160 resolution, high brightness of 400 nits, high-contrast screen.
The built-in Gamma curve is compliant with DICOM standards.
Full lamination panel, AR+AG+AF capacitive multi-touch screen
Whole device is dustproof and IPX2 waterproof, display panel is IP65 waterproof.
Free for being wiped by alcohol, antibacterial surface, trip-proof and splash-proof panel.
Multi-task screen, supporting for simultaneous tasks.
Ideal for medical imaging diagnostics: CT, DR, MRI, endoscopy, ultrasound, etc.
