MIN-EC09A Compact Edge Computing System
Product Features
- Equipped with Intel 8th/9th Gen Coffee Lake-S i3/i5/i7 processor,up to 8 cores/8 threads,paired with Q370 chipset
- Overall dimensions: 282 × 208 × 79.5 mm, compact aluminum alloy chassis design
- Dual-channel DDR4 2133/2400/2666MHz, up to 64GB, 2×SO-DIMM sockets
- Optional MXM discrete GPU: RTX3060 (120W) / RTX3070 (126W), delivering GPU acceleration for AI inference and graphics processing
- Triple display outputs: 1×HDMI (iGPU) + 1×HDMI (GPU DP-to-HDMI) + 1×DP (dGPU), max resolution 7680×4096@60Hz
- Rich industrial interfaces: 2×RS232/RS485 + 8-bit GPIO (Phoenix terminal) + remote power switch + 12V/1A power output
- Dual DC power input (19~24V 4-pin + 12~24V 2-pin), operating temperature 0~50°C, supports Win10 / Yocto

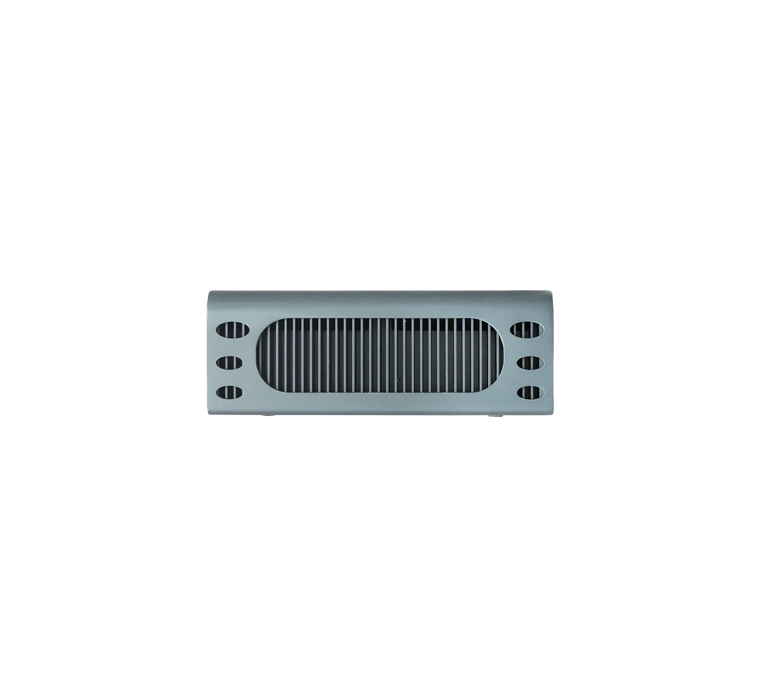

The MIN-EC09A is built on Intel 8th/9th Gen Coffee Lake-S processor platform with optional i3/i5/i7 CPUs, paired with Intel Q370 PCH chipset to deliver reliable computing performance. It features a compact dark-green aluminum chassis measuring 282×208×79.5mm, balancing thermal dissipation and mechanical rigidity.
It supports optional MXM discrete GPUs: RTX3060 (120W) or RTX3070 (126W), delivering GPU acceleration for AI inference, machine vision, graphics rendering and other workloads. The system adopts dual-channel DDR4 memory at 2133/2400/2666MHz, up to 64GB via 2×SO-DIMM sockets. It supports three independent display outputs: 1×HDMI (CPU integrated graphics), 1×HDMI (GPU DP_A converted to HDMI), and 1×DP (GPU DP_B). HDMI 2.0 reaches up to 4096×2160@60Hz, while DP supports up to 7680×4096@60Hz.

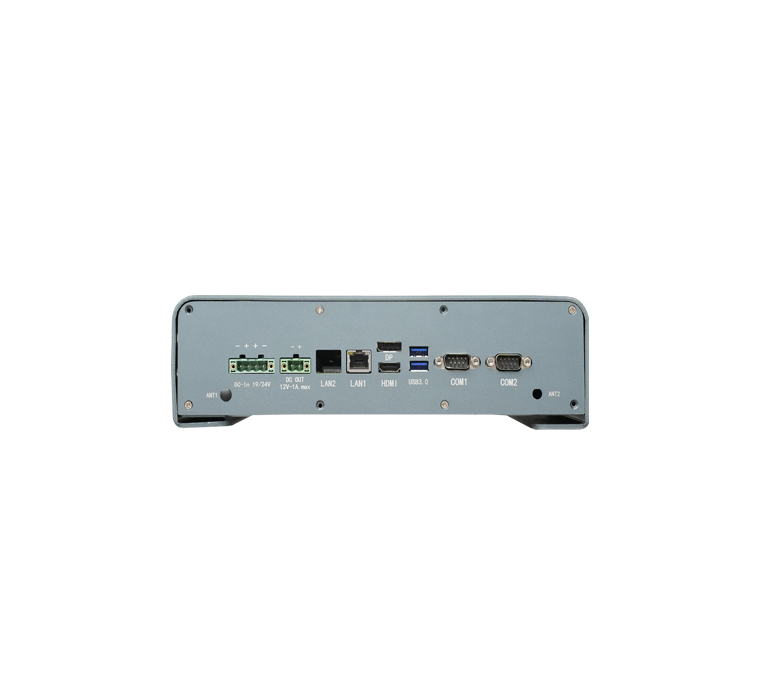

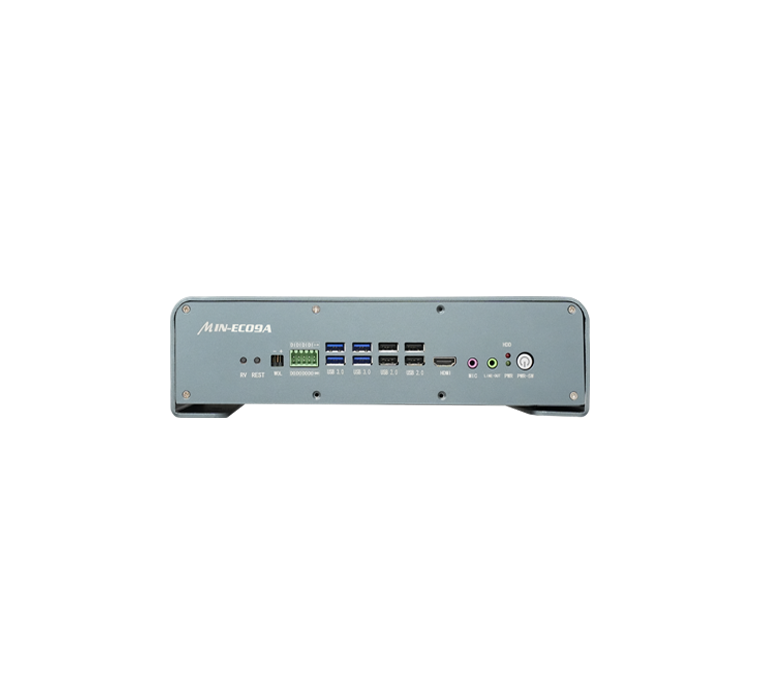

For I/O interfaces: 2×RS232/RS485 serial ports, 1×8-bit GPIO via Phoenix terminal block, 1×2-pin remote power switch, and 1×2-pin 12V/1A power output. USB ports include 4×USB3.0 and 4×USB2.0 on the front panel plus 2×USB3.0 on the rear panel, with S3/S4 wake-up support. Networking comes with 2×RJ45 Gigabit Ethernet ports (Intel i211-AT), supporting WOL and PXE boot. Audio features Line Out + MIC In powered by ALC897 codec.
Storage options include 1×M.2 slot for NVMe/SSD, 1×M.2 slot for 4G/5G/WiFi/BT modules, 1×SIM card slot, and 1×SATA3.0 (7-pin) port. Power design supports dual DC inputs: 1×4Pin (19~24V) and 1×2Pin (12~24V). Operating temperature: 0~50℃ @ 0.7m/s airflow; storage temperature: -20~70℃; humidity: 10~95% non-condensing. Supported OS: Windows 10 1809(RS5)/1607(RS1), Linux, Yocto YP3.1xLTS. It is widely deployed in industrial automation control, machine vision inspection, edge AI inference, intelligent transportation, energy management and other applications.
| MIN-EC09A Product Specification Table | |
| Processor | Intel 8th/9th Gen Coffee Lake-S i3/i5/i7 Processor |
| Chipset | Intel PCH Q370 |
| BIOS | AMI 128Mbit EFI |
| Memory Specification | DDR4 2133/2400/2666MHz |
| Max Memory Capacity | 64GB |
| Memory Slots | 2×SO-DIMM |
| Discrete GPU | Optional MXM GPU: RTX3060 (120W) / RTX3070 (126W) |
| M.2 Slot-1 | 1×M.2, supports NVMe or SSD |
| M.2 Slot-2 | 1×M.2, supports 4G/5G/WiFi/BT |
| SIM Slot | 1×SIM |
| SATA Interface | 1×SATA3.0（7Pins） |
| Display Output | 1×HDMI (from CPU iGPU) +1×HDMI (from dGPU DP_A, DP to HDMI, up to 4096×2160@60Hz) +1×DP (from dGPU DP_B, up to 7680×4096@60Hz); Max 3-display output |
| USB Interface | Front Panel: 4×USB3.0 + 4×USB2.0; Rear Panel:2×USB3.0; Supports S3/S4 Wake-up |
| Serial Port | 2×RS232/RS485 |
| GPIO | 1×8-bit GPIO (Phoenix Terminal Block) |
| Audio | ALC897，1×Line Out + 1×MIC In |
| Network Interface | 2×RJ45(Intel Ethernet Controller i211-AT,10/100/1000M),supports Wake-on-LAN and PXE |
| Remote Power | 1×2Pin Remote Power Switch |
| Power Output | 1×2Pin（12V/1A） |
| Buttons | 1×Power Button +1×RV Button (One-key Recovery) +1×Reset Button |
| Power Type | Dual DC Power Input |
| Input Voltage | 1×4Pin（19~24V DC）+ 1×2Pin（12~24V DC） |
| Operating Temperature | 0~50℃(at 0.7m/s air flow) |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 10~95%(Non-condensing) |
| Overall Dimensions | 282×208×79.5mm |
| Chassis Color | Dark Green |
| Operating System | Microsoft Windows 10 1809(RS5)/1607(RS1) / Linux / Yocto YP3.1xLTS |
8.ZRT.80-6436-19-LFF (MIN-EC09A-01 Complete System, Q370B V10, i7-9700, 2TB M.2 SSD, 16G×2 DDR4 RAM, MXM RTX3060 120W, Integrated Aluminum Chassis / Power Supply / Packaging)
8.ZRT.80-6436-20-LFF (MIN-EC09A-02 Complete System, Q370B V10, i7-9700, 2TB M.2 SSD, 16G×2 DDR4 RAM, MXM RTX3070 126W, Integrated Aluminum Chassis / Power Supply / Packaging)
