AI Computing Module

ZRT product center banner

AI computing modules and accelerator cards for edge inference in medical imaging, machine vision and smart manufacturing.

ZRT FA6 RTX3060m (1)

MM3060B6-12G

RTX3060m MXM Module

  • NVIDIA Ampere Architecture, NVIDIA GeForce RTX 3060 Mobility GPU
  • 12GB GDDR6 192-bit VRAM
  • 3840 CUDA Cores, 120 Tensor Cores, 30 RT Cores
  • The MM3060B6-12G V2
  • MXM 3.1 Type B (105×82 mm)
  • 2× DisplayPort 1.4++ + HDMI 2.1 + DisplayPort 1.4++
  • TDP 100 W (optional 75 W)
ZRT FA6 RTX3080Tim (1)

MM3080TIB6-16G

RTX3080Tim MXM Module

  • NVIDIA Ampere Architecture, NVIDIA GeForce RTX 3080 Ti Mobility GPU
  • 16GB GDDR6, 256-bit Memory Interface
  • MXM 3.1 Type B (105 × 82 mm)
  • 2 × DisplayPort 1.4++ + HDMI 2.1 + DisplayPort 1.4++
  • TDP: 160 W (110 W optional)
ZRT F77 GTX1650 (5)

GTX1650 4GD5 VPH

GTX1650 PCIe Module

  • NVIDIA Turing  Architecture,NVIDIA GeForce GTX1650 GPU
    • 4GB GDDR5 128bit RAM
    • 896 CUDA Cores,56 TMUs，32 ROPs
    • SFF/1Slot  Compact Specs (165×70×24mm),PCIe 3.0 x16 Interface
    • 1×VGA + 1×HDMI2.0 + 1×DisplayPort 1.4 multi
    • TDP 75W,No External Power
ZRT FA17 RTX4060m-3

RTX4060m 8GD6 PH SFF

RTX4060m PCIe Module

  • NVIDIA Ada Lovelace Architecture，NVIDIA GeForce RTX4060 Mobility GPU
  • 8GB GDDR6 128-bit VRAM
  • 3072 CUDA Cores,96 Tensor Cores,24 RT Cores
  • PCIe 4.0 x8 interface;SFF/1-Slot form factor (169×69×18.7mm)
  • 1×DisplayPort 1.4 + 1×HDMI2.1 outputs
  • TDP 65W,no external popwer required
ZRT FA17 RTX4070m-1

RTX4070m 8GD6 PH SFF

RTX4070 PCIe Graphics Card

  • NVIDIA Ada Lovelace Architecture,NVIDIA GeForce RTX4070 Mobility GPU
  • 8GB GDDR6 128bit VRAM
  • 4608 CUDA Cores,144 Tensor Cores,36 RT Cores
  • PCIe 4.0 x8 interface;SFF/1-slot form factor(169×69×18.7mm)
  • 1×DisplayPort 1.4 + 1×HDMI2.1 output
  • TDP 65W,no external power supply required.
ZRT FA23 RTX3500-3

RTX3500m 12GD6 4P

RTX3500 PCIe GPU Card

  • NVIDIA Ada Lovelace Architecture, NVIDIA RTX 3500 Embedded GPU
  • 12 GB GDDR6, 192-bit VRAM
  • 5120 CUDA Cores, 160 Tensor Cores, 40 RT Cores
  • PCIe 4.0 x16 full-speed interface; ATX / 1-slot form factor (246 × 111.5 × 25.5 mm)
  • 4 × DisplayPort 1.4a outputs
  • 115 W TDP, 1 × 8-pin external power supply
ZRT FA23 RTX5000m-3

RTX5000m 16GD6 4P

RTX5000 PCIe GPU

  • NVIDIA Ada Lovelace Architecture, NVIDIA Quadro RTX5000 Embedded GPU
  • 16 GB GDDR6, 256‑bit VRAM
  • 9728 CUDA Cores, 304 Tensor Cores, 76 RT Cores
  • Full‑speed PCIe 4.0 x16 interface; ATX / 1‑slot form factor
  • 4 × DisplayPort 1.4a outputs, supports 8K @ 60 Hz
  • 115 W TDP, 1 × 8‑pin external power connector
ZRT MA22 RX580-1

MD580B5-8G

RX580 MXM Module

  • AMD Radeon RX580 GPU
  • 8 GB GDDR5, 256‑bit VRAM
  • MXM 3.1 Type B form factor (105 × 82 mm), PCIe 3.0 x16 interface
  • 6 × DisplayPort 1.4++ outputs; supports 8K resolution, 4K H.264 / H.265 encode / decode, and Eyefinity multi‑display technology
  • TDP: 140 W
ZRT F88 T1000m-1

MMT1000A6-4G

T1000m MXM Module

  • NVIDIA Turing Architecture, equipped with NVIDIA Quadro T1000 Mobility GPU
  • 4 GB GDDR6, 128‑bit VRAM, 192 GB/s memory bandwidth
  • 896 CUDA Cores, 56 TMUs, 32 ROPs
  • MXM 3.1 Type‑A form factor (70 × 82 mm), PCIe 3.0 x16 interface
  • 4 × DisplayPort 1.4++ outputs, supports 8K @ 120 Hz
  • TDP 50 W

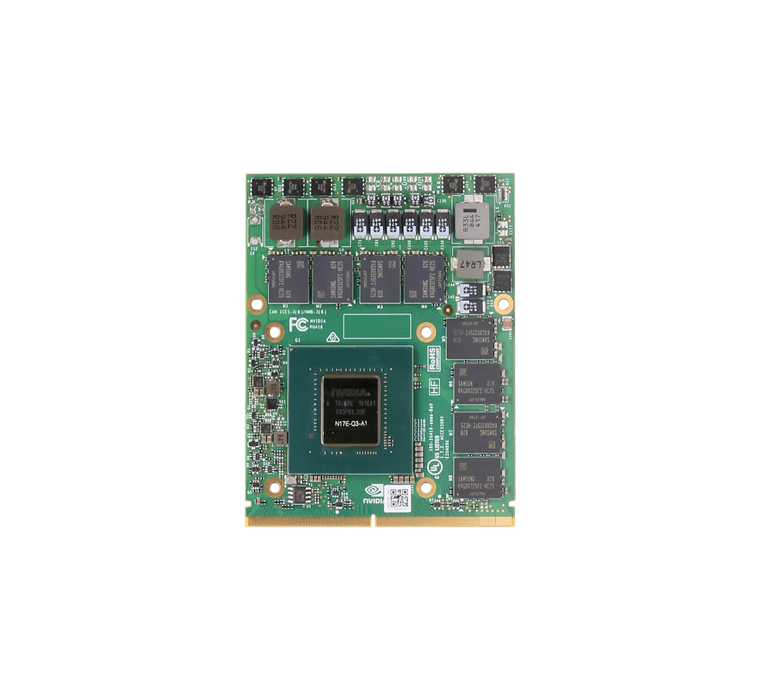

ZRT F83 P4000m-2

MMP4000B5-8G

P4000m MXM Module

  • NVIDIA Pascal Architecture, equipped with NVIDIA Quadro P4000 Mobility GPU
  • 8 GB GDDR5 256‑bit VRAM
  • 1920 CUDA Cores, 112 TMUs, 64 ROPs
  • MXM 3.1 Type‑B form factor (105 × 82 mm), PCIe 3.0 x16 interface
  • 3 × DP 1.4++ + DP 1.4 multi‑display outputs
  • TDP 85 W (45 W optional)

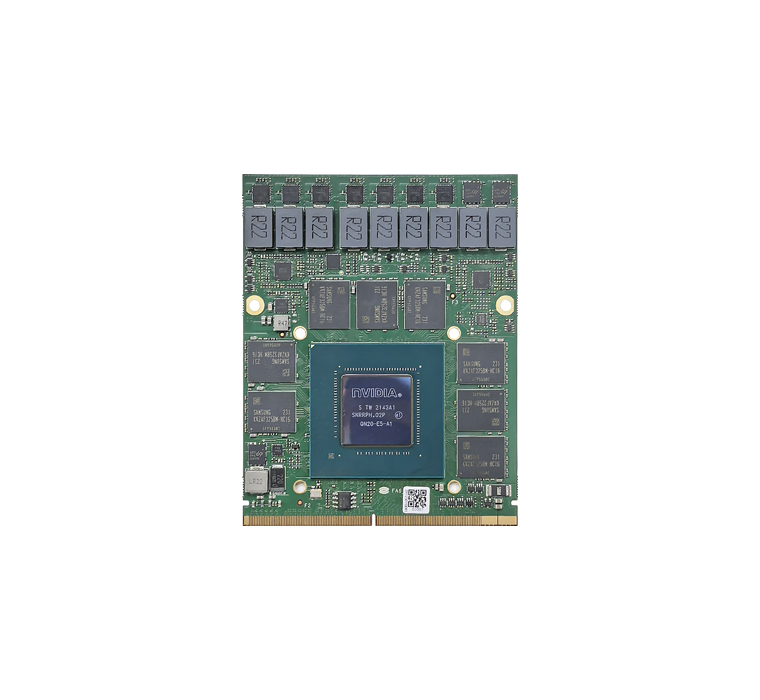

ZRT FA6 RTX A5000m-1

MMA5000B6-16G

A5000m MXM Module

  • NVIDIA Ampere architecture, equipped with NVIDIA Quadro A5000 Max‑Q GPU
  • 16 GB GDDR6, 256‑bit memory
  • 6144 CUDA cores, 192 Tensor Cores, 48 RT Cores
  • MXM 3.1 Type‑B form factor (105 × 82 mm), PCIe 4.0 x16 interface
  • Multi‑display output: 2 × DP 1.4++ + HDMI 2.1 + DP 1.4++
  • 110 W TDP (82 W / 130 W optional)
  • Compatible with Windows 10/11 and Linux

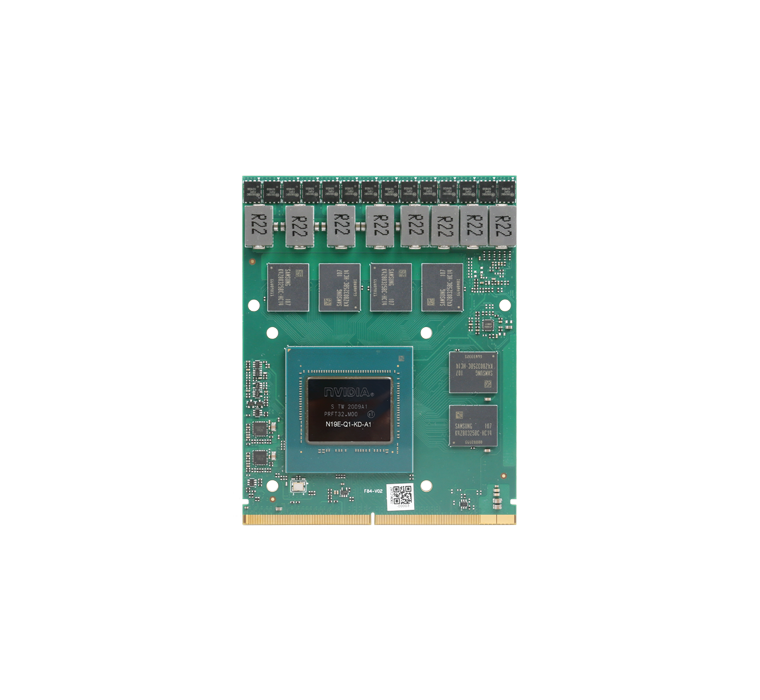

ZRT RTX3000m-2

MM3000B6-6G

RTX3000m MXM Module

  • NVIDIA Turing architecture, equipped with NVIDIA Quadro RTX3000 Mobility GPU
  • 6 GB GDDR6, 192‑bit memory
  • 1920 CUDA Cores, 240 Tensor Cores, 30 RT Cores
  • MXM 3.1 Type‑B form factor (105 × 82 mm), PCIe 3.0 x16 interface
  • 4 × DisplayPort 1.4++ outputs
  • TDP 82 W
  • Compatible with Windows 10/11 and Linux
