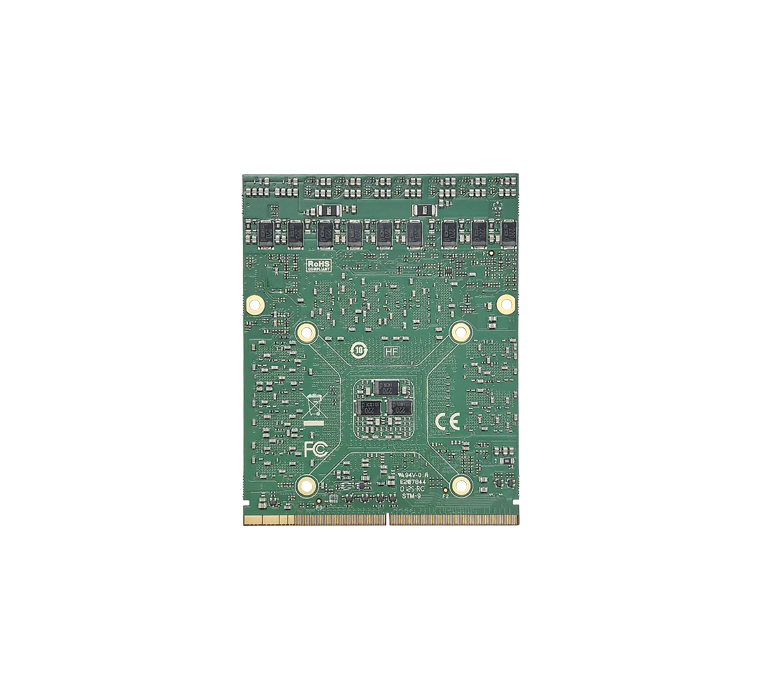

A5000m MXM Module
MMA5000B6‑16G V2 is a high‑end professional MXM graphics card based on the NVIDIA Ampere architecture. Equipped with 16 GB large‑capacity GDDR6 memory and 6144 CUDA cores, it supports PCIe 4.0 and multi‑channel 8K display output, delivering powerful performance for professional embedded graphics applications.
Product Features
- NVIDIA Ampere Architecture, equipped with NVIDIA Quadro A5000 Max‑Q GPU
- 16 GB GDDR6 256‑bit memory with 448 GB/s memory bandwidth
- 6144 CUDA Cores, 192 Tensor Cores, 48 RT Cores
- MXM 3.1 Type‑B form factor (105 × 82 mm), PCIe 4.0 x16 interface
- Multi‑display output: 2 × DP 1.4++ + HDMI 2.1 + DP 1.4++, supports 8K@120 Hz / 8K@60 Hz
- 110 W TDP (82 W / 130 W optional)
- Compatible with Windows 10/11 and Linux
MMA5000B6‑16G V2 is powered by the NVIDIA Quadro A5000 Max‑Q GPU based on the Ampere architecture. It features 6144 CUDA cores, 192 Tensor Cores and 48 RT Cores, delivering a single‑precision compute performance of 17.2 TFLOPS. Equipped with 16 GB GDDR6 256‑bit memory and 448 GB/s memory bandwidth, it efficiently handles large datasets, complex 3D scenes and AI training & inference workloads.
Compliant with MXM 3.1 Type‑B form factor (105 × 82 mm), the module adopts a high‑speed PCIe 4.0 x16 bus. It supports 2 × DP 1.4++, 1 × HDMI 2.1 and 1 × DP 1.4++ outputs, with a maximum resolution of 8K@120 Hz. The TDP is 110 W (82 W / 130 W optional). Compatible with Windows 10/11 and Linux systems, it operates within 0 °C ~ 45 °C. This GPU is suitable for professional scenarios including high‑end CAD workstations, AI edge‑computing nodes and medical 3D‑visualization platforms.
| GPU Architecture | NVIDIA Ampere |
| GPU Model | NVIDIA Quadro A5000 Max-Q |
| VRAM Capacity | 16 GB |
| VRAM Type | GDDR6 |
| VRAM Bit Width | 256-bit |
| Memory Bandwidth | 448 GB/s |
| Core Clock(Base/Boost) | 900 / 1575 MHz |
| CUDA Cores | 6144 |
| Tensor Cores | 192 |
| RT Cores | 48 |
| TMUs | 192 |
| ROPs | 96 |
| SM Count | 46 |
| PCIe Interface | PCI Express 4.0 x16 |
| MXM Form Factor | MXM 3.1 Type‑B |
| Size | 105 × 82 mm |
| TDP | 110 W (82 W / 130 W optional) |
| Display Outputs | 2×DP 1.4++ + HDMI2.1 + DP 1.4++ |
| Max Resolution | DP: 7680×4320@120Hz / HDMI: 8K@60Hz |
| Operating System | Windows 10/11 64bit、Linux |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0% ~ 95% (Non‑condensing) |
| Storage Humidity | 10%~90% |
| Supply Voltage | DC 12~19V，3.3V&5V±5% |
| Single Precision FP | 17.2 TFLOPS |
| Double Precision FP | 344.8 GFLOPS |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Version | 8.6 |
MMA5000B6‑16G | 8.ZRT.80-8365-20-LEF | F96 A5000m 16 G 256‑bit GDDR6 DP + 2 × HDMI + DP MXM Type‑B 110 W – ZRT Retail Box, 20 pcs per lot
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What form factor is the MMA5000B6‑16G A5000m MXM module? What are its physical dimensions?
This GPU module follows the MXM 3.1 Type‑B standard, with physical dimensions of 105 × 82 mm. It adopts PCIe 4.0 x16 interface and is designed for embedded carrier‑board integration, not for consumer‑grade laptop direct upgrade.
What TDP power options are available for this A5000m MXM graphics module?
Default TDP is 110 W. Optional power profiles of 82 W and 130 W are supported. Please confirm power‑supply and thermal design of your carrier board before selecting alternate power limits.
Which operating systems are compatible with the A5000m MXM module MMA5000B6‑16G?
It supports Windows 10 / Windows 11 64‑bit and mainstream Linux distributions. Please use official NVIDIA Ampere‑architecture drivers. The working temperature range is 0 °C ~ 45 °C, storage temperature ‑20 °C ~75 °C.
What form factor is the MMA5000B6‑16G A5000m MXM module?
It adopts MXM 3.1 Type‑B form factor with physical dimension 105 × 82 mm, PCIe 4.0 x16 interface. Please make sure your carrier board or system supports MXM 3.1 Type‑B mechanical & PCIe 4.0 electrical requirements before integration.
What TDP options are available for this A5000m MXM graphics module?
Standard TDP is 110W, optional power profiles include 82W and 130W. The actual power mode depends on your carrier board BIOS configuration and thermal design. Proper cooling solution must match the selected TDP setting.
