MXM Module

ZRT product center banner

MXM GPU modules based on NVIDIA RTX and professional graphics, used in medical imaging displays, AI inference and industrial vision systems.

ZRT FA6 RTX3060m (1)

MM3060B6-12G

RTX3060m MXM Module

  • NVIDIA Ampere Architecture,NVIDIA GeForce RTX3060 Mobility GPU
  • 12GB GDDR6 192bit RAM
  • 3840 CUDA Cores,120 Tensor Cores,30 RT CoresThe MM3060B6-12G V2
  • MXM 3.1 Type B(105×82mm)
  • 2×DisplayPort 1.4++ + HDMI2.1 + DisplayPort 1.4++
  • TDP 100W(optional 75W)
ZRT FA6 RTX3080Tim (1)

MM3080TIB6-16G

RTX3080Tim MXM Module

  • NVIDIA Ampere Architecture，NVIDIA GeForce RTX3080Ti Mobility GPU
  • 16GB GDDR6 256bit RAM
  • 7424 CUDA Cores,232 Tensor Cores,58 RT Cores
  • MXM 3.1 Type B(105×82mm)
  • 2×DisplayPort 1.4++ + HDMI2.1 + DisplayPort 1.4++
  • TDP 160W(optional 110W)
ZRT MA22 RX580-1

MD580B5-8G

RX580 MXM Module

  • AMD Radeon RX580 GPU
  • 8GB GDDR5 256bit VRAM
  • MXM 3.1 Type B form factor (105×82mm)，PCIe 3.0 x16 interface
  • 6 × DisplayPort 1.4++ outputs; supports 8K resolution, 4K H.264/H.265 encode/decode, and Eyefinity multi-display splicing
  • TDP 140W
ZRT F88 T1000m-1

MMT1000A6-4G

T1000m MXM Module

  • NVIDIA Turing Architecture, equipped with NVIDIA Quadro T1000 Mobility GPU
  • 4GB GDDR6, 128-bit VRAM, 192GB/s memory bandwidth
  • 896 CUDA Cores, 56 TMUs, 32 ROPs
  • MXM 3.1 Type A form factor (70×82mm), PCIe 3.0 x16 interface
  • 4 × DisplayPort 1.4++ outputs, supports 8K@120Hz
  • TDP 50W
ZRT F83 P4000m-2

MMP4000B5-8G

P4000m MXM Module

  • NVIDIA Pascal Architecture,equipped with NVIDIA Quadro P4000 Mobility GPU
  • 8GB GDDR5 256bit VAEM
  • 1920 CUDA Cores,112 TMUs,64 ROPs
  • MXM 3.1 Type B form factor (105×82mm),PCIe 3.0 x16 interface
  • 3×DP 1.4++ + DP 1.4 multi-display outputs
  • TDP 85W(45W optional)
ZRT FA6 RTX A5000m-1

MMA5000B6-16G

A5000m MXM Module

  • NVIDIA Ampere architecture,equipped with NVIDIA Quadro A5000 Max-Q GPU
  • 16GB GDDR6 256-bit memory
  • 6144 CUDA cores,192 Tensor Cores,48 RT Cores
  • MXM 3.1 Type B form factor(105×82mm),PCIe 4.0 x16 interface
  • Multi-display output:2×DP 1.4++ + HDMI2.1 + DP 1.4++
  • 110W TDP(82W/130W optional)
  • Compatible with Windows 10/11 and Linux
ZRT RTX3000m-2

MM3000B6-6G

RTX3000m MXM Module

  • NVIDIA Turing architecture,equipped with NVIDIA Quadro RTX3000 Mobility GPU
  • 6GB GDDR6 192-bit memory
  • 1920 CUDA Cores,240 Tensor Cores,30个RT Core
  • MXM 3.1 Type B form factor (105×82mm),PCIe 3.0 x16 interface
  • 4×DisplayPort 1.4++ outputs
  • TDP 82W
  • Compatible Windows 10/11 and Linux；

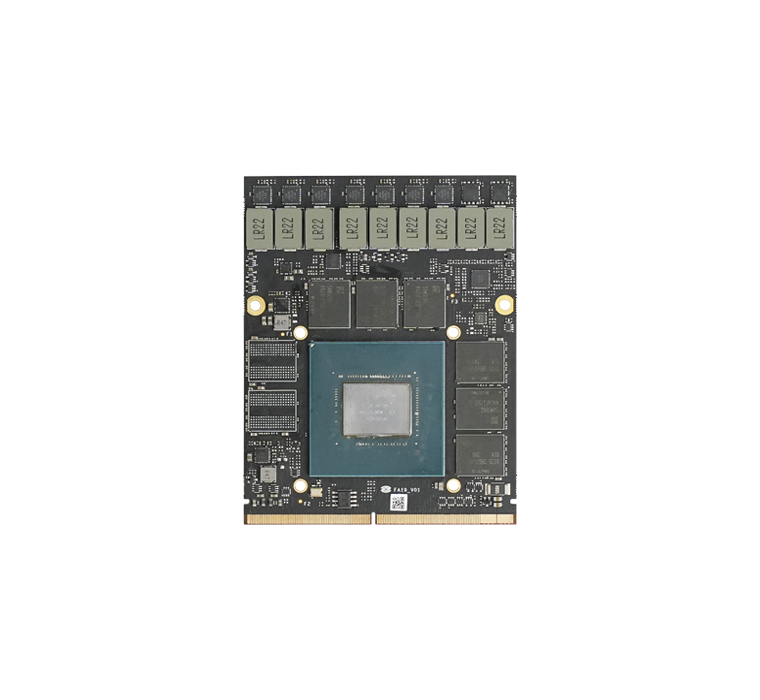

ZRT RTX3500m-1

MMR3500B6-12G

RTX3500m MXM Module

  • Powered by NVIDIA Ada Lovelace architecture, equipped with NVIDIA Quadro RTX3500 Mobility GPU
  • 12GB GDDR6 192-bit memory
  • 5120 CUDA cores, 160 Tensor Cores, 40 RT Cores
  • MXM 3.1 Type B form factor (105×82mm), PCIe 4.0 x16 interface
  • 4× DisplayPort 1.4++ outputs
  • 115W TDP (80W optional)
  • Compatible with Windows 10/11 and Linux

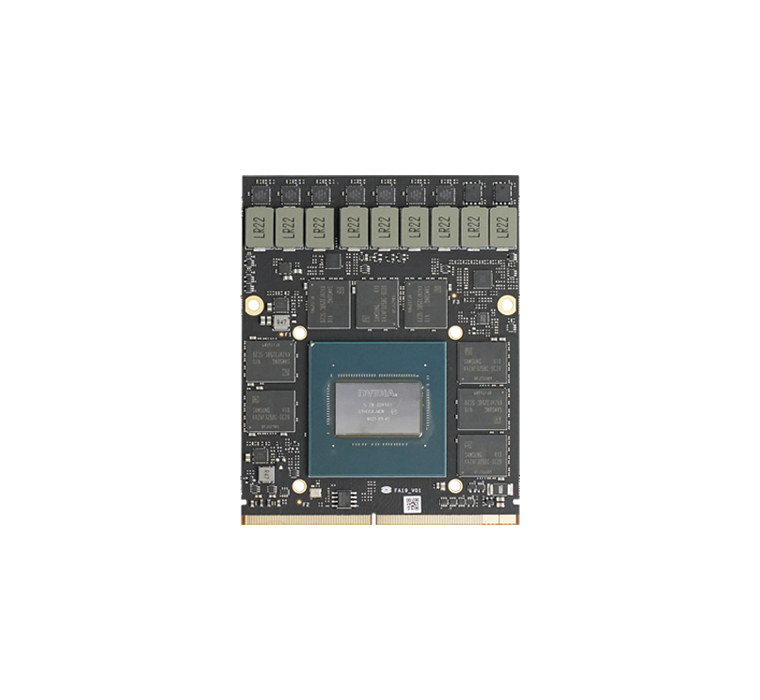

ZRT RTX5000m-1

MMR5000B6-16G

RTX5000m MXM Module

  • NVIDIA Ada Lovelace, NVIDIA Quadro RTX5000 Mobility GPU
  • 16GB GDDR6 256-bit VARM
  • 9728 CUDACores,304 Tensor Cores,76 RT Cores
  • MXM 3.1 Type B form factor (105×82mm), PCIe 4.0 x16
  • 4 × DisplayPort 1.4++
  • TDP 115W(60W/80W  optional)
  • Supports Windows 11/10 64-bit and Linux System

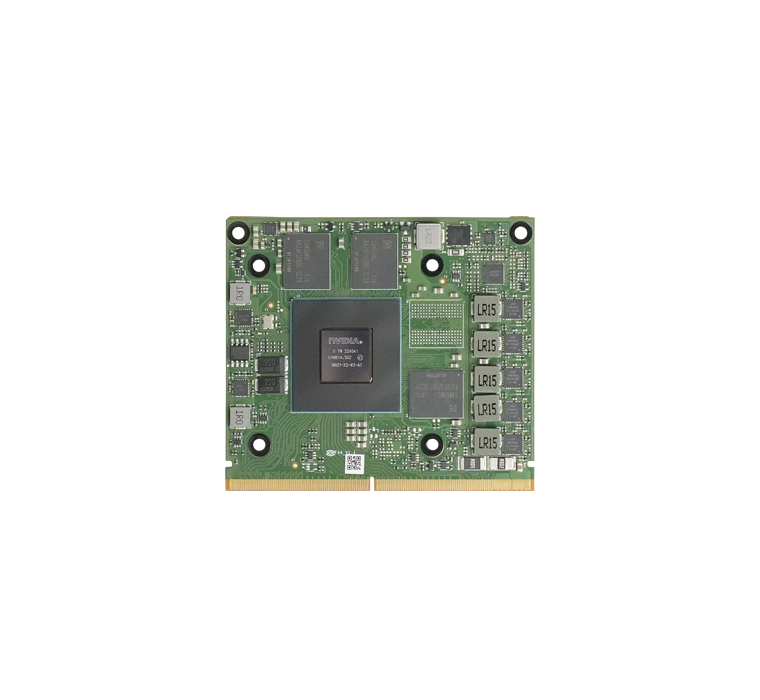

ZRT RTX4050-1

MM4050A6-6G

RTX4050m MXM Module

  • Ada Lovelace Architecture, RTX4050 Max-Q GPU
  • 6GB GDDR6 Memory
  • 2560 CUDA Cores
  • MXM 3.1 Type A, PCIe 4.0 x8
  • Multi-channel 8K Output, 65W TDP

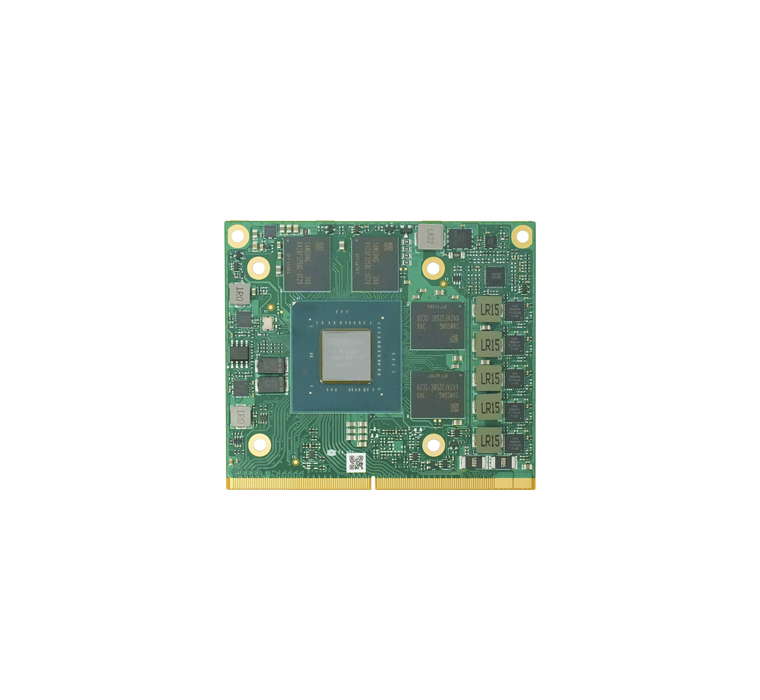

ZRT RTX4060m-1

MM4060A6-8G

RTX4060m MXM Module

  • Ada Lovelace Architecture, RTX4060 Max-Q GPU
  • 8GB GDDR6 VRAM
  • 3072 CUDA Cores
  • MXM 3.1 Type A, PCIe 4.0 x8
  • Multi-channel 8K Output, 60W TDP

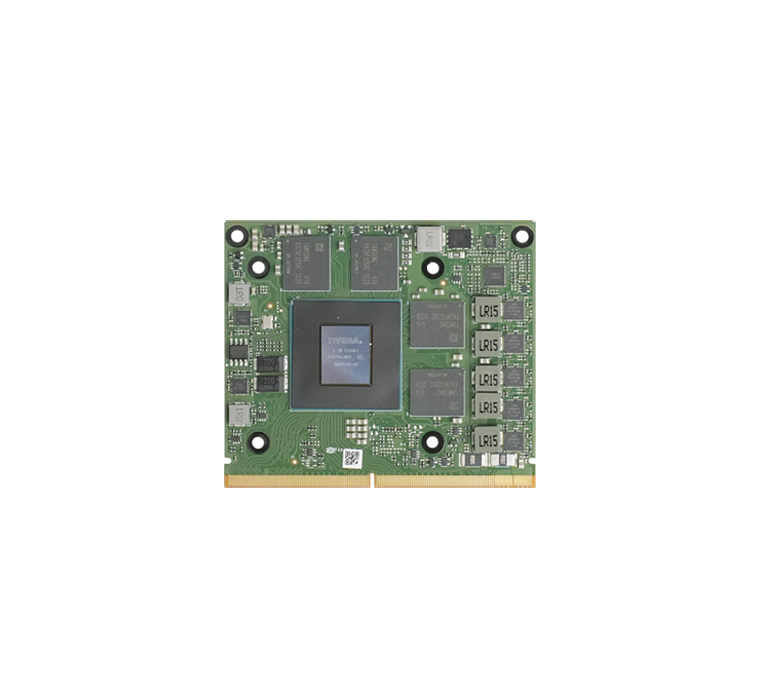

ZRT RTX4070m-1

MM4070A6-8G

RTX4070m MXM Module

  • Ada Lovelace Architecture, RTX4070 Max-Q GPU
  •  8GB GDDR6 VRAM
  • 4608 CUDA Cores
  • MXM 3.1 Type A, PCIe 4.0 x8
  •  Multi-channel 8K Output, 65W TDP
