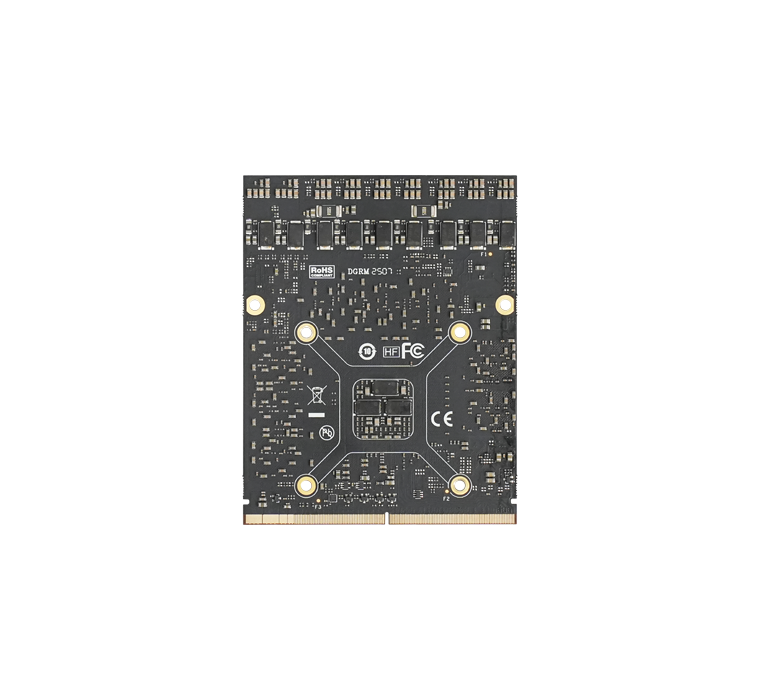

RTX3500m MXM Module
The MMR3500B6-12G is a professional-grade MXM GPU based on the NVIDIA Ada Lovelace architecture. Equipped with 12GB GDDR6 memory and 5120 CUDA cores, it supports PCIe 4.0 x16 and four-channel 8K display output, delivering powerful computing performance for professional visualization and industrial applications.
Product Features
- Powered by NVIDIA Ada Lovelace architecture, equipped with NVIDIA Quadro RTX3500 Mobility GPU
- 12GB GDDR6 192-bit memory with 432GB/s memory bandwidth
- 5120 CUDA cores, 160 Tensor Cores, 40 RT Cores
- MXM 3.1 Type B form factor (105×82mm), PCIe 4.0 x16 interface
- 4× DisplayPort 1.4++ outputs, supports 8K@120Hz
- 115W TDP (80W optional)
- Compatible with Windows 10/11 and Linux
MMR3500B6-12G adopts the NVIDIA Ada Lovelace architecture and is powered by the Quadro RTX3500 Mobility GPU. It features 5120 CUDA Cores, 160 Tensor Cores and 40 RT Cores, delivering a single-precision floating-point performance of 23.8 TFLOPS. The 12GB GDDR6 192-bit VRAM offers 432GB/s bandwidth to efficiently handle large CAD models, 3D reconstruction of medical images and real-time rendering tasks.
It follows the MXM 3.1 Type B form factor (105×82mm) with a high-speed PCIe 4.0 x16 interface. It provides 4×DisplayPort 1.4++ outputs, supporting up to 7680×4320@120Hz per display and multi-screen splicing.
TDP is 115W (80W optional). It supports Windows 10/11 and Linux operating systems with an operating temperature range of 0~45°C. It serves as an ideal professional graphics solution for medical imaging workstations, industrial design hosts and high-end edge computing devices.
| Model | MMR3500B6-12G (RTX3500m) |
| GPU Architecyure | NVIDIA Ada Lovelace |
| GPU Model | NVIDIA Quadro RTX3500 Mobility |
| VARM Capacity | 12GB |
| VARM Type | GDDR6 |
| VARM Bit Width | 192bit |
| Memory Bandwidth | 432GB/s |
| Core Clock(Base/Boost) | 1725/2250MHz |
| CUDA Core | 5120 |
| Tensor Core | 160 |
| RT Core | 40 |
| TMUs | 160 |
| ROPs | 64 |
| SM Count | 40 |
| PCIe Interface | PCI Express 4.0 x16 |
| MXM Form Factor | MXM 3.1 Type B |
| Size | 105 × 82 mm |
| TDP | 115W(80W optional) |
| Display Outputs | 4 × DisplayPort 1.4++ |
| Max Resolution | 7680×4320@120Hz |
| Operating System | Windows 10/11 64bit、Linux |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0%~95%(Non-condensing) |
| Storage Humidity | 10%~90% |
| Supply Voltage | DC 12~19V，3.3V&5V±5% |
| Single Precision FP | 23.8 TFLOPS |
| Double Precision FP | 372.5 GFLOPS |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Versoin | 8.9 |
MMR3500B6-12G V2 | 8.ZRT.80-8405-04-LEE | FA19 RTX3500m 12G 192bit GDDR6 4DP MXM Type B, 115W with Heatsink (48-6306-02) – Bulk Pack, 30PCS
MMR3500B6-12G V2(-20) | 8.ZRT.80-8405-06-LEE | FA19 RTX3500m 12G 192bit GDDR6 4DP MXM Type B, 115W, -20°C Version – ZRT Color Box, 30PCS
