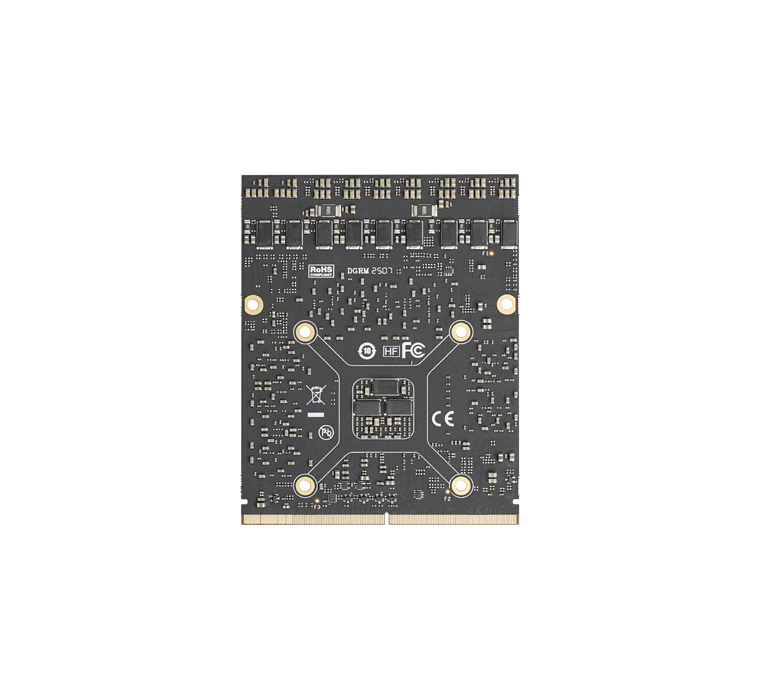

RTX5000m MXM Module
MMR5000B6-16G V2 is a high-end MXM professional graphics module built on the NVIDIA Ada Lovelace architecture. It is equipped with 16GB large-capacity GDDR6 VRAM and 9728 CUDA Cores, delivering outstanding graphics rendering and AI computing performance for high-end embedded scenarios such as medical imaging, machine vision and edge computing.
Product Features
- NVIDIA Ada Lovelace architecture,equipped NVIDIA Quadro RTX5000 Mobility GPU
- 16GB GDDR6 256-bit large capacity,576GB/s memory bandwidth
- 9728 CUDA Cores,304 Tensor Cores,76 RT Cores
- MXM 3.1 Type B form factor(105×82mm),PCIe 4.0 x16 high-speed interface
- 4 × DisplayPort 1.4++ outputs, supports 8K@120Hz
- TDP 115W(60W/80W optional)
- Supports Windows 11/10 64bit and Linux systems
MMR5000B6-16G V2 adopts NVIDIA’s latest Ada Lovelace architecture and is powered by the Quadro RTX5000 Mobility GPU. It features 9728 CUDA Cores, 304 4th-generation Tensor Cores and 76 3rd-generation RT Cores, delivering up to 37 TFLOPS of single-precision floating-point performance.
Equipped with 16GB GDDR6 256-bit video memory and a memory bandwidth of 576GB/s, it easily handles large 3D models, 4K/8K video encoding and decoding, and deep learning inference workloads.
This graphics module uses the standard MXM 3.1 Type B form factor (105×82mm). It connects to the host via PCIe 4.0 x16 high-speed bus and offers 4 × DisplayPort 1.4++ outputs. It supports a maximum single-screen resolution of 7680×4320@120Hz, meeting requirements for multi-display splicing and ultra-high-resolution visualization.
It supports Windows 10/11 64-bit and Linux operating systems. The TDP is 115W with optional low-power configurations of 60W/80W. Operating temperature ranges from 0~45°C, making it suitable for deployment in a wide variety of embedded and edge computing devices.
| Model | MMR5000B6-16G V2 (RTX5000m) |
| GPU Architecture | NVIDIA Ada Lovelace |
| GPU Model | NVIDIA Quadro RTX5000 Mobility |
| VARM Capacity | 16GB |
| VARM Type | GDDR6 |
| VARM Bit Width | 256bit |
| Memory Band Wdith | 576GB/s |
| Core Clock (Base/Boost) | 1425/2115MHz |
| CUDA Core | 9728 |
| Tensor Core | 304 |
| RT Core | 76 |
| TMUs | 304 |
| ROPs | 112 |
| SM Count | 76 |
| PCIe Interface | PCI Express 4.0 x16 |
| MXM Type | MXM 3.1 Type B |
| Size | 105 × 82 mm |
| TDP | 115W(60W/80W optional) |
| Display Outputs | 4 × DisplayPort 1.4++ |
| Max Resolutions | 7680×4320@120Hz |
| Operaiting System | Windows 10/11 64bit、Linux |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C ~ 75°C |
| Operatng Humidity | 0%~95%(Non-condensing) |
| Storage Humidity | 10%~90% |
| Supply Voltage | DC 12~19V，3.3V&5V±5% |
| Single Precision FP | 37.0 TFLOPS |
| Double Precision FP | 691.6 GFLOPS |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Version | 8.9 |
MMR5000B6-16G V2 | 8.ZRT.80-8405-00-LEF | FA19 RTX5000m 16G 256bit GDDR6 4DP MXM Type B 115W – ZRT Color Box, 20pcs per pack
MMR5000B6-16G V2 (80W) | 8.ZRT.80-8405-01-LEF | FA19 RTX5000m 16G 256bit GDDR6 4DP MXM Type B 80W – ZRT Color Box, 20pcs per pack
MMR5000B6-16G V2 (80W / -20°C) | 8.ZRT.80-8405-03-LEE | FA19 RTX5000m 16G 256bit GDDR6 4DP MXM Type B 80W -20°C – ZRT Color Box, 30pcs per pack
MMR5000B6-16G V2 (60W) | 8.ZRT.80-8405-02-LEF | FA19 RTX5000m 16G 256bit GDDR6 4DP MXM Type B 60W – ZRT Color Box, 30pcs per pack
