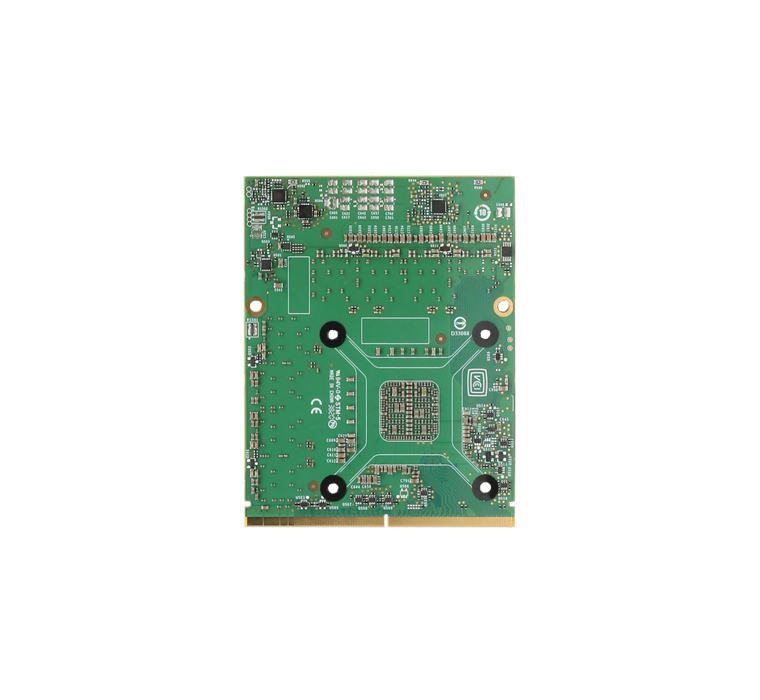

P4000m MXM Module
MMP4000B5‑8G is a classic professional MXM graphics card built on the NVIDIA Pascal architecture. Featuring 8 GB GDDR5 memory and 1920 CUDA Cores, it supports multi‑channel 8 K display output, delivering a stable and reliable graphics acceleration solution for legacy embedded systems.
Product Features
- NVIDIA Pascal Architecture, equipped with NVIDIA Quadro P4000 Mobility GPU
- 8 GB GDDR5 256‑bit memory, 192.3 GB/s memory bandwidth
- 1920 CUDA Cores, 112 TMUs, 64 ROPs
- MXM 3.1 Type‑B form factor (105 × 82 mm), PCIe 3.0 x16 interface
- Multi‑display output: 3 × DP 1.4++ + DP 1.4, supports 8 K @ 120 Hz
- TDP 85 W (45 W optional)
- Compatible with Windows 7/8/10 and Linux
MMP4000B5‑8G is powered by the NVIDIA Quadro P4000 Mobility GPU based on the Pascal architecture. It features 1920 CUDA Cores, 112 TMUs and 64 ROPs, delivering a single‑precision compute performance of 4.5 TFLOPS. Equipped with 8 GB GDDR5 256‑bit memory, it achieves a memory bandwidth of 192.3 GB/s, supporting mainstream 3D modeling, video encoding/decoding and multi‑display applications.
Compliant with the MXM 3.1 Type‑B standard (105 × 82 mm), the module uses a PCIe 3.0 x16 bus. It provides 3 × DP 1.4++ and 1 × DP 1.4 outputs, with a maximum resolution of 8 K @ 120 Hz. The TDP is 85 W (45 W optional). Compatible with Windows 7/8/10 and Linux operating systems, it operates within a temperature range of 0 ~ 45 °C. This GPU is widely deployed in embedded scenarios requiring high compatibility, including legacy industrial equipment upgrades, traditional medical imaging systems and multi‑screen commercial display terminals.
| Model | MMP4000B5-8G (P4000m) |
| GPU Architecture | NVIDIA Pascal |
| GPU Model | NVIDIA Quadro P4000 Mobility |
| VRAM Capacity | 8 GB |
| VRAM Type | GDDR5 |
| VRAM Bit Width | 256-bit |
| VRAM Bandwidth | 192.3GB/s |
| Core Clock(Base/Boost) | 1202 / 1228 MHz |
| CUDA Cores | 1920 |
| Tensor Cores | — |
| RT Cores | — |
| TMUs | 112 |
| ROPs | 64 |
| SM Count | 14 |
| PCIe Interface | PCI Express 3.0 x16 |
| MXM Form Factor | MXM 3.1 Type-B |
| Size | 105 × 82 mm |
| TDP | 85 W (45 W optional) |
| Display Outputs | 3 × DP 1.4++ + DP 1.4 |
| Max Resolution | 7680 × 4320 @ 120 Hz |
| Operating System | Windows 7/8/8.1/10 64-bit、Linux |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0% ~ 95% (Non‑condensing) |
| Storage Humidity | 10% ~ 90% |
| Supply Voltage | DC 12 ~ 19 V, 3.3 V & 5 V ±5% |
| Single Precision FP | 4.5 TFLOPS |
| Double Precision FP | 150.3 GFLOPS |
| DirectX | 12 Ultimate (12_1) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Version | 6.1 |
MMP4000B5‑8G | 8.ZRT.80-8212-05-LFF | F83 P4000m 8 G 256‑bit GDDR5 4DP MXM Type‑B 85 W – Bulk Pack, 60pcs per lot
MMP4000B5‑8G | 8.ZRT.80-8212-07-LFF | F83 P4000m 8 G 256‑bit GDDR5 4DP MXM Type‑B 85 W – ZRT Retail Box, 20pcs per lot
MMP4000B5‑8G(-20) | 8.ZRT.80-8212-08-LFF | F83 P4000m 8 G 256‑bit GDDR5 4DP MXM Type‑B 85 W, -20 °C Operating Temp – ZRT Retail Box, 20pcs per lot
MMP4000B5‑8G (-30/45) | 8.ZRT.80-8212-09-LFF | F83 P4000m 8 G 256‑bit GDDR5 4DP MXM Type‑B 45 W, -30 °C Operating Temp – ZRT Retail Box, 20pcs per lot
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What TDP options are available for this P4000m MXM module?
Standard TDP is 85W, 45W low‑power version is optional. The 45W variant is suitable for embedded systems with stricter power‑supply and thermal constraints. Please specify power‑grade when placing orders.
