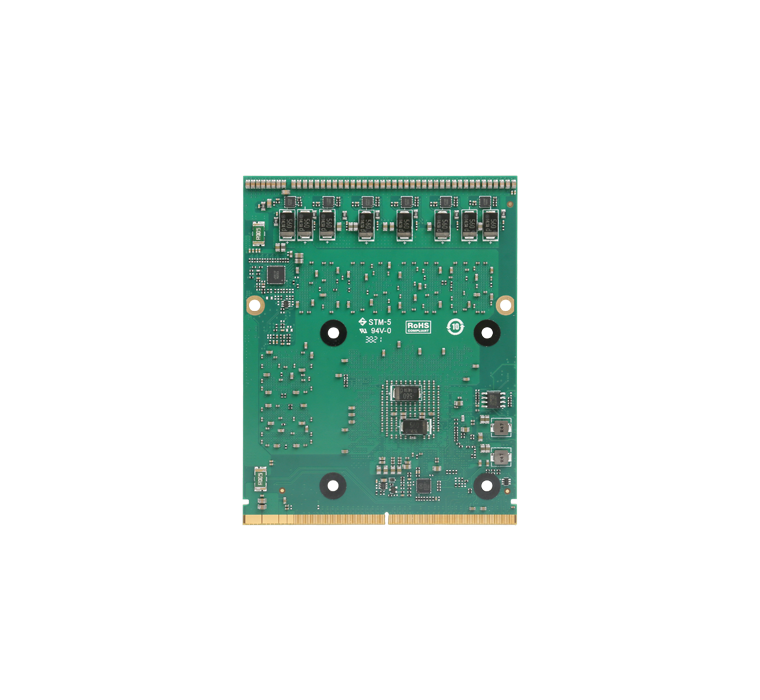

RTX3000m MXM Module
The MM3000B6‑6G is a professional MXM GPU built on the NVIDIA Turing architecture. Equipped with 6 GB GDDR6 memory and 1920 CUDA cores, it supports ray tracing and AI acceleration, delivering a cost‑effective option for embedded professional graphics applications.
Product Features
- NVIDIA Turing architecture, equipped with NVIDIA Quadro RTX3000 Mobility GPU
- 6 GB GDDR6 192‑bit memory with 336 GB/s memory bandwidth
- 1920 CUDA Cores, 240 Tensor Cores, 30 RT Cores
- MXM 3.1 Type‑B form factor (105 × 82 mm), PCIe 3.0 x16 interface
- 4 × DisplayPort 1.4++ outputs, supports 8K@120 Hz
- 82 W TDP
- Compatible with Windows 10/11 and Linux
MM3000B6‑6G is powered by the NVIDIA Quadro RTX3000 Mobility GPU based on the Turing architecture. It features 1920 CUDA Cores, 240 Tensor Cores and 30 RT Cores, delivering a single‑precision compute performance of 6.8 TFLOPS. Equipped with 6 GB GDDR6 192‑bit memory and 336 GB/s memory bandwidth, it supports mainstream 3D design, video encoding/decoding and AI inference workloads.
Compliant with MXM 3.1 Type‑B form factor (105 × 82 mm), the module uses a PCIe 3.0 x16 bus. It provides 4 × DP 1.4++ outputs with support for 8K@120 Hz. The TDP is 82 W. Compatible with Windows 10/11 and Linux operating systems, it operates within a temperature range of 0 °C ~ 45 °C. This GPU fits embedded scenarios requiring balanced performance and power consumption, such as professional workstations, medical imaging equipment and industrial inspection hosts.
| Model | MM3000B6‑6G (RTX3000M) |
| GPU Architecture | NVIDIA Turing |
| GPU Model | NVIDIA Quadro RTX3000 Mobility |
| VRAM Capacity | 6 GB |
| VRAM Type | GDDR6 |
| VARM Bit Width | 192bit |
| Memory Bandwidth | 336GB/s |
| Core Clock(Base/Boost) | 945/1380MHz |
| CUDA Core | 1920 |
| Tensor Core | 240 |
| RT Core | 30 |
| TMUs | 120 |
| ROPs | 64 |
| SM Count | 30 |
| PCIe Interface | PCI Express 3.0 x16 |
| MXM Form Factor | MXM 3.1 Type‑B |
| Size | 105 × 82 mm |
| TDP | 82 W |
| Display Outputs | 4 × DisplayPort 1.4++ |
| Max Resolution | 7680 × 4320@120 Hz |
| Operating System | Windows 10/11、Linux |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0% ~ 95% (Non‑condensing) |
| Storage Humidity | 10%~90% |
| Supply Voltage | DC 12~19V，3.3V&5V±5% |
| Single Precision FP | 6.8 TFLOPS |
| Double Precision FP | 223.5 GFLOPS |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.4 |
| Shader Model | 6.8 |
| CUDA Version | 7.5 |
8.ZRT.80-8317-01-LFF | F84 RTX3000M 6 G 192‑bit GDDR6, 4DP, MXM Type‑B, 82 W – ZRT Retail Box, 20 pcs per lot
8.ZRT.80-8317-02-LFF | F84 RTX3000M 6 G 192‑bit GDDR6, 4DP, MXM Type‑B, 82 W / with Heatsink (48-6276-01) – Bulk Pack, 30 pcs per lot
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What form factor is the MM3000B6‑6G RTX3000m MXM module? Which motherboards are compatible?
This GPU follows MXM 3.1 Type‑B standard with physical dimension 105×82 mm, PCIe 3.0 x16 interface. It can work with hosts that implement MXM 3.1 Type‑B socket. Please confirm your carrier board supports 82W TDP power delivery and PCIe 3.0 x16 signal before integration.
What operating systems does MM3000B6‑6G support? Is Linux driver available?
It supports Windows 10 / Windows 11 64‑bit and mainstream Linux distributions. You can use official NVIDIA Quadro Linux drivers. CUDA compute capability is 7.5 for AI inference and GPU computing workloads.
What display outputs are available on this RTX3000m MXM module? What is the maximum resolution?
Equipped with 4‑channel DisplayPort 1.4++ outputs. Single channel supports up to 8K@120Hz. HDMI output can be achieved via DP‑to‑HDMI adapter. eDP, LVDS and VGA are not supported natively.
What form factor and interface does the MM3000B6‑6G (RTX3000M) MXM GPU adopt?
This GPU module follows MXM 3.1 Type‑B mechanical specification with dimension 105 × 82 mm, and uses PCIe 3.0 x16 bus interface. It requires a carrier board or host system that fully complies with MXM 3.1 Type‑B standard for normal operation.
What operating systems and display outputs are supported by the RTX3000M MXM module MM3000B6‑6G?
It supports Windows 10/11 and Linux systems. Equipped with 4‑channel DisplayPort 1.4++ outputs, it can drive maximum resolution up to 8K@120 Hz (7680×4320). It is suitable for multi‑screen industrial display, medical imaging and embedded workstation projects.
