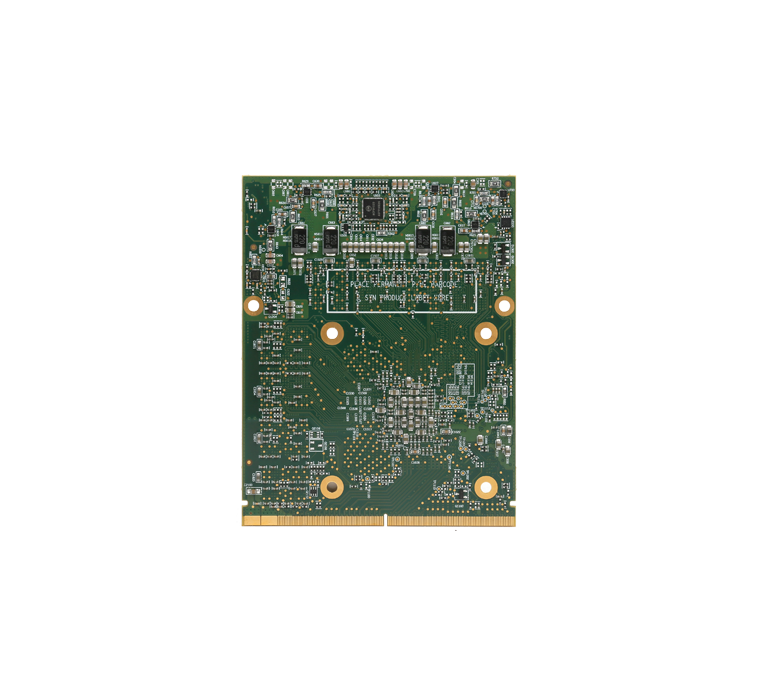

RX580 MXM Module
The MD580B5‑8G is a high‑performance MXM graphics card based on the AMD Radeon RX580. Equipped with 8 GB GDDR5 VRAM and 2048 stream processors, it features 6 display outputs and AMD Eyefinity multi‑display technology, delivering a cost‑effective solution for multi‑screen embedded applications.
Product Features
- AMD Radeon RX580 GPU
- 8 GB GDDR5, 256‑bit VRAM
- MXM 3.1 Type B form factor (105 × 82 mm), PCIe 3.0 x16 interface
- 6 × DisplayPort 1.4++ outputs; supports 8K resolution, 4K H.264/H.265 encode/decode and Eyefinity multi‑display setup
- TDP: 140 W
The MD580B5-8G is equipped with the AMD Radeon RX580 GPU, featuring 2048 stream processors and a single-precision computing performance of 3.2 TFLOPS. It comes with 8GB GDDR5 memory on a 256-bit bus, delivering a memory bandwidth of 160 GB/s, ideal for large 3D scenes, multi-channel high-definition video streams and multi-screen wall applications. The card supports 4K H.264/H.265 hardware encoding and decoding to significantly reduce CPU overhead.
Built to the MXM 3.1 Type B standard (105×82 mm) with a PCIe 3.0 x16 interface, it offers up to 6 DisplayPort 1.4++ outputs. Each port supports a maximum resolution of 7680×4320 @60 Hz. Powered by AMD Eyefinity technology, it enables multi-display setups with up to 6 screens. The TDP is 140W (120W optional). It supports Windows 7/10/11 and Linux operating systems, with an operating temperature range of 0~45°C. This MXM module is well-suited for embedded applications requiring multiple display outputs, including multi-screen digital signage, security monitoring centers, financial trading terminals and command & control platforms.
| Product Model | MD580B5-8G (RX580) |
| GPU Architecture | AMD Polaris |
| GPU Model | AMD Radeon RX580 |
| Video Memory Capacity | 8GB |
| Video Memory Type | GDDR5 |
| Memory Bus Width | 256-bit |
| Memory Bandwidth | 160GB/s |
| GPU Clock (Base/Boost) | 1086MHz |
| Stream Processors | 2048 |
| Tensor Core | — |
| RT Core | — |
| TMUs | 128 |
| ROPs | 32 |
| SM Count | — |
| PCIe Interface | PCI Express 3.0 x16 |
| MXM Form Factor | MXM 3.1 Type B |
| Dimensions | 105 × 82 mm |
| TDP | 140W (120W optional) |
| Display Output | 6 × DisplayPort 1.4++ |
| Max. Resolution | 7680×4320@60Hz |
| Supported OS | Windows 7/10/11 64bit、Linux |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0%‑95% (non‑condensing) |
| Storage Humidity | 10%~90% |
| Supply Voltage | DC 12~19V，3.3V&5V±5% |
| Single‑Precision FP | 3.2 TFLOPS |
| Double‑Precision FP | 212.6 GFLOPS |
| DirectX | 12 |
| OpenGL | 4.5 |
| OpenCL | 2.0 |
| Vulkan | — |
| Shader Model | — |
| CUDA Version | — |
Model: MD580B5‑8G | Memory: 8GB GDDR5, 256‑bit | Form Factor: MXM 3.1 Type B | TDP: 140W (120W optional)
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
How many displays can the ZRT RX580 MXM module drive simultaneously?
The MD580B5-8G provides six DisplayPort 1.4++ outputs and supports AMD Eyefinity multi-display technology, allowing up to six displays to run at the same time. It supports resolutions up to 8K and hardware 4K H.264/H.265 encode/decode, making it ideal for multi-screen digital signage, video walls and embedded visualization.
What are the dimensions and interface of the MD580B5-8G, and which MXM slot does it fit?
The module follows the MXM 3.1 Type B form factor, measuring 105 × 82 mm, and connects via a PCIe 3.0 x16 interface. It is built with 8 GB of 256-bit GDDR5 memory and 2048 stream processors, with a TDP of 140 W, so the host system should provide sufficient cooling and power headroom.
Is the RX580 MXM graphics module suitable for embedded or commercial multi-screen projects?
Yes. Combining an embedded MXM 3.1 Type B form factor with 6-display output, Eyefinity support and hardware 4K H.264/H.265 codec, the MD580B5-8G is a cost-effective choice for digital signage, video walls, security monitoring, medical imaging and industrial visualization.
