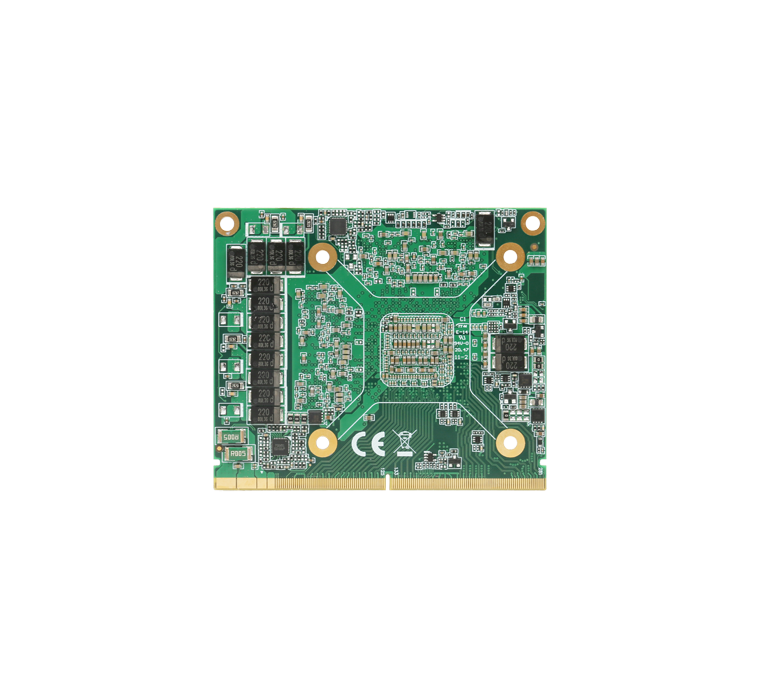

T1000m MXM Module
The MMT1000A6‑4G is a compact MXM professional graphics card built on the NVIDIA Turing architecture. Featuring 4 GB GDDR6 VRAM and 896 CUDA Cores, it adopts the low‑power MXM 3.1 Type‑A design to deliver reliable performance for entry‑level embedded graphics applications.
Product Features
- NVIDIA Turing Architecture, equipped with NVIDIA Quadro T1000 Mobility GPU
- 4 GB GDDR6, 128‑bit VRAM with 192 GB/s memory bandwidth
- 896 CUDA Cores, 56 TMUs, 32 ROPs
- MXM 3.1 Type‑A form factor (70 × 82 mm), PCIe 3.0 x16 interface
- 4 × DisplayPort 1.4++ outputs, supports 8K @ 120 Hz
- 50 W TDP (36 W optional)
- Supports Windows 10 and Linux
The MMT1000A6‑4G is equipped with the NVIDIA Quadro T1000 Mobility GPU built on the Turing architecture. It features 896 CUDA Cores, 56 TMUs and 32 ROPs, delivering 3.5 TFLOPS of single‑precision computing performance. Featuring 4 GB GDDR6 128‑bit VRAM with 192 GB/s memory bandwidth, it supports mainstream 2D/3D graphics acceleration, multi‑channel video decoding and lightweight design applications.
It adopts the compact MXM 3.1 Type‑A form factor (70 × 82 mm) with a PCIe 3.0 x16 bus interface. Four DP 1.4++ outputs support resolution up to 8K @ 120 Hz. With a TDP of only 50 W (36 W optional), it imposes low requirements on thermal cooling. Compatible with Windows 10 and Linux operating systems, and operating within 0 °C ~ 45 °C, it is well‑suited for low‑power embedded scenarios including all‑in‑one office PCs, digital signage, slim industrial tablets and entry‑level medical display devices.
| Model | MMT1000A6-4G (T1000m) |
| GPU Architecture | NVIDIA Turing |
| GPU Model | NVIDIA Quadro T1000 Mobility |
| VRAM Capacity | 4 GB |
| VRAM Type | GDDR6 |
| VRAM Bit Width | 128-bit |
| VARM Bandwidth | 192GB/s |
| Core Clock(Base/Boost) | 1395 / 1650MHz |
| CUDA Core | 896 |
| Tensor Core | — |
| RT Core | — |
| TMUs | 56 |
| ROPs | 32 |
| SM Count | 14 |
| PCIe Interface | PCI Express 3.0 x16 |
| MXM Form Factor | MXM 3.1 Type‑A |
| Size | 70 × 82 mm |
| TDP | 50 W (36 W optional) |
| Display Outputs | 4 × DisplayPort 1.4++ |
| Max Resolution | 7680 × 4320 @ 120 Hz |
| Operating System | Windows 10 6-4bit,Linux 64-bit |
| Operating Temperature | 0°C ~ 45°C(-20°C optional) |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0% ~ 95% (Non‑condensing) |
| Storage Humidity | 10%~90% |
| Supply Voltage | DC 12 ~ 19 V, 3.3 V & 5 V ±5% |
| Single Precision FP | 3.5 TFLOPS |
| Double Precision FP | 107.7 GFLOPS |
| DirectX | 12 Ultimate (12_1) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Compute Capability | 7.5 |
Model: MMT1000A6-4G | VRAM: 4GB GDDR6, 128-bit | Interface: MXM 3.1 Type A | TDP: 50W (36W optional)
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What is the T1000M MXM module and what applications is it designed for?
The ZRT MMT1000A6-4G is a compact professional graphics module based on the NVIDIA Turing architecture, powered by the NVIDIA Quadro T1000 Mobility GPU. With its low-power MXM 3.1 Type-A design (70 × 82 mm), 4 GB GDDR6 memory and 896 CUDA cores, it delivers reliable graphics and computing performance for entry-level embedded applications such as medical imaging displays, multi-screen diagnostic workstations, industrial machine vision, and edge AI computing.
What display outputs and resolution does the T1000M MXM module support?
The module provides 4 × DisplayPort 1.4++ outputs and supports resolutions up to 8K @ 120 Hz, making it ideal for multi-display medical imaging systems, diagnostic review stations and video wall applications that demand high-resolution, high-refresh-rate output.
What are the power consumption, interface, and operating system requirements of the T1000M MXM module?
The T1000M features a 50 W TDP (with an optional 36 W low-power configuration) and connects via a standard MXM 3.1 Type-A slot with PCIe 3.0 x16 interface. It supports Windows 10 and Linux operating systems. Its low power consumption and compact form factor make it easy to integrate into fan-constrained or space-limited embedded medical and industrial equipment.
