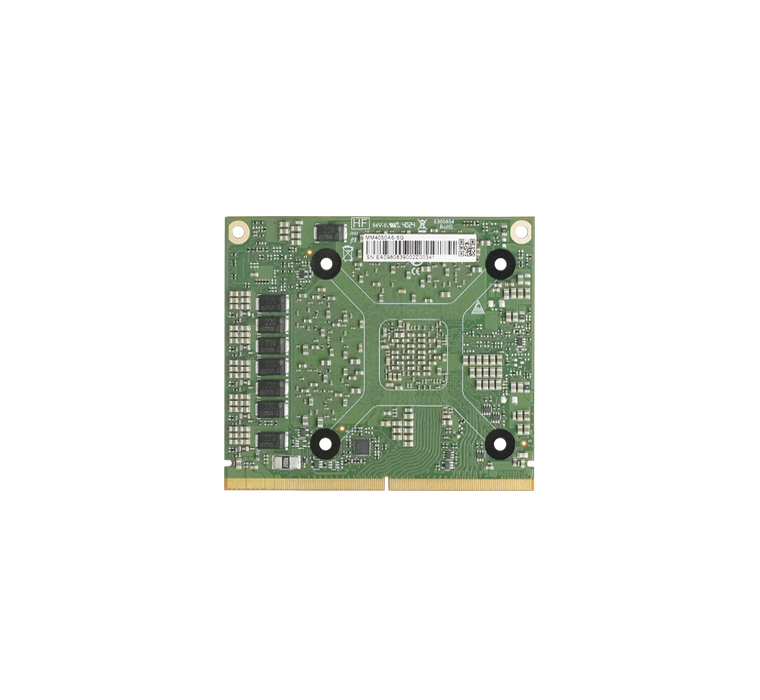

RTX4050m MXM Module
MM4050A6-6G is an entry-level MXM graphics card built on NVIDIA Ada Lovelace architecture. Equipped with 6GB GDDR6 VRAM and 2560 CUDA Cores, it adopts the compact MXM 3.1 Type A design with 65W low power consumption, delivering RT ray tracing capability for cost-sensitive embedded applications.
Product Features
- NVIDIA Ada Lovelace Architecture, equipped with NVIDIA GeForce RTX4050 Max-Q GPU
- 6GB GDDR6 96-bit VRAM, 192GB/s memory bandwidth
- 2560 CUDA Cores, 80 Tensor Cores, 20 RT Cores
- MXM 3.1 Type A form factor (70×82mm), PCIe 4.0 x8 interface
- 2×DP 1.4++ + HDMI 2.1 + eDP multi-output, supports 8K@120Hz / 8K@60Hz
- TDP 65W (35W optional); supports Windows 10/11 and Linux
MM4050A6-6G is equipped with the NVIDIA GeForce RTX4050 Max-Q GPU based on the Ada Lovelace architecture. It features 2560 CUDA Cores, 80 Tensor Cores and 20 RT Cores, delivering a single-precision compute performance of 11.8 TFLOPS. With 6GB GDDR6 96-bit VRAM and 192GB/s memory bandwidth, it supports mainstream 3D games, video editing and entry-level AI inference applications.
It adopts MXM 3.1 Type A form factor (70×82mm) with PCIe 4.0 x8 bus. It provides 2×DP 1.4++, 1×HDMI 2.1 and 1×eDP outputs, up to 8K@120Hz.
TDP 65W (35W optional), with low requirements for the thermal system. It supports Windows 10/11 and Linux, operating temperature from 0~45°C, suitable for educational all-in-one PCs, commercial display terminals, entry-level industrial vision equipment and other application scenarios.
| Model | MM4050A6-6G (RTX4050m) |
| GPU Architecture | NVIDIA Ada Lovelace |
| GPU Model | NVIDIA GeForce RTX4050 Max-Q |
| VRAM Capacity | 6GB |
| VRAM Type | GDDR6 |
| VRAM Bit Width | 96bit |
| Memory Bandwidth | 192GB/s |
| Core Frequency (Base/Boost) | 1140/1605MHz |
| CUDA Cores | 2560 |
| Tensor Core | 80 |
| RT Core | 20 |
| TMUs | 80 |
| ROPs | 48 |
| SM Count | 20 |
| PCIe Interface | PCI Express 4.0 x8 |
| MXM Form Factor | MXM 3.1 Type A |
| Size | 70 × 82 mm |
| TDP | 65W(35W optional) |
| Display Outputs | 2×DP 1.4++ + HDMI2.1 + eDP |
| Max Resolution | DP: 7680×4320@120Hz / HDMI: 8K@60Hz |
| Operating System | Windows 10/11、Linux |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0%~95%（非凝结） |
| Storage Humidity | 10%~90% |
| Supply Voltage | DC 12~19V，3.3V&5V±5% |
| Single Precision FLOPS | 11.8 TFLOPS |
| Double Precision FLOPS | 185.3 GFLOPS |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Version | 8.9 |
Model: MM4050A6-6G | VRAM: 6GB GDDR6 96-bit | Interface: MXM 3.1 Type A | TDP: 65W (35W optional)
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What TDP options are available for the MM4050A6‑6G RTX4050m MXM module?
This MXM graphics module supports two TDP modes: 65W standard and optional 35W low‑power mode. It adopts MXM 3.1 Type‑A form factor with dimension 70×82 mm, working with DC 12‑19V input power supply, suitable for embedded systems with limited thermal capacity.
What display outputs and maximum resolution does the RTX4050m MXM (MM4050A6‑6G) support?
It comes with 2×DP 1.4++, 1×HDMI 2.1 and 1×eDP interfaces. DP port supports up to 8K@120Hz, while HDMI 2.1 reaches 8K@60Hz. Multiple independent display outputs meet industrial terminals, digital signage and all‑in‑one machine requirements.
Which operating systems are compatible with ZRT MM4050A6‑6G RTX4050m MXM GPU? What is its AI computing capability?
It officially supports Windows 10 / Windows 11 and mainstream Linux systems. Built‑on Ada Lovelace architecture, it has 2560 CUDA cores, 80 Tensor cores and 20 RT cores, delivering 11.8 TFLOPS single‑precision performance. It fits entry‑level AI inference, video processing and lightweight 3D rendering scenarios.
