RTX5000 PCIe GPU

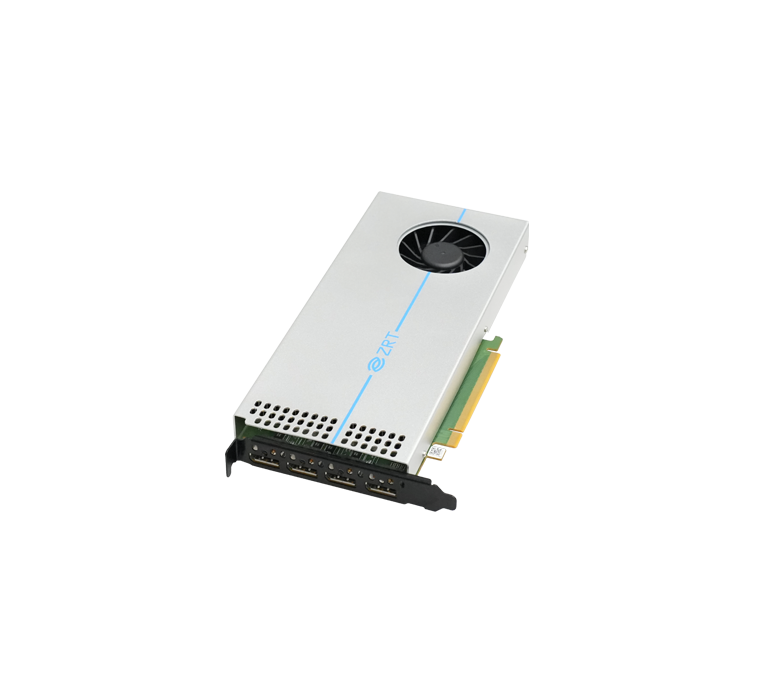

The RTX5000M 16GD6 4P is a high‑end professional PCIe graphics card built on the NVIDIA Ada Lovelace architecture. Equipped with 16 GB high‑capacity GDDR6 VRAM and 9728 CUDA Cores, it adopts an ATX 1‑slot form factor with 4 × DisplayPort 1.4a outputs, delivering premium graphics and compute performance for professional workstations and AI edge‑computing scenarios.
Product Features
- NVIDIA Ada Lovelace Architecture, NVIDIA Quadro RTX5000 Embedded GPU
- 16 GB GDDR6, 256‑bit VRAM with 576 GB/s memory bandwidth
- 9728 CUDA Cores, 304 Tensor Cores, 76 RT Cores
- Full‑speed PCIe 4.0 x16 interface; ATX / 1‑slot form factor (246 × 111.5 × 25.5 mm)
- 4 × DisplayPort 1.4a outputs, supports 8K @ 60 Hz
- 115 W TDP, 1 × 8‑pin external power connector
- Supports Windows 10 / 11 and 64‑bit Linux
| Model | RTX5000M 16GD6 4P (FA23) |
| Product Type | PCIe Professional GPU |
| GPU Architecture | NVIDIA Ada Lovelace |
| GPU Model | NVIDIA RTX 5000 Ada Generation Embedded |
| VRAM Capacity | 16 GB |
| VRAM Type | GDDR6 |
| VRAM Bit Width | 256-bit |
| Memory Bandwidth | 576 GB/s |
| Core Clock | 1425 MHz (Boost 2115 MHz) |
| Memory Clock | 2250 MHz |
| CUDA Cores | 9728 |
| Tensor Cores | 304 |
| RT Cores | 76 |
| TMUs | 304 |
| ROPs | 112 |
| SM Count | 76 |
| L1 Cache | 128 KB (per SM) |
| L2 Cache | 64 MB |
| PCIe Interface | PCI Express 4.0 x16 (Full 16x) |
| Board Form Factor | ATX / 1-slot |
| Size | 246 × 111.5 × 25.5 mm |

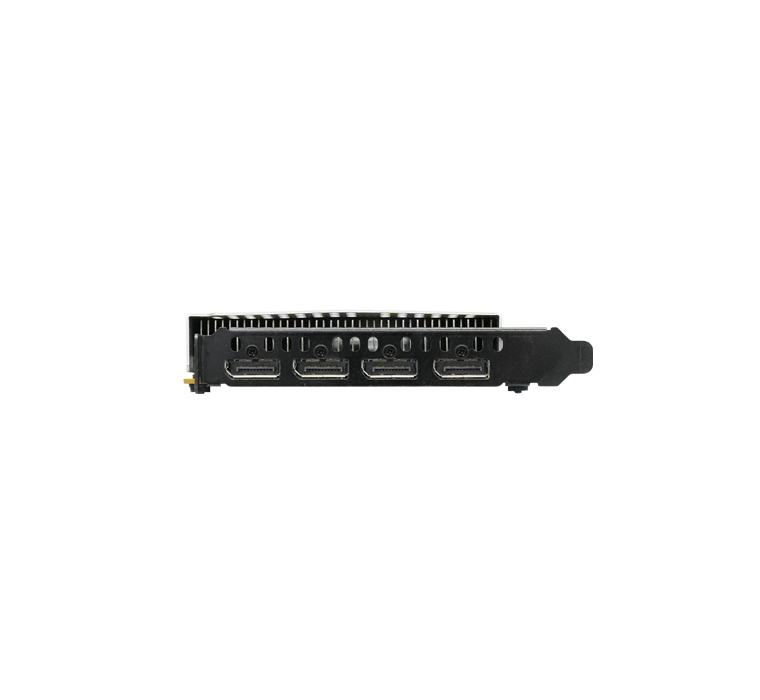

| Display Outputs | 4 × DisplayPort 1.4a |
| Max Resolutions | 7680 × 4320 @ 60 Hz (DP) |
| Max Displays | 4 outputs |
| TDP | 115 W |
| External Power | 1 × 8‑pin (Upward‑facing) |
| Pixel Fill Rate | 236.9 GPixel/s |
| Texture Fill Rate | 643.0 GTexel/s |
| Single Precision FP | 39.7 TFLOPS |
| Double Precision FP | 724.9 GFLOPS |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Version | 8.9 |
| Operating System | Windows 10 64‑bit, Windows 11 64‑bit, Linux 64‑bit |
| Operating Temperature | 0 °C ~ 45 °C |
| Storage Temperature | -20 °C ~ 75 °C |
| Operating Humidity | 0% ~ 95%(Non-condensing) |
| Storage Humidity | 10% ~ 90% |
Model: RTX5000M 16GD6 4P (FA23) | Memory: 16 GB GDDR6, 256‑bit | Spec: ATX / 1‑slot, 246 × 111.5 × 25.5 mm | Power: 115 W | Interface: PCIe 4.0 x16 | Output: 4 × DisplayPort 1.4a
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What is the RTX5000M PCIe GPU, and what architecture is it based on?
The RTX5000M is a high-end professional PCIe graphics card built on the NVIDIA Ada Lovelace architecture. It features a Quadro RTX5000 Embedded GPU with 9728 CUDA cores, 304 Tensor cores, and 76 RT cores, delivering premium graphics rendering and AI computing performance for professional workstations and edge AI applications.
How much VRAM does the RTX5000M have, and is it suitable for AI edge computing?
The card comes with 16 GB of GDDR6 memory on a 256-bit interface, delivering up to 576 GB/s of bandwidth. Combined with 304 Tensor cores, this makes it well suited for AI inference, model training, and large-scale 3D rendering workloads in workstation and edge-computing environments.
What are the power supply, form factor, and display output requirements of the RTX5000M?
The RTX5000M adopts an ATX single-slot design (246 × 111.5 × 25.5 mm) with a full-speed PCIe 4.0 x16 interface and a low 115 W TDP, requiring only one 8-pin external power connector. It offers 4 × DisplayPort 1.4a outputs supporting up to 8K @ 60 Hz, and is compatible with Windows 10/11 and 64-bit Linux.
