GTX1650 PCIe Module

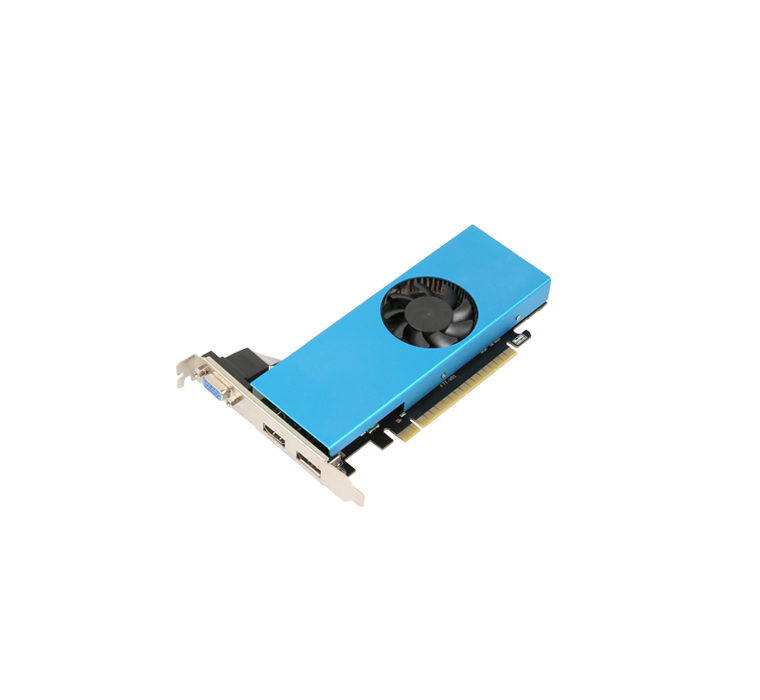

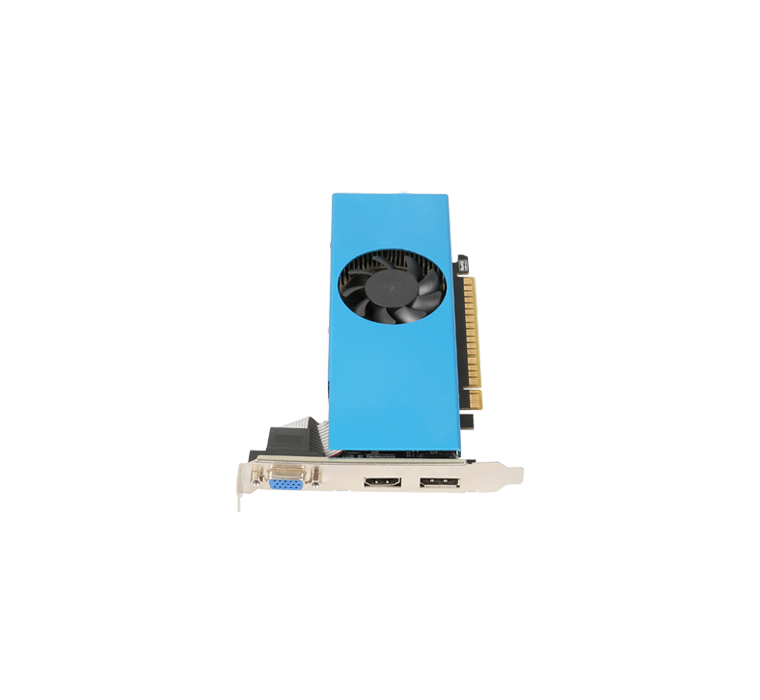

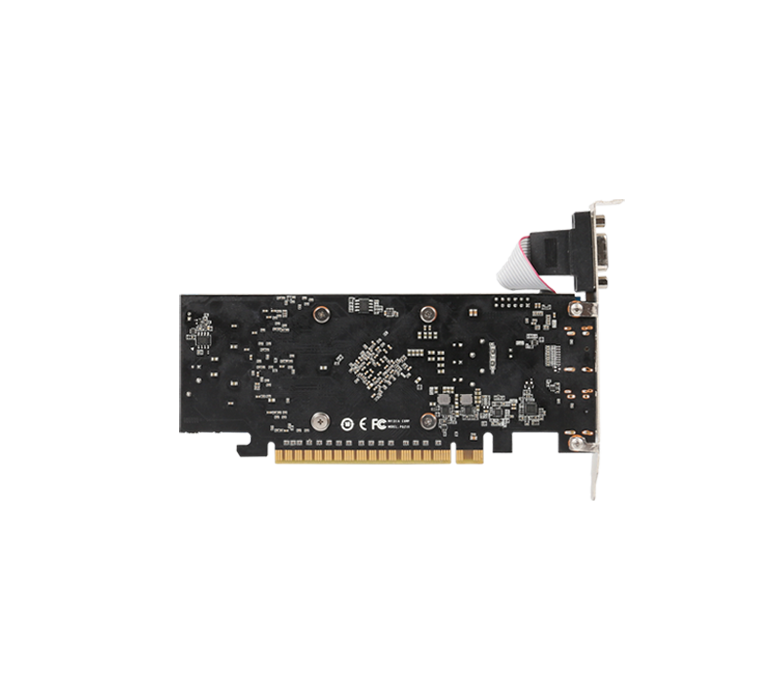

The TX1650 4GD5 VPH is a compact SFF PCIe graphics card based on the NVIDIA Turing architecture. Featuring 4GB GDDR5 memory and 896 CUDA cores, it adopts a 165mm single-slot form factor and requires no external power supply. Supporting triple display outputs including VGA, HDMI and DP, it serves as a cost-effective solution for entry-level embedded graphics applications.
Product Features
- NVIDIA Turing Architecture,NVIDIA GeForce GTX1650 GPU
• 4GB GDDR5 128bit RAM
• 896 CUDA Cores,56 TMUs，32 ROPs
• SFF/1Slot Compact Specs (165×70×24mm),PCIe 3.0 x16 Interface

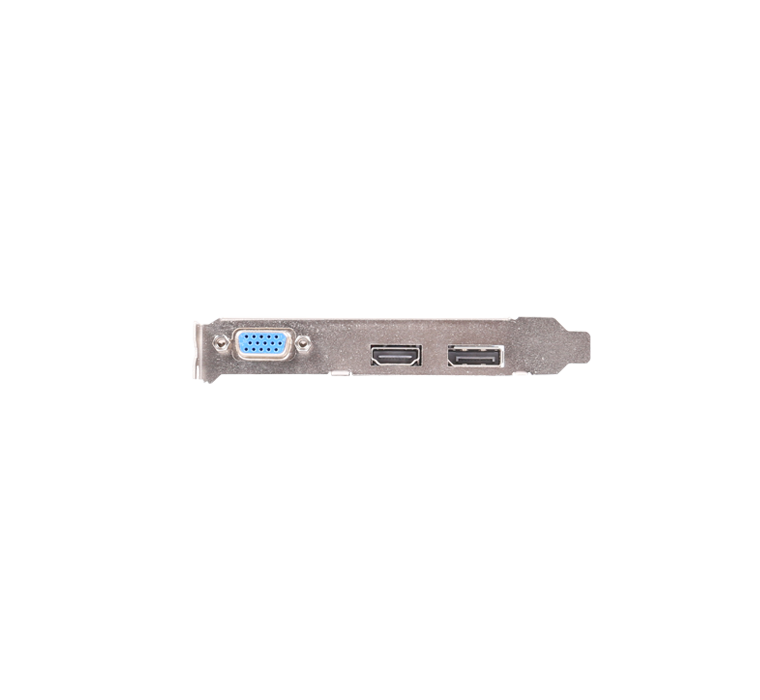

• 1×VGA + 1×HDMI2.0 + 1×DisplayPort 1.4 multi
• TDP 75W,No External Power
GTX1650 4GD5 VPH features the NVIDIA GeForce GTX 1650 GPU built on the Turing architecture. It comes with 896 CUDA cores, 56 TMUs and 32 ROPs, with a core clock of 1485MHz (Boost 1665MHz), and single-precision FP32 performance of 2.96 TFLOPS. Equipped with 4GB GDDR5 128-bit memory delivering a bandwidth of 128.1GB/s, it handles mainstream 2D/3D graphics acceleration, high-definition video decoding and light gaming workloads.
Adopting an ultra-compact SFF / 1-slot form factor (165×70×24mm), its 165mm short length enables easy installation in small chassis and connects to the host via PCIe 3.0 x16. It provides 1× legacy VGA (2048×1536@60Hz), 1× HDMI 2.0 (4096×2160@60Hz) and 1× DisplayPort 1.4 (7680×4320@120Hz) outputs, compatible with both legacy and modern display hardware.
With a TDP of only 75W and no external power required, it greatly simplifies system integration. It supports Windows 7/10/11 and 64-bit Linux operating systems. The operating temperature ranges from 0~45°C (-20°C wide-temperature option available). It is ideal for embedded scenarios demanding high compatibility and space efficiency, including legacy PC upgrades, small office PCs, digital signage and industrial display terminals.
| Spec | Spec Value |
| Model | GTX1650 4GD5 VPH |
| GPU Architecture | NVIDIA Turing |
| GPU Model | NVIDIA GeForce GTX1650 |
| VRAM Capacity | 4GB |
| VRAM Type | GDDR5 |
| VRAM Bus Width | 128bit |
| Memory Bandwidth | 128.1GB/s |
| Core Clock (Base/Boost) | 1485/1665MHz |
| Memory Clock | 2001MHz（8.0Gbps） |
| CUDA Cores | 896 |
| Tensor Core | — |
| RT Core | — |
| TMUs | 56 |
| ROPs | 32 |
| SM Count | 14 |
| L1 Cache | 64KB（per SM） |
| L2 Cache | 1024KB |
| PCIe Interface | PCI Express 3.0 x16 |
| Board Specs | SFF / 1Slot |
| Size | 165 × 70 × 24mm |
| Display Outputs | 1×VGA + 1×HDMI2.0 + 1×DisplayPort 1.4 |
| VGA Resolution | 2048×1536@60Hz |
| HDMI Resolution | 4096×2160@60Hz |
| DP Resolution | 7680×4320@120Hz |
| Max Display | 3路 |
| TDP Power | 75W |
| External Power | N/A(No External Power) |
| Pixel Fill Rate | 53.28 GPixel/s |
| Texture Fill Rate | 93.24 GTexel/s |
| Single Precision FP32 | 2.962 TFLOPS |
| Double Precision FP64 | 92.22 GFLOPS |
| DirectX | 12 Ultimate（12_1） |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Version | 7.5 |
| Operating Temperature | 0°C ~ 45°C(-20°C Option Available) |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0%~95%(Non-condensing) |
| Storage Humidity | 10%~90% |
8.ZRT.80-8202-00-LFF（GTX1650 4GD5 VHP Standed Version）
8.ZRT.80-8202-04-LFF（F77 GTX1650 4G 128bit GDDR5 VGA+HDMI+DP PCI-E 16x LP 75W,Bulk Pack,30pcs per pack）
8.ZRT.80-8202-03-LFF（GTX1650 4GD5 VHP(-20) Wide Temperature Version）
