RTX3500 PCIe GPU Card

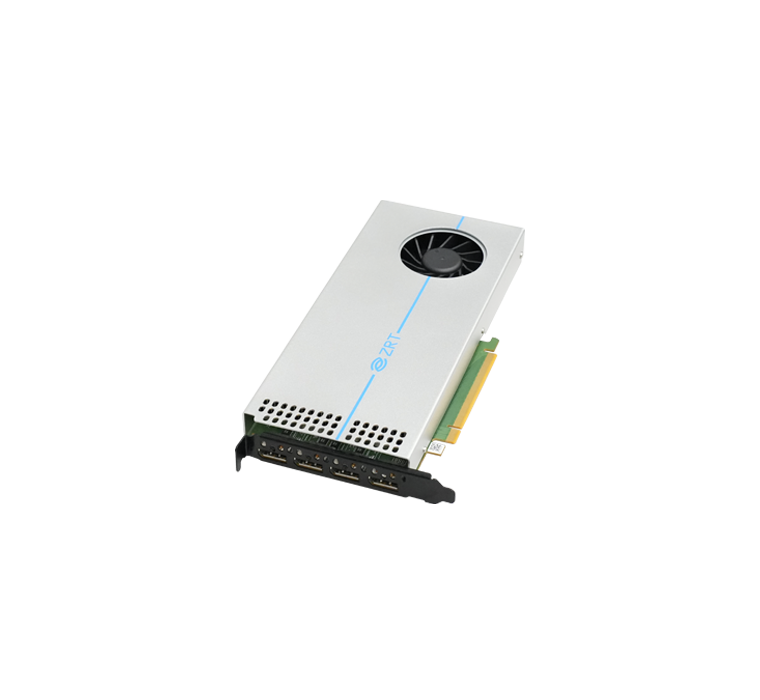

RTX3500M 12GD6 4P is a mainstream professional PCIe graphics card built on the NVIDIA Ada Lovelace architecture. Equipped with 12 GB GDDR6 VRAM and 5120 CUDA Cores, it adopts an ATX 1-slot design with 4 × DP 1.4a outputs, delivering a balanced high-performance solution for professional graphics workstations.
Product Features
- NVIDIA Ada Lovelace Architecture, NVIDIA RTX 3500 Embedded GPU
- 12 GB GDDR6, 192-bit VRAM
- 5120 CUDA Cores, 160 Tensor Cores, 40 RT Cores
- PCIe 4.0 x16 full-speed interface; ATX / 1-slot form factor (246 × 111.5 × 25.5 mm)

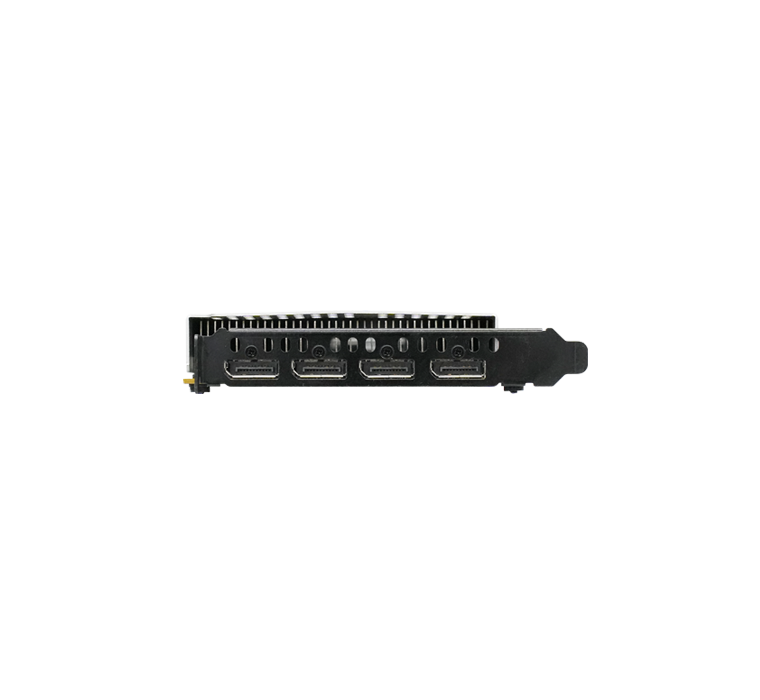

- 4 × DisplayPort 1.4a outputs, supports 8K @ 60 Hz
- 115 W TDP, 1 × 8-pin external power supply
- Supports Windows 10/11 and 64-bit Linux
The RTX3500M 12GD6 4P is equipped with the NVIDIA RTX 3500 Embedded GPU. Built on the Ada Lovelace architecture, it features 5120 CUDA Cores, 160 Tensor Cores and 40 RT Cores, delivering a single-precision floating-point performance of 24.4 TFLOPS. Its 12 GB GDDR6, 192-bit VRAM provides 432 GB/s memory bandwidth to efficiently process medium and large CAD models, 3D reconstruction for medical imaging, and real-time rendering tasks.
It adopts an ATX / 1-slot form factor (246 × 111.5 × 25.5 mm) with a high-speed PCIe 4.0 x16 interface. Four DisplayPort 1.4a outputs support 8K @ 60 Hz. It has a 115 W TDP and requires 1 × 8-pin external power supply. Supporting Windows 10/11 and 64-bit Linux operating systems, with an operating temperature range of 0 ~ 45 °C, it serves as a professional GPU choice for medical imaging equipment, industrial design hosts, and entry-level AI workstations.
| Model | RTX3500M 12GD6 4P (FA23) |
| Product Type | PCIe Professional Graphics Card |
| GPU Architecture | NVIDIA Ada Lovelace |
| GPU Model | NVIDIA RTX 3500 Embedded |
| VRAM Capacity | 12 GB |
| VRAM Type | GDDR6 |
| VRAM Bit Width | 192 bit |
| Memory Bandwidth | 432 GB/s |
| Core Clock | 1725 MHz（Boost 2250 MHz） |
| Memory Clock | 2250 MHz |
| CUDA Cores | 5120 |
| Tensor Cores | 160 |
| RT Cores | 40 |
| TMUs | 160 |
| ROPs | 64 |
| SM Count | 40 |
| L1 Cache | 128 KB（per SM） |
| L2 Cache | 48 MB |
| PCIe Interface | PCI Express 4.0 x16 (Full 16x) |
| Board Form Factor | ATX / 1Slot |
| Size | 246 × 111.5 × 25.5 mm |
| Display Outputs | 4 × DisplayPort 1.4a |
| Max Resolutions | 7680 × 4320 @ 60 Hz (DP) |
| Max Displays | 4 outputs |
| TDP | 115 W |
| External Power | 1 × 8-pin (Upward-facing) |
| Pixel Fill Rate | 236.9 GPixel/s |
| Texture Fill Rate | 643.0 GTexel/s |
| Single Precision FP | 24.4 TFLOPS |
| Double Precision FP | 382.8 GFLOPS |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Version | 8.9 |
| Operating System | Windows 10 64-bit, Windows 11, Linux 64-bit |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0% ~ 95%(Non-condensing) |
| Storage Humidity | 10% ~ 90% |
Model: RTX3500M 12GD6 4P (FA23) | VRAM: 12 GB GDDR6, 192-bit | Form Factor: ATX / 1-slot, 246 × 111.5 × 25.5 mm | TDP: 115 W | Interface: PCIe 4.0 x16 | Outputs: 4 × DP 1.4a
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What is the ZRT RTX3500 PCIe GPU Card used for?
The ZRT RTX3500 (model ZRTRTX3500M 12GD6 4P) is a mainstream professional graphics card built on the NVIDIA Ada Lovelace architecture. With 5120 CUDA Cores, 160 Tensor Cores, and 40 RT Cores, it is designed for professional graphics workstations, covering workloads such as 3D modeling, CAD design, video editing, and AI inference.
How much VRAM does the RTX3500 have, and how many displays can it drive?
The card is equipped with 12 GB of GDDR6 memory on a 192-bit bus, which is sufficient for large 3D scenes and high-resolution textures. It features 4 × DisplayPort 1.4a outputs and supports up to 8K @ 60 Hz, making it ideal for multi-monitor financial trading desks, monitoring centers, and design workstations.
What are the power and system requirements for the RTX3500 PCIe GPU?
The card has a TDP of only 115 W and requires a single 8-pin external power connector. It uses a PCIe 4.0 x16 interface with an ATX single-slot design (246 × 111.5 × 25.5 mm), and is compatible with Windows 10/11 and 64-bit Linux, allowing easy deployment in compact workstations and servers.
