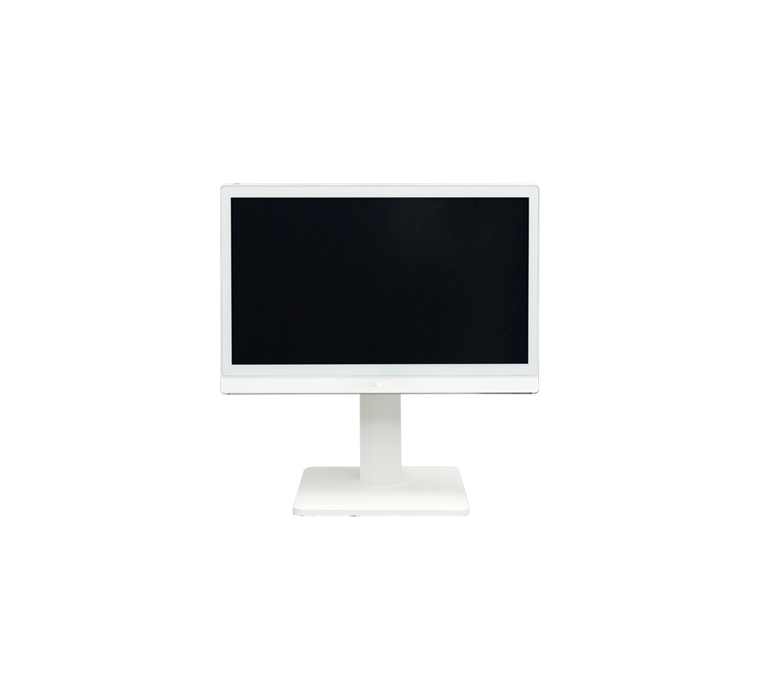

MSC-2401 Medical AI Analysis All-in-One PC
MSC-2401 is a 23.8-inch 4K touch all-in-one PC specially designed for medical imaging AI analysis. Equipped with 13th Gen Intel Core processors and optional RTX discrete graphics, it complies with GB9706 medical certification. Serving as a supporting terminal for CT, ultrasound, endoscopy and other medical devices, it assists physicians in efficient and accurate medical image diagnosis.
Product Features
- Powered by 13th Gen Intel Raptor Lake-H i5/i7/i9 processors with up to 14 cores and 20 threads, a maximum turbo frequency of 5.4GHz and 45W TDP
- 23.8-inch 4K IPS touchscreen with 3840×2160 resolution, 540cd/m² brightness, 98% DCI-P3 wide color gamut and 10-bit color depth
- Optional RTX3060m / RTX3080m discrete GPU for powerful acceleration in AI image analysis
- DDR5 5200MHz memory up to 48GB, with M.2 PCIe x4 NVMe, SATA3.0 and 2.5-inch SSD expansion support
- 2×Intel i225-AT Gigabit Ethernet ports, M.2 acquisition card slot and HDMI output to meet medical image transmission requirements
- Medical-oriented design including antibacterial plastic enclosure, height-adjustable and rotatable stand, 10-point capacitive touch, and OSD medical display mode (DICOM compliant)
- Compliant with GB9706.1 / GB9706.102 medical certification; operating temperature from -10~35℃, ideal for AI analysis of CT, ultrasound, endoscopic and other medical imaging data
MSC-2401 is a professional all-in-one PC dedicated to medical imaging AI analysis. It is powered by 13th Gen Intel Raptor Lake-H processors with optional i5-13500H (12 cores), i7-13700H (14 cores, 5.0GHz) or i9-13900H (14 cores, 5.4GHz). All models feature a 45W TDP to deliver robust computing power for medical image processing.
For display, it adopts a 23.8-inch 4K IPS touchscreen with an ultra-high resolution of 3840×2160, 540cd/m² high brightness, 98% DCI-P3 cinema-grade wide color gamut, and 10-bit color depth rendering 1.07 billion colors. It has a static contrast ratio of 1200:1 and 178° ultra-wide viewing angle, supporting projected capacitive 10-point touch. The built-in OSD menu offers multiple medical display modes including DICOM mode to meet the requirement of precise medical image review.
Optional RTX3060m (6G/12G) or RTX3080m (16G) discrete graphics are available to provide GPU acceleration for AI image inference and analysis. It supports DDR5 5200MHz memory up to 48GB. For storage, it comes with 1×M.2 Key-M PCIe x4 NVMe, 1×SATA3.0 and optional 2.5-inch SSD. A dedicated M.2 slot for acquisition cards enables direct input of medical image signals from CT, ultrasound, endoscopy and other devices. It is equipped with 2×Gigabit Ethernet ports (Intel i225-AT) supporting Wake On LAN and PXE remote boot.

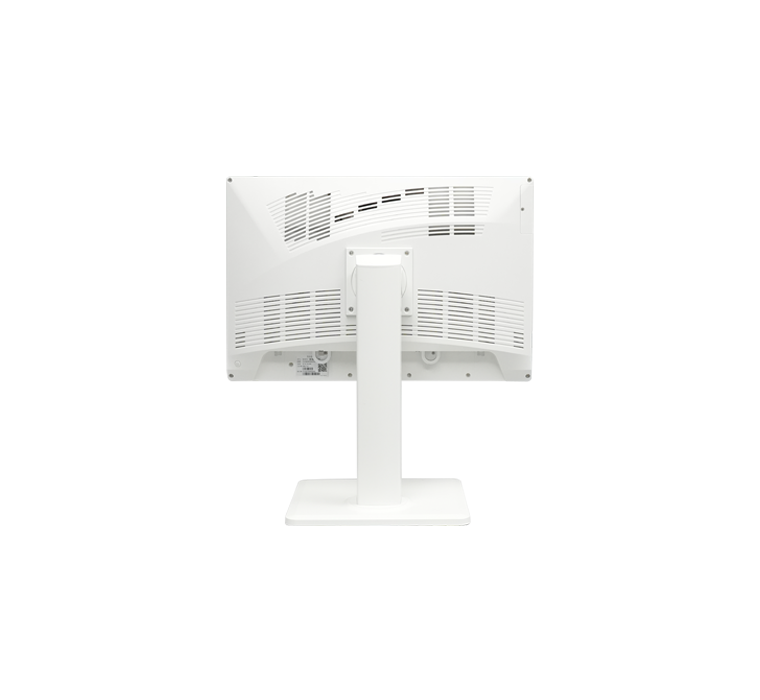

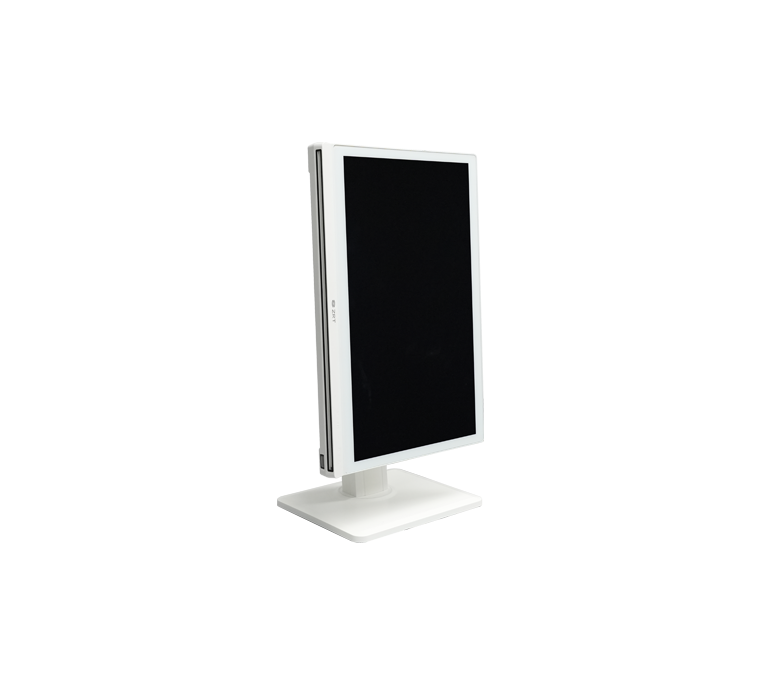

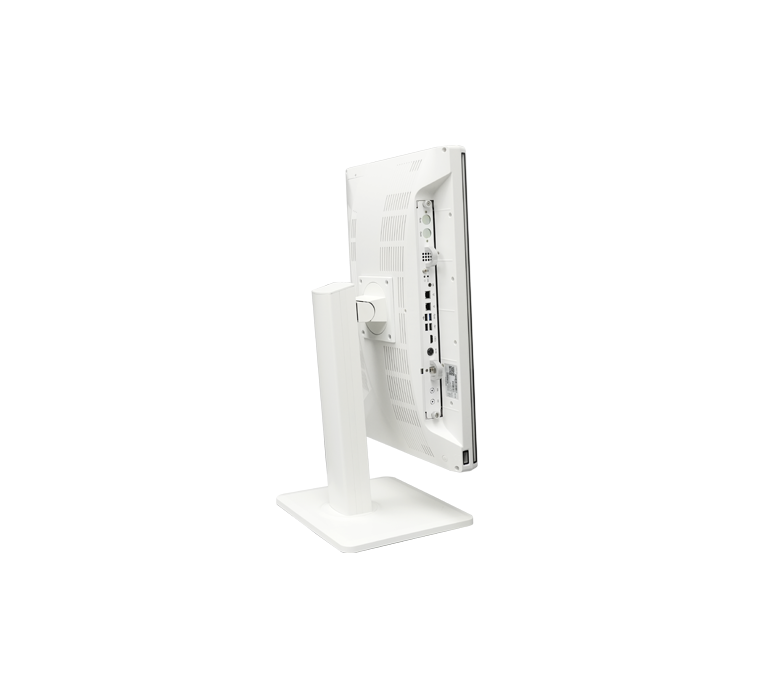

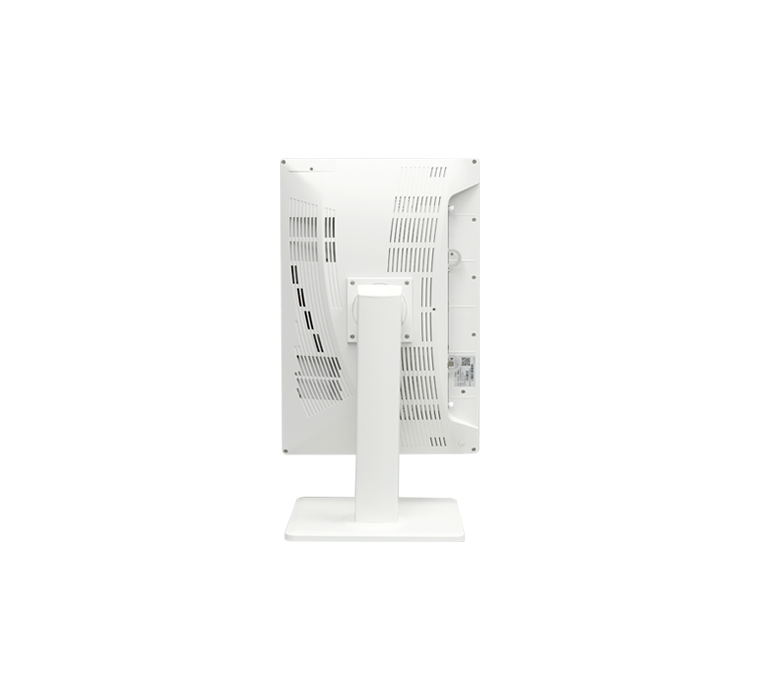

The unit features an antibacterial plastic enclosure with white medical-grade appearance and a height-adjustable rotatable stand with forward and backward tilt adjustment. Compliant with GB9706.1 and GB9706.102 safety standards for medical electrical equipment, it operates within -10~35℃ and supports Windows 10 / Windows 11 / Linux operating systems. It is suitable for AI-assisted diagnosis scenarios such as CT image analysis, ultrasound diagnosis, endoscopic inspection and pathological slice analysis.
| MSC-2401 | |
| Processor Platform | 13th Gen Intel Raptor Lake-H Processors |
| Optional CPU Models | i5-13500H (12 cores, base 3.5GHz, max 4.7GHz, 18MB cache, 45W TDP) i7-13700H (14 cores, base 3.7GHz, max 5.0GHz, 24MB cache, 45W TDP) i9-13900H (14 cores, base 4.1GHz, max 5.4GHz, 24MB cache, 45W TDP) |
| Chipset | Intel PCH SoC |
| BIOS | 256Mb SPI FLASH (compatible with 128Mb) |
| Memory System | |
| Memory Type | DDR5 5200MHz |
| Max Memory Capacity | 48GB |
| Memory Socket | 1×SO-DIMM |
| Optional Memory Configuration | Up to 64GB DDR5 SO-DIMM (customized on request) |
| Display System (LCD Panel) | |
| Panel Model | LM238WR2 |
| Panel Type | IPS（In-Plane Switching） |
| Backlight Type | LED |
| Screen Size | 23.8 inches |
| Panel Module Dimension | 544.7(H)×323.2(V)×13.8(D) mm（Typ.） |
| Active Display Area | 525.66(H)×295.70(V) mm |
| Resolution | 3840×2160（4K UHD） |
| Brightness | 540 cd/m² (center point, Typ.) |
| Color Temperature | 6500K |
| Static Contrast Ratio | 1200:1 |
| Number of Colors | 1.07B (1.07 billion colors, 10-bit color depth) |
| Color Gamut | 98% DCI-P3 |
| Response Time | 14ms |
| Pixel Pitch | 0.2745(H)×0.2745(V) mm |
| Refresh Rate | 60Hz |
| Viewing Angle | R/L 178°（Typ.），U/D 178°（Typ.） |
| Curvature | N/A (Flat Panel) |
| Touchscreen | Projected Capacitive 10-point Touch投射电容式10点触控 |
| Touch Options | Anti-glare / Anti-reflection customized upon request |
| Display Output & Graphics Card | |
| HDMI Output | 1×HDMI (from CPU), up to 4096×2160@60Hz |
| Optional Discrete GPU | RTX3080m 16G RTX3060m 6G / 12G（100W TDP） |
| Built-in Speaker | Supported (output simultaneously with audio jack, not mutually exclusive) |
| OSD On-Screen Display Menu Functions | |
| Image Mode | Gamma1.8 / 2.0 / 2.2 / 2.4 / 2.6，sRGB，Dicom，User，Native |
| Color Adjustment | Color Temperature（Warm/Normal/Cool/User），Hue（0-100），Saturation（0-100） |
| Display Settings | Aspect Ratio（Wide Screen/4:3/1:1/Auto），Black level，Sharpness（0-100），Noise Reduction（Off/High/Middle/Low） |
| Input Source | DP1，HDMI |
| Multi-window | PIP Mode / PBP，2Win（仅Windows） |
| OSD Control | H-Position，V-Position，Transparency（0-100），Time-out（0-100s），Rotation（Normal/90/180/270） |
| Advanced Functions | Response Time（Off/High/Middle/Low），Auto Search（On/Off） |
| Information View | Backlight Hours，FW version，HW version，Reset |
| Front Panel Keys | |
| Membrane Keys | MENU (Menu / Enter), + (Up / Increase), – (Down / Decrease), EXIT (Exit / Source Selection), Lamp Switch, Power Indicator, LCD Screen Off |
| MENU Key Function | Single-click to pop up OSD menu and confirm submenu selection; single-click acts as lamp switch under desktop mode |
| EXIT Key Function | Menu return and exit key; single-click serves as shortcut for source selection under desktop mode |
| Power Key Function | Single-click to turn off LCD screen; press and hold for 2 seconds to turn on LCD screen (signal search required) |
| Status Indicator | Green LED = Normal display, Red LED = No signal or monitor standby |
| Storage System | |
| Onboard M.2 | 1×M.2 Key-M（2242/2280）PCIe x4 NVMe SSD |
| SATA Interface | 1×SATA3.0 |
| Optional Auxiliary Storage | 2.5-inch SSD (mounted via hard disk cover) |
| Expansion Slots | |
| M.2 Slot -1 | 1×M.2 Key-M (2242/2280) PCIe x4, for NVMe SSD system drive |
| M.2 Slot -2 | 1×M.2 Key-B (3042/3052), for 4G/5G module |
| M.2 Slot -3 | 1×M.2 Key-E (2230), for WiFi module |
| M.2 Slot -4 | 1×M.2 Key-M (2242/2280) PCIe x4, for SDI capture card |
| SIM Card Slot | 1×SIM (works with Key-B 4G/5G module) |
| I/O Interfaces | |
| USB Interface – Rear Panel | 1×USB3.0 + 3×USB2.0 |
| USB Interface – Optional | 2×USB3.0 aviation connector (Option) |
| Network Interface | 2×RJ45 (Intel Ethernet Controller i225-AT, 10/100/1000M auto-adaptive), supports Wake On LAN and PXE boot |
| Audio Interface | 1×Line Out + 1×MIC In (4-pole 3.5mm), ALC897 audio controller |
| DC Input | 1×DC In (4P connector) |
| Optional Function – Lighting | LED light bar (Option) |
| Optional Function – Scanning | 2D barcode scanning (Option) |
| Rear Panel Buttons | |
| Power Button | 2×Power Button |
| Reset Button | 1×Reset Button |
| Physical Characteristics | |
| Overall Dimensions | 566(L)×375.5(W)×240(D) mm |
| Unit Weight | Approx. 10 kg (Approx. 15.43 lbs) |
| Gross Weight (Package) | Approx. 10 kg |
| Housing Material | Plastic housing, antibacterial material |
| Unit Color | White |
| Stand Type | Height-adjustable & rotating stand, supports forward/backward tilt adjustment |
| Wall Mount Support | VESA mounting holes 100×100mm (Option), wall mounting screws (Option) |
| Packaging | High-strength eco-friendly materials, one unit per carton |
| Power Specifications | |
| Power Type | External AC-DC adapter (Class I external power supply, continuous operation) |
| AC Input | 100~240Vac，50~60Hz，5.0A |
| DC Output | 24V，12.5A（300W） |
| Grounding Requirement | Protective earth connection is mandatory, equipotential bonding screw provided |
| Power Cord Requirement | UL/CSA certified, minimum 18AWG, max length 3m, hospital grade (US & Canada market) |
| Environmental Parameters | |
| Operating Temperature | -10~35℃（at 0.7m/s air flow） |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 20~80%RH @40°C (non-condensing) |
| Storage Humidity | 10~90%RH @40°C (non-condensing) |
| Altitude | ≤2000米 |
| Cooling Method | Natural convection through rear cover vents with metal heat sink |
| Mounting Orientation | Operate in upright position. Do not lay the LCD panel flat on any surface by either side or back |
| Certifications & Standards | |
| Medical Safety Certification | GB9706.1-2020 (General requirements for basic safety and essential performance of medical electrical equipment) |
| Medical EMC Certification | GB9706.102-2021 (Electromagnetic compatibility requirements and tests for medical electrical equipment) |
| RF Emission | GB4824, Group 1, Class A |
| Harmonic Emission | GB17625.1, Class A |
| Voltage Fluctuation / Flicker | GB17625.2, Compliant |
| ESD Immunity | GB/T17626.2: ±6kV Contact / ±8kV Air |
| Electrical Fast Transient Burst | GB/T17626.4: ±2kV on power supply lines |
| Surge Immunity | GB/T17626.5: ±1kV Differential Mode / ±2kV Common Mode |
| Power Frequency Magnetic Field Immunity | GB/T17626.8：3A/m |
| RF Conducted Immunity | GB/T17626.6：3V（150kHz-80MHz） |
| RF Radiated Immunity | GB/T17626.3：3V/m（80MHz-2.5GHz） |
| Operating System | |
| Supported OS | Microsoft Windows 10、Windows 11、Linux |
8.ZRT.80-1638-06-LEF (MSC-2401-06 Complete Unit, i7-13700H, RTX3060 100W, 16GB DDR5, 512GB SSD, Fully Laminated Screen, M.2 Acquisition Card, Version V00)
8.ZRT.80-1638-09-LEE (MSC-2401-09 Complete Unit, i7-13700H, No GPU, 32GB DDR5, 2TB NVMe SSD, Fully Laminated Screen, Version V01)
8.ZRT.80-1638-07-LEF (MSC-2401-07 Complete Unit, i5-13500H, RTX3060 100W, 16GB DDR5, 512GB SSD, Fully Laminated Screen, M.2 Acquisition Card, Version V00)
