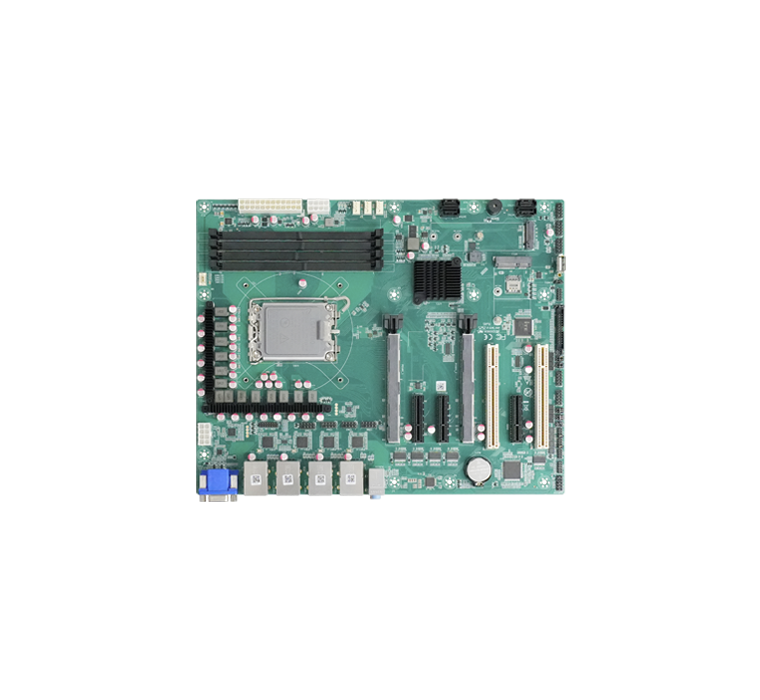

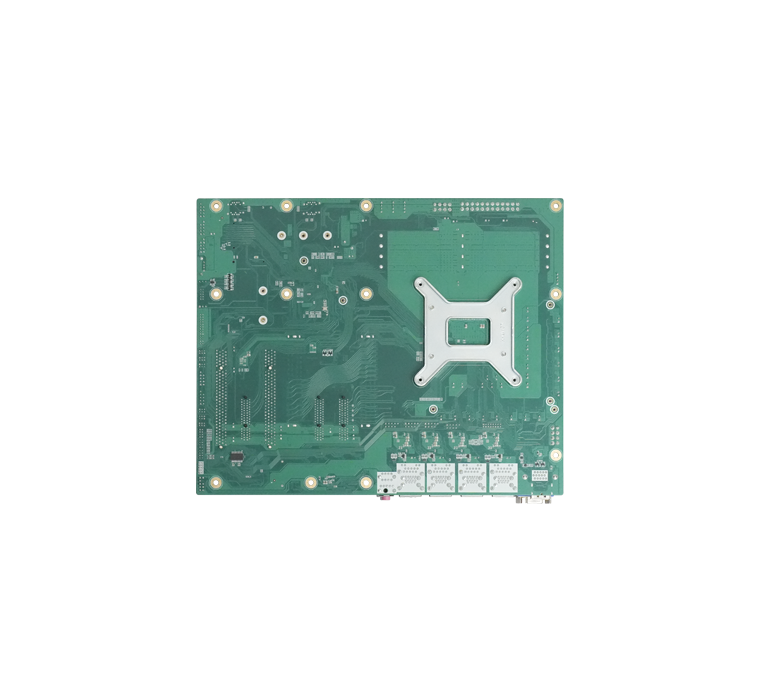

EC0-Q670 Industrial ATX Motherboard
EC0-Q670 is an ATX industrial motherboard based on Intel 12th/13th/14th Gen Core desktop platform. It adopts LGA1700 socket and DDR5 memory technology, equipped with 4×SATA3.0, 4×M.2 and abundant PCIe/PCI/LPT/PS/2 expansions, delivering comprehensive expansion capabilities for large-scale industrial control and edge computing.
Product Features
1. Equipped with Intel 12th/13th/14th Gen Bartlett Lake-S / Raptor Lake Refresh-S / Raptor Lake-S / Alder Lake-S processors,LGA1700，Core i3~i9 CPU
2. ATX from factor industrial
3.Dual-channel DDR5 up to 128GB,4×U-DIMM,ECC support
4. 4×SATA3.0 + 4×M.2(Key-M + Key-B + Key-E + Key-M capture card)+ 1×SIM,rich storage expansion
5. 5×PCIe + 2×PCI + 1×LPT + 1×PS/2,comprehensive industrial expansion
6. Line Out + TPM2.0 + Watchdog Timer,complete audio and security features
7. Operating temperature 0~60℃,supports Windows 10/11 / Linux
EC0-Q670 supports Intel 12th Gen Alder Lake-S, 13th Gen Raptor Lake-S, 14th Gen Meteor Lake-S Refresh or Bartlett Lake-S processors with LGA1700 socket and Q670 chipset, compatible with full-range CPUs from i3 to i9. As an ATX form factor industrial motherboard, it can be mounted in standard ATX chassis.
It supports dual-channel DDR5 memory up to 128GB via 4×U-DIMM slots, with optional ECC error correction to meet demands for large-capacity data processing. For storage, it offers 4×SATA3.0 and 4×M.2 interfaces (Key-M for NVMe, Key-B for 4G/5G, Key-E for WiFi, Key-M for capture card), plus 1×SIM card slot.
In terms of expansion, it provides 5×PCIe slots and 2×PCI slots, along with 1×LPT parallel port and 1×PS/2 interface for comprehensive industrial expansion. Audio includes Line Out. It integrates TPM 2.0 security chip and Watchdog Timer. Operating temperature: 0~60℃; storage temperature: -40~85℃. Supports Windows 10/11 and Linux.
| EC0-Q670 | |
| Processor | Intel 12th/13th/14th Gen Bartlett Lake-S / Raptor Lake Refresh-S / Raptor Lake-S / Alder Lake-S, LGA1700 |
| Chipset | Intel Q670 |
| BIOS | AMI EFI |
| Memory Specs | DDR5 |
| Max Memory | 128GB |
| Memory Sockets | 4×U-DIMM(Support ECC) |
| PCIe Expansion | 5×PCIe |
| PCI Expansion | 2×PCI |
| M.2 Sockets | 4×M.2 (Key-M + Key-B + Key-E + Key-M for capture card) |
| SIM Slot | 1×SIM |
| SATA Interface | 4×SATA3.0 |
| LPT | 1×LPT |
| PS/2 Interface | 1×PS/2 |
| LAN Port | RJ45 Ethernet Port |
| USB Interface | Rich USB Ports |
| Audio | Line Out |
| TPM | TPM2.0 |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -40~85℃ |
| Board Spec | ATX Industrial Board |
| Operating Temperature | Windows 10/11 / Linux |
8.ZRT.50-1663-01-LEF（EC0-Q670_V01，Q670，M.2×1，Mini-PCIe×1，PCIe×5，PCI×2，LPT×1，PS/2×1，SATA×4，LineOUT×1）
