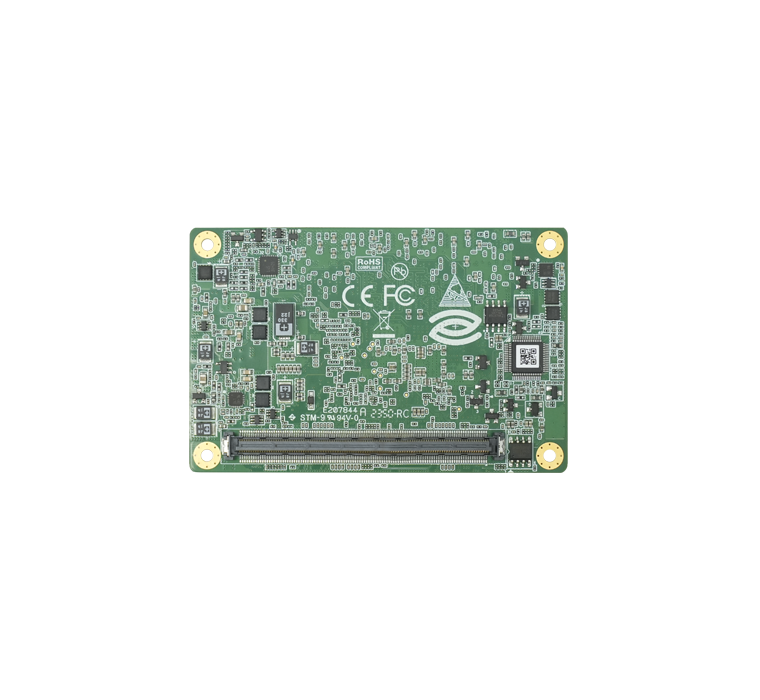

COM Express Type10 Module ECM-6202
ECM-6202 is a COM Express Type 10 Mini core module based on the Intel Elkhart Lake low-power platform. Featuring an ultra-small footprint of 84 × 55 mm and onboard LPDDR4x memory, it delivers excellent energy efficiency with a 6 ~ 10 W TDP, offering a compact, cost-effective solution for IoT gateways and light industrial control.
Product Features
- Powered by Intel Elkhart Lake processors (X6211E / J6426 / J6412), TDP 6 ~ 10 W for ultra-low power consumption
- COM-Express Type 10 Mini form factor, ultra-compact size of 84 × 55 mm
- Onboard LPDDR4x 3200 MT/s, up to 16 GB, low-power high-bandwidth memory solution
- Onboard 64 GB eMMC + 2 × SATA 3.0 + PCIe x4
- Intel I225-V 2.5 GbE + 2 × USB 3.0 + 8 × USB 2.0
- Display: Single-channel LVDS (eDP optional) + DDI (DP++), up to 4K@60 Hz
- Operating temperature -10 ~ 50 °C, wide voltage input 9 ~ 21 V, suitable for IoT gateways and light industrial control
The ECM-6202 core board is equipped with Intel Elkhart Lake series low-power processors. Optional SKUs include X6211E (2-core, 3.0 GHz, 6 W), J6426 (4-core, 2.0 GHz, 10 W) and J6412 (4-core, 2.6 GHz, 10 W) to meet diverse performance and power consumption requirements. Adopting the COM Express Type 10 Mini form factor with an ultra-compact footprint of 84 × 55 mm, it can be easily integrated into space-constrained embedded devices.
This core board features onboard LPDDR4x 3200 MT/s memory up to 16 GB, plus integrated 64 GB eMMC, enabling operation without external storage. It also offers 2 × SATA 3.0 (6 Gbps) ports and 1 × PCIe x4 (configurable as 4 × x1), delivering flexible storage expansion options. Networking is handled by the Intel I225-V controller with 2.5 GbE support. Display outputs: 1 × Single-channel LVDS (eDP optional) + 1 × DDI (DP++). DP 1.4a supports up to 4096 × 2304 @ 60 Hz.
Other interfaces include 2 × USB 3.0, 8 × USB 2.0, 8-bit GPIO, 2 × UART, 1 × HDA, 1 × LPC, 1 × SMBus. It supports ATX/AT dual power modes with a wide voltage input of 9 ~ 21 V. The operating temperature ranges from -10 to 50 °C, and the storage temperature ranges from -40 to 80 °C. Compatible with Windows 10 and Linux. It is suitable for IoT edge gateways, light industrial control, smart retail terminals, environmental monitoring, portable medical equipment and other applications.
| ECM-6202 | |
| Product Type | COM Express Type 10 Mini Core Module |
| Size | 84 × 55 mm |
| Processor | Intel Elkhart Lake X6211E (2-Core, 3.0 GHz, 6 W) / J6426 (4-Core, 2.0 GHz, 10 W) / J6412 (4-Core, 2.6 GHz, 10 W) |
| Chipset | SoC |
| Memory Specification | Onboard LPDDR4x 3200MT/s |
| Max Memory Capacity | 16 GB |
| Memory Type | Onboard LPDDR4x (No Socket) |
| Integrated Graphics | Intel UHD Graphics |
| PCIe Expansion | 1 × PCIe x4 (configurable as 4 × x1) |
| Display Output | 1 × Single-channel LVDS (eDP optional) + 1 × DDI (DP++); DP 1.4a up to 4096 × 2304 @ 60 Hz |
| USB Interface | 2 × USB 3.0; 8 × USB 2.0 |
| Serial Port | 2 × UART |
| Network Interface | 1 × 2.5 GbE (Intel I225-V) |
| SATA Interface | 2 × SATA 3.0 (6 Gbps) |
| Storage | Onboard eMMC 64 GB |
| Audio | 1 × HDA |
| GPIO | 8-bit GPIO |
| Power Input | Wide Voltage 9 ~ 21 V (ATX/AT) |
| Operating Temperature | -10 ~ 50 °C |
| Storage Temperature | -40 ~ 80 °C |
| Operating System | Windows 10 / Linux |
Please contact our sales team for the latest ordering information.
