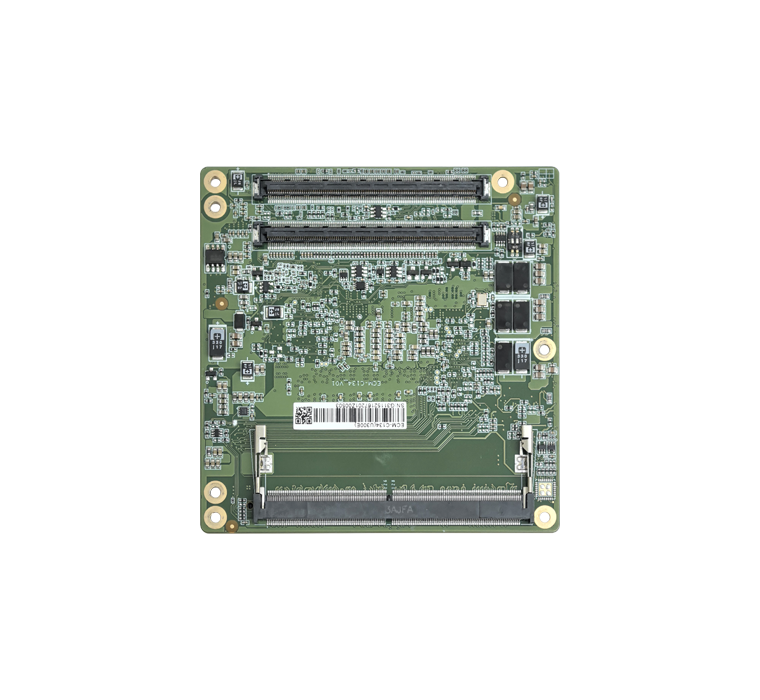

ECM-C134 COM Express Type 6 Module

ECM-C134 core board is equipped with Intel Core U300E processor featuring a 5-core 6-thread architecture with a max turbo frequency of 4.3GHz. It delivers sufficient computing performance at merely 15W TDP. Adopting COM-Express Type 6 Compact specification and ultra-compact 95×95mm dimension, it is an ideal option for space-constrained embedded devices. For memory, it supports high-speed DDR5 4800MHz with capacity up to 64GB. It comes with 1×SO-DIMM slot as standard (expandable to 2×SO-DIMM optionally), achieving an excellent balance between performance and power efficiency on low-power platforms.

Expansion capability is another highlight of ECM-C134: it provides a total of 5 groups of PCIe lanes including 2×PCIe x4 Gen4, 1×PCIe x2 Gen4 and 2×PCIe x1 Gen4. These lanes can be flexibly configured for various industrial applications such as high-speed data acquisition, image processing acceleration and NVMe storage expansion. The display output supports 3 independent displays: 1 dual-channel LVDS (eDP optional) up to 1920×1200@60Hz, and 2 DDI outputs via HDMI1.4 up to 1920×1080@60Hz, fully meeting multi-screen display requirements for industrial HMI, digital signage, self-service terminals and other scenarios.

In terms of interface configuration, ECM-C134 integrates Intel i226-V 2.5GbE Ethernet controller, and is equipped with 4×USB3.0 (5Gbps), 8×USB2.0, 2×SATA3.0, 1×HDA audio, 2×serial ports and 8-bit GPIO, delivering comprehensive industrial connectivity. It supports wide voltage input of 8.5V~20V and operating temperature ranging from 0℃ to 60℃, and is compatible with Windows 10 and Linux operating systems. This product is especially suitable for embedded applications with strict requirements on power consumption and size, including industrial human-machine interface (HMI), smart retail terminals, IoT gateways, portable medical equipment and digital signage players.
