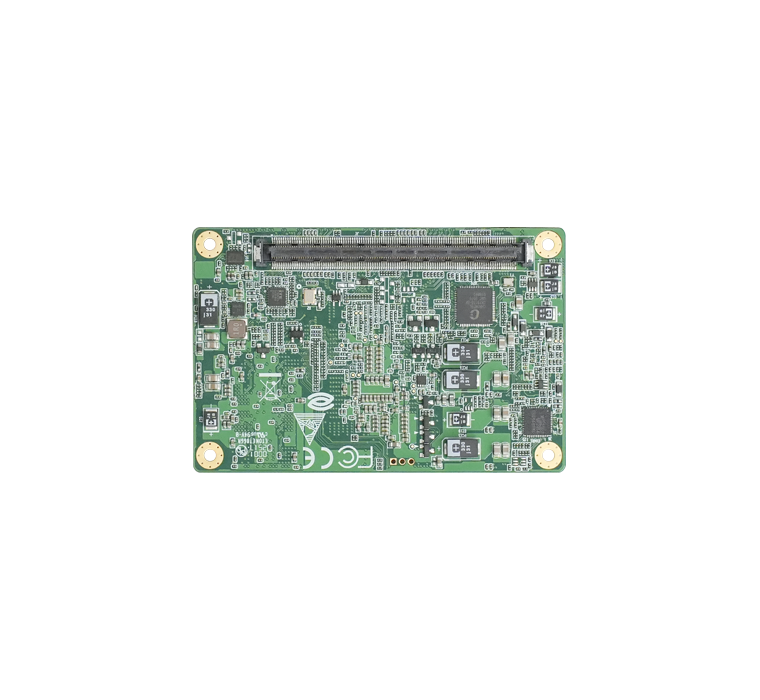

ECM-A121 COM Express Type 10 Module
ECM-A121 是一款基于 Intel N97 / i3-N305 平台的 COM-Express Type 10 Mini 核心板，采用 84×55mm 超小尺寸与板载 LPDDR5 内存，集成 2.5GbE 和 eMMC，为工业边缘计算和物联网终端提供高性价比的紧凑方案。
Product Features
- Supports Intel N97 / i3-N305 / X7211E / X7213E processors, up to 8 cores with TDP of 6~15W
- COM-Express Type 10 Mini specification, ultra-small core module with dimension of only 84×55mm
- Onboard LPDDR5 4800MHz, up to 16GB, low power consumption and high bandwidth
- Intel i226 2.5GbE controller + optional eMMC 64GB/128GB, integrated network and storage
- Flexible PCIe configuration: 4×PCIe x1 (default) or 2×PCIe x2 (optional), adapting to various expansion requirements
- Display support: LVDS/eDP + DDI (configurable for HDMI/DP), up to 4K@60Hz
- Wide voltage input 4.75V~20V, operating temperature 0~60℃, suitable for industrial edge and IoT terminals
ECM-A121 core module adopts Intel low-power processor platform, with optional N97 (4 cores, up to 3.6GHz, 12W), i3-N305 (8 cores, up to 3.8GHz, 15W), X7211E (2 cores, 3.2GHz, 6W) or X7213E (2 cores, 3.2GHz, 10W), catering to diverse performance and power consumption requirements. Built to COM-Express Type 10 Mini specification with an ultra-compact dimension of 84×55mm, it is an ideal solution for space-constrained embedded applications.
The module integrates onboard LPDDR5 4800MHz memory up to 16GB. No extra memory slots are required, further reducing form factor and improving reliability. For networking, it integrates Intel i226 controller supporting 10M/100M/1000M/2.5Gbps; storage options include 64GB or 128GB eMMC. PCIe expansion can be configured as 4×PCIe x1 or 2×PCIe x2, flexibly compatible with functional modules such as WiFi, 4G/5G and NVMe. Display outputs include 1×single-channel LVDS (eDP optional) + 1×DDI (configurable for HDMI/DP), with HDMI2.0b supporting up to 4096×2160@60Hz.
It also provides optional 2×SATA3.0, 2×USB3.2, 8×USB2.0, 2×COM, 4×GPO/4×GPI, 1×HDA and other interfaces for comprehensive industrial connectivity. It supports wide voltage input of 4.75V~20V, operating temperature from 0~60℃ and storage temperature from -40~85℃, compatible with Windows and Linux. Suitable for compact embedded scenarios including industrial HMI, smart retail, IoT gateways, portable medical devices and edge AI terminals.
| ECM-A121 | |
| Product Type | COM-Express Type 10 Mini Core Module |
| Dimension | 84×55mm |
| Processor | Intel N97 (4 cores, 3.6GHz, 12W) / i3-N305 (8 cores, 3.8GHz, 15W) / X7211E (2 cores, 3.2GHz, 6W) / X7213E (2 cores, 3.2GHz, 10W) |
| Chipset | SoC |
| Memory Specification | Onboard LPDDR5 4800MHz |
| Max Memory Capacity | 16GB |
| Memory Type | Onboard LPDDR5 (no slots) |
| Integrated GPU | Intel UHD Graphics |
| PCIe Expansion | Configurable as 4×PCIe x1 or 2×PCIe x2 |
| Display Output | 1×Single-channel LVDS (eDP optional) + 1×DDI (HDMI/DP); HDMI2.0b up to 4096×2160@60Hz |
| USB Interface | 2×USB3.2；8×USB2.0 |
| Serial Port | 2×COM |
| Network Interface | 1×2.5GbE（Intel i226） |
| SATA Interface | 2×SATA3.0 (optional) |
| Storage | eMMC 64GB/128GB optional |
| Audio | 1×HDA |
| GPIO | 4×GPO / 4×GPI |
| Watchdog | Supported |
| Power Input | Wide voltage 4.75V~20V |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -40~85℃ |
| Operating System | Windows / Linux |
8.ZRT.52-1640-00-LEF（ECM-A121_V01,Type-10,N97,2×LPDDR5 8GB,1×LAN/2×COM/8×USB2.0+2×USB3.0/2×SATA/1×DP++/1×LVDS/TPM2.0/eMMC-64GB,9V-21V-SMD）
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What processors are supported by ECM‑A121 COM Express Type 10 module?
ECM‑A121 supports Intel N97, i3‑N305, X7211E and X7213E processors. TDP ranges from 6W to 15W, core count varies from 2‑8 cores to match different performance‑vs‑power‑consumption requirements.
Can I upgrade RAM on ECM‑A121? What is the maximum memory capacity?
ECM‑A121 uses onboard soldered LPDDR5 4800MHz without memory socket. The maximum onboard memory is 16GB. Memory configuration must be selected when ordering the module.
What display outputs does ECM‑A121 provide? Can it run 4K resolution?
It provides 1‑channel LVDS (eDP optional) plus one DDI port configurable for HDMI or DP. With HDMI2.0b, it supports up to 4096×2160@60Hz 4K output.
