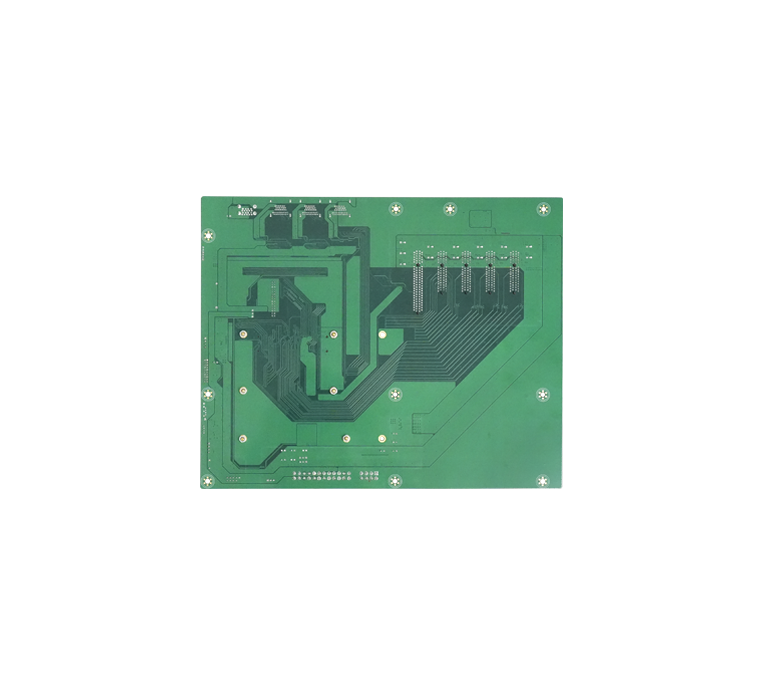

ECM-TYPE6B COM Express Type 6 Carrier Board
ECM-TYPE6B is a COM-Express Type 6 / Type 10 dual-standard compatible carrier board. Adopting ATX form factor (304.8×243.8mm), it provides abundant PCIe expansion and multi-channel display output interfaces, delivering a flexible hardware platform for the development and deployment of Type 6 and Type 10 core modules.
Product Features
- COM-Express Type 6 / Type 10 Dual-Standard Compatible Carrier Board
- ATX size of 304.8×243.8mm with ample expansion space, compatible with multiple core modules
- Rich PCIe expansion: 1×PCIe x8 + 1×PCIe x4 + 3×PCIe x2
- Comprehensive display interfaces: 3×DP + 3×HDMI + 1×LVDS for multi-screen output
- 1×SATA3.0 + 2×front-panel USB3.0 + 3×USB3.0 for Type10 expansion, fully equipped for storage and peripherals
- Integrated buzzer, fan headers, SMBus and front panel connectors for complete system functions
- Supports ATX/DC dual power supply (12~19V), operating temperature 0~60℃.
ECM-TYPE6B is a standard carrier board compatible with both COM-Express Type 6 and Type 10 core modules. It adopts the ATX form factor of 304.8×243.8mm, offering ample expansion space and supporting a wide range of core modules with different specifications.
In terms of expansion capability, the carrier board provides 1×PCIe x8 (PEG[15:8]), 1×PCIe x4 (PEG[15:12]) and 3×PCIe x2 (PCIE[3:2]/[5:4]/[7:6]). It can be flexibly equipped with various functional modules including GPU accelerator cards, high-speed network adapters, NVMe expansion cards and frame grabbers. The display interface is a major highlight of this board: it comes with 3×DP (Type6 DDI1/DDI3 + Type10 DDI0), 3×HDMI (Type6 DDI2/DDI3 + Type10 DDI0) and 1×LVDS (shared with DDI0; resistors modification required for dual-channel), which fully meets multi-display requirements.
For storage and peripherals, it features 1×SATA3.0, 2×front-panel USB3.0 and 3×USB3.0 for Type10 standard expansion. The system integrates a buzzer, 1×fan header, SMBus (AT24C02), front panel connector (FPANEL) and other functions. It supports ATX/DC dual power input (12~19V), with operating temperature of 0~60℃ and storage temperature of -40~85℃. It is compatible with Windows and Linux operating systems. It is suitable for multiple application scenarios of Type 6 and Type 10 core modules, such as industrial control, machine vision, digital signage and edge computing.
| ECM-TYPE6B | |
| Product Type | COM-Express Type 6 / Type 10 Dual-Standard Compatible Carrier Board |
| Dimension | 304.8×243.8mm (ATX form factor) |
| Compatible Core Modules | Type 6 or Type 10 core modules |
| PCIe Expansion Slots | 1×PCIe x8（PEG[15:8]）+ 1×PCIe x4（PEG[15:12]）+ 3×PCIe x2（PCIE[3:2]/[5:4]/[7:6]） |
| Display Output | 3×DP (Type6 DDI1/DDI3 + Type10 DDI0) + 3×HDMI (Type6 DDI2/DDI3 + Type10 DDI0) + 1×LVDS (resistor modification required for dual-channel) |
| SATA Interface | 1×SATA3.0 |
| USB Interface | 2×front-panel USB3.0 + 3×USB3.0 for Type10 expansion |
| Debug Interface | SMBus (AT24C02) + Front Panel Connector (FPANEL) |
| Buzzer | Integrated buzzer |
| Fan Interface | 1×Fan header |
| Power Input | ATX/DC（12~19V） |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -40~85℃ |
Please contact our sales team for the latest ordering information.
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
Which COM‑Express core modules are compatible with ECM‑TYPE6B carrier board?
ECM‑TYPE6B is dual‑standard compatible, it supports both COM‑Express Type 6 and Type 10 computer‑on‑modules. It follows standard ATX form factor (304.8×243.8 mm) and works with a wide range of eligible Type 6 / Type 10 core modules from different vendors.
What display outputs does ECM‑TYPE6B support for multi‑screen application?
This carrier board provides 3×DP, 3×HDMI and 1×LVDS interface for multi‑display. The LVDS is shared with DDI0 channel; hardware resistor modification is required to enable dual‑channel LVDS output. Actual display channels depend on the COM‑Express core module pinout specification (Type 6 or Type 10) installed on board.
What power supply modes does ECM‑TYPE6B support? What is its operating temperature range?
ECM‑TYPE6B supports dual power input: standard ATX power supply and DC power input ranging from 12V‑19V. Its operating temperature is 0℃ ~ 60℃, storage temperature is ‑40℃ ~ 85℃. It is compatible with Windows and Linux operating systems for industrial embedded deployment.
