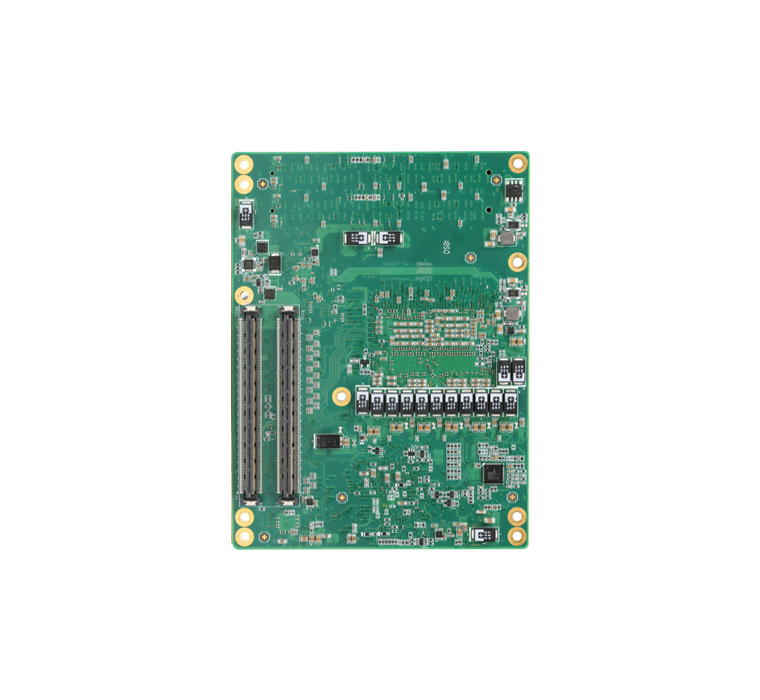

ECM-SKY6H1 COM Express Type 6 Module

ECM-SKY6H1 core module is compatible with 6th Gen Intel Skylake-H and 7th Gen Kaby Lake-H platforms. Multiple processor options are available including i7-6820HQ, i7-7700HQ, i7-6822EQ, i7-6820EQ and i3-6100E. All processors adopt a 4-core 8-thread design with a maximum turbo frequency of 3.8GHz, paired with QM170/CM236 chipset to deliver stable and reliable computing performance for industrial and embedded applications. Built to COM-Express Type 6 Basic specification with 95×125mm dimension, it preserves ample expansion space while maintaining compatibility with the standard Type 6 carrier board ecosystem.

The memory subsystem features dual-channel DDR4 SO-DIMM design supporting up to 64GB capacity. It runs at 2133MHz on 6th Gen platforms and upgrades to 2400MHz on 7th Gen platforms to meet requirements of large data processing and multi-task parallel operation. PCIe expansion stands out as its key advantage: 1×PCIe x16 Gen3 lane is provided, which can be flexibly configured as 1×16, 2×8 or 1×8+2×4, fully compatible with industrial expansion devices such as high-performance GPU accelerator cards, FPGA data acquisition cards and RAID storage cards. Two optional display configurations are available: Option 1 by default supports 2×DDI (configurable for HDMI/DP) + 1×eDP; Option 2 supports VGA+LVDS to accommodate industrial monitors and touchscreens with different display interface requirements.

In terms of storage and interfaces, ECM-SKY6H1 offers 4×SATA3.0 (6Gbps) interfaces to support high-capacity storage arrays. 4×USB3.0 and 4×USB2.0 ports fulfill peripheral connection needs. Intel i219 Gigabit Ethernet guarantees stable network communication. It also integrates 1×HDA audio, 8-bit GPIO, LPC, SMBUS and watchdog, complying with industrial interface standards. The product supports both ATX and AT power modes with input voltage ranging from 8.5V to 20V. Operating temperature ranges from 0~60℃ and storage temperature from -40~85℃. It is compatible with Windows 10 1809 and Yocto 2.4 Rocko Linux. Widely deployed in scenarios demanding strict reliability and expandability, including military communication equipment, on-board computing systems, industrial control hosts, machine vision platforms, test and measurement instruments.
