ZMB-M702 Compact Edge Computing System

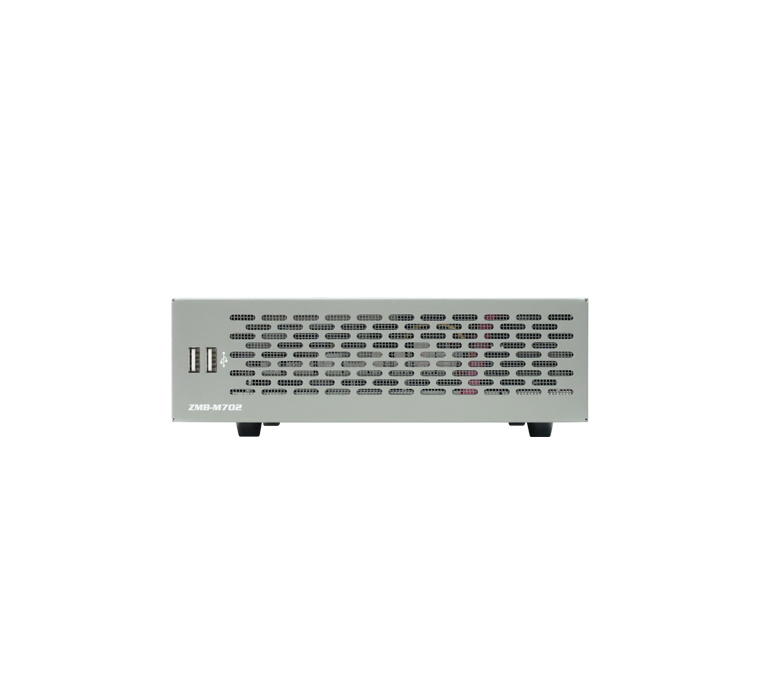

ZMB-M702 is equipped with 11th Gen Intel Tiger Lake-H processors with optional i5-11500H (6 cores, 4.6GHz), i7-11850H (8 cores, 4.9GHz) or i9-11950H (8 cores, 5.0GHz), paired with the WM590 chipset and 35/45W TDP. Featuring dimensions of 220×180×60mm and a silver ultra-thin compact form factor, this unit fits space-constrained applications demanding high computing and graphics performance.

Its key highlight is the onboard FA4 RTX4060m MXM 3.1 discrete GPU, delivering powerful graphics performance for GPU-accelerated computing, AI inference and medical image processing. It supports dual-channel DDR4 3200MHz memory up to 64GB. The display output enables 4 independent displays: 2×HDMI2.0 (4096×2160@60Hz) + DP++ + DP, with DP supporting a maximum resolution of 7680×4096@60Hz.

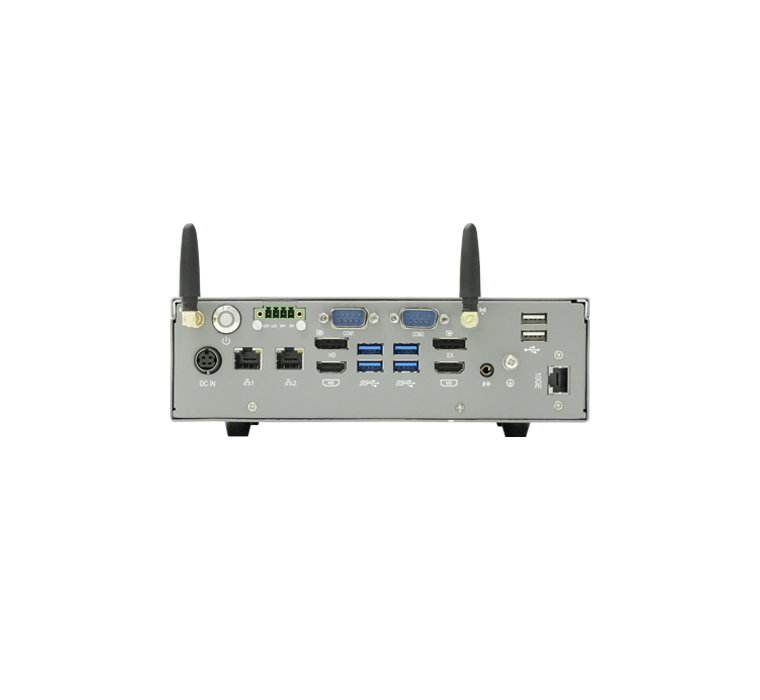

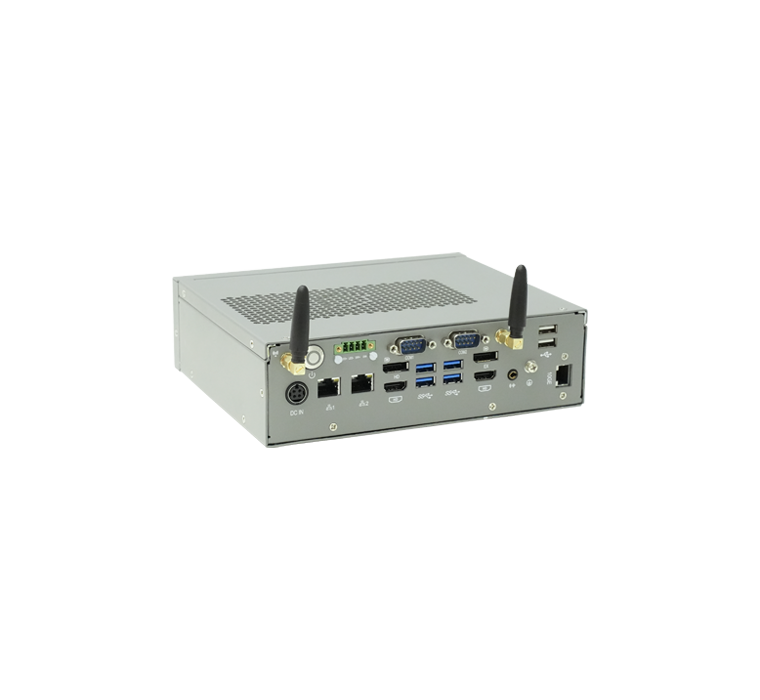

For networking, it comes with 2×Gigabit Ethernet ports, and 1×10G Ethernet port is available as an option to meet high-speed data transmission requirements. The I/O panel includes 4×USB3.0, 4×USB2.0, 2×COM (COM1 supports RS232/422/485), HDA audio (Headphone + MIC) and remote switch header. A 300W power adapter is supplied. Operating temperature ranges from 0~50℃, storage temperature from -20~70℃. It supports Win10 LTSC and Linux, ideal for high-performance GPU applications including medical imaging equipment, industrial vision inspection and video analysis.
