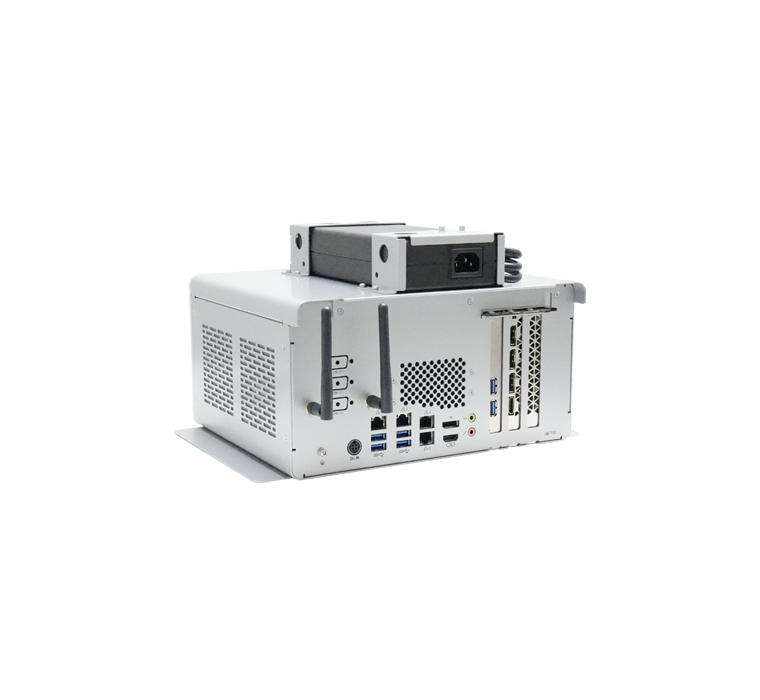

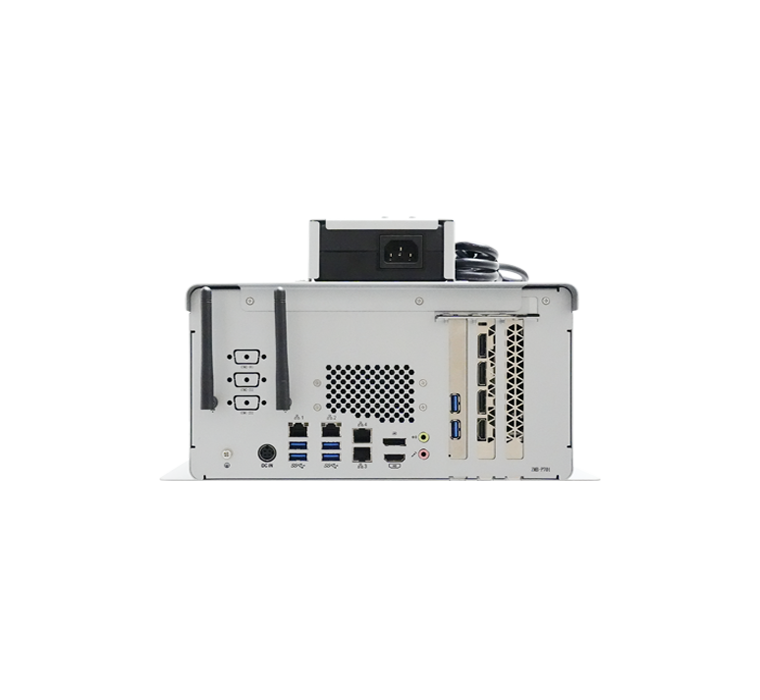

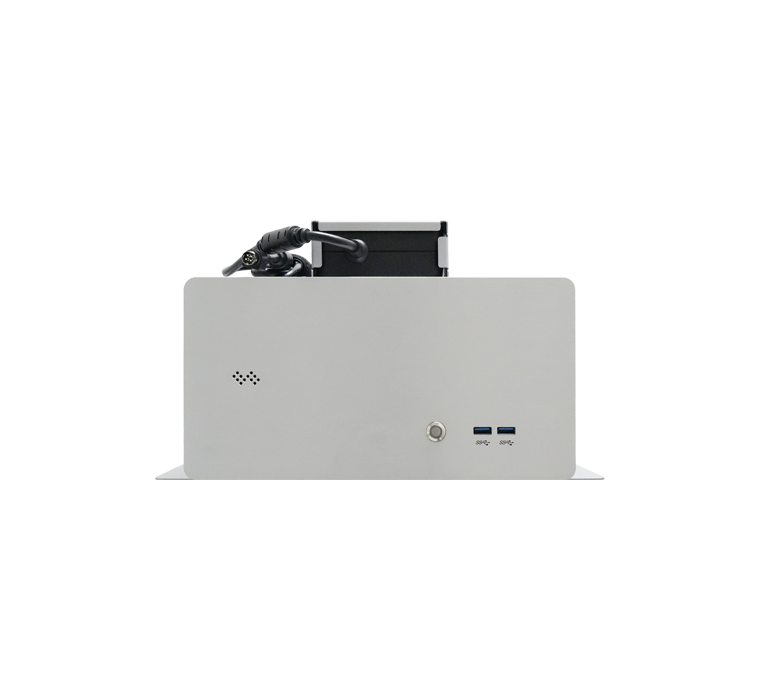

ZMB-P701 Compact Edge Computing System

Name: ZMB-P701 Compact Edge Computing System
Brand: ZRT
SKU: ZMB-P701

The ZMB-P701 is a compact edge computing appliance built on the Intel 12th/13th Gen Core platform. Featuring a compact size of 280×240×145mm and advanced DDR5 memory technology, it is equipped with 4×2.5GbE network ports and dual PCIe expansion slots, delivering powerful computing performance and flexible scalability for medical imaging, industrial automation, edge AI, and visual inspection applications.

Model: ZMB-P701

Product Features

Equipped with Intel 12th/13th Alder Lake-H / Raptor Lake-H i3/i5/i7/i9 processors,up to 14 cores 20 threads,45W TDP
Compact desktop appliance,dimensions 280×240×145mm,white enclosure
Dual-channel DDR5 up to 64GB;4800MT/s for 12th Gen,5600MT/s for 13th Gen
4×RJ45 LAN ports(Intel i226-V 2.5GbE),4×USB3.1 + 2×USB3.0 + 2×USB2.0,rich I/O connectivity
2×PCIe 16x slots (x4 + x8),compatible with GPU accelerator cards and other expansion
3×M.2 slots (Key-M NVMe + Key-B 4G/5G + Key-E WiFi)+ 2×SATA3.0 + 1×SIM slot,flexible storage and wireless communication expansion
Operating temperature:-10~60℃;supports Win10/Win11/Yocto

The ZMB-P701 edge computing appliance is powered by Intel 12th‑gen Alder Lake‑H or 13th‑gen Raptor Lake‑H processors, with configurable options ranging from the i3‑12450H to the i9‑13900H. It delivers up to 14 cores and 20 threads at a 45W TDP, integrated with Intel Iris Xe graphics to provide outstanding computational and graphical performance. Featuring a compact white desktop form factor with dimensions of 280×240×145mm, the unit is well suited for space‑constrained deployment scenarios that demand high‑performance computing capabilities.

It supports dual‑channel DDR5 memory with a maximum capacity of 64GB, running at 4800MT/s on 12th‑gen platforms and upgraded to 5600MT/s on 13th‑gen platforms, offering sufficient bandwidth for large‑scale data processing and real‑time computing tasks. For networking, the device integrates 4×RJ45 Ethernet ports equipped with Intel i226‑V controllers, supporting 10/100/1000M/2.5G auto negotiation to meet high‑speed network communication requirements. In terms of display output, it features DP++ (up to 7680×4096@60Hz) and HDMI 2.0 (up to 4096×2160@60Hz) interfaces.

Powerful expandability serves as a core advantage of the ZMB‑P701. It is equipped with 2×PCIe x16 slots (x4 + x8), which support GPU accelerator cards, high‑speed acquisition cards and other expansion peripherals. Meanwhile, 3×M.2 slots allow installation of NVMe SSDs, 4G/5G modules and WiFi modules. Additional rich interfaces include 2×SATA3.0 ports, 1×SIM slot, 2×serial ports (optional RS232/485), HDA audio, and 8×USB ports. The appliance operates within a temperature range of ‑10℃ to 60℃ and is compatible with Windows 10, Windows 11 and Yocto operating systems.

ZMB-P701
Processor	Intel 12th/13th Gen Alder Lake-H / Raptor Lake-H i3/i5/i7/i9 (FCBGA1744), optional: i3-12450H / i5-12500H / i7-12700H / i9-12900H / i5-13500H / i7-13700H / i9-13900H
Chipset	Intel PCH SoC
BIOS	128Mb SPI FLASH
Memory Spec	DDR5, 4800MT/s for 12th Gen, 5600MT/s for 13th Gen
Max Memory Capacity	64GB
Memory Sockets	2×SO-DIMM
Storage Interfaces	3×M.2（Key-M 2242/2280 NVMe + Key-B 4G/5G + Key-E 2230 WiFi）；2×SATA3.0（7Pins）；1×SIM
Expansion Slots	2×PCIe 16x（x4 + x8）
Display Output	DP++（7680×4096@60Hz）；HDMI2.0（4096×2160@60Hz）
USB Interfaces	4×USB3.1 + 2×USB3.0 + 2×USB2.0
Network Interfaces	4×RJ45 (Intel i226-V, 10/100/1000M/2.5G auto-negotiation)
Serial Ports	Optional RS232/422/485
Audio	HDA (Headphone + MIC)
Watchdog	Programmable watchdog timer
TPM	Supported
Power Type	300W power adapter (ATX 2×2 4Pin)
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
Overall Dimension	280×240×145mm
Enclosure Color	White
Operating System	Win10/Win11、Yocto

8.ZRT.80-1644-16-LEF (ZMB-P701-01 Barebone System, i9-13900H, including adapter card, heat sink, fan, power supply, chassis and packaging)

Technical Documentation

User Manual

Contact Us

FAQ

Answers to common questions about this product. For further details, contact our technical support team.

What processors does the ZMB‑P701 edge computing system support?

ZMB‑P701 adopts Intel 12th‑gen Alder Lake‑H and 13th‑gen Raptor Lake‑H series CPUs (i3/i5/i7/i9), with options from i3‑12450H up to i9‑13900H. The maximum configuration reaches 14 cores 20 threads at 45W TDP, built‑in Intel Iris Xe integrated graphics for edge AI, machine vision and medical‑imaging workloads.

Can ZMB‑P701 install GPU accelerator cards? What are the expansion slot specifications?

Yes. This compact edge PC is equipped with two PCIe ×16 physical slots running at ×4 + ×8 bandwidth. It supports GPU accelerator cards, high‑speed image acquisition cards and other peripherals. Besides PCIe slots, it has 3 M.2 slots for NVMe SSD, 4G/5G module and WiFi module, plus 2 SATA3.0 ports for flexible storage & wireless expansion.

What is the operating temperature range of ZMB‑P701 and which OS are supported?

The working temperature ranges from ‑10℃ to 60℃, storage temperature is ‑20℃~70℃. It officially supports Windows10, Windows11 and Yocto system, well‑adapted for industrial automation, visual inspection and medical imaging deployments with wide‑temperature environmental requirements.
