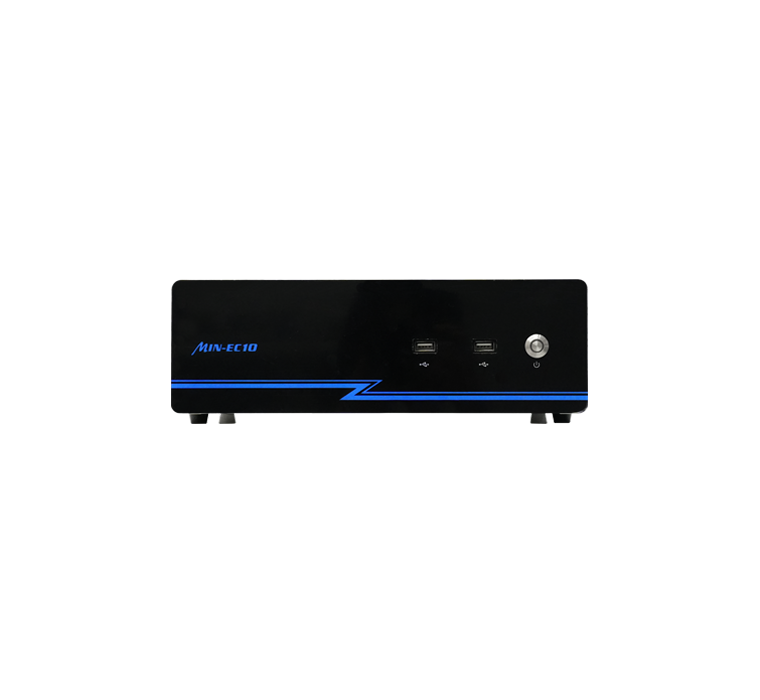

Compact Medical Embedded Box PC MIN-EC10
The MIN-EC10 is a compact GPU-accekerated edge computer powed by 11th Gen Intel Tiger Lake-H i7-11850H processor.Featuring a slim 280×229.7×97.5mm chassis and optional MXM discrete graphics cards including RTX4090m,it delivers exceptional GPU acceleration performance for medical image analysis,mobile AI inference and professional graphics workstation applicatians.
Product Features
- Powered by 11th Gen Intel Tiger Lake-H i7-11850H processor,8 cores 16 threads,turbo frequency up to 4.9GHz
- Compact system dimension:280×229.7×97.5mm,white enclosure
- Dual-channel DDR4 3200MHz,up to 64GB,2×SO-DIMM sockets
- Opyional MXM discrete GPU(RTX4090m/RTX4080m/RTX3080m/R5 230)

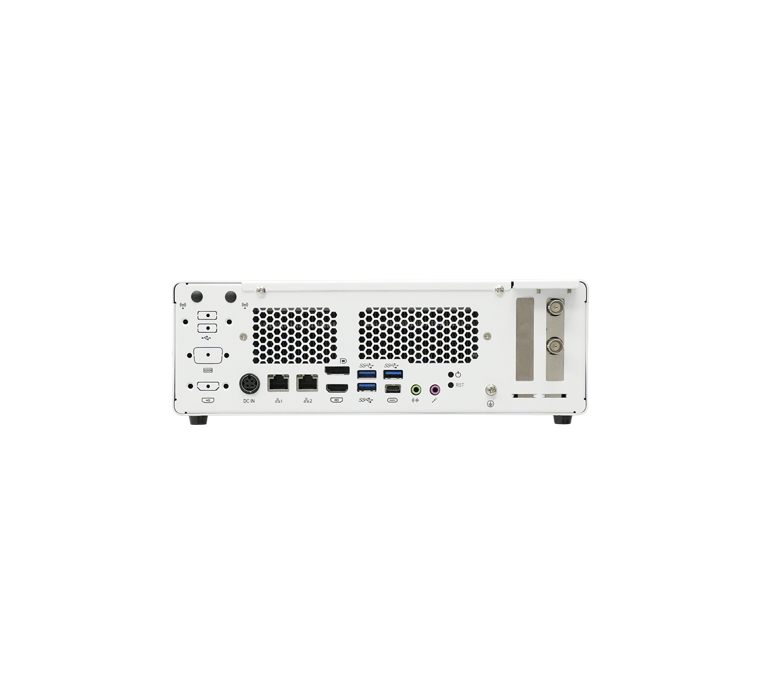

- 2×RJ45(Intel i225-AT Gigabit Ethernet)+ 3×USB3.0 + 2×USB2.0 + 1×Type C
- Dual display output:HDMI(4096×2160@60Hz)+ DP(7680×4096@60Hz)
- 3×M.2 + 1×SATA3.0,18~26V DC power input,ideal for mobile GPU workstations

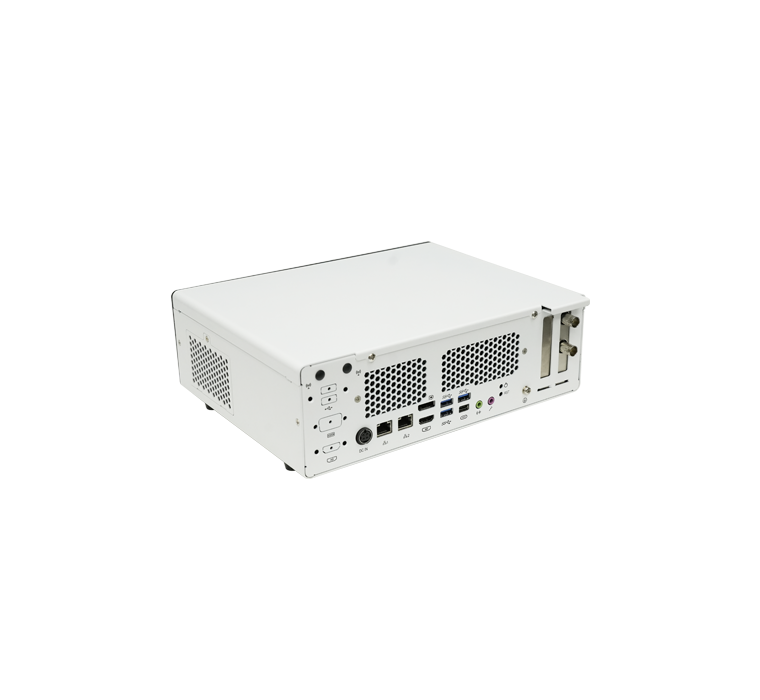

The MIN-EC10 is equipped with the 11th Gen Intel Tiger Lake-H i7-11850H processor,which has 8 cores 16 threads with a turbo frequency of 4.9GHz,and is paired with the QM580 chipset.It features a compact white chassis with overall dimensions of 280×229.7×97.5mm.
Its core feature is the support for a variety of MXM discrete graphics card,including FA10 RTX4090m(135W),FA8 RTX4080m(125W),RTX3080m(110W) and MA49 R5 230 1G(25W),delivering powerful GPU acceleration capabilities for AI inference,graphics rendering and scientific computing. It supports dual-channel DDR4 3200MHz memory with a maximum capacity of 64GB. Display outputs include HDMI (4096×2160@60Hz) and DP (7680×4096@60Hz).
| MIN-EC10 | |
| Processor | Intel 11th Gen Tiger Lake-H i7-11850H, 8 cores 16 threads, turbo boost up to 4.9GHz |
| Chipset | QM580 |
| Memory Specs | DDR4 3200MHz |
| Max Memory | 64GB |
| Memory Sockets | 2×SO-DIMM |
| Discrete GPU | Optional MXM Discrete GPU: FA10 RTX4090m (135W) / FA8 RTX4080m (125W) / RTX3080m (110W) / MA49 R5 230 1G (25W) |
| Storage Interfacesw | 3×M.2（Key-M 2242/2280 PCIe/SATA + Key-B 2242/2260/2280 SATA&4G/5G + Key-E 2230 WiFi）；1×SATA3.0；1×SIM |
| Display Output | HDMI2.0（4096×2160@60Hz）+ DP（7680×4096@60Hz） |
| USB Ports | 3×USB3.0 + 2×USB2.0 + 1×Type C |
| LAN Ports | 2×RJ45（Intel i225-AT，10/100/1000M） |
| Audio | HDA（ALC897，Line Out + MIC In） |
| Power Supply Type | 18~26V DC (4-pin DC In) |
| Operating Temperature | 0~50°C (0.7 m/s airflow) |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 10~95% (non-condensing) |
| Overall Dimensions | 280×229.7×97.5mm |
| Chassis Color | White |
| Operating System | Win10 |
8.ZRT.80-1634-08-LEF (i7-11850H + RTX3080m + DDR4 16G×2 + M.2 512G, 120W Power Supply / Packaging)
8.ZRT.80-1634-09-LEE (i7-11850H + RTX4090m + DDR4 16G×2 + M.2 2TB, Heatsink / Cables / Chassis / Power Supply / Packaging)
8.ZRT.80-1634-10-LEE (i7-11850H + RTX4080m + DDR4 16G×2 + M.2 1TB, Heatsink / Cables / Chassis / Power Supply / Packaging)
8.ZRT.80-1634-11-LEE (i7-11850H + R5 230 1G + DDR4 16G + M.2 512G, Heatsink / Cables / Chassis / Power Supply / Packaging)
