MIN-M701 Compact Medical PC

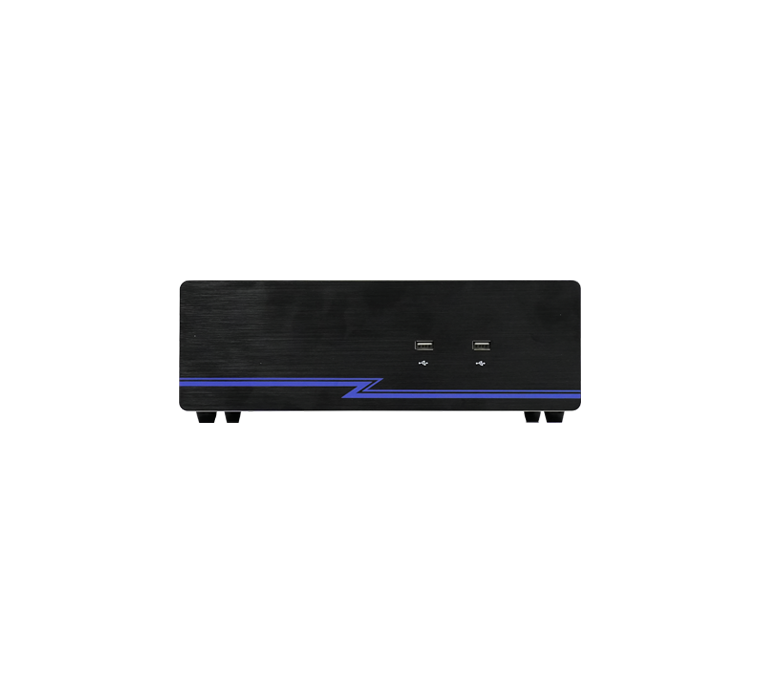

The MIN-M701 is a portable edge computing box PC specially designed for medical and scientific research scenarios. It is powered by Intel 11th Gen Tiger Lake-H processors with optional i5-11500H, i7-11850H and i9-11950H models. Configured with the WM590 chipset, the device delivers up to 8 cores and 16 threads with a maximum turbo frequency of 5.0GHz. Featuring a compact white chassis, the whole machine measures only 280×232×98mm in dimension.

Its core highlight is the built-in brain wave capture card, which supports direct connection to EEG probes for accurate brain signal acquisition. It serves as a plug-and-play hardware platform for neuroscience research, clinical EEG monitoring and other professional applications. The system supports dual-channel DDR4 3200MHz memory with a maximum capacity of 64GB. Equipped with a built-in 10000mAh lithium battery, it enables long-term uninterrupted operation in mobile application scenarios.

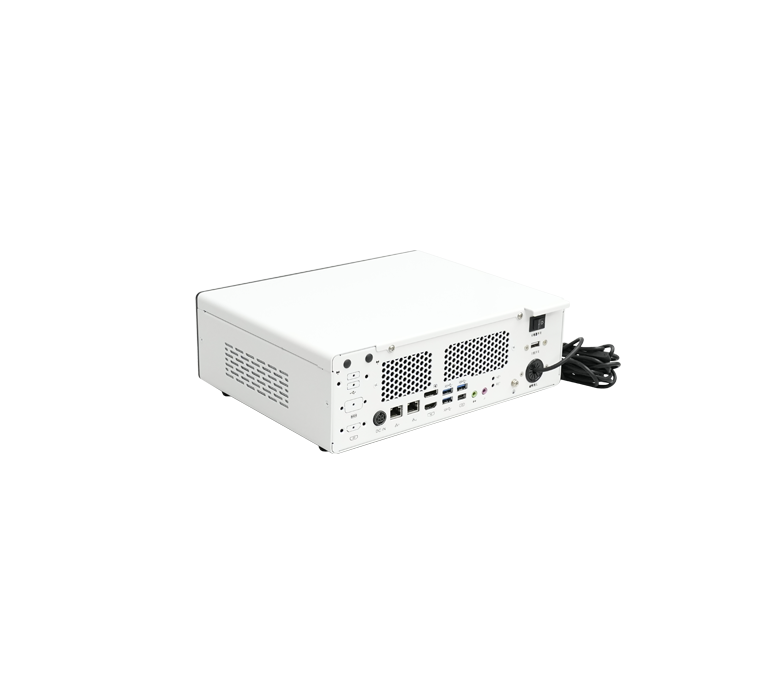

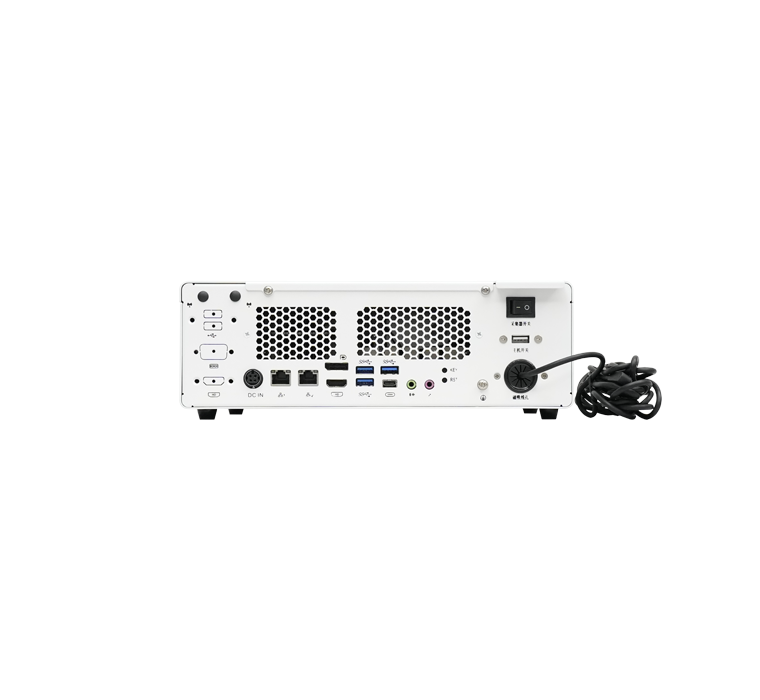

Rich I/O interfaces are fully configured, including 2×RJ45 (Intel i225-AT 2.5GbE) ports, 3×USB3.0, 2×USB2.0, 1×Type-C (USB2.0/3.0 compatible), HDMI (4096×2160@60Hz), DP (7680×4096@60Hz), 1×PCIe x4 slot, 3×M.2 slots (Key-M + Key-B + Key-E), 1×SATA3.0 port and 1×RS232 serial port. It also integrates HDA audio (Line Out + MIC In), 1×LPC interface and 1×TPM module, as well as power/reset buttons and a rocker-type battery switch. The device adopts 18~26V DC power supply.

The operating temperature ranges from 0℃ to 50℃, and the storage temperature ranges from -20℃ to 70℃. It is compatible with multiple operating systems, including Windows 10 LTSC, Red Hat 8.4, Ubuntu 20.04 and Yocto, meeting diverse development and application demands for medical and scientific research scenarios.
