HLC-6008 Edge Computing System
Product Features
- Equipped with Intel 11th Gen Tiger Lake-H i5/i7/i9 processors, up to 8 cores / 16 threads, max boost frequency 5.0GHz

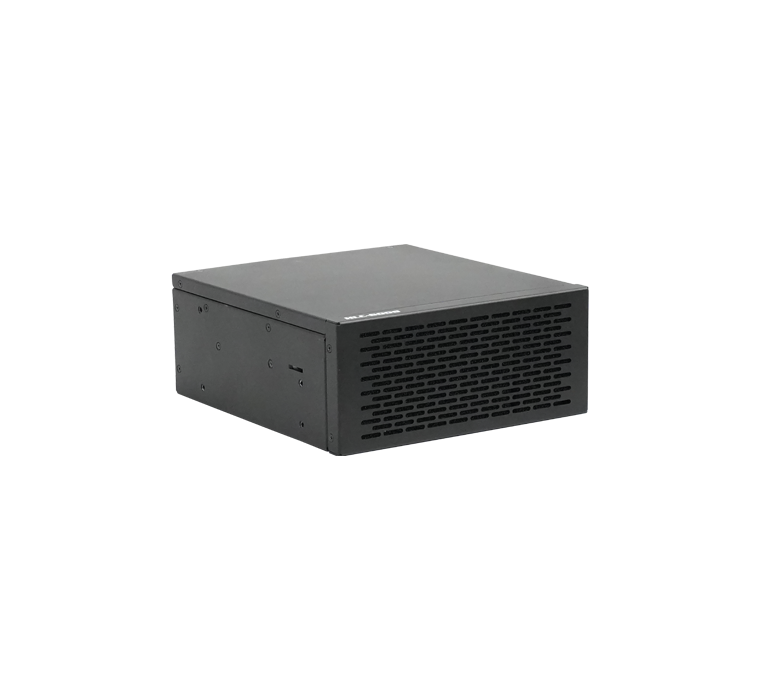

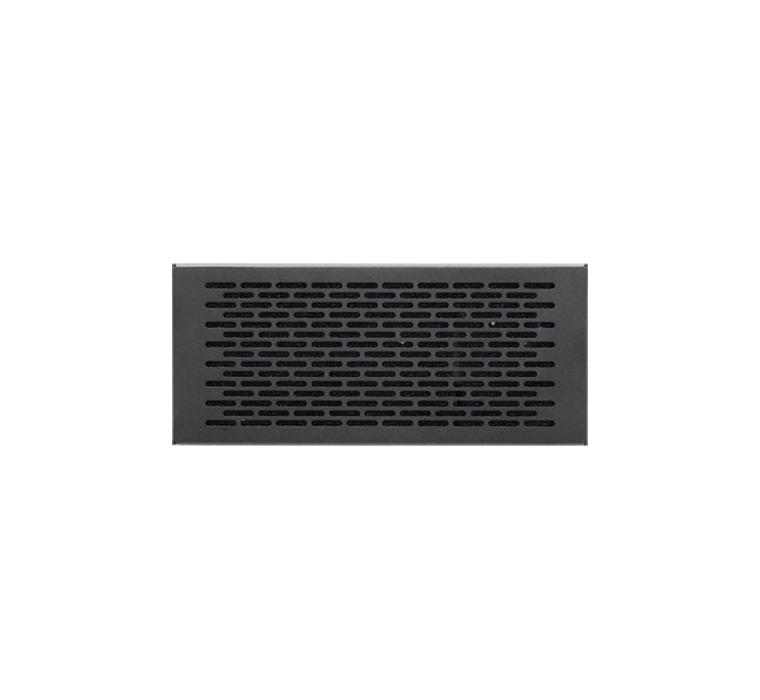

- Compact appliance with dimensions of 220×200×94.5mm, black enclosure
- Dual-channel DDR4 3200MHz, up to 64GB, 2×SO-DIMM sockets
- Optional MXM discrete GPU (RTX4080m / RTX2060) for high-performance GPU acceleration
- 2×RJ45 (Intel i225-V 2.5GbE) + 4×USB3.2 + 2×USB2.0 + 1×PCIe x4
- 4-display output (2×HDMI + DP++ + DP); HDMI/DP up to 4096×2160@60Hz
- Operating temperature: 0~50℃, suitable for GPU-accelerated scenarios such as medical imaging and industrial vision inspection
The HLC-6008 is powered by Intel 11th Gen Tiger Lake-H processors, available with i5-11500H (6 cores), i7-11850H (8 cores, 4.9GHz) or i9-11950H (8 cores, 5.0GHz), paired with the WM590/QM580 chipset, 45W TDP, and integrated high-performance graphics. The system features a compact black design measuring 220×200×94.5mm.
The product’s highlight is its support for MXM 3.1 discrete graphics cards, optionally the FA8 RTX4080m (80W) or F80 RTX2060 12G (95W), providing powerful graphics processing for GPU-accelerated computing and AI inference. Memory supports dual-channel DDR4 3200MHz, up to 64GB. Display output supports 4 independent screens: 2×HDMI + 1×DP++ + 1×DP, with HDMI2.0/DP up to 4096×2160@60Hz.

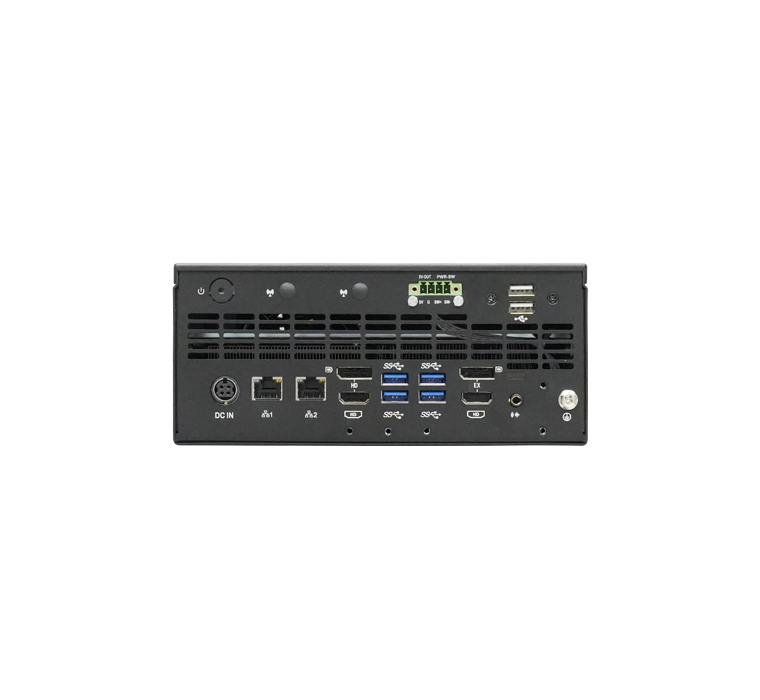

For connectivity, the unit offers 2×RJ45 (Intel i225-V 2.5GbE), 4×USB3.2, 2×USB2.0, 1×PCIe x4, 3×M.2 (Key-M + Key-B + Key-E), 2×SATA3.0, HDA audio, and reset/recovery buttons. The split-type heatsink design ensures stable heat dissipation for both CPU and GPU. Operating temperature is 0~50℃, storage -20~70℃. It supports Win10 LTSC, Red Hat 8.4, Ubuntu 20.04 and Yocto.
| HLC-6008 | |
| Processor | Intel 11th Gen Tiger Lake-H i5-11500H / i7-11850H / i9-11950H, up to 8 cores & 16 threads, max boost frequency 5.0GHz |
| Chipset | WM590/QM580 |
| Memory Spec | DDR4 3200MHz |
| Max Memory Capacity | 64GB |
| Memory Sockets | 2×SO-DIMM |
| Discrete GPU | Optional MXM 3.1 GPU: FA8 RTX4080m (80W) or F80 RTX2060 12G (95W) |
| Storage Interfaces | 3×M.2（Key-M + Key-B 4G/5G + Key-E WiFi）；2×SATA3.0；1×SIM |
| Expansion Slot | 1×PCIe x4 |
| Display Output | 2×HDMI2.0（4096×2160@60Hz）+ DP++（4096×2160@60Hz）+ DP（4096×2160@60Hz），共 4 屏 |
| USB Interfaces | 4×USB3.2 + 2×USB2.0 |
| Network Interfaces | 2×HDMI2.0 (4096×2160@60Hz) + DP++ (4096×2160@60Hz) + DP (4096×2160@60Hz), total 4 displays |
| Serial Port | Optional RS232/422/485 |
| Audio | HDA (Headphone + MIC) |
| Watchdog | Programmable watchdog timer |
| TPM | Supported支持 |
| Power Type | 300W power adapter |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~70℃ |
| Overall Dimension | 220×200×94.5mm |
| Enclosure Color | Black |
| Operating System | Win10 LTSC、Red Hat 8.4、Ubuntu 20.04、Yocto |
8.ZRT.80-1658-02-LEF (i5-11500H Complete System, DDR4 8G×2 / NVMe 256G / 1TB×2 HDD / RTX2060 12G, split heatsink / packaging / V00 version)
8.ZRT.80-1658-07-LEE (i5-11500H Complete System, DDR4 8G×2 / NVMe 256G / 1TB×2 HDD / RTX4080m 80W, split heatsink / packaging / V00 version)
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What processors and MXM GPU options are available for the HLC‑6008 edge computing system?
The HLC‑6008 adopts Intel 11th‑Gen Tiger Lake‑H platform. CPU options include i5‑11500H, i7‑11850H and i9‑11950H (up to 8‑core 16‑thread, max boost 5.0GHz). It supports optional MXM3.1 discrete GPU modules: RTX4080m (80W) and RTX2060 12G (95W) for GPU‑accelerated edge AI inference and industrial vision tasks.
What are the memory, storage and expansion specifications of HLC‑6008?
It supports dual‑channel DDR4 3200MHz SO‑DIMM, maximum 64GB RAM. For storage, it has 3×M.2 slots(Key‑M / Key‑B / Key‑E), 2×SATA3.0 ports and 1×SIM socket. One PCIe x4 expansion slot is reserved. It also provides 2×2.5GbE Intel i225‑V LAN, 4×USB3.2, 2×USB2.0, optional RS232/422/485 serial port.
How many independent displays can HLC‑6008 drive and what is the max resolution?
HLC‑6008 supports 4‑display independent output: 2×HDMI2.0 + DP++ + DP. Each port reaches up to 4096×2160@60Hz, suitable for multi‑screen monitoring for medical imaging and industrial visual inspection.
