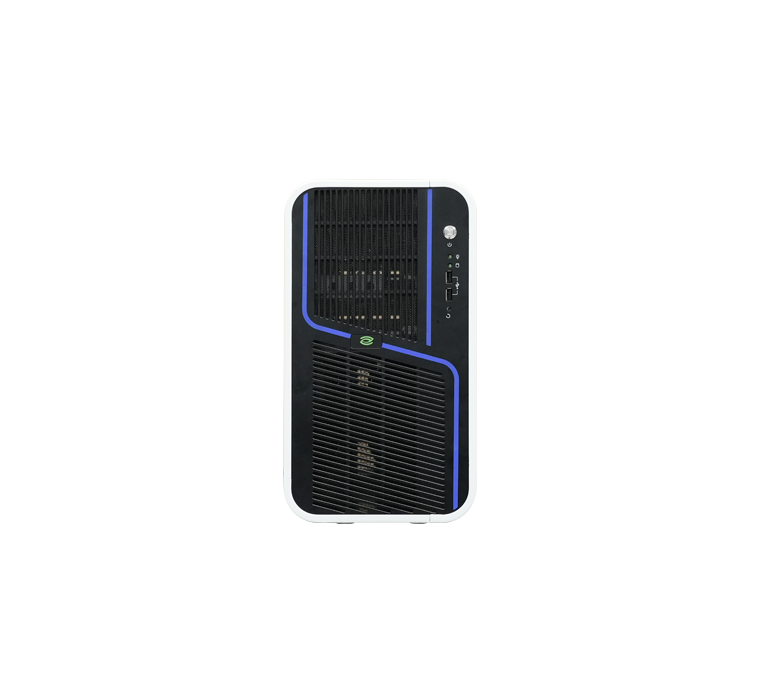

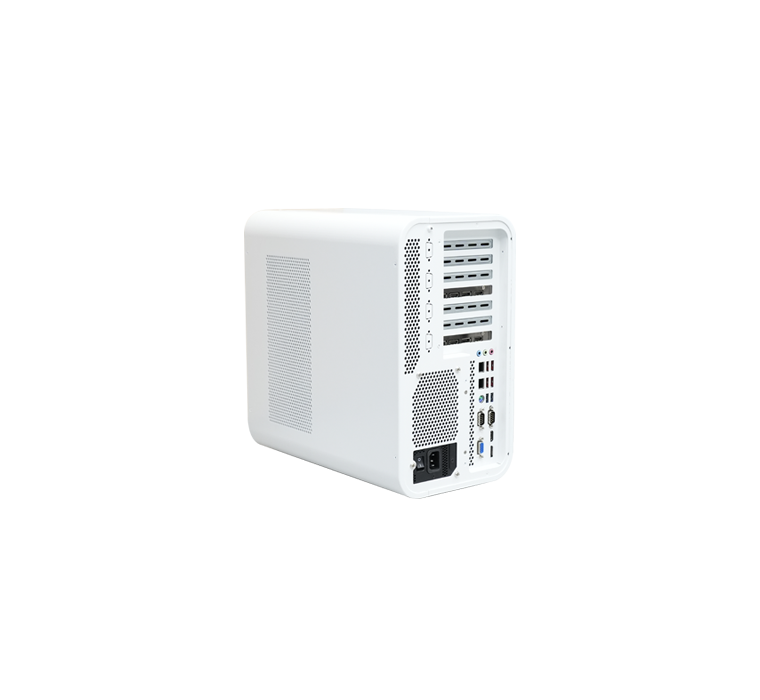

APC-4U03 High-Performance Medical Edge PC
APC-4U03 is a 4U rack-mount edge computing box built on the 12th/13th Gen Intel Core platform. Measuring 366×198×355mm, it supports up to 128GB DDR4 memory and abundant PCIe/PCI expansion slots, delivering a powerful computing and expansion platform for medical AI analysis, industrial control, test & measurement, and data center applications.
Product Features
- Equipped with 12th/13th Gen Intel Alder Lake / Raptor Lake i9/i7/i5/i3 processors (FCLGA1700), K-series models supported.
- 4U rack-mount design, dimensions 366×198×355mm, suitable for standard cabinet deployment.
- Dual-channel DDR4 up to 128GB, 4×U-DIMM, max 4400MT/s.
- 2×PCIe 16x (By x8) + 1×PCIe 8x (By x4) + 2×PCIe 4x + 2×PCI expansion slots, powerful expandability.
- 4×SATA3.0 with RAID 0/1/5/10 support + 1×M.2 Key-M, flexible storage solutions.
- 4×RJ45 LAN ports (6×RJ45 optional) + 8×USB3.2 Gen1 + 2×USB2.0.
- VGA (2048×1536@60Hz) + DP++ (7680×4320@60Hz), operating temperature 0~60℃.
APC-4U03 is a 4U rack-mount edge computing system powered by 12th/13th Gen Intel Alder Lake / Raptor Lake processors (FCLGA1700). It offers a full range of CPU options from i3 to i9, including K-series models. Coupled with the Intel Q670 PCH chipset, it delivers robust computing performance. Featuring a standard 4U rack-mount design with dimensions of 366×198×355mm, it fits in standard 19-inch racks and is ideal for deployment in data centers and industrial control rooms.
The system supports dual-channel DDR4 memory up to 128GB via 4×U-DIMM slots with a maximum speed of 4400MT/s, meeting requirements for large-volume data processing. Expandability is the core advantage of this unit: 2×PCIe 16x (By x8) + 1×PCIe 8x (By x4) + 2×PCIe 4x + 2×PCI slots. It can accommodate a wide variety of industrial add-on cards such as GPU accelerator cards, high-speed acquisition cards, RAID cards, motion control cards and more. For storage, it provides 4×SATA3.0 ports with RAID 0/1/5/10 support plus 1×M.2 Key-M slot.
Display interfaces include VGA (2048×1536@60Hz) and DP++ (7680×4320@60Hz). Networking comes with 4×RJ45 LAN ports (6×RJ45 optional), using Intel i210-AT controllers. Additional interfaces: 8×USB3.2 Gen1, 2×USB2.0, serial ports (RS232/422/485 + optional RS232), HDA audio, TPM and programmable watchdog timer. It adopts ATX power supply and supports ATX/AT power-on modes. Operating temperature: 060℃; storage temperature: -4080℃.
Suitable applications: medical AI analysis, industrial automation control, test & measurement systems, edge nodes for data centers, video surveillance storage and other scenarios.
| APC-4U03 | |
| Processor | 12th/13th Gen Intel Alder Lake / Raptor Lake i9/i7/i5/i3 (FCLGA1700), K-series models supported |
| Chipset | PCH Q670 |
| BIOS | AMI EFI |
| Memory Specification | DDR4, up to 4400MT/s for single 1R/2R per channel; 4000-1R / 3600-2R for dual DIMM configuration |
| Max Memory Capacity | 128GB |
| Memory Sockets | 4×U-DIMM |
| Storage Interfaces | 4×SATA3.0 (7Pins, RAID 0/1/5/10 supported) + 1×M.2 Key-M (SATA/PCIe) + 1×Mini PCIe + 1×SIM |
| Expansion Slots | 2×PCIe 16x（By x8）+ 1×PCIe 8x（By x4）+ 2×PCIe 4x + 2×PCI |
| Display Output | VGA（2048×1536@60Hz）+ DP++（7680×4320@60Hz） |

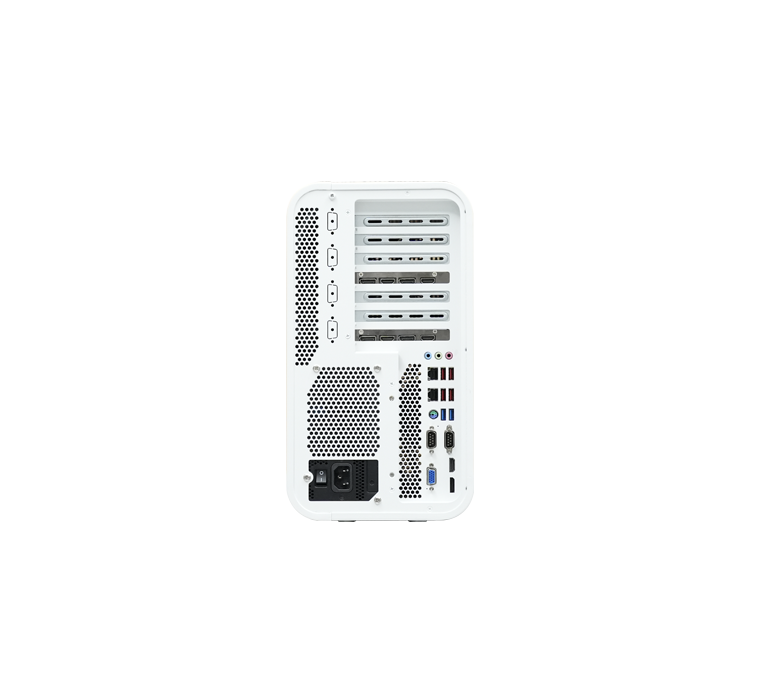

| USB Interfaces | Rear Panel: 8×USB3.2 Gen1 Type A + 1×USB2.0 Type A; Front Panel: 2×USB2.0 |
| Network Interfaces | 4×RJ45 (Intel i210-AT, 6×RJ45 optional) |
| Serial Ports | 2×RS232/422/485 (optional) + 4×RS232 (optional) |
| Audio | HDA（ALC897，Line In + Line Out + MIC In） |
| Watchdog Timer | 0~255 Level programmable in seconds/minutes, supports timeout interrupt or system reset |
| TPM | Supported |
| Power Supply | ATX power supply (DC ATX 24+8), supports ATX/AT power on/off modes |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -40~80℃ |
| Operating Humidity | 95%RH @40°C (non-condensing) |
| Overall Dimensions | 366×198×355mm |
| Unit Color | White |
| Operating System | Win10/Win11、Ubuntu 22.04 |
| Certification | 3C（CNCA-C09-01:2023） |
Please contact our sales representatives for the latest ordering information.
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What CPUs does APC‑4U03 support? Can it work for medical AI inference workloads?
APC‑4U03 adopts Intel Q670 chipset and supports 12th /13th‑Gen Intel Core i3/i5/i7/i9 processors (FCLGA1700 socket), including K‑series unlocked CPUs. It comes with rich PCIe expansion slots for installing GPU accelerator cards. This platform is well‑suited for medical AI analysis, medical image processing and other edge AI computing scenarios.
What is the maximum memory and storage capacity of APC‑4U03? Does it support RAID function?
It supports up to 128GB DDR4‑4400MT/s memory via 4×U‑DIMM sockets. For storage, there are 4×SATA3.0 ports supporting RAID0/1/5/10, plus one M.2 Key‑M slot for high‑speed NVMe/SATA SSD, meeting large‑volume medical image and industrial data storage demands.
What are the expansion slots on APC‑4U03? Can I install GPU cards, data acquisition cards or motion‑control cards?
Expansion slots include 2×PCIe x16 (by x8), 1×PCIe x8 (by x4), 2×PCIe x4 and 2×legacy PCI slots. Such abundant resources allow installation of GPU accelerator cards, high‑speed acquisition cards, RAID adapters, motion‑control cards and various industrial add‑on cards for medical, test‑measurement and industrial automation systems.
