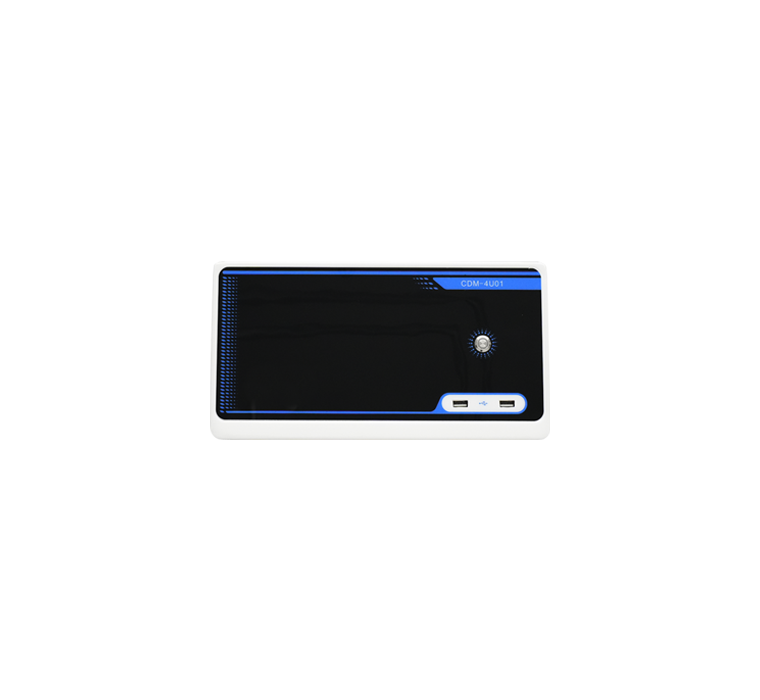

CDM-4U01 High-Performance Medical Edge PC
CDM-4U01 is a compact 4U rackmount edge computing system based on 12th/13th Gen Intel Core platforms. Featuring a compact size of 280×272×145 mm and DDR5 memory support, it is equipped with 4×2.5GbE Ethernet ports and dual PCIe expansion slots. With DC power input design, it provides a cost-effective solution for compact cabinet deployment scenarios.
Product Features
- Powered by 12th/13th Gen Intel Alder Lake-H / Raptor Lake-H i3–i9 processors, up to 14 cores / 20 threads with 45W TDP
- 4U rackmount design with compact dimensions of 280×272×145mm, optimized for space-saving cabinet deployment
- Dual-channel DDR5 memory up to 64GB; 4800MT/s for 12th Gen, 5600MT/s for 13th Gen
- 4×RJ45 (Intel i226-V 2.5GbE) + 4×USB3.1 + 2×USB2.0
- Dual PCIe x16 slots (x4 + x8 bandwidth) + 3×M.2 slots (NVMe / 4G/5G / WiFi) + 2×SATA3.0
- Dual display output: DP++ (7680×4096@60Hz) + HDMI 2.0 (4096×2160@60Hz)
- Wide operating temperature: -10~60℃, 19V/24V DC power input
- OS support: Windows 10 / Windows 11 / Yocto

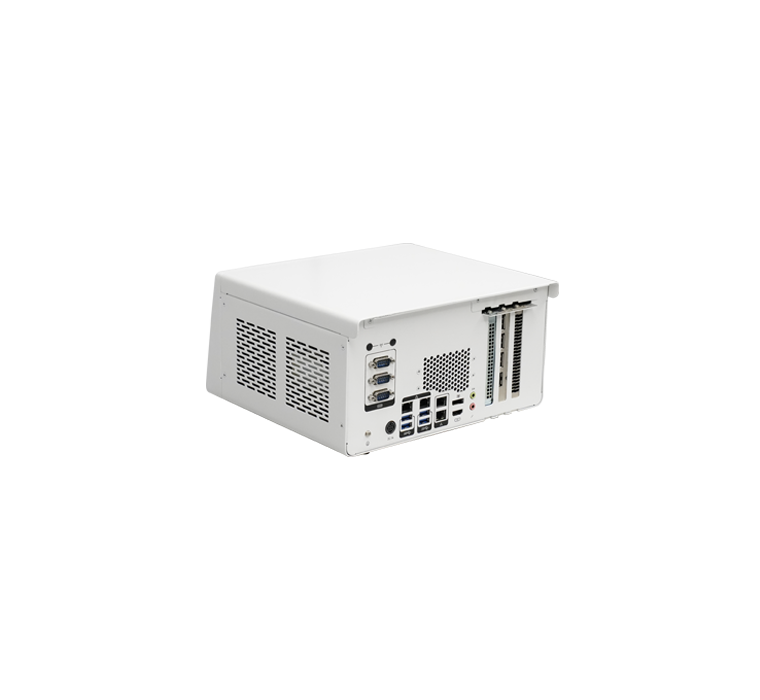

CDM-4U01 is a compact 4U rackmount edge computing machine, powered by 12th/13th Gen Intel Alder Lake-H / Raptor Lake-H processors. Full CPU options from i3 to i9 are available, with the top i9-13900H (14 cores, 20 threads, 45W TDP). It adopts a 4U rackmount design, measuring 280×272×145mm with a white appearance, and can be installed in standard 19-inch cabinets or medical carts.
It supports dual-channel DDR5 memory up to 64GB, 4800MT/s for 12th Gen and 5600MT/s for 13th Gen. Networking includes 4×RJ45 ports with Intel i226-V 2.5GbE controllers. Display outputs: DP++ (7680×4096@60Hz) and HDMI2.0 (4096×2160@60Hz).

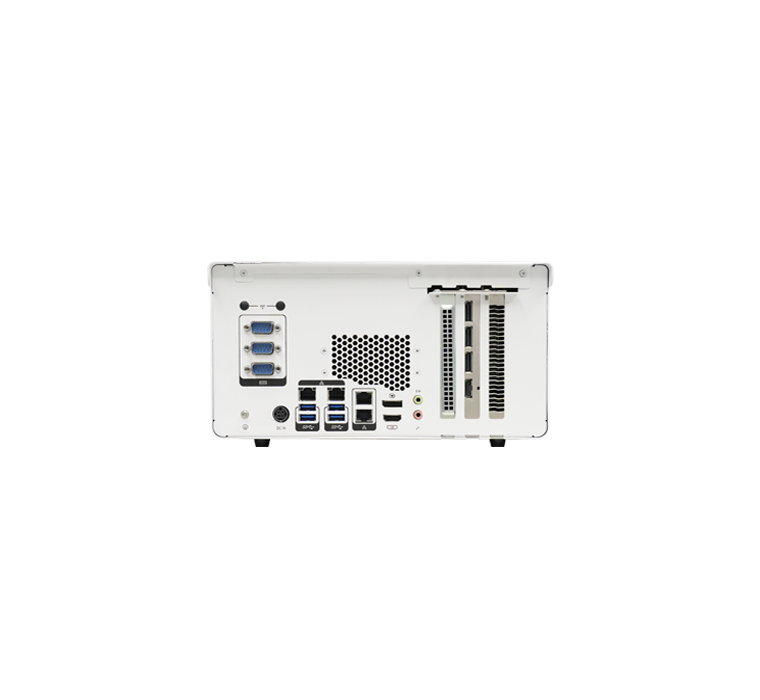

For expansion: 2×PCIe 16x (x4 + x8) slots, 3×M.2 (Key-M NVMe + Key-B 4G/5G + Key-E WiFi), 2×SATA3.0, serial ports (RS232/485 optional), HDA audio, etc. It uses 19V or 24V DC power supply. Operating temperature: -10~60℃, supporting Win10/Win11 and Yocto. Suitable for medical AI analysis, medical imaging, industrial automation, edge AI inference, machine vision, network edge computing and other scenarios.
| CDM-4U01 | |
| Processor | 12th/13th Gen Intel Alder Lake-H / Raptor Lake-H i3~i9, up to i9-13900H (14 cores, 20 threads) |
| Chipset | Intel PCH SoC |
| BIOS | 128Mb SPI FLASH |
| Memory Spec | DDR5, 4800MT/s for 12th Gen, 5600MT/s for 13th Gen |
| Max Memory Capacity | 64GB |
| Emory Sockets | 2×SO-DIMM |
| Storage Interfaces | 3×M.2（Key-M 2242/2280 NVMe + Key-B 4G/5G + Key-E 2230 WiFi）；2×SATA3.0（7Pins）；1×SIM |
| Expansion Slots | 2×PCIe 16x（x4 + x8） |
| Display Output | DP++（7680×4096@60Hz）；HDMI2.0（4096×2160@60Hz） |
| Network Interfaces | 4×USB3.1 + 2×USB3.0 + 2×USB2.0 |
| Network Interfaces | 4×RJ45 (Intel i226-V, 10/100/1000M/2.5G auto-adaptive) |
| Serial Ports | Optional RS232/422/485 |
| Audio | HDA (Headphone + MIC) |
| Watchdog | Programmable Watchdog |
| TPM | Supported |
| Power Type | 19V or 24V DC power supply (DC In 4P) |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Unit Dimensions | 280×272×145mm |
| Unit Color | White |
| Operating System | Win10/Win11、Yocto |
Please contact our sales staff for the latest ordering information.
