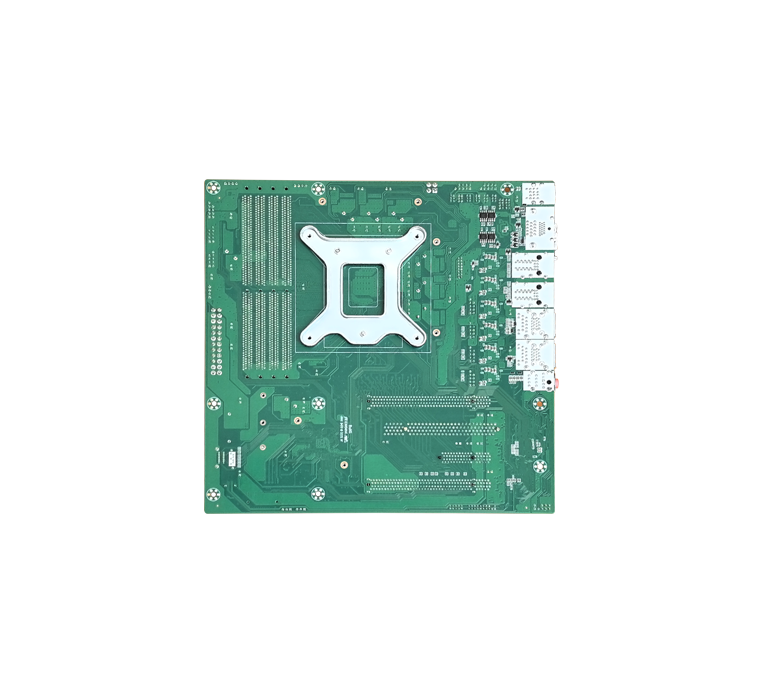

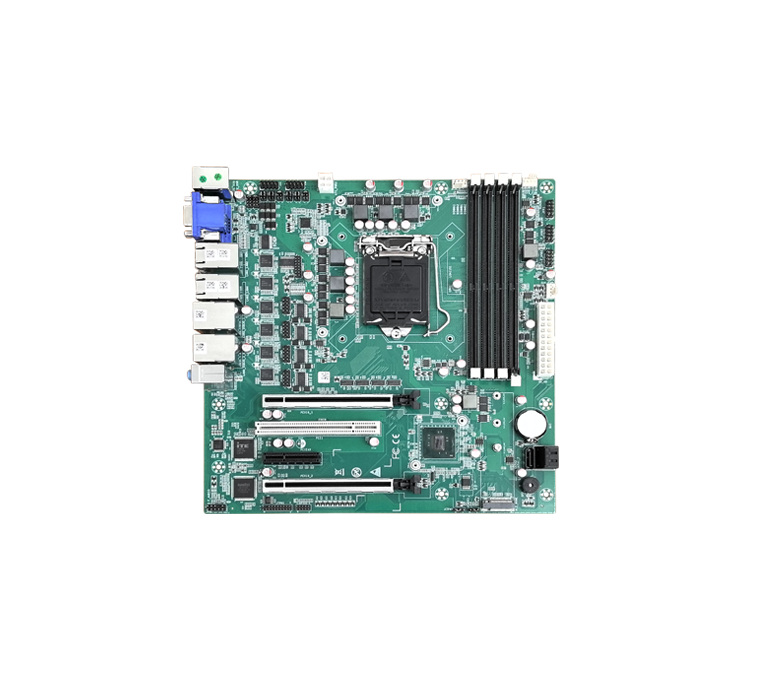

Industrial mATX Motherboard EC9-Q170
EC9-Q170 is an mATX (Micro-ATX) industrial motherboard based on Intel 6th/7th/8th/9th Gen Core platform. It adopts FCLGA1151 socket and DDR4 memory technology, equipped with 3×PCIe, 4×SATA3.0 and TPM2.0, delivering a stable and reliable computing platform for industrial control and embedded systems.
Product Features
1. Equipped with Intel 6th/7th/8th/9th Gen Skylake / Kaby Lake / Coffee Lake processor,FCLGA1151(i9-9900K not supported)
2. mATX(Micro-ATX) form factor industrial board,244×220mm
3. Dual-channel DDR4 up to 64GB,2×U-DIMM
4. 3×PCIe + 4×SATA3.0 + 1×M.2,full expansion and storge options
5. Line Out + TPM2.0 + Watchdog Timer,complete audio and security features
6. Quad display output:HDMI + DP + VGA + LVDS
7. Operating temperature:0~60℃,supports Windows 10 / Linux
EC9-Q170 supports Intel 6th/7th/8th/9th Gen Skylake / Kaby Lake / Coffee Lake processors with FCLGA1151 socket (i9-9900K not supported), paired with Q170 chipset. It adopts mATX (Micro-ATX) form factor with dimensions of 244×220mm.
It supports dual-channel DDR4 memory up to 64GB via 2×U-DIMM slots. For expansion, it offers 3×PCIe slots. Storage interfaces include 4×SATA3.0 and 1×M.2. Display outputs consist of HDMI, DP, VGA and LVDS for quad-display operation. Audio features Line Out. It integrates TPM2.0 security chip and watchdog timer. Operating temperature ranges from 0~60℃, storage temperature -40~85℃. It supports Windows 10 and Linux.
| EC9-Q170 | |
| Processor | Intel 6th/7th/8th/9th Gen Skylake / Kaby Lake / Coffee Lake, FCLGA1151 socket (i9-9900K not supported) |
| Chipset | Intel Q170 |
| BIOS | AMI EFI |
| Memory Specs | DDR4 |
| Max Memory | 64GB |
| Memory Sockets | 2×U-DIMM |
| PCIe Expamsiom | 3×PCIe |
| M.2 Socket | 1×M.2 |
| SATA Interface | 4×SATA3.0 |
| Display Outputs | HDMI + DP + VGA + LVDS |
| Network Interface | RJ45 Ethernet Ports |
| USB Interface | Abundant USB Ports |
| Audio | Line Out |
| TPM | TPM2.0 |
| Operatung Temperature | 0~60℃ |
| Storage Temperature | -40~85℃ |
| Board Spec | mATX 244×220mm |
| Operating System | Windows 10 / Linux |
8.ZRT.80-1655-07-LEE（EC9-Q170_V12，Q170，M.2×1，PCIe×3，SATA×4，LineOUT×1，Mini-PCIe×1）
