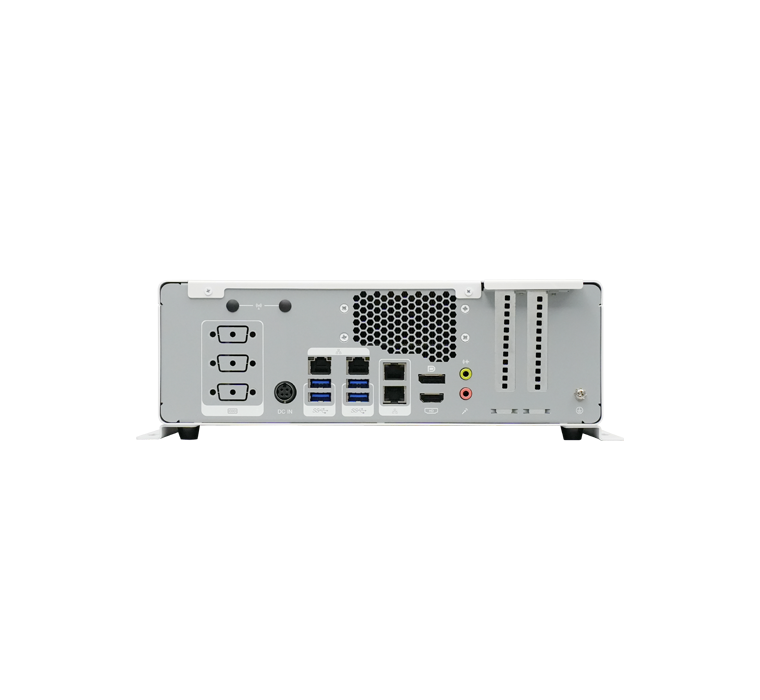

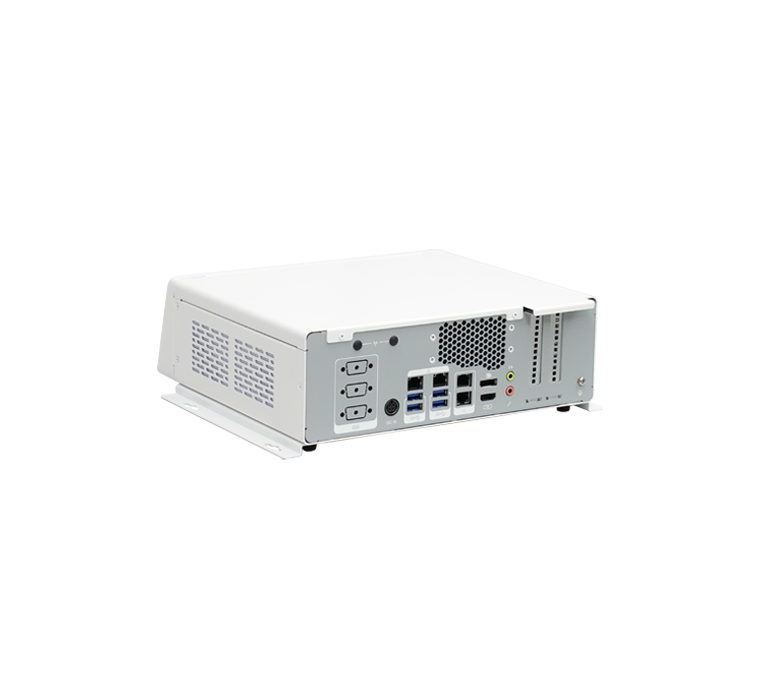

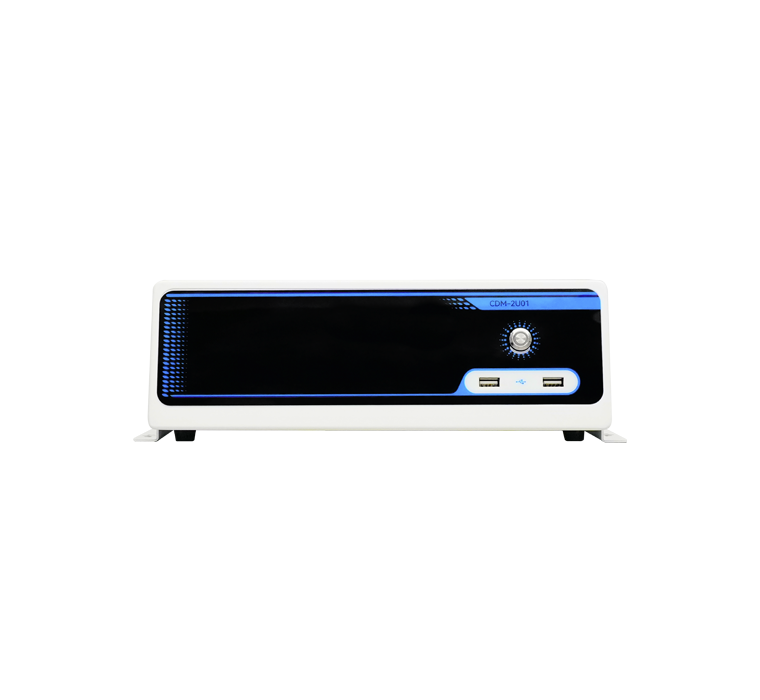

CDM-2U01 Compact Medical PC
The CDM-2U01 is a 2U rack‑mount edge computing appliance built on the Intel 12th/13th Gen Core platform. Featuring a compact size of 280×268×90mm and DDR5 memory architecture, it is equipped with 4×2.5GbE Ethernet ports and dual PCIe expansion slots, delivering a small‑form‑factor, high‑performance computing solution for medical AI, data center infrastructure, industrial automation, and network edge computing scenarios.
Model: CDM-2U01
Product Features
- Equipped with Intel 12th/13th Gen Alder Lake-H / Raptor Lake-H i3~i9 processors, up to 14 cores & 20 threads, 45W TDP
- 2U rackmount design, dimensions 280×268×90mm, suitable for standard cabinet installation
- Dual-channel DDR5 memory up to 64GB; 4800MT/s for 12th Gen, 5600MT/s for 13th Gen
- 4×RJ45 (Intel i226-V 2.5GbE) + 4×USB3.1 + 2×USB3.0 + 2×USB2.0
- 2×PCIe x16 (x4 + x8) expansion slots, 3×M.2 + 2×SATA3.0, excellent expandability
- Dual display output: DP++ (7680×4096@60Hz) + HDMI2.0 (4096×2160@60Hz)
- Compliant with medical regulatory requirements
- Operating temperature: 0~60℃, 2U rackmount edge computing appliance
The CDM-2U01 is a 2U rackmount edge computing appliance powered by Intel 12th‑gen Alder Lake‑H / 13th‑gen Raptor Lake‑H processors. The top option is i9‑13900H with 14 cores and 20 threads at 45W TDP, integrated with Iris Xe graphics for powerful computing performance. Built in a compact 2U form factor with dimensions of 280×268×90mm, it can be easily deployed in space‑constrained environments such as medical imaging equipment, medical carts and 19-inch racks, well suited for hospitals, data centers and edge server rooms.
It supports dual‑channel DDR5 memory up to 64GB, providing sufficient bandwidth for large data processing tasks. The appliance comes with 4×RJ45 LAN ports based on Intel i226-V 2.5GbE controllers for high-speed auto-adaptive network communication. For display outputs, it supports DP++ (7680×4096@60Hz) and HDMI2.0 (4096×2160@60Hz).
Rich expansion interfaces include 2×PCIe x16 slots (x4 + x8), 3×M.2 sockets (NVMe + 4G/5G + WiFi), 2×SATA3.0 ports, serial ports (optional RS232/485), and HDA audio. A 300W power adapter is supplied as standard. The operating temperature ranges from 0℃ to 60℃, and it supports Windows 10, Windows 11 and Yocto operating systems.
| CDM-2U01 | |
| Processor | Intel 12th/13th Gen Alder Lake-H / Raptor Lake-H i3~i9 (FCBGA1744), optional: i5-12450H / i7-12700H / i7-13700H, etc. |
| Chipset | Intel PCH SoC |
| BIOS | 128Mb SPI FLASH |
| Memory Spec | DDR5, 4800MT/s for 12th Gen, 5600MT/s for 13th Gen |
| Max Memory Capacity | 64GB |
| Memory Sockets | 2×SO-DIMM |
| Storage Interfaces | 3×M.2（Key-M 2242/2280 NVMe + Key-B 4G/5G + Key-E 2230 WiFi）；2×SATA3.0（7Pins）；1×SIM |
| Expansion Slots | 2×PCIe 16x（x4 + x8） |
| Display Output | DP++（7680×4096@60Hz）；HDMI2.0（4096×2160@60Hz） |
| USB Interfaces | 4×USB3.1 + 2×USB3.0 + 2×USB2.0 |
| Network Interfaces | 4×RJ45 (Intel i226-V, 10/100/1000M/2.5G auto-negotiation) |
| Serial Ports | Optional RS232/422/485 |
| Audio | HDA (Headphone + MIC) |
| Watchdog | Programmable watchdog timer |
| TPM | Supported |
| Power Type | 300W power adapter (ATX 2×2 4Pin) |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -20~70℃ |
| Overall Dimension | 280×268×90mm |
| Enclosure Color | White |
| Operating System | Win10 / Win11, Yocto |
8.ZRT.80-1644-01-LEF (i5-12450H Barebone System, 300W power adapter / packaging / V00 version)
8.ZRT.80-1644-02-LEF (i7-12700H Barebone System, 300W power adapter / packaging / V00 version)
8.ZRT.80-1644-03-LEF (i7-13700H Barebone System, 300W power adapter / packaging / V00 version)
8.ZRT.80-1644-06-LEF (i5-12450H Complete System, DDR5 16GB / M.2 512GB / WiFi module, 300W power adapter / packaging / V00 version)
8.ZRT.80-1644-10-LEE (i7-12700H Complete System, FA15 RTX3050 GPU / DDR5 32GB / M.2 2TB, 300W power adapter / packaging / V00 version)
8.ZRT.80-1644-11-LEF (i7-12700H Complete System, DDR5 32GB / M.2 512GB / 3×COM ports, 300W power adapter / packaging / V00 version)
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What processors does CDM‑2U01 medical PC support?
CDM‑2U01 adopts Intel 12th /13‑Gen Alder Lake‑H / Raptor Lake‑H series CPUs (FCBGA1744), ranging from i3 to i9. The top‑end option is i9‑13900H with 14‑core 20‑thread and 45W TDP, delivering high‑performance computing for medical AI, medical imaging and edge workloads.
What is the installation method for CDM‑2U01? Can it be deployed on medical carts and standard cabinets?
CDM‑2U01 is a compact 2U rack‑mount unit with dimension 280×268×90 mm. It fits standard 19‑inch rack installation. Its small footprint also supports integration into medical imaging devices and medical carts for space‑constrained healthcare environments.
How many Ethernet ports does CDM‑2U01 offer? What is the network speed?
It is equipped with four Intel i226‑V 2.5GbE RJ45 LAN ports, supporting 10/100/1000/2500 Mbps auto‑negotiation. Multiple high‑speed network ports are ideal for medical data transmission, image streaming and edge computing applications.
