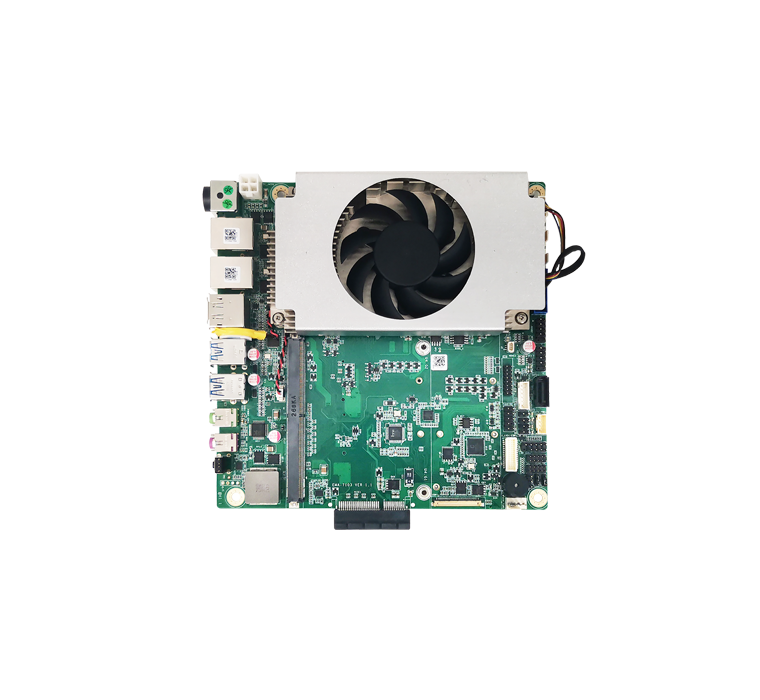

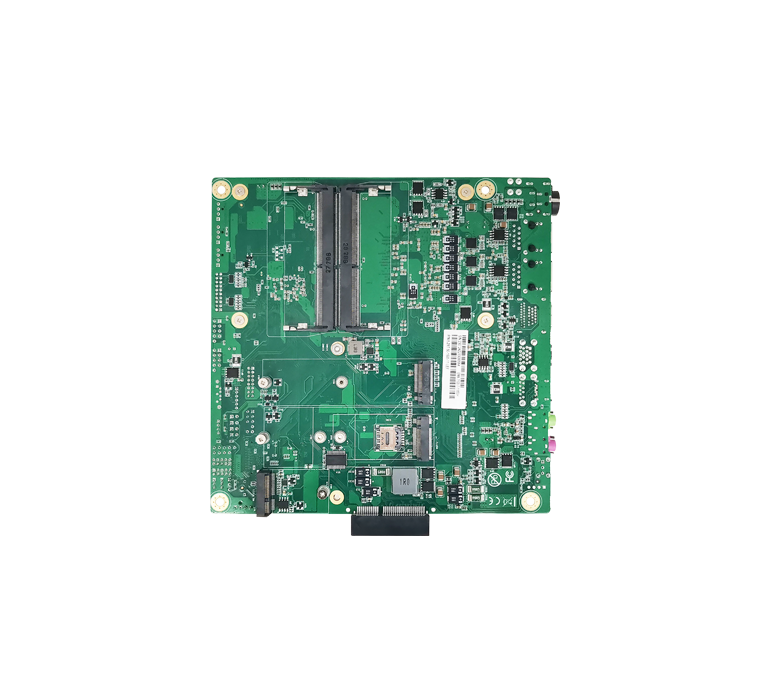

Industrial-grade Mini-ITX Motherboard EMA-7103
MA-7103 is a 7-inch MXM motherboard based on Intel 11th Gen Tiger Lake-H platform. Equipped with MXM3.1 GPU expansion slot and 2×2.5GbE Ethernet ports, it delivers GPU acceleration and high-speed networking capabilities for machine vision, edge AI and graphics workstation applications.
Product Features
- Equipped with Intel 11th Gen Tiger Lake-H i5-11500H / i7-11850H / i9-11950H processors, up to 8 cores 16 threads, 35/45W TDP
- 7-inch MXM motherboard with compact form factor
- Dual-channel DDR4 3200MHz up to 64GB, 2×SO-DIMM
- 2×RJ45 ports (Intel i225-V 2.5GbE)
- 1×MXM3.1 slot (supports Type A/B, TDP＜130W) + 1×PCIe x4 for flexible GPU expansion
- 3×M.2 (Key-E for WiFi) + 1×SATA3.0 + 1×SIM
- Operating temperature: 0~60℃, supports Win10 LTSC / Red Hat 8.4 / Ubuntu 20.04 / Yocto 4.0x
EMA-7103 is equipped with Intel 11th Gen Tiger Lake-H processors, with options of i5-11500H (6 cores), i7-11850H (8 cores, 4.9GHz) or i9-11950H (8 cores, 5.0GHz), 35/45W TDP, paired with WM590 chipset. It is a 7-inch MXM motherboard featuring compact form factor.
It supports dual-channel DDR4 3200MHz memory up to 64GB via 2×SO-DIMM slots. For networking, it comes with 2×RJ45 ports powered by Intel i225-V 2.5GbE controllers.
Its core highlight lies in 1×MXM3.1 slot supporting Type A/B (TDP＜130W), which accepts MXM discrete graphics cards to deliver powerful graphics performance for GPU-accelerated computing and AI inference. There is also 1×PCIe x4 (PCIe Gen4) slot. Storage options include 3×M.2 (Key-M PCIe Gen4 x4 NVMe + Key-B 4G/5G + Key-E WiFi), 1×SATA3.0 (7Pins) and 1×SIM card slot.
Operating temperature: 0~60℃, storage temperature: -40~85℃. It supports Windows 10 LTSC, Red Hat 8.4, Ubuntu 20.04 and Yocto 4.0x.
| EMA-7103 | |
| Processor | Intel 11th Gen Tiger Lake-H i5-11500H / i7-11850H / i9-11950H, FCBGA1787 |
| Chipset | Intel PCH WM590 |
| BIOS | 128Mb SPI FLASH |
| Memory Specs | DDR4 3200MHz |
| Max Memory | 64GB |
| Memory Sockets | 2×SO-DIMM |
| MXM Sockets | 1×MXM3.1(supports Type A/B,TDP<130W) |
| PCIe Expansion | 1×PCIe x4（PCIe Gen4） |
| M.2 Slot | 3×M.2（Key-M PCIe Gen4 x4 + Key-B 4G/5G + Key-E WiFi） |
| SIM Slot | 1×SIM |
| SATA Port | 1×SATA3.0（7Pins） |
| Network Port | 2×RJ45（Intel i225-V 2.5GbE） |
| USB Port | Multiple USB Ports |
| Audio | Line Out + MIC In |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -40~85℃ |
| Board Specification | 7-inch MXM Motherboard |
| Operating System | Windows 10 LTSC / Red Hat 8.4 / Ubuntu 20.04 / Yocto 4.0x |
Please contact our sales team for the latest ordering information.
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What CPU and memory options does EMA‑7103 support? What is the maximum RAM capacity?
This 7‑inch motherboard adopts Intel 11th‑gen Tiger Lake‑H platform, optional CPU: i5‑11500H / i7‑11850H / i9‑11950H (TDP 35‑45W). It has 2×SO‑DIMM DDR4 3200MHz sockets, maximum supported memory up to 64GB dual‑channel.
What MXM graphics cards are compatible with the EMA-7103 industrial motherboard?
EMA‑7103 is equipped with one MXM3.1 slot, supporting Type A / Type B MXM modules with TDP less than 130W. It is widely used for GPU‑accelerated computing, edge AI inference and machine‑vision workloads. Besides, one PCIe Gen4 x4 slot is reserved for further hardware expansion.
What applications is the EMA‑7103 motherboard designed for?
As a compact 7‑inch industrial motherboard with MXM GPU expansion and dual 2.5G Ethernet, EMA‑7103 is widely deployed in machine vision, edge AI computing, embedded graphics workstation, medical imaging and high‑performance industrial PC projects.
