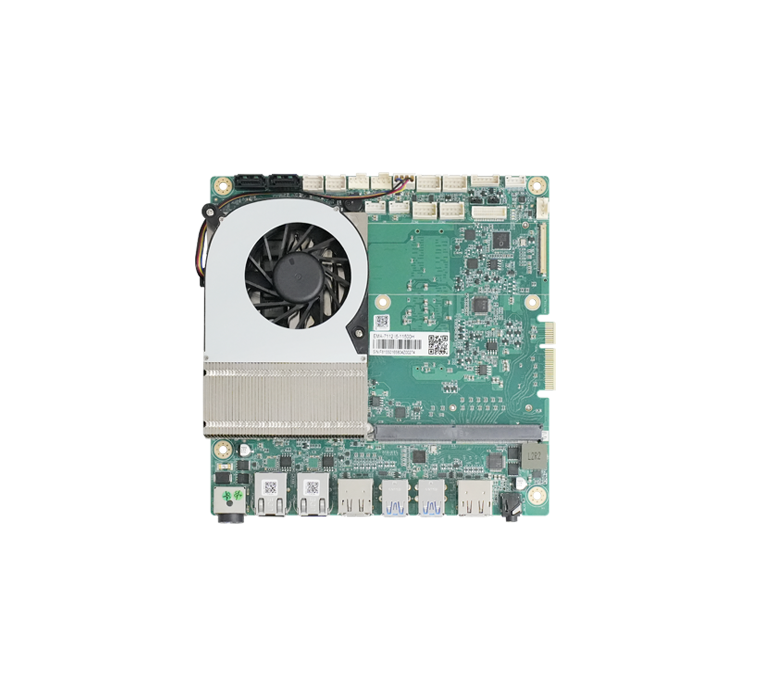

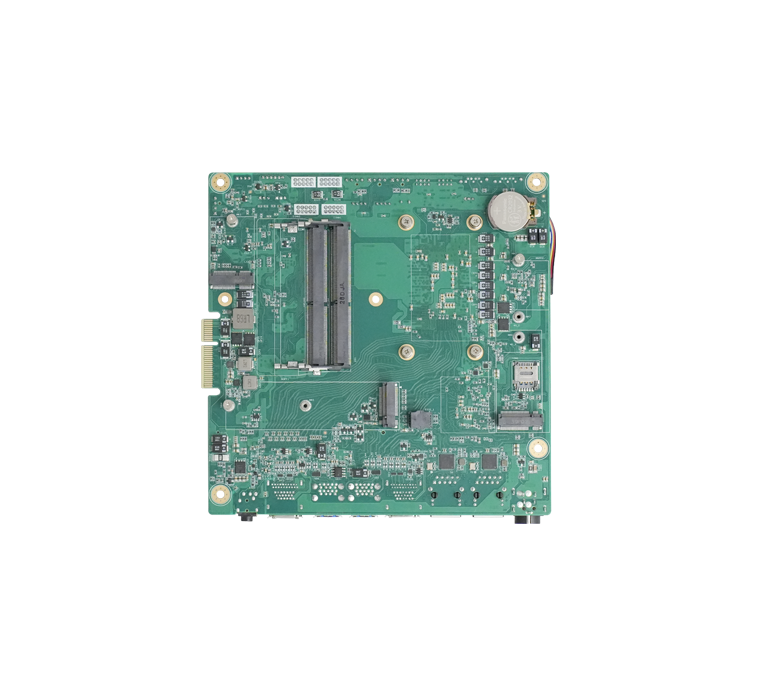

Industrial-grade Mini-ITX Motherboard EMA-7112
EMA-7112 is a 7-inch MXM motherboard based on the Intel 11th Gen Tiger Lake-H platform. Featuring an MXM 3.1 GPU expansion slot and dual 2.5GbE Ethernet ports, it delivers GPU acceleration and high-speed networking capabilities for machine vision, edge AI and graphics workstation applications.
Product Features
- Equipped with Intel 11th Gen Tiger Lake-H i5-11500H / i7-11850H / i9-11950H processors, up to 8 cores 16 threads, 35/45W TDP
- 7-inch MXM motherboard, compact design for custom chassis
- Dual-channel DDR4 3200MHz up to 64GB, 2×SO-DIMM
- 2×RJ45 ports (Intel i225-AT 2.5GbE) for high-speed network communication
- 1×MXM 3.1 slot (supports Type A/B, TDP < 130W) + 1×PCIe x4, flexible GPU expansion
- 3×M.2（Key-M PCIe x4 + Key-B 4G/5G + Key-E WiFi）+ 2×SATA3.0 + 1×SIM
- Operating temperature: 0~60℃, supports Win10 LTSC / Red Hat 8.4 / Ubuntu 20.04 / Yocto 4.0x
EMA-7112 is equipped with Intel 11th Gen Tiger Lake-H processors, with options of i5-11500H (6 cores), i7-11850H (8 cores, 4.9GHz) or i9-11950H (8 cores, 5.0GHz), 35/45W TDP, paired with the WM590 chipset. It adopts a 7-inch MXM motherboard specification with compact form factor.
It supports dual-channel DDR4 3200MHz memory up to 64GB via 2×SO-DIMM slots. Networking includes 2×RJ45 ports controlled by Intel i225-AT 2.5GbE controllers.
The key highlight is 1×MXM 3.1 slot compatible with Type A/B (TDP < 130W), which accepts MXM discrete GPUs to deliver powerful graphics performance for GPU-accelerated computing and AI inference. There is also 1×PCIe x4 slot. Storage includes 3×M.2 (Key-M PCIe x4 NVMe + Key-B 4G/5G + Key-E WiFi), 2×SATA3.0 (7Pins) and 1×SIM card slot. It supports abundant display outputs. Operating temperature: 0~60℃, storage temperature: -40~85℃. It supports Windows 10 LTSC, Red Hat 8.4, Ubuntu 20.04 and Yocto 4.0x.
| EMA-7112 | |
| Processor | Intel 11th Gen Tiger Lake-H i5-11500H / i7-11850H / i9-11950H, FCBGA1787 |
| Chipset | Intel PCH WM590 |
| BIOS | 128Mb SPI FLASH |
| Memory Spec | DDR4 3200MHz |
| Max Memory Capacity | 64GB |
| Memory Socket | 2×SO-DIMM |
| MXM Slot | 1×MXM 3.1 (supports Type A/B, TDP < 130W) |
| PCIe Expansion | 1×PCIe x4 |
| M.2 Slot | 3×M.2（Key-M PCIe x4 + Key-B 4G/5G + Key-E WiFi） |
| SIM Card Slot | 1×SIM |
| SATA Port | 2×SATA3.0（7Pins） |
| Network Port | 2×RJ45（Intel i225-AT 2.5GbE） |
| USB Port | Multiple USB Ports |
| Audio | Line Out + MIC In |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -40~85℃ |
| Board Spec | 7″ MXM Motherboard |
| Operating System | Windows 10 LTSC / Red Hat 8.4 / Ubuntu 20.04 / Yocto 4.0x |
Please contact our sales team for the latest ordering information.
