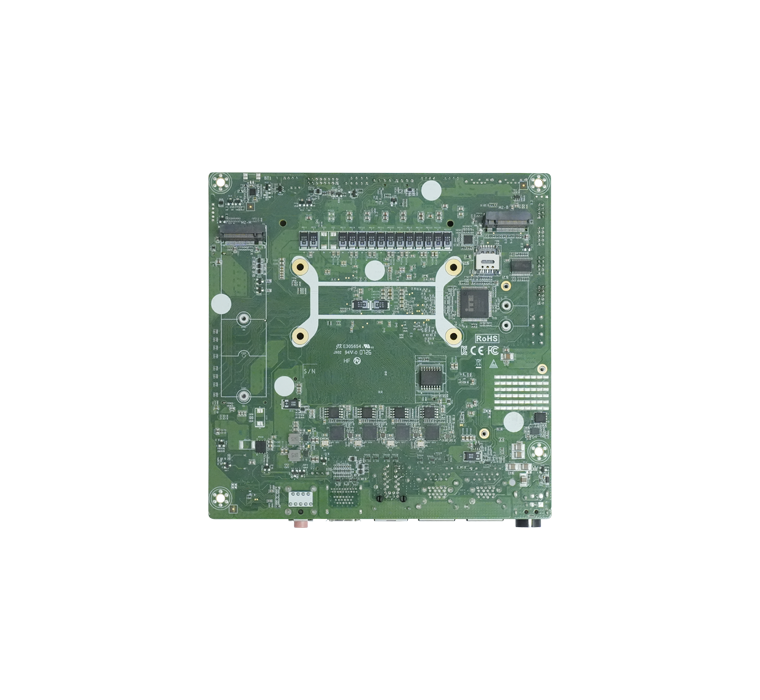

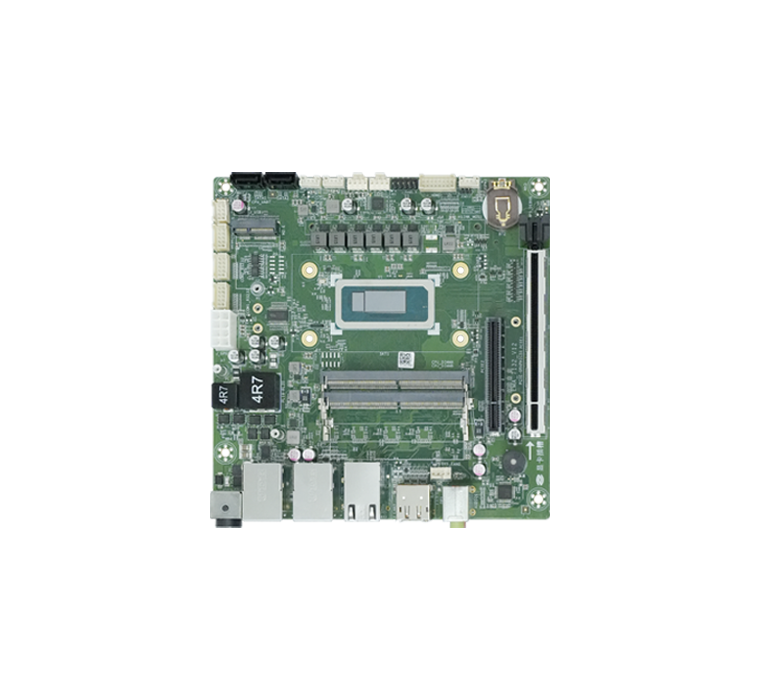

Industrial-grade Mini-ITX Motherboard EMA-7132
EMA-7132 is a Mini-ITX industrial motherboard built on Intel 12th/13th Gen Alder Lake-H / Raptor Lake-H mobile platform. Adopting FCBGA1744 package and DDR5 memory technology, it comes with 4×2.5GbE Ethernet ports and PCIe Gen4 x16 expansion, delivering powerful computing performance and flexible expandability for industrial automation, edge computing and machine vision applications.
Product Features
1.Powered by Intel 12th/13th Gen Alder Lake-H / Raptor Lake-H mobile processors (FCBGA1744), i5~i9 options available
2. Mini-ITX form factor motherboard with compact design
3. Dual-channel DDR5 4800MT/s (12th Gen) / 5600MT/s (13th Gen), up to 96GB, 2×SO-DIMM
4.4×RJ45 ports (Intel i226-V 2.5GbE)
5. 1×PCIe x16（PEG，PCIe Gen4）+ 3×PCIe x4（PCIe Gen4）+ 2×PCI
6. 4×M.2 (Key-M NVMe + Key-B 4G/5G + Key-E WiFi + Key-M for capture card) + 4×SATA3.0, abundant storage expansion
7. Quad display outputs: HDMI + DP + VGA + LVDS/eDP; Operating temperature: 0~60℃
EMA-7132 is equipped with Intel 12th Gen Alder Lake-H or 13th Gen Raptor Lake-H mobile processors in FCBGA1744 package. CPU options range from i5-12450H up to i9-13900H, with a maximum of 14 cores and 20 threads at 45W TDP, paired with the SoC chipset. It is a Mini-ITX form factor motherboard with compact design.
It supports dual-channel DDR5 memory: 4800MT/s for 12th Gen platform and 5600MT/s for 13th Gen platform, up to 96GB via 2×SO-DIMM slots. For networking, it integrates 4×RJ45 ports with Intel i226-V 2.5GbE controllers, supporting 10/100/1000M/2.5G auto-negotiation.
Powerful expandability: 1×PCIe x16 (PEG, PCIe Gen4) for high-performance GPU accelerator cards; 3×PCIe x4 (PCIe Gen4) compatible with high-speed capture cards, NVMe HBA and more; additional 2×PCI slots for legacy industrial cards. Storage includes 4×M.2 (Key-M NVMe + Key-B 4G/5G + Key-E WiFi + Key-M for capture card) and 4×SATA3.0. Display outputs support quad display: HDMI + DP + VGA + optional LVDS/eDP. Operating temperature: 0~60℃. Supports Windows 10/11 and Linux.
| EMA-7132 | |
| Processor | Intel 12th/13th Gen Alder Lake-H / Raptor Lake-H,FCBGA1744,i5~i9 optional |
| Chipset | Intel SoC |
| BIOS | 128Mb SPI FLASH |
| Memory Spec | DDR5,12th 4800MT/s,13th 5600MT/s |
| Max Memory Capacity | 96GB |
| 内存插槽 | 2×SO-DIMM |
| PCIe扩展 | 1×PCIe x16（PEG，PCIe Gen4）；3×PCIe x4（PCIe Gen4）；2×PCI |
| M.2插槽 | 4×M.2（Key-M NVMe + Key-B 4G/5G + Key-E WiFi + Key-M 采集卡） |
| SATA接口 | 4×SATA3.0 |
| 显示输出 | HDMI + DP + VGA + LVDS/eDP（可选） |
| 网络接口 | 4×RJ45（Intel i226-V 2.5GbE） |
| USB接口 | 丰富 USB 接口 |
| 音频 | Line Out + MIC In |
| 工作温度 | 0~60℃ |
| 存储温度 | -40~85℃ |
| 主板规格 | Mini-ITX |
| 操作系统 | Windows 10/11 / Linux |
8.ZRT.80-1644-14-LEF (EMA-7132_V12, ITX Motherboard, i7-13700H, I226-V, 2×DDR5, 4×RJ45, MOS with Heatsink, CPU Heatsink)
Optional Adapter Board: 8.ZRT.50-1646-01-LEF
