R1 RK3588 Core Board

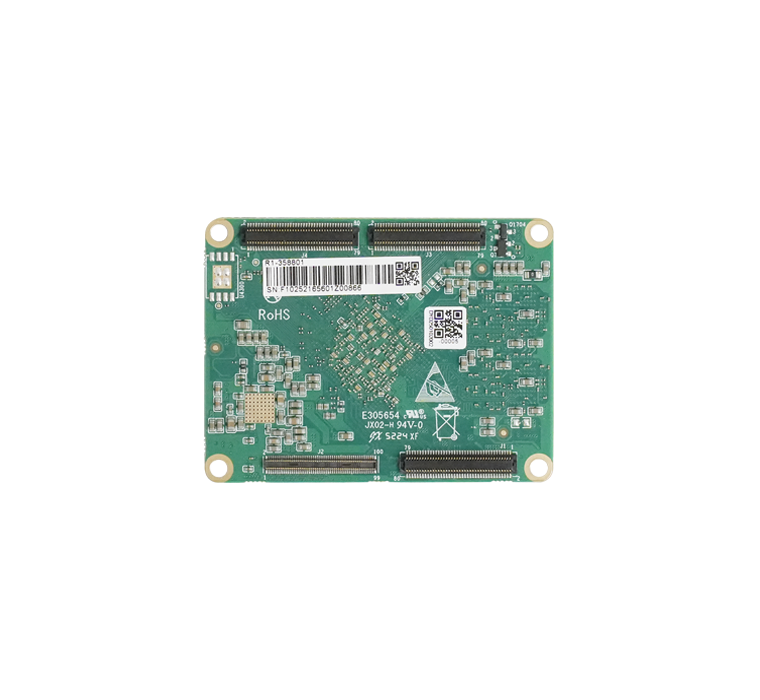

The R1-358801 core board is equipped with the high-performance Rockchip RK3588 octa-core 64-bit processor built on an advanced 8nm process. It integrates 4 × Cortex‑A76 (big cores) + 4 × Cortex‑A55 (little cores), with a maximum frequency of 2.4GHz and TDP ranging from only 0.4 to 12W, delivering powerful computing power while maintaining excellent energy efficiency. Measuring merely 66×50mm, this core board serves as an ideal ultra-compact ARM embedded computing platform.

The core board comes with onboard 4GB LPDDR4 RAM and 32GB eMMC storage, featuring a compact and reliable integrated design. Its standout strength lies in multimedia capabilities: HDMI2.1 output supports up to 8K@60FPS or 4K@120FPS; MIPI-DSI supports up to 4K@60FPS; HDMI2.0 input enables video capture. For video processing, it supports 8K@30FPS encoding (H.264/H.265), and decoding at 8K@60FPS (H.265/VP9), 8K@30FPS (H.264), and 4K@60FPS (AV1).

In terms of expansion and interfaces, it provides PCIe 3.0 (2 × x2 lanes + 1 × x4 lanes + 4 × x1 lanes), 2 × GMAC Gigabit Ethernet ports, 3 × SATA3.0, 3 × USB3.1 Gen1, 4 × USB2.0, 1 × 2-channel I2S, 15 × GPIO, 8 × UART, 4 × I2C, 3 × PWM, 1 × SDMMC, plus an independent watchdog, offering a comprehensive interface set. The baseboard supply voltage is 4V (±5%). Operating temperature ranges from 0~60℃, and storage temperature is -20~70℃. It supports Android and Linux systems. Widely deployed in ARM embedded scenarios such as AIoT edge computing, intelligent vision, industrial control, digital signage, and video processing.
